MS200S Rapid Vaporizer Instrument & MY702-4 Multi-Channel Automatic Liquid Sampler
| FOB Price: | 1.00 - 2.00 USD/Pack |
|---|---|
| Payment Terms: | T/T |
Related products from verified members
Quick Details
- Brand Name: MNK
- usage: chromatographic injection
- Weight: 3kg
- Temperature range: 5-230
- Power supply: AC
Specifications

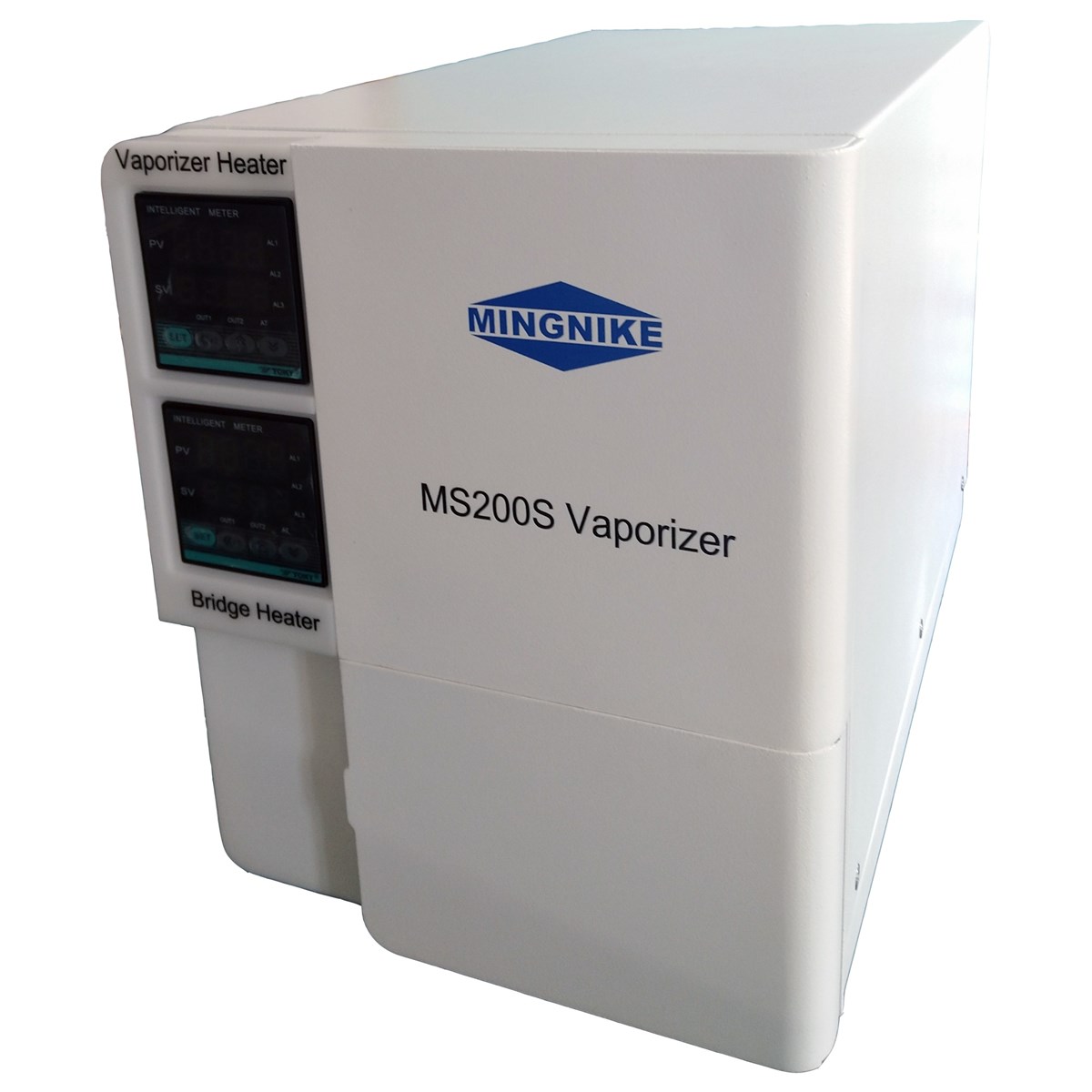

MS200S vaporizer is used for pretreatment of liquid hydrocarbon substances before analysis, determination of C1-C5 hydrocarbon components, conversion of liquid samples into gaseous hydrocarbons with equal composition, constant temperature, constant pressure and flow-rate-controllable for rapid gasification and chromatographic injection.
Maximum injection pressure of liquid sample: 2.75MPa
Maximum injection pressure of gas sample: 2.07MPa
Minimum injection pressure: 0.69MPa
Heating temperature control range: room temperature + 5-230 ℃
Tracing temperature control range: room temperature + 5-230 ℃
Temperature control accuracy: ±0.1℃
Flow rate range: 0-100ml/min
Flow accuracy: 0.1ml/min
Ambient temperature: -18-65 ℃
Multi-channel automatic liquid samplers are used to automatically inject pressurized liquid sample (LPG) into the analyzer in batches. It is mainly used for the analysis of petrochemical liquids. the research shows that the automatic sampler has a high degree of automation and good continuity, and the correlation coefficient of the standard curve is more ideal than that of the manual sampling analysis. In order to reduce the error of the operator in sampling, the automatic sampler has been widely used in gas chromatography analysis.
Technical parameters:
Number of injector channel: 4/6
Maximum gasification temperature: 230℃
Heating temperature control range: room temperature + 5-230 ℃
Tracing temperature control range: room temperature + 5-230 ℃
Temperature control accuracy: ±0.1℃
External interface: serial port, touchpad
Power supply: 220 V 50Hz
Power: 100 w
Dimensions: 400*255*300mm (4 channel s)
Net weight: 20 kg
Number of injector channel: 4/6
Maximum gasification temperature: 230℃
Heating temperature control range: room temperature + 5-230 ℃
Tracing temperature control range: room temperature + 5-230 ℃
Temperature control accuracy: ±0.1℃
External interface: serial port, touchpad
Power supply: 220 V 50Hz
Power: 100 w
Dimensions: 400*255*300mm (4 channel s)
Net weight: 20 kg
