Jwipc Technology Co., Ltd.
China Manufacturer with main products: Embedded Computer, Mini PC |
AMD Motherboard A300I JWIPC Technology Co., Ltd
| FOB Price: | 50.00 - 800.00 USD/Piece |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
Quick Details
- Brand Name: JWIPC
- COLOR: AMD Motherboard A300I
- Material: AMD Motherboard A300I
- Size: AMD Motherboard A300I
- Sample time: AMD Motherboard A300I
Specifications

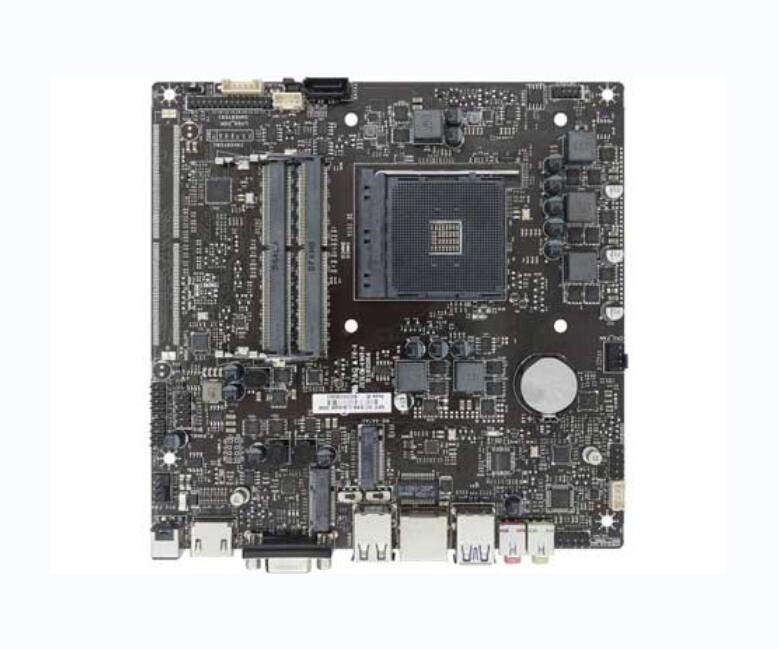

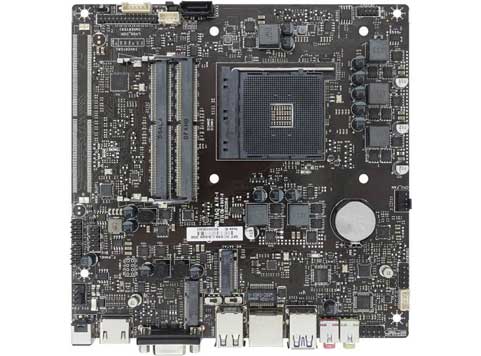

to meet customers' different motherboard application requirements, JWIPC launched A300I consumer motherboard based on AMD 300 processor. The motherboard supports dual-channel DDR4 memory and NVME mode storage. A300I also supports HDMI and VGA dual display output, which can meet the display needs of consumer motherboards.
SPECIFICATION of AMDITXMOTHERBAORD A300I
Motherboard Chip
Processor
AMD A300
Audio
Realtek ALC662
Network
Realtek RTL8111H
Processor Specifications
CPU Model
AMD Bristol/Raven/Picasso/Renoir
CPU Platform
Socket AM4 65W
Memory Specifications
Memory Type
DDR4 2400MHz/2666MHz/2933MHz
Memory Slot
2DDR4 so-DIMM
Expansion
WiFi Slot
1M.2 2230 (Support WiFi/BT)
SSD Slot
1M.2 2280 (Support SATA/NVME mode SSD)
I/O
Input
1DC (19V) Power input
Display
1HDMI
1VGA
Network
1RJ45
USB
2USB3.0
2USB2.0
Audio
1OUT, 1MIC
Plug-in
LVDS
1LVDS(30Pin 2.0mm), 1LCD_VOL_SELDisplay Voltage Jump Cap (5V/12V)
Backlight
1INVERTER, 1BKL_VOL Backlight Voltage Jump Cap (12V/19V)
FAN
14PIN CPU, 13PIN SYS/GPU
HDD Socket
1SATA3.0, 1SATA power
Onboard Pin
2USB2.0, 1PANEL
Audio Pin
1AUDIO, 1SPEAK
Function Pin
1JBIOS, 1JBAT, 1DEBUG
Other Parameters
Size
Thin Mini-ITX 170mm(W)170mm(L)
BIOS
128M flash ROM, AMI UEFI BIOS, PC Health, WOL
Accessories
Packing List
Motherboard 1 (20PCS)
HIGHLIGHTS of AMD MOTHERBAORD A300I
Thin Mini-ITX is 170mm(W)170mm(L). AMD Mini ITX Motherboard A300I install AMD A300 processor, Realtek ALC662 Audio and Realtek RTL8111H Network. Consumer montherboard's CPU is AMD Bristol/Raven/Picasso/Renoir, Socket AM4 65W. Memory is DDR4 2400MHz/2666MHz/2933MHz, 2DDR4 SO-DIMM slot.
Mini consumer motherboard has 1M.2 2230(Support WiFi/BT)and 1M.2 2280 (Support SATA/NVME mode SSD). I/O: 1DC(19V) Power input, 1HDMI, 1VGA, 1RJ45, 2USB3.0, 2USB2.0, 1Out,1Mic. Plug-in: 1LVDS(30Pin 2.0mm),1LCD_VOL_SELDisplay Voltage Jump Cap(5V/12V), 1Inverter,1BKL_VOL Backlight Voltage Jump Cap (12V/19V), 14 PIN CPU, 13 PIN SYS/GPU, 1SATA3.0, 1SATA power, 2USB2.0, 1Panel, 1Audio, 1Speak. BIOS: 128M flash ROM, AMI UEFI BIOS, PC Health, WOL
Jwipc Is a professional iot hardware company, we provide, all in one computer,,Mini itx amd Etc. Formore info, please feel free to contact us!
