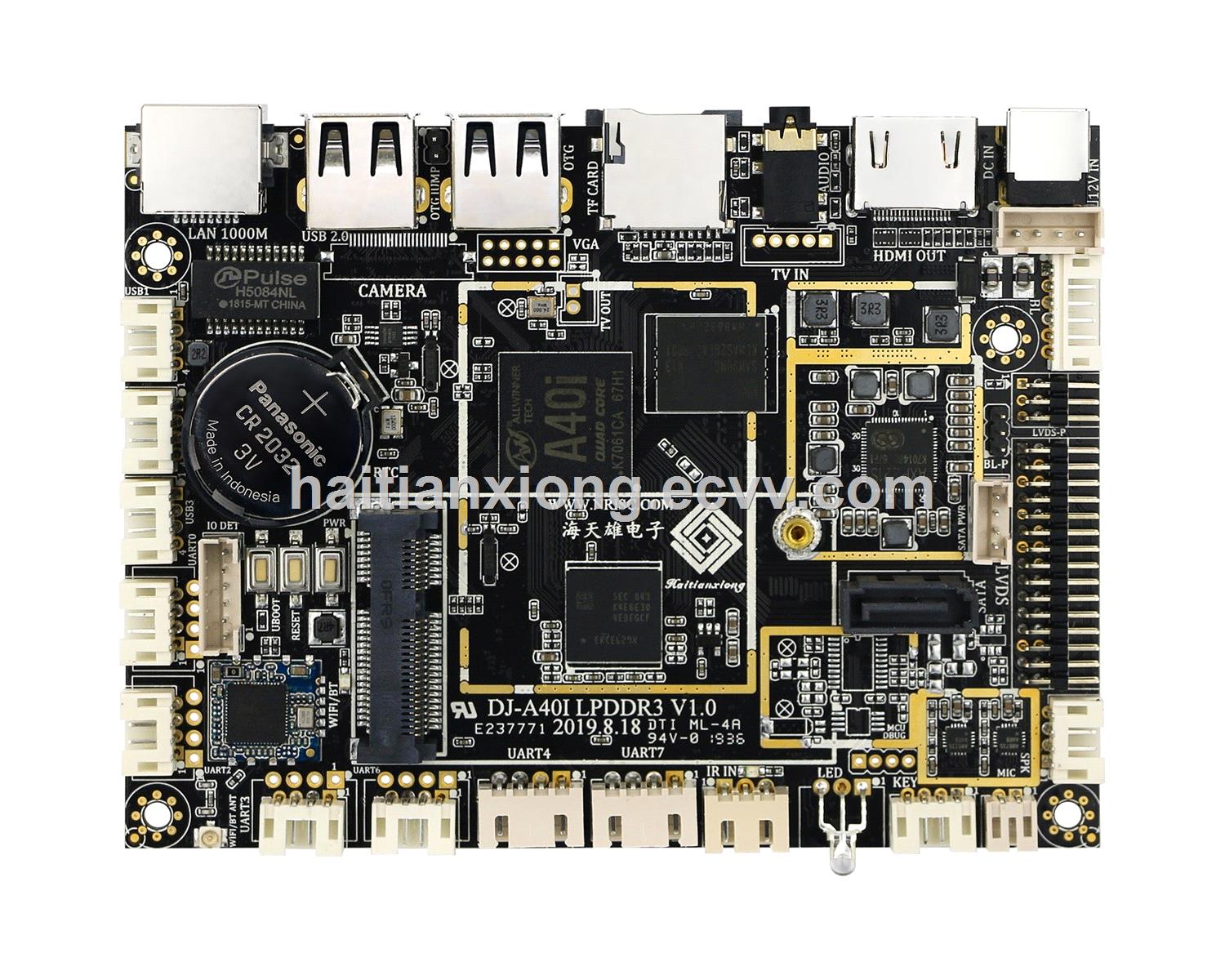

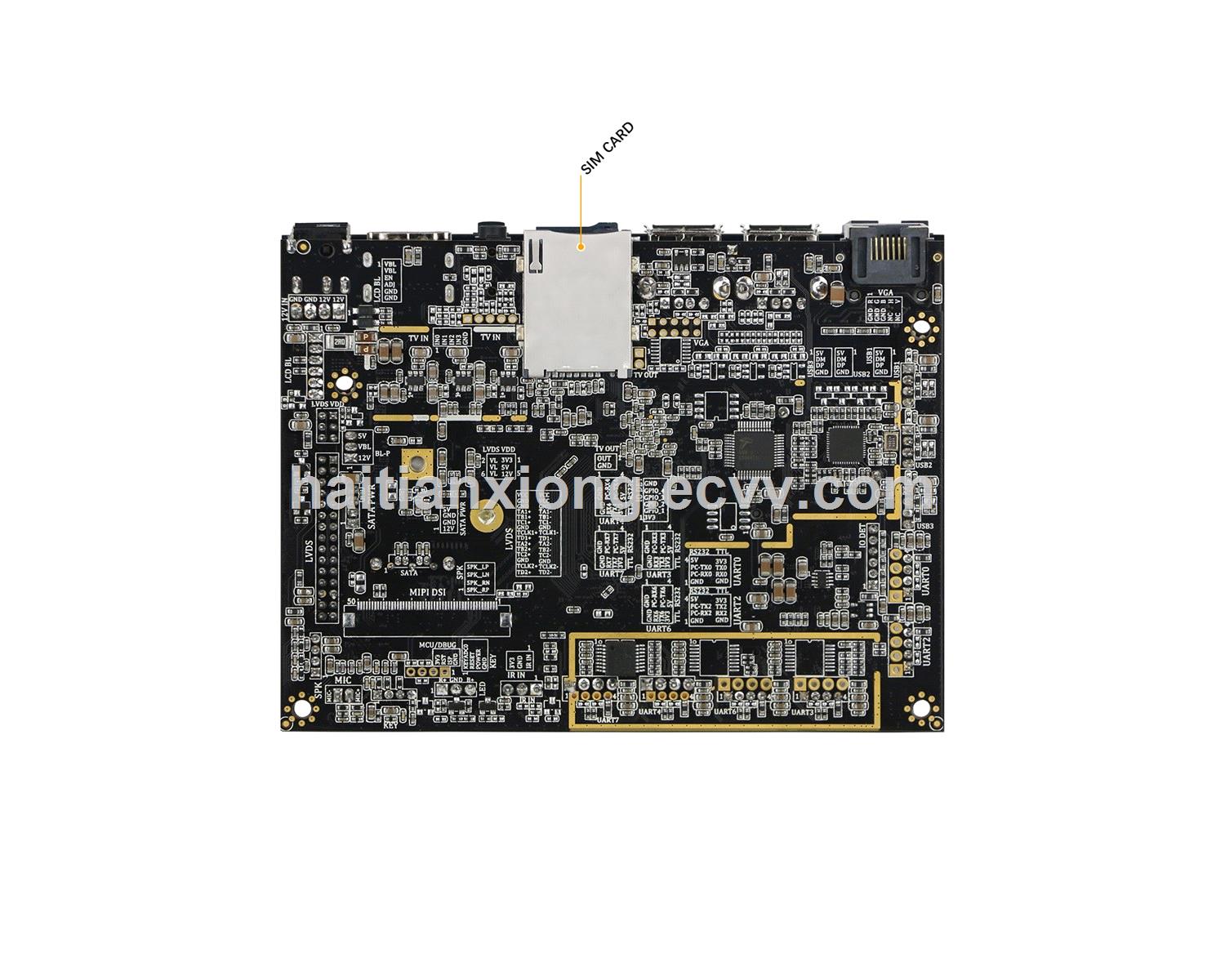

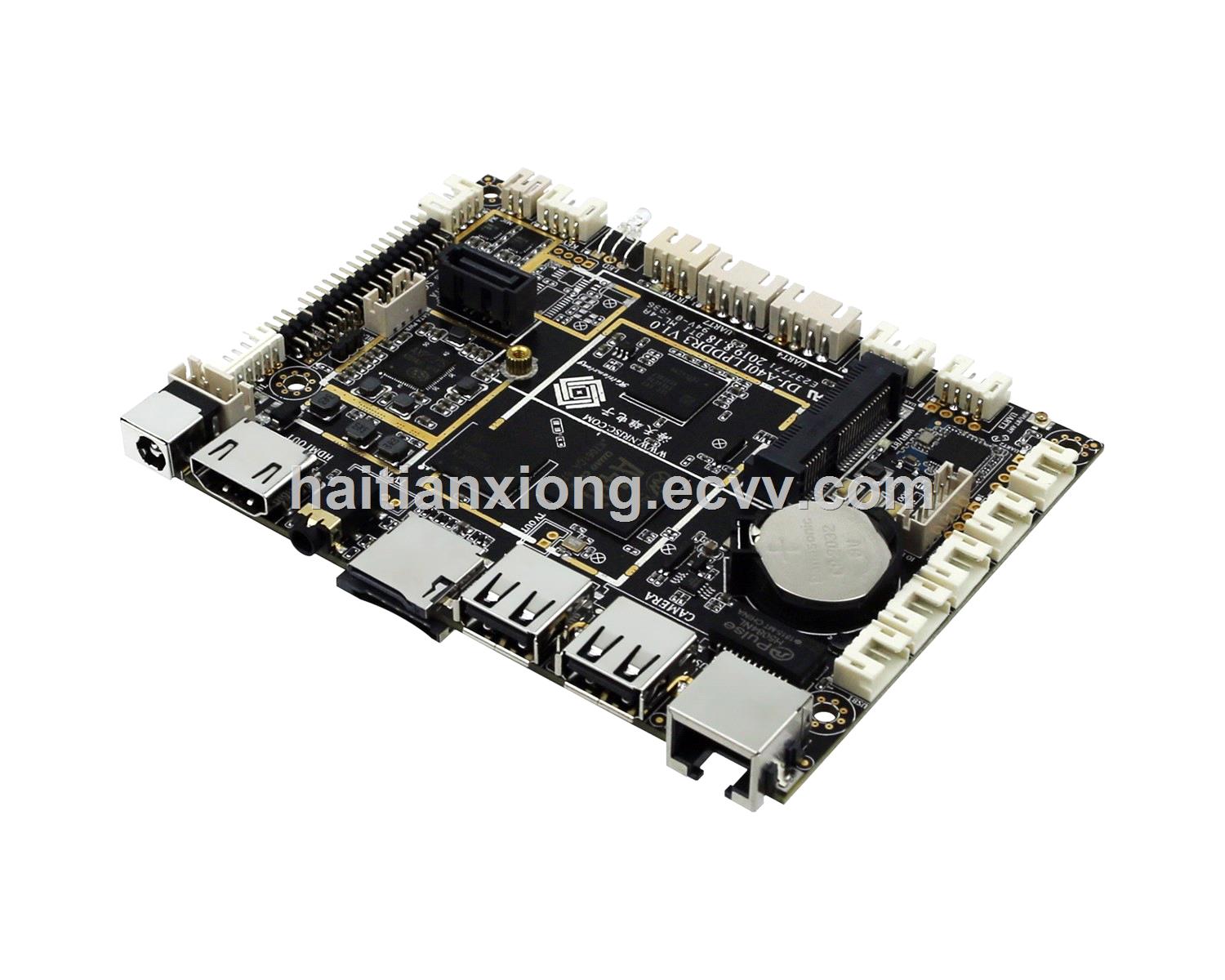

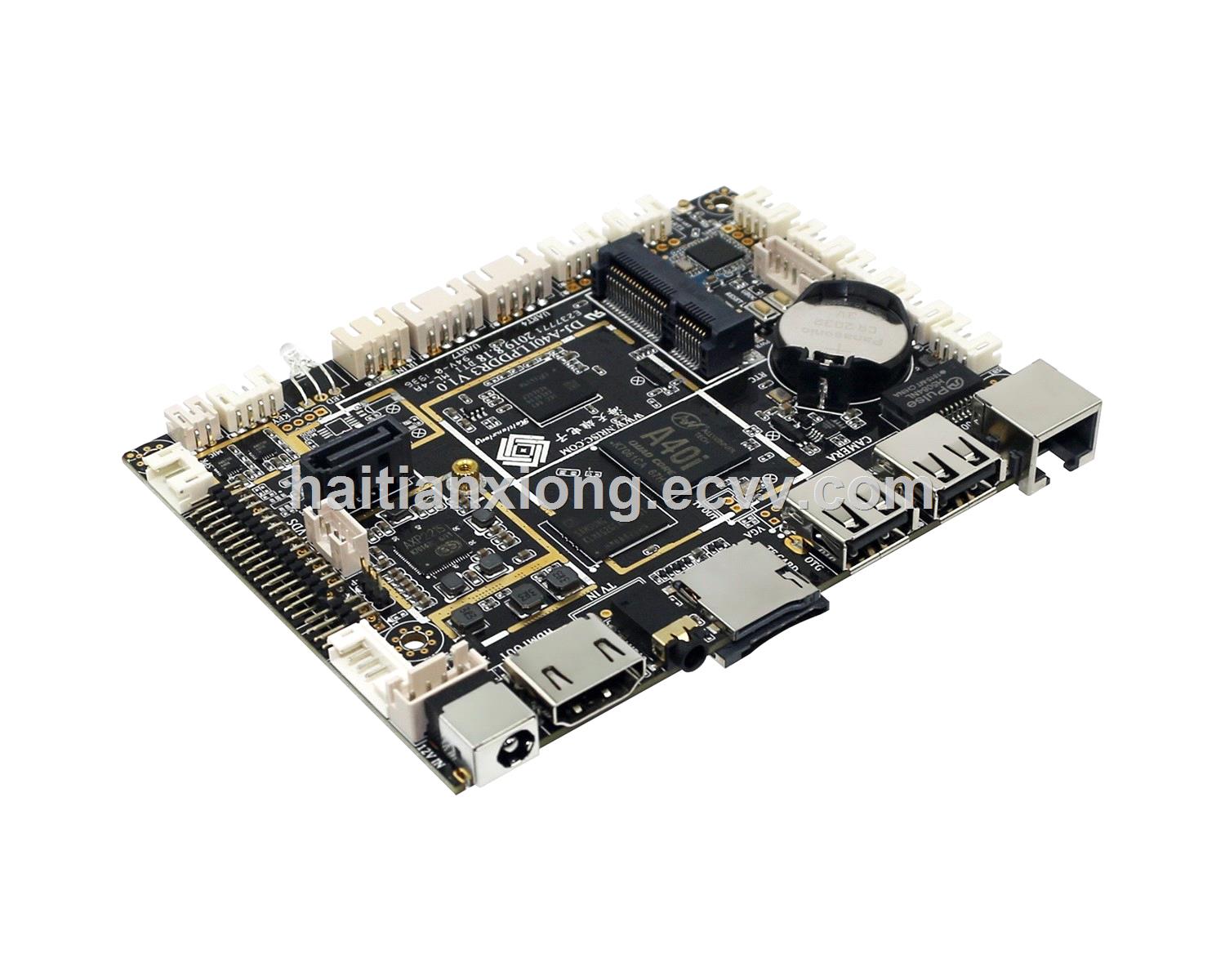

Small Size Arm Single Board Computer Onboard A40I Process Option Android & Linux OS

FOB Price:	41.00 - 58.00 USD/Piece
Supply Ability:	1,000,000 Piece(s) per Year
Shipping:	Shenzhen
Payment Terms:	T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shenzhen in China

Quick Details

Brand Name: haitianxiong
Type: Embedded Industrial Motherboard
Products Status: Used
aluminuine frame: main board
Memory Capacity: 1GB
Model Number: DJ-A40I
Dimensions (W x D): 118*88mm
CPU: Allwinner ARM Cortex-A7 A40i Quad Core processor, freq.1.2GHz
GPU: Mali400 MP2
RAM: 1GB DDRIII
Memory: 8GB
Operation System: Android 7.1 and Linux3.10

Specifications

Introduction

DJ-A40IE is a small form-factor industrial Android Motherboard based on Allwinner Cortex-A7 A40i Quad Core processor, frequency up to 1.2GHz, this board brings powerful video and audio processing to your application, and offers rich interface such as LVDS, HDMI, eDP, LAN, UART, USB, GPIO, especially suitable for small size equipment.

It ideal for Smart Embedded Device, Self-service terminal, IoT device, AI edge computer, Medical Device, Smart Home, Digital Signage, Industrial control products and more.

Features

3.5" industrial mainboard with CPU Cooler, platform over 10 years lifecycle

Allwinner ARM Cortex-A7 A40i Quad Core up to 1.2GHz for industrial processor platform

Onboard 1GB DDRIII Memory and 8GB eMMC

Support single/dual LVDS Out up to 1920 x 1080@60fps, HDMI1.4 Out at 1080p@60Hz, 4 Lanes MIPI DSI Out

on-chip Mail400 MP2 GPU, support OpenGL ES2.0/OpenVG 1.1, HD H.264 video encoder up to 1080p@45fps

Onboard WiFi/BT modules, mini-PCIE for 4G option with SIM slot

Support Android7.1 and Linux3.10

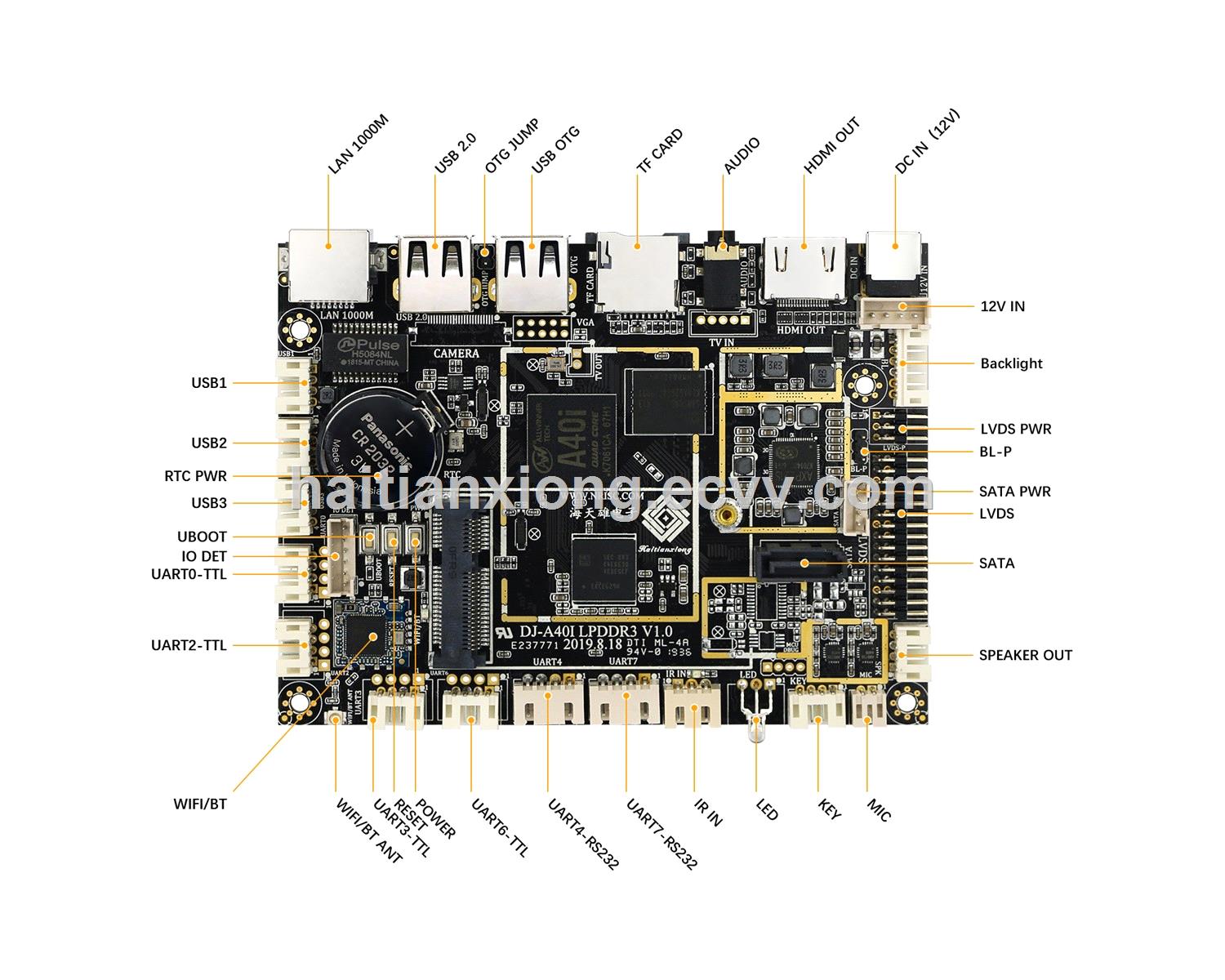

Small size Arm Single Board Computer onboard A40I process option Android and Linux OS

CPU	Allwinner ARM Cortex-A7 A40i Quad Core processor, freq.1.2GHz
GPU	Mali400 MP2, Supports OpenGL ES 2.0, Open VG1.1, HD video encoder
Memory	Onboard 1GB DDR3L(optional 2GB)
Storage	Onboard 8GB eMMC Nand Flash(optional 16GB/32GB...)
TF Card Slot	1x TF Card Slot, support 2GB/4GB/8GB/16GB/32GB
SATA	1x SATA Slot with Power supply slot, support SATA 1.5Gb/s and SATA 3.0Gb/s
Ethernet	1x RJ45 LAN, 10/100/1000Mbps 1x Mini PCIe slot with SIM Card Slot, support 3G/4G Onboard Wi-Fi/BT Module, support 802.11 b/g/n and BT4.0
Display	1x Dual channels LVDS up to 1920*1080(30Pin header) 1x Touch screen signal(I2C, 6PIN socket) 1x HDMI Out terminal
USB	1x USB2.0 Type A 1x OTG Type A (and as Host) 3x USB2.0 Pin header
UART	5x 4-wire RS232/TTL, Pin header (default 2x RS232 and 3x TTL) 1x 4-wire RS232/TTL, as debugging port
Audio	1x 3.5mm Head phone slot 1x MIC in(2Pin header) 1x Speaker Out (4Pin header) with power amplifier circuit, support left and right channel output, built-in 4Ω/20W, 8Ω/10W amplifier
Camera	1x CMOS Camera Interface, pin header
Other I/O	4x GPIO via pin header 1x Buttons (Reset Button, Power Button and UBoot button) 2x LEDs (red, blue) 1x IR circuit, support infrared remote control
RTC	Support
Sleep/Wake up	Support
Power Supply	DC-in 12V, 1x DC-in Slot, 1x 4Pin header
Temperature	Operating Temperature: -20℃ - 60℃ Humidity: 5%~95%RH, no condensation
Temperature	Storage Temperature: -40℃ - 85℃ Humidity: 5%~95%RH, no condensation
Dimensions (W x D)	118 x 88mm
OS	Android 7.1 and Linux3.10
