CNC Internal Grinding Machine Tool

FOB Price:	41100.00 - 54800.00 USD/Set
Supply Ability:	100 Set(s) per Year
Shipping:	By sea FOB SHANGHAI
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	Waterproof film wrapped around, Wooden case packaged.

Quick Details

Weight: 2800
Brand Name: Changyi
CNC or Not: CNC
Type: Internal Grinding Machine
Condition: New
After-sales Service Provided: Engineers available to service machinery overseas
Certification: ISO9001
Dimension(L*W*H): 2363x1860x2000
Power(W): 30KW
Voltage: 380V 50Hz
Model Number: MK2110
Max. Grinding Length: 150mm
Max. Grinding Diameter: 100mm
work piece swing diamter: 260mm

Specifications

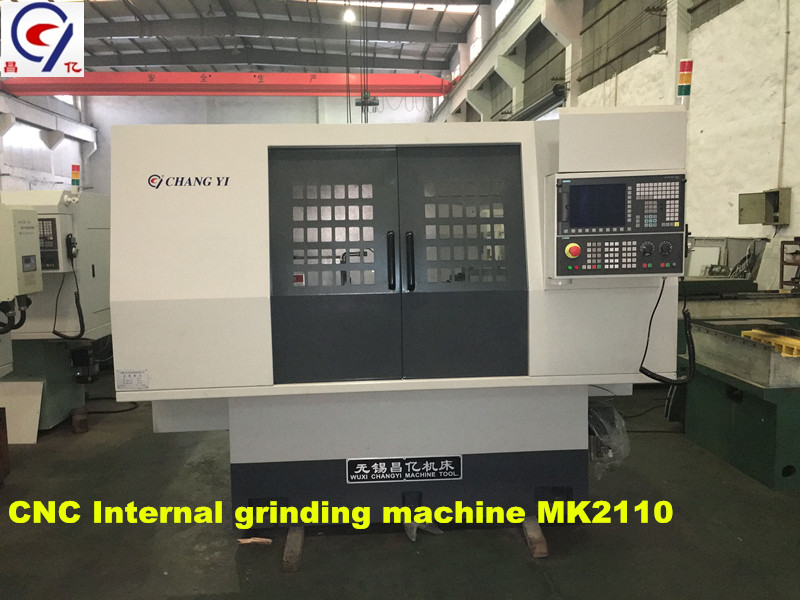

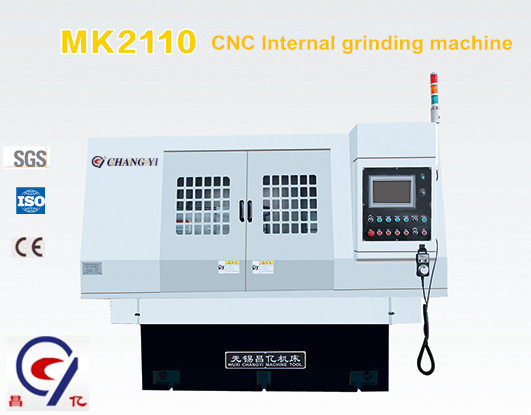

MK2110 CNC Internal grinding machine Tool

Processing arrange
Grinding diameter:Φ5-φ100mm
the Maximum grinding depth:150mm

Swing diameter of work piece inside the shell:260mm
Swing diameter of work piece outside the shell:480mm
Maximum rotation angle of lather head:20°
Rotating speed of work piece: 0-800 r/min stepless
Rotating speed of grinding wheel:0-420000 r/min stepless
Motor power of X-axis servo motor:1kw
Resolution of X axis: 0.001mm
Maximum stroke of X axis: 150mm
Motor power of Z-axis servo motor:2kw
Resolution of X axis: 0.001mm
Maximum stroke of Z axis: 500mm
Power of work piece motor: 0.45/0.75kw
Power of grinding wheel motor:7-9kw
Total power of machine tool: 12.75kw
the weight of machine tool:2500kg
the machine overall dimension:2363x1860x2000mm

Machining precision
Roundness of internal hole:2μm
Cylindricity of internal hole:3μm
Surface roughness of internal hole:Ra0.4 μm

this machine is a two axis (X-axis,Z-axis) CNC Internal grinding machine tool, which is mainly used to grind the inner hole, step hole,inner end face and outer end face of the work piece. the grinding cycle is completed automatically (with automatic feed, withdrawal, rough grinding and fine grinding); Automatic dressing of grinding wheel, automatic compensation,etc.)

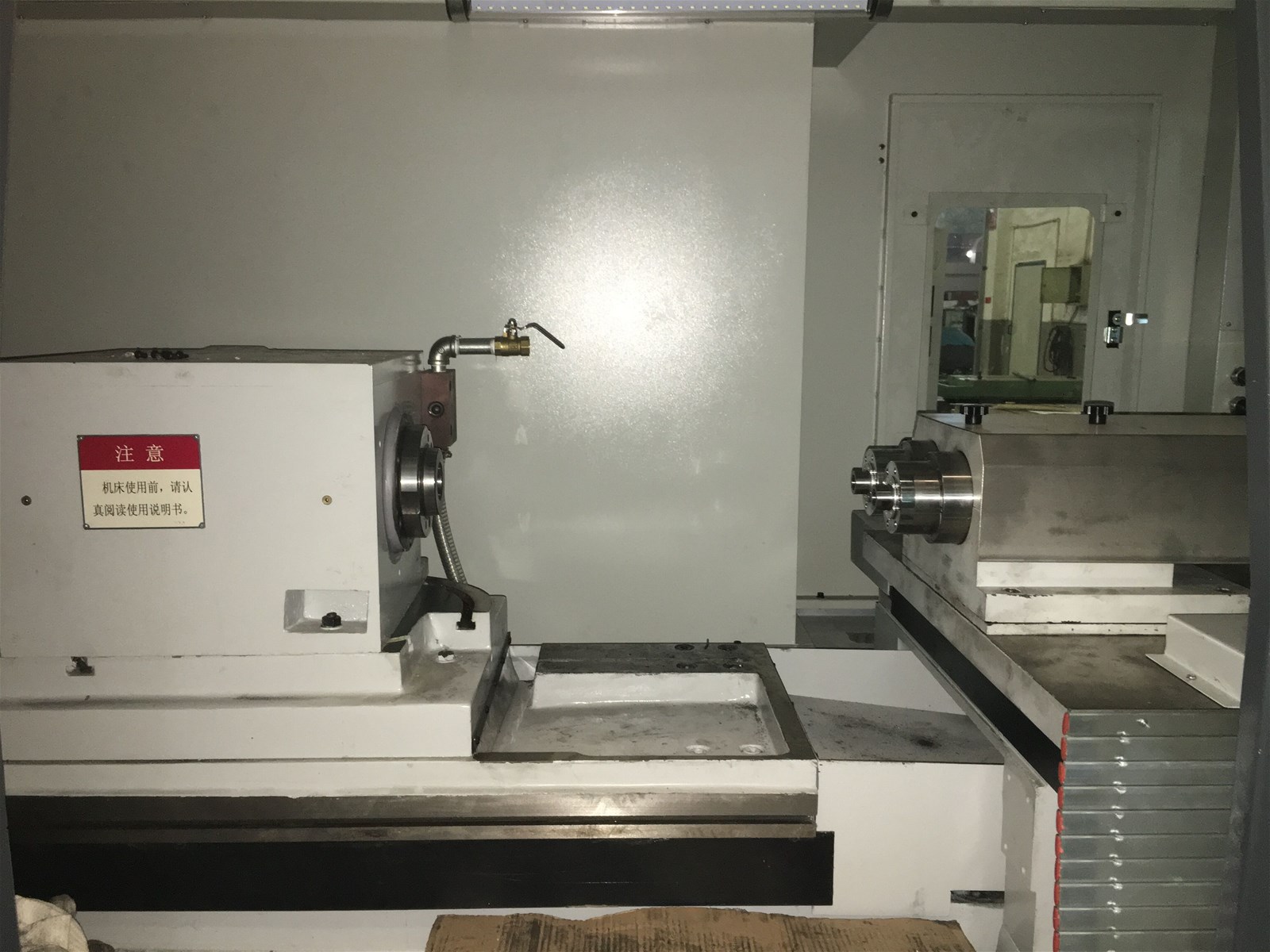

the machine tool adopts structure mode that the work piece box do the forward and backward feed movement and the worktable (grinding wheel frame) do the left and right movement. the feeding guide rail of the work piece box and the reciprocating guide rail of the grinding wheel frame are linear rolling guide rails. and the movement is driven by the servo motor through ball screw.

the rotation speed of work piece spindle and grinding wheel motorized spindle is controlled by frequency converter to realise stepless speed regulation.

the work piece fixture use a hydraulic power chuck, and other matching fixtures can be configured according to the particularity of the user'S work piece.

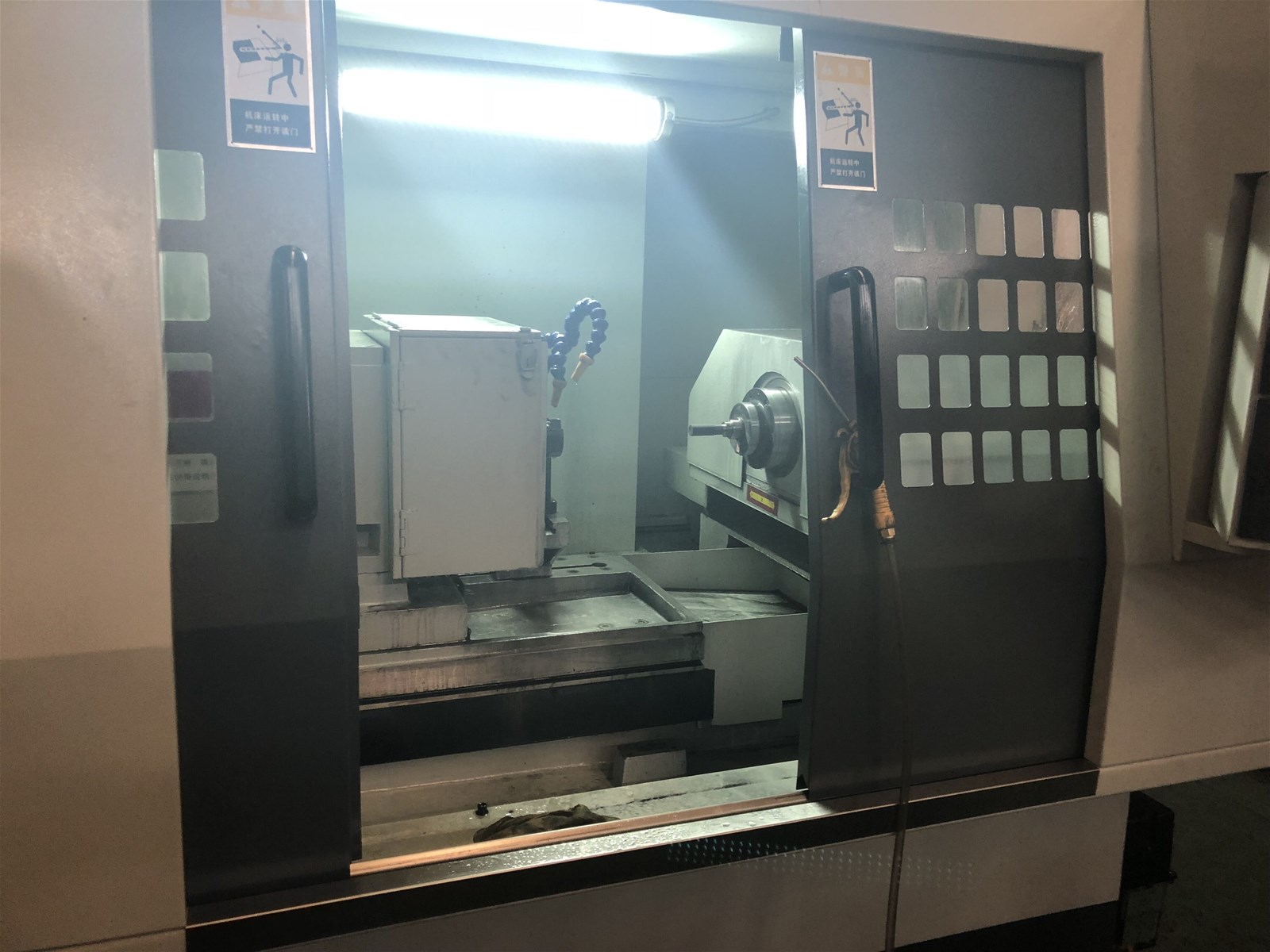

the machine tool adopts a fully enclosed enclousure, with a front rotary operation box and a rear backpack electrical cabinet.
