Cowave Communication Technology Co., Ltd.
China Manufacturer with main products: Satellite Terminal, Land Based Satcom |
AUTOMATED PORTABLE SATCOM TERMINAL
| FOB Price: | 10.00 - 100.00 USD/Set |
|---|---|
| Payment Terms: | L/C, D/P, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
Quick Details
- Brand Name: Cowave
- Size: /
- Type: /
- Material: /
- Color: /
Specifications

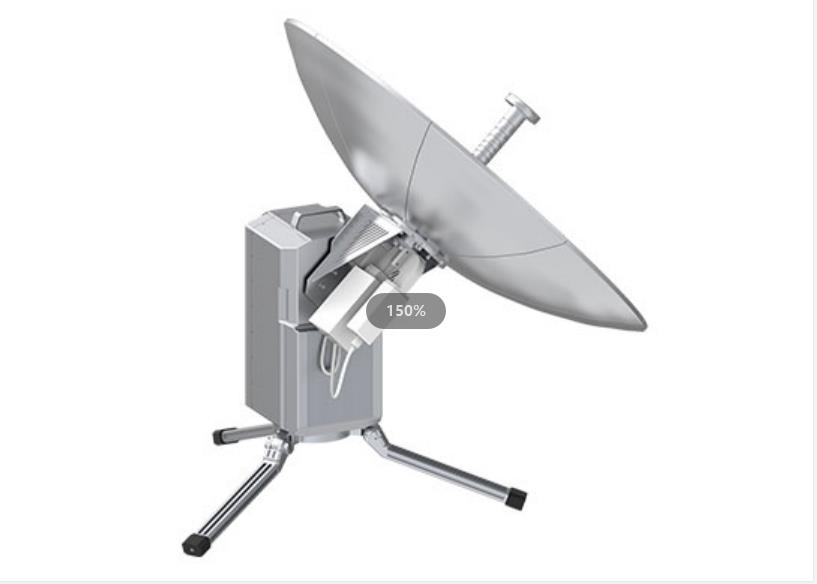

CowaveSatellite transportable terminal Adopts innovative mechanical structure design, is easy to assemble and store, and can be quickly deployed in various environments. after startup, the equipment will automatically align with the satellite and enter the network, and establish a satellite link automatically, without requiring any professional knowledge of the operator.
Specification of Automated Portable SATCOM Terminal
DIMENSION |
390mmx180mx480mm |
WEIGHT |
18Kgs with battery |
ANTENNA APERTURE |
0.8M |
ANTENNA TYPE |
Forward-fed dual reflector antenna |
ANTENNA MATERIAL |
Carbon fiber |
POLARIZATION MODE |
Linear polarization |
XPI |
≥ 30dB |
WORKING FREQUENCY |
Sending:14.0GHz~14.5GHz, Receiving:12.25GHz~12.75GHz |
BUC POWER |
8W/16W |
SUPPORT SERVICES |
Voice, Video, Picture, Text, Short Video Message, Data |
DATA RATE |
32Kbps4Mbps |
SETUP TIME |
≤ 3Min |
MODULATION |
QPSK,8PSK |
CODING |
LDPC (1/2, 3/4) |
THRESHOLD EB/N0 |
2.5dB(QPSK 1/2), 4dB(QPSK 3/4), 6dB(8PSK 3/4) |
BIT ERROR RATE |
≤ 10^-6 |
DATA INTERFACE |
RJ45,Wi-Fi |
SECURITY ( OPTIONAL ) |
AES data encryption, RSA Key exchange |
OPERATING TEMPERATURE |
-30℃ ~ +55℃ |
PROOF LEVEL |
IP65 |
BATTERY CAPACITY |
19200mAh |
EXTERNAL POWER SUPPLY |
Adapter 220V AC, Power Box 24V DC |
Features ofManpack satellite terminal
01
Innovative mechanical structure, one-click to connect the network and build link;
02
Easy to assemble and store, can be deployed quickly in various environments;
03
the terminal can be aligned and incorporated into the satellite network and establish satellite links automatically
A fully automated portable SATCOM terminal has a 0.8m aperture antenna, which can provide up to 4Mbps service transmission rate.
forSatellite transportable terminal cost and more info about, contact us.
There are many, but we are one of the best choices for you.
