High Strength SA-YQ40 Hydraulic Puller for Pulling Overhead Transmission Line Conductor & OPGW

FOB Price:	30000.00 - 45800.00 USD/Set
Supply Ability:	100 Set(s) per Month
Shipping:	Port:Ningbo,Shanghai/Transportation: Ocean,Land,Air
Payment Terms:	L/C, T/T, Other, Paypal

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Industrial Packing

Quick Details

After-sales Service Provided: No overseas service provided
Condition: New
Brand Name: MARSHINE
Weight: 2500kg
color: CUSTOMIZED
Model Number: SA-YQ40
Maximum Traction Force (kN): 40
Continuous Tractive Effort (kN): 35
Maximum Pulling Speed (km/h): 5
Number of Bullwheel Grooves: 7
Engine Power / Speed (kW/rpm): 60/2000
Dimensions (mm): 3500X 2000X2300
Engine: Cummins water cooled engine
Main Variable Pump and Main Motor: Rexroth (BOSCH)
Main Hydraulic Valve: Rexroth (BOSCH)
Radiator: AKG

Specifications

Our SA-YQ40 Hydraulic Puller has an overload automatic protection function. the maximum traction force for conductor stringing operation is able to be preset. Another function is the automatic action of spring applied hydraulically released brake. Owing to it, our product is safe to be operated, in case that the motor suddenly turns off, or other reasons cause the hydraulic failure.

in use of this SA-YQ40 Hydraulic Puller, both pulling speed and traction force are steplessly adjustable. the pull in the rope can be clearly displayed on the line pull gauge. Moreover, our product employs the steel wire rope automatically winding device, for automatic rope arrangement as well as easy loading and unloading.

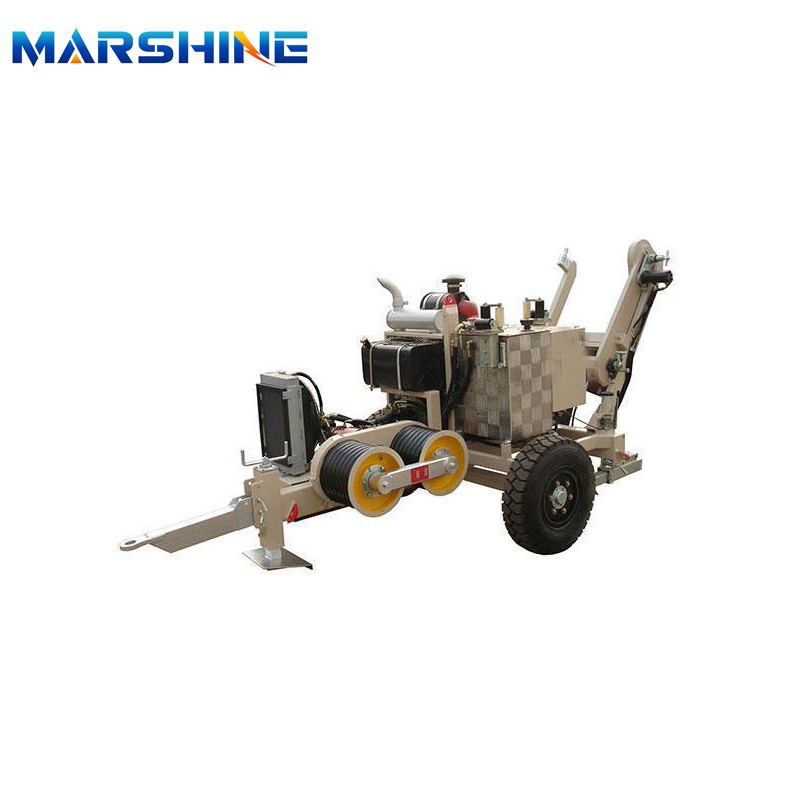

High Strength SAYQ40 Hydraulic Puller for pulling overhead transmission line conductor and OPGW

Application

It is applied to traction in the process of paying off the wire, earth wire, OPGW cable and ADSS cable for Overhead Transmission Lines.

Feature:

1. Negative self-acting hydraulic brake, in case of hydraulic failure ensure to safety.
2. Hydraulic dynamometer with set-point and automatic control of maximum pull, automatic overload protection.
3.Pressure loss automatic braking device is used to ensure the safety of system operation when loss of pressure in case of the engine suddenly stops or other causes.
4. Hydraulic oil cooling system.
5. with pull pre-setting system.
6.Hydraulic traction rope clamping device, automatic rope,convenient to loading and unloading.
7. on board reel winder with automatic level wind, suitable for standard reel mod.
Remarks: we can supply all kinds of stringing equipment according to customers' requirements.

Main Specifications

Model	SA-YQ40 Hydraulic Puller
Maximum Traction Force (kN)	40
Continuous Tractive Effort (kN)	35
Maximum Pulling Speed (km/h)	5
Bullwheel Bottom of Groove Diameter (mm)	Φ400
Number of Bullwheel Grooves	7
Maximum Diameter of Suitable Steel Rope (mm)	Φ16
Maximum through Connector Diameter (mm)	Φ50
Engine Power / Speed (kW/rpm)	60/2000
Dimensions (mm)	3500 2000 2300
Weight (kg)	2500

Main Components

Engine	Cummins water cooled engine
Main Variable Pump and Main Motor	Rexroth (BOSCH)
Reducer	RR (Italian)
Main Hydraulic Valve	Rexroth (BOSCH)
Radiator	AKG
Hydraulic Instrument	WIKA
Suitable Drum	Model GSP1400 (Item number: 07125C)

Quality Control

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment. All products will 100% test before delivery to ensure the quality.

Structure

Trailer type structure, rigid scaffold, attractive appearance.

Remarks

We can supply all kinds of stringing equipment according to customers' requirements.
