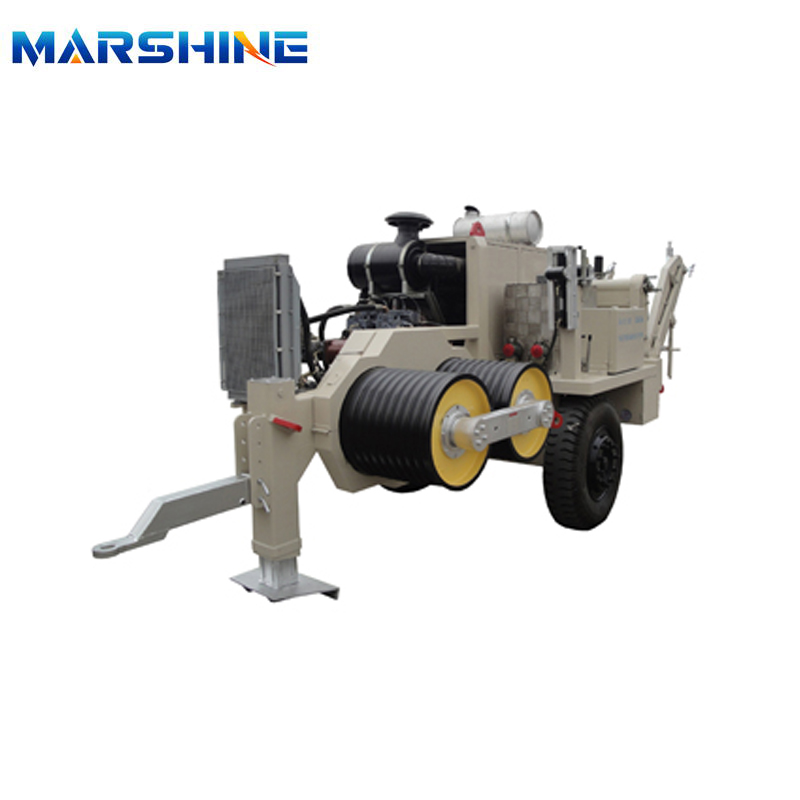

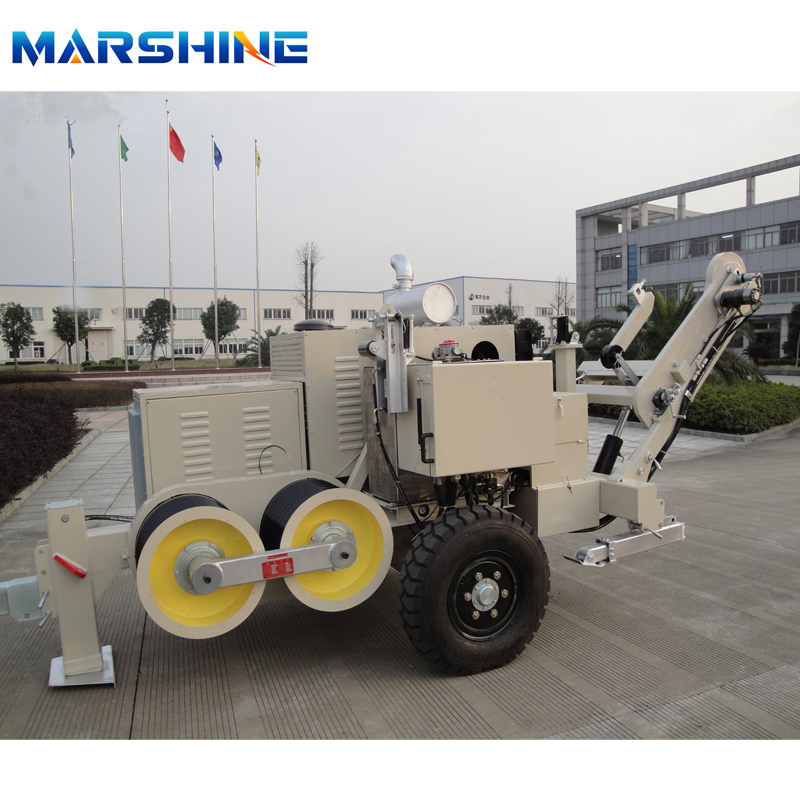

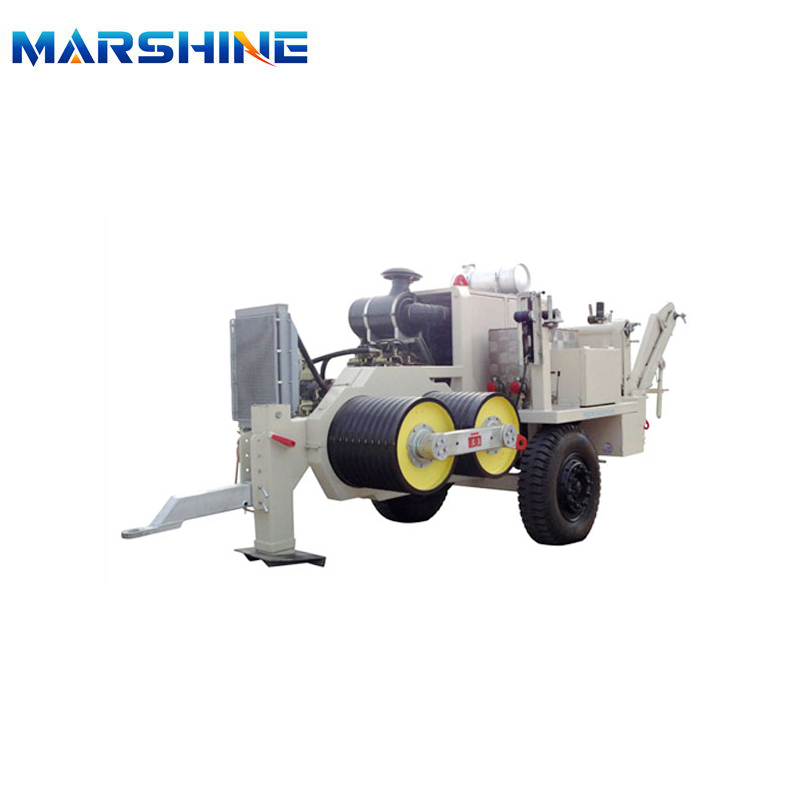

SA-YQ300 Hydraulic Puller for Pulling Cable on Overhead Power Line
| FOB Price: | 115000.00 - 140000.00 USD/Set |
|---|---|
| Supply Ability: | 300 Set(s) per Month |
| Shipping: | Port:Ningbo,Shanghai/Transportation: Ocean,Land,Air |
| Payment Terms: | L/C, T/T, Other, Paypal |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | Industrial Packing |
Quick Details
- After-sales Service Provided: No overseas service provided
- Condition: New
- Brand Name: MARSHINE
- Weight: 11500
- color: customized
- Model Number: SA-YQ300
- Maximum linepull (kN): 300
- Continuous linepull (kN): 250
- Maximum linespeed (km/h): 5
- Engine power: 298
- speed (kW/rpm): 2100
- Dimensions (mm): 5780X2350X2820
- Weight (kg): 11500
Specifications
Essential parameter
Maximum linepull (kN):300
Continuous linepull (kN):250
Maximum linespeed (km/h):5
Bullwheel bottom of groove diameter(mm):Φ960
Bullwheel grooves number: 10
Maximum suitable steelrope diameter (mm): Φ38
Maximum through connector diameter (mm): Φ80
Engine power /speed (kW/rpm):298/2100
Dimensions (mm):578023502820
Weight (kg): 11500
It is applied to traction in the process of paying off the wire, earth wire, OPGW cable and ADSS cable for Overhead Transmission Lines.
Feature:1. Negative self-acting hydraulic brake, in case of hydraulic failure ensure to safety.
2. Hydraulic dynamometer with set-point and automatic control of maximum pull, automatic overload protection.
3.Pressure loss automatic braking device is used to ensure the safety of system operation when loss of pressure in case of the engine suddenly stops or other causes.
4. Hydraulic oil cooling system.
5. with pull pre-setting system.
6.Hydraulic traction rope clamping device, automatic rope,convenient to loading and unloading.
7. on board reel winder with automatic level wind, suitable for standard reel mod.
Remarks: we can supply all kinds of stringing equipment according to customers' requirements.
Quality ControlWe have the complete production equipments and professional production team to manage the whole process from production to packing shipment. All products will 100% test before delivery to ensure the quality.
StructureTrailer type structure, rigid scaffold, attractive appearance.
RemarksWe can supply all kinds of stringing equipment according to customers' requirements.
the attached tools with machines:
SN |
Designation and Specification | Number | Remark |
|---|---|---|---|
| 1 | 10 set double end solid wrench | 1 | |
| 2 | 32-36 double end solid wrench | 1 | |
| 3 | 50-55 double end solid wrench | 1 | |
| 4 | 19-24 ratchet wheel wrench | 1 | Order number: 05104 |
| 5 | 10 set inner hexagon spanner | 1 | |
| 6 | 160mm gripping tongs | 1 | |
| 7 | 10 inch monkey wrench | 1 | |
| 8 | 4 inch plus driver | 1 | |
| 9 | 4 inch minus screw driver | 1 | |
| 10 | 2 pound hammer | 1 | |
| 11 | Filter wrench 70-130mm | 1 | |
| 12 | B series engine operation and maintenance manual | 1 | |
| 13 | SA-YQ40 hydraulic puller instruction for use | 1 | |
| 14 | SA-YQ40 hydraulic puller certificate of conformity | 1 |
