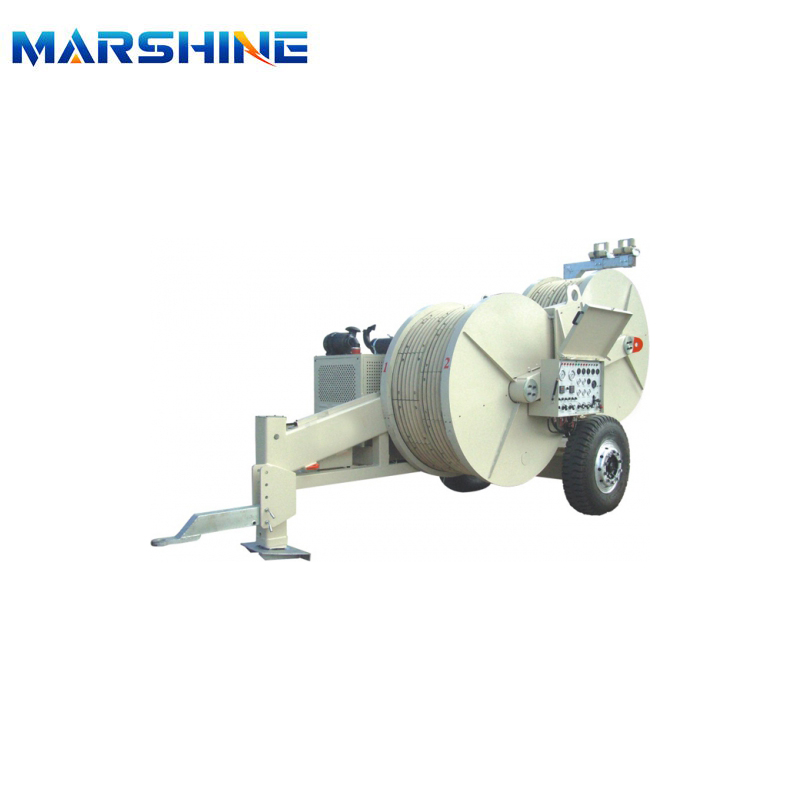

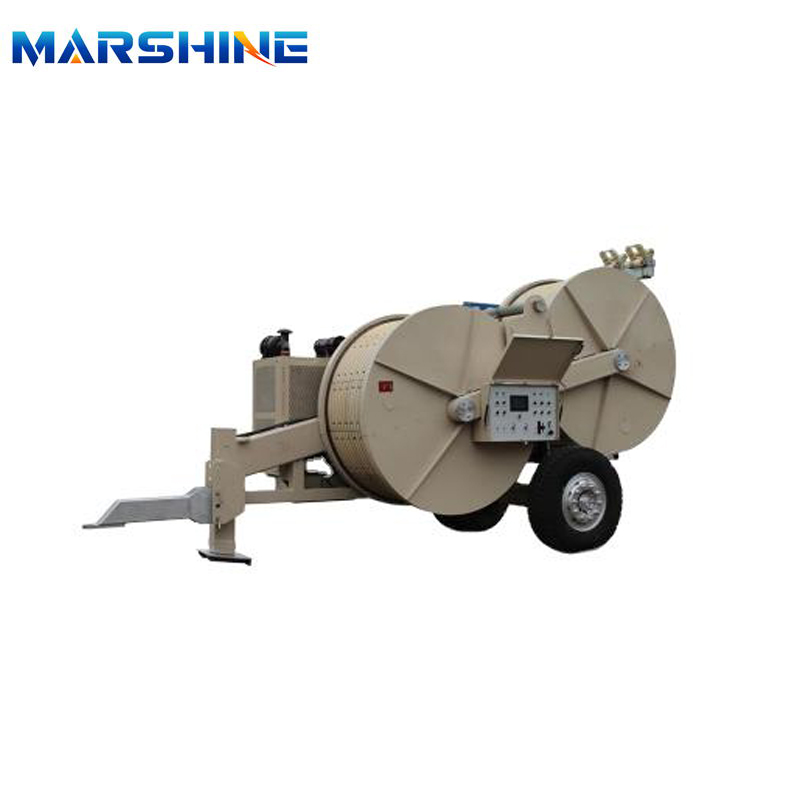

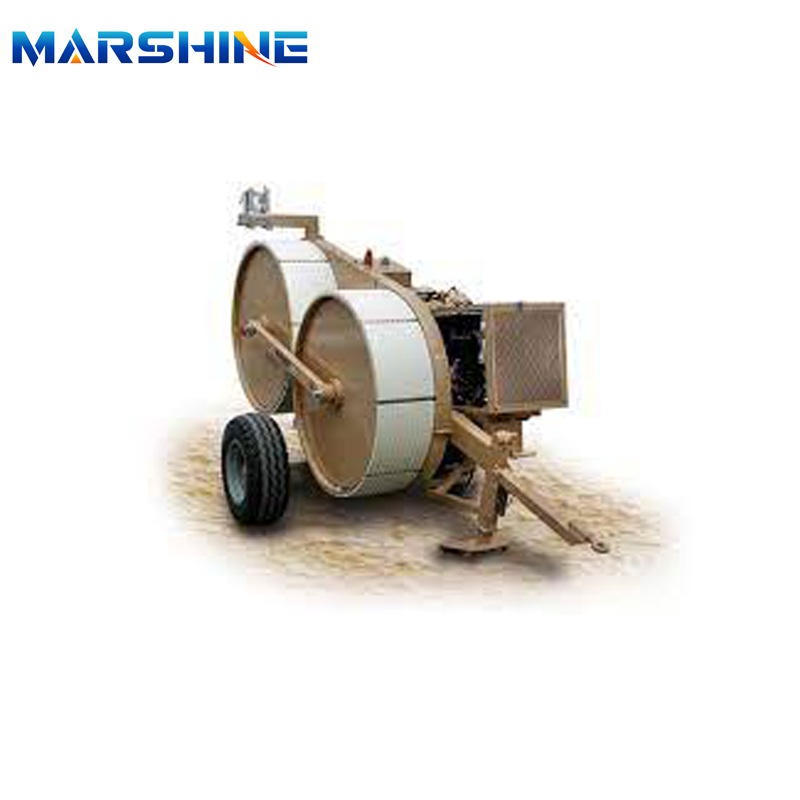

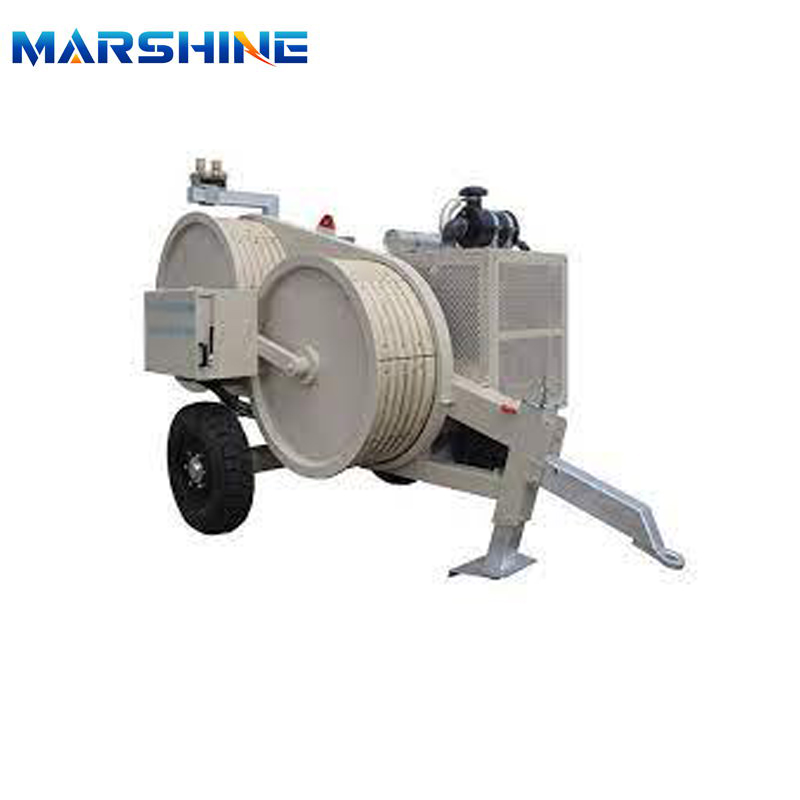

Hydraulic Tensioner SA-YZ2X55 of 10 Ton Tension Stringing Equipment

FOB Price:	45000.00 - 140000.00 USD/Set
Supply Ability:	300 Set(s) per Month
Shipping:	Port:Ningbo,Shanghai/Transportation: Ocean,Land,Air
Payment Terms:	L/C, Other, Paypal

In Stock

Inquiry Now

Related products from verified members

reinforcer hang tab

Price:

Min. Order:100000 Pieces
Yalong YL-701 Type Practical Operation Unit Boa...

Price:

Min. Order:
Hand Notcher

Price:

Min. Order:
Child Shopping Car

Price:

Min. Order:
Metal Square Pipe Automatic Polishing Machine

Price:65,000.00-75,000.00 RMB/Set

Min. Order:1 Set
Road Maintenance Truck (ZJY5090TYH)

Price:

Min. Order:
Machine Design

Price:

Min. Order:
GZV Tiny Electromagnetic Feeder

Price:200.00-2,000.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	Industrial Packing

Quick Details

After-sales Service Provided: No overseas service provided
Condition: New
Brand Name: MARSHINE
Weight: 7500
color: customized
Model Number: SA-YZ2X55
Max. Tension Force (KN): 2X55 or 1X110
Continuous Tension Force (KN): 2X50 or 1X100
Max. Stringing Speed(km/h): 5
Max. Pullback force (KN): 2X50 or 1X100
Max. Pullback speed (km/h): 2 X 2.1
Number of grooves: 2X5
Model of Engine: DEUTZ AIR COOLED
Power of Engine: 54 KW
Rotate Speed of Engine (rpm): 2500
Electrical system: DC24V

Specifications

Hydraulic Conductor Tensioner SA-YZ2X55 is used for stringing 2 conductors on overhead transmission line.

10 Ton Hydraulic Tensioner SAYZ2X55 for 2 bundled conductors

Item No.	07197
Model	SA-YZ 2X55
Max. Tension Force (KN)	2X55 or 1X110
Continuous Tension Force (KN)	2X50 or 1X100
Max. Stringing Speed(km/h)	5
Max. Pullback force (KN)	2X50 or 1X100
Max. Pullback speed (km/h)	2 X 2.1
Diameter of wheel (mm)	Φ1600
Number of grooves	2X5
Max. Conductor Diameter (mm)	Φ42.5
Model of Engine	DEUTZ AIR COOLED
Power of Engine	54 KW
Rotate Speed of Engine (rpm)	2500
Electrical system:	DC24V
Weight (kg)	7500
Dimension (m)	5.0 x 2.24 x 2.73

APplication: It is Suitable to string two bundled conductors or single conductoR in overhead Transmission line.
Features:

Closed hydraulic circuit, infinitely variable tension force control in both directions.
the max. Tension/pull back force for conductor stringing operation can be presetted, the tension /pull back force can be read from the tension gauge of machine.
Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure line safety
Hydraulic oil cooling system
Bull wheels lined with wear proof MC nylon lining segments
with 2 hydraulic power outlets to control 2 sets of hydraulic reel stands.
Hydraulic front jack
Mounted on trailer with rigid axle for towing at max. Speed of 15 km/h

Main components:

Engine: Deutz air-cooled diesel engine.
Main variable displacement pump and main motor: Rexroth (German)
Reducer: R.R. (Italian)
Main hydraulic valves: Rexroth (German)
Hydraulic Instrument: WIKA
Quick couplings: EMB
Radiator: AKG
