Ningbo Marshine Power Technology Co., Ltd.
China Manufacturer with main products: Hydraulic Wire Puller, Hydraulic Cable Tensioner, Stringing Block, Cable Pulling Winch, Ground Anchor, Gin Poles, Steel Cable Drum, Power... |
Home
>Products Catalog > Cable Pulling Winch > Honda Fast Speed Powered Gasoline Cable Pulling Winch

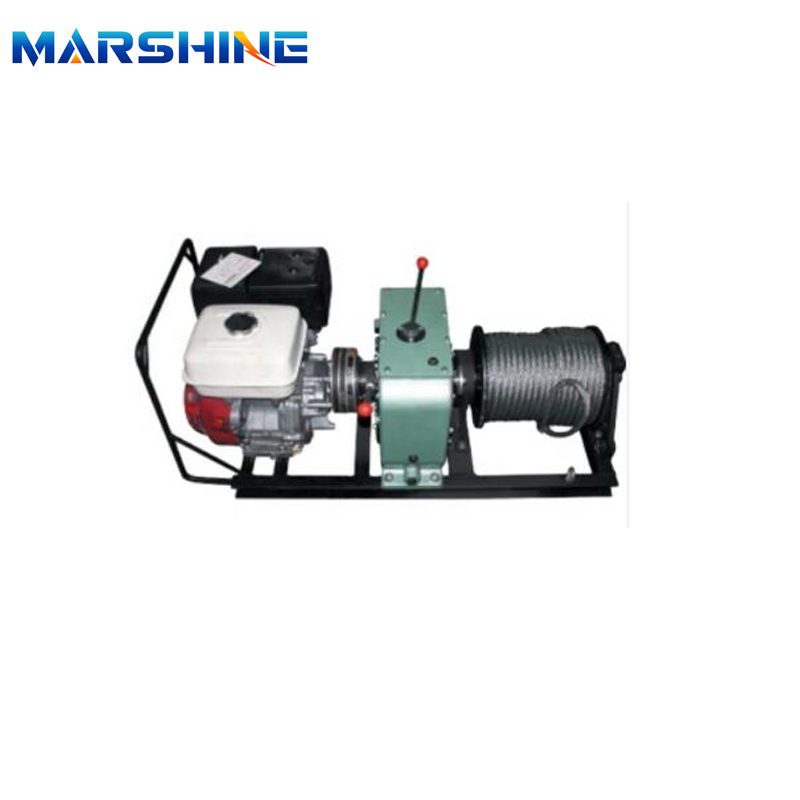

Honda Fast Speed Powered Gasoline Cable Pulling Winch
| FOB Price: | 500.00 - 4800.00 USD/Set |
|---|---|
| Supply Ability: | 1,000 Set(s) per Month |
| Shipping: | Port:Ningbo,Shanghai/Transportation: Ocean,Land,Air |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | Industrial Packing |
Quick Details
- Capacity: other
- Application: power line construction
- Power Source: Electric
- Brand Name: MARSHINE
- Contact: cables
- Model Number: JJQ-30-B
- Petrol Engine Power (hp): 5.5
- Petrol Engine Model: Honda Gx160
- Petrol Engine Speed (rpm): 3600
- Dimension (mm): 750 x 600 x 520
- Weight (kg): 108
Specifications
Motorised Winches are used for power line construction, pulling cables, tower erection, conductor sagging operation, lifting operation etc. It is more efficient and safety than manual winch. Our petrol engine winch is equipped Honda petrol engineer, which is very stable and long using life.
Petrol Engine Powered Winches
| Item No. | 09121 | 09122 | 09123 | 09124 | |
| Model | JJQ-30-B | JJQ-30-Y | JJQ-50-B | JJQ-50-Y | |
| Petrol Engine Power (HP) | 5.5 | 5.5 | 9 | 10 | |
| Petrol Engine Model | Honda Gx160 | YAMAHA MZ175 | Honda Gx270 | YAMAHA MZ300 | |
| Petrol Engine Speed (rpm) | 3600 | 3600 | |||
| Pull force (KN) / Pull speed (m/min) | I shift | 7.1/18.1 | 12.5/18.5 | ||
| II shift | 19/6.8 | 30/7.3 | |||
| III shift | 30/4.3 | 50/4.6 | |||
| REverse shift | -/4.8 | -/5.2 | |||
| Diameter of Capstan (mm) | Φ160 | Φ160 | |||
| Dimension (mm) | 750 x 600 x 520 | 870 x 620 x 520 | |||
| Weight (kg) | 108 | 135 | |||
Features: It is equipped with mechanical automatic brake system. Light weight, easy to operate and maintain.
Note: Petrol Engine is Honda engine from Japan.
