Cable Pulling Winch with Double Capastans

FOB Price:	400.00 - 4800.00 USD/Set
Supply Ability:	500 Set(s) per Month
Shipping:	Port:Ningbo,Shanghai/Transportation: Ocean,Land,Air
Payment Terms:	L/C, T/T, Paypal

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Industrial Packing

Quick Details

Capacity: other
Application: power line construction
Power Source: Electric
Brand Name: MARSHINE
Contact: cables
Model Number: JJQS-30
Engine Model: Honda GX270
Engine Power(hp): 9
Engine Speed (rpm): 3000
Dimension (mm): 1000 x 670 x 600
Weight (kg): 242

Specifications

Motorised Pulling Winches are used for pulling single conductor or OPGW, earth wire in transmission line stringing operation. It is also used for pulling wire rope for tower erection and lifting goods on tower. It is equipped with two capstans for using anti twisting steel wire rope on it, so it can be used for pulling conductor or OPGW in mountain area. 3 ton and 5 ton winches are light for transporation.
Dull-bull Wheel Winches (3T)

Item No.		09151	09152
Model		JJCS-30	JJQS-30
Engine Model		Diesel engine R175	Honda GX270
Engine Power(HP)		6	9
Engine Speed (rpm)		2600	3000
Pull force (KN) / Pull speed (m/min)	I shift	30/5.7	30/7.43
	II shift	18.9/9.1	19.2/11.8
	III shift	7.6/22.7	7.2/31.4
	REverse shift	-/6.5	-/8.4
Diameter of Capstan (mm)		Φ240	Φ240
Dimension (mm)		1000 x 670 x 600	1000 x 670 x 600
Weight (kg)		260	242

Application: It is uSed for tower erection, hoisting goods, conductor or earth wire stringing operation in line construction.

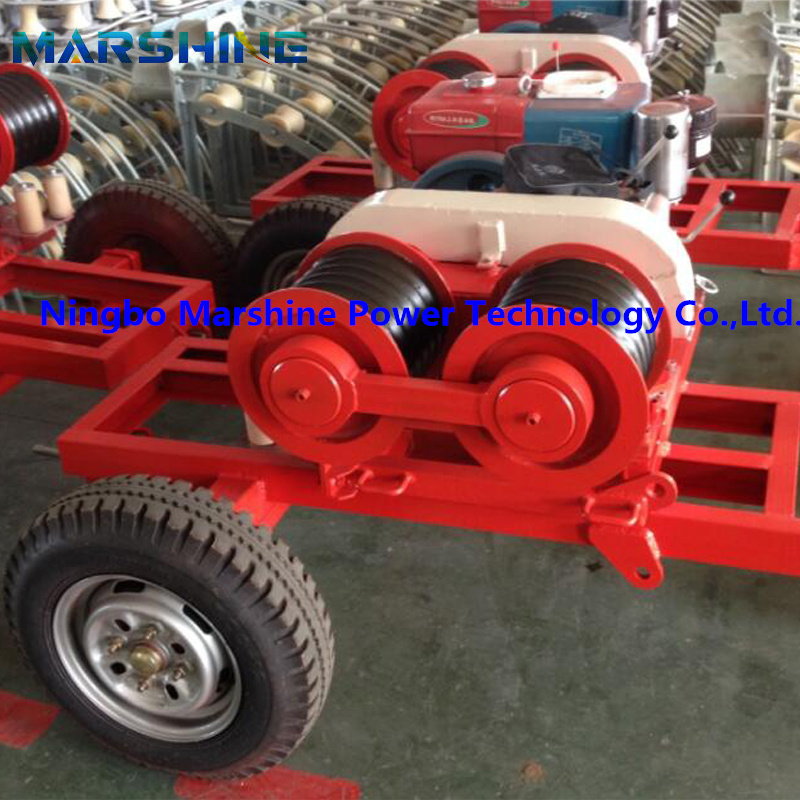

Features:Dual-bull wheel structure could minimize the damage to steel ropes, so it can be used with anti twisting wire rope. It is equipped with mechanical automatic brake system. Light weight, easy to operate and maintain.

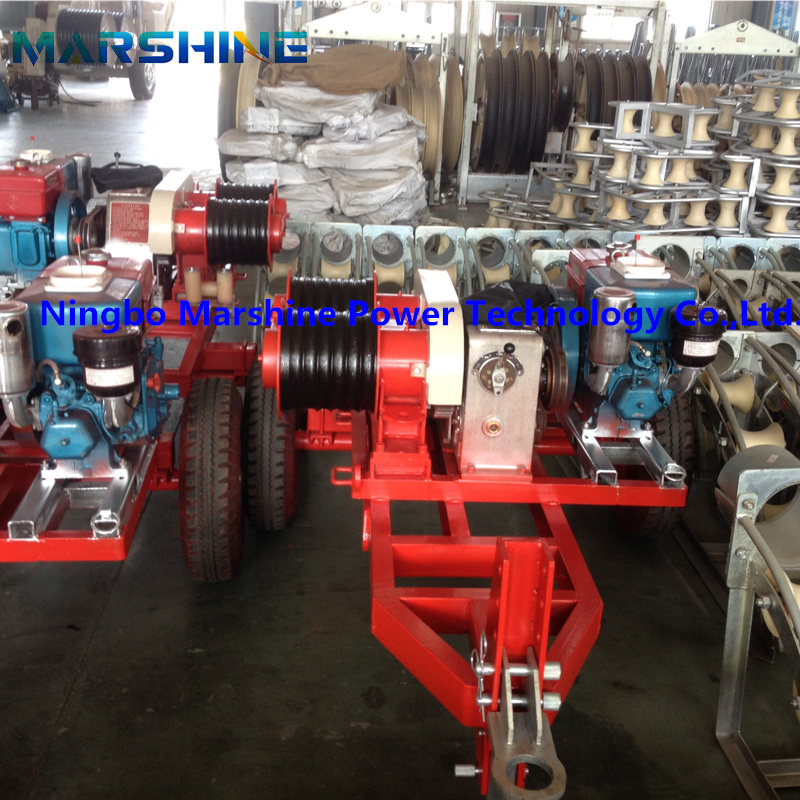

It can also be installed on the trailer for easy moving on site.

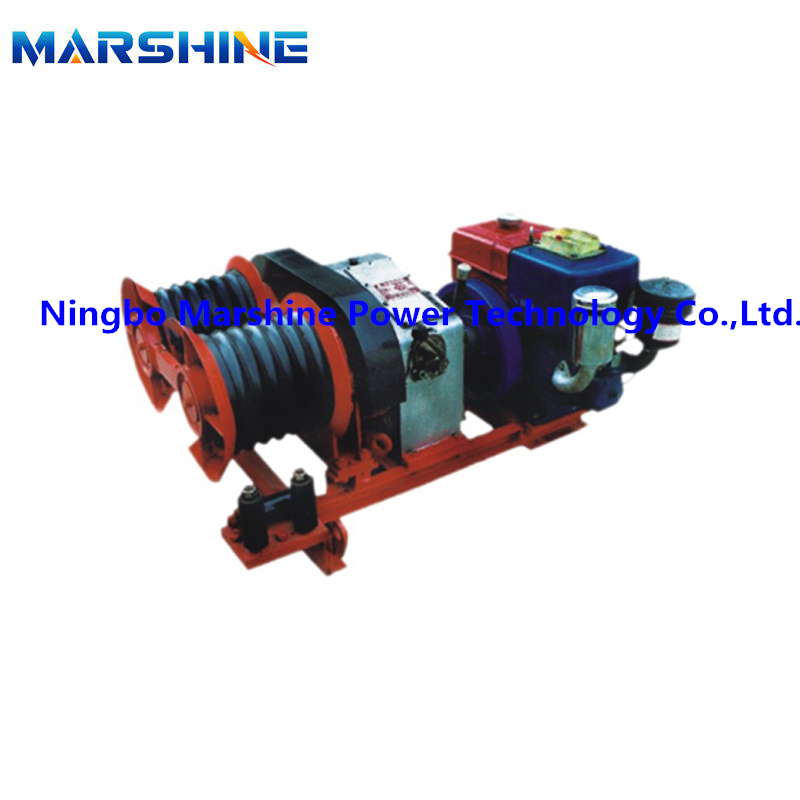

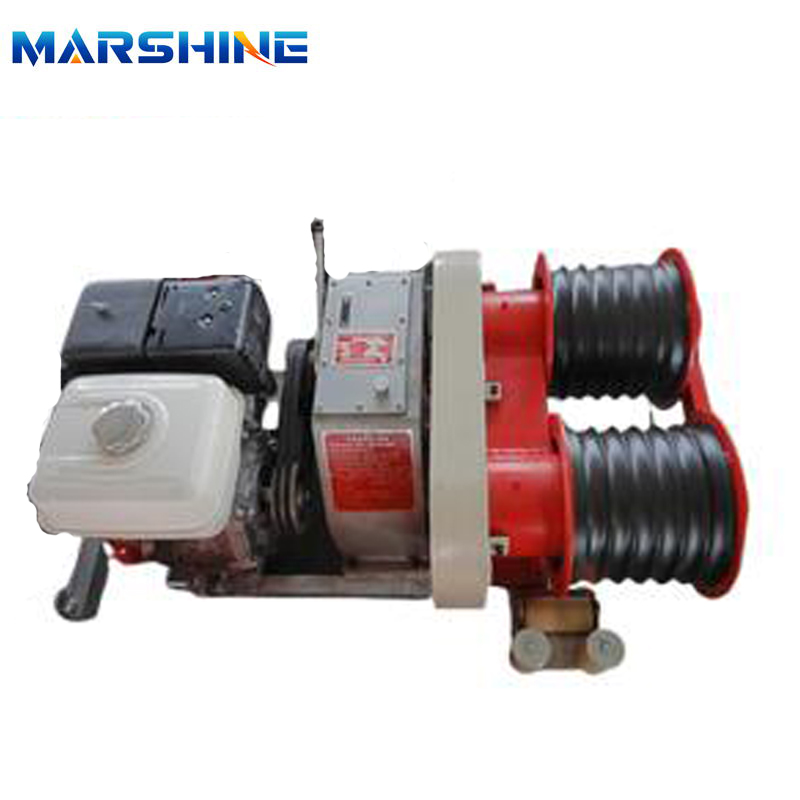

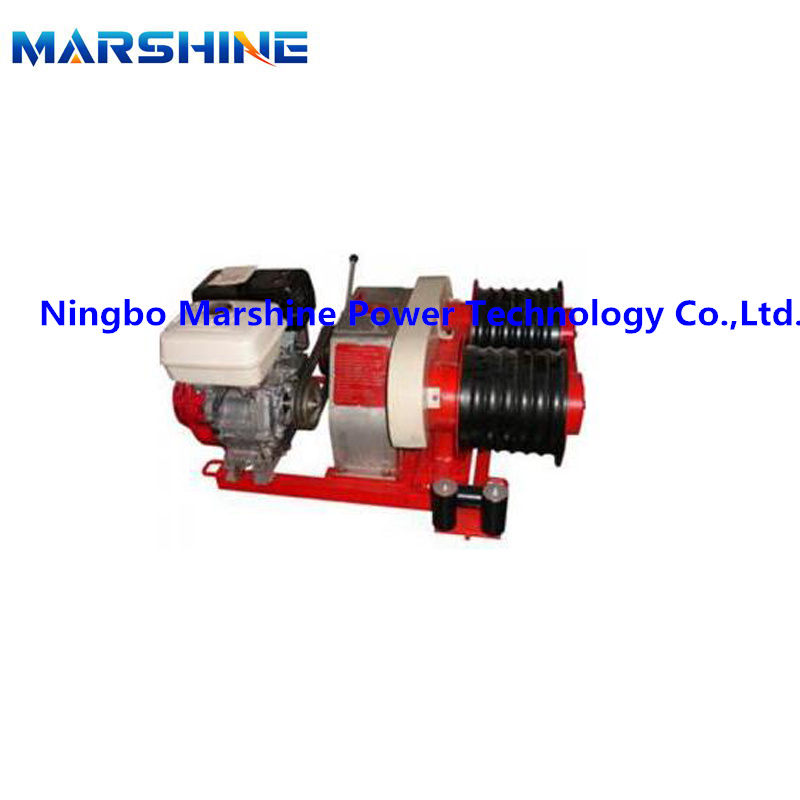

Cable Pulling Winch with Double Capastans
