Sureall Technology Limited
China Manufacturer with main products: Industrial Flameproof Light, Explosion Proof Industrial LED Lighting, Explosion Proof LED Light Fixtures |
Explosion Proof LED Division 2 Flashlight SPL-C Series
| FOB Price: | 10.00 - 1000.00 USD/Set |
|---|---|
| Payment Terms: | T/T |
Related products from verified members
Quick Details
- Brand Name: SUREALL
- Certification: /
- Power Source: /
- Lamp Body Material: /
- Usage: /
Specifications
Advantages
Class I, Division 1, Groups C, D
Ex tb IIIC T80℃ Db IP68
Class I, Division 2, Groups A, B, C, D
Zone 1, Zone 2
Class II, Division 1, Groups E, F, G
Zone 21, Zone 22
Class II, Division 2, Groups F, G
-40℃ ~ +55℃
Class III
Type 4X,IP68
Ex d ia IIC T6 GB
LED 9W/12W
Born for highest lumens output, with 9w or 12w LED explosion lamp and high strength flame proof body, different from intrinsically safe flashlight, SPL-C series explosion proof flashlight can be used in the most hazardous locations as explosion proof lighting and explosion LED lights compares with big size explosion proof high bay lighting and explosion proof flood lighting in lighting projects for upstream oil and gas no matter in areas and class 2 division 1 or zone 1 and zone 21.
Features

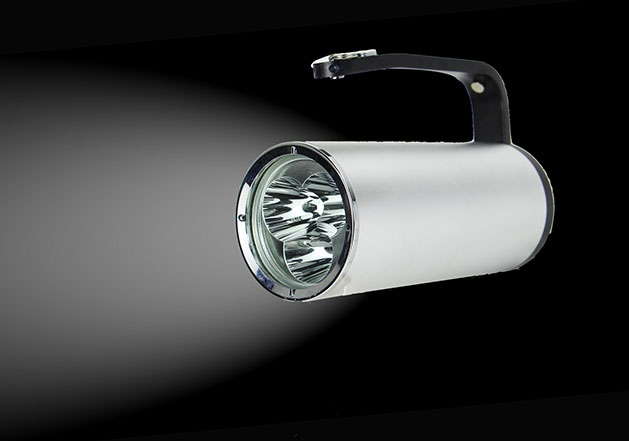

Explosion Proof Flashlight SPL-C Series
01
High purity and high strength aluminum flame proof housing
Ex Proof Light
02
Switchable low lumens and high lumens models for option
Hazardous Area LED Lighting
03
User-friendly handle in hazardous locations
Hazardous Area Light
Data Sheet
Explosion Proof Flashlight SPL-C Series
Compliance |
IEC Standard |
EU Standard | |
NEC & CEC Standard | |
UL Standard | |
CSA Standard | |
Rated Voltage |
DC 12V |
Charging Voltage |
100-240V AC,50/60Hz |
Wattage(W) |
9W/12W |
Battery Capacity |
4400mAh |
Working Time |
6-8h |
Function |
Working Light / Intense Light / Signal Light |
IP Grade |
Wet Locations, Type 4X, IP67 |
Ambient Temperature |
-40℃~ +55℃ /-40°F ~ +131°F |
Size & Weight |
Φ69X161mm, 0.87Kg |
as one of, we can offer kinds of for sale, anything you need, please leave us a message.
