Wastewater Ultrasonic Level Meter Split Ultrasonic Water Depth Meter

FOB Price:	170.00 - 220.00 USD/Piece
Supply Ability:	1,000 Piece(s) per Month
Payment Terms:	T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	30cm25cm20cm

Quick Details

External Size: 30cm25cm20cm
Type: Ultrasonic Level Switch
Protection Level: IP65
Brand Name: NUOYINGJIAYE
Color: creamy-white
Model Number: NYCSUL-502
Display Resolution: 1cm
Output Resolution: 0.03% of full measuring range
Relay Output: toplimit and lower limit control
Relay Specification: 5A 250VAC/30VDC
Parameter Set: 3 sensing buttons
Detecting Period: 1 S
Installation: flange or support
Current Output: 4~20mA
Blind Area: 0.6~0.8m

Specifications

Ultrasonic Level Transmitter

International Standard Industrial Waste Water Level Meter Split Ultrasonic Level Meter

the NYCSUL Ultrasonic Level Measurement is mounted on top of the vessel. under the control of the electronic unit, the probe emits ultrasonic wave pulse to measured medium. the sound wave is reflected by the surface of medium, a part of reflection echo is received by the probe and converted into electrical signal. from the emission of the ultrasonic wave to the new reception,the time is direct proportion to the distance from the probe to the measured medium. the electronic unit detects the time and calculates out the easured distance according to the known sound velocity. Use subtraction to obtain the value of medium position. It is widely used in open pipe, oil tank, pump station, water tower, dam,open channel, difference between levels etc.

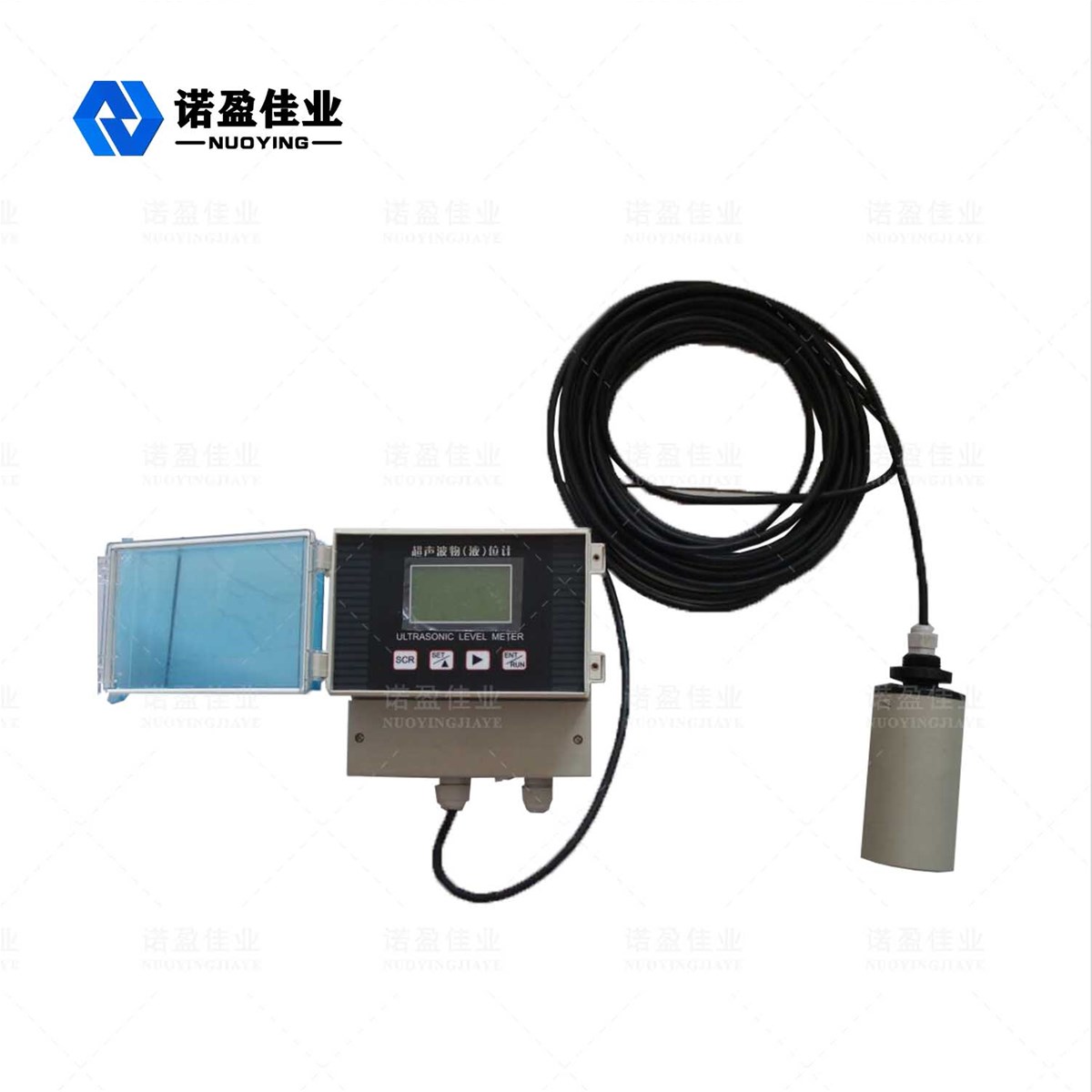

Wastewater Ultrasonic Level Meter Split Ultrasonic Water Depth Meter

Ultrasonic Level Transmitter Technical Parameter

Product Name	Ultrasonic Level Sensor
Measuring Range	20~30m(liquid); 10~15m(solid)
Blind Area	0.6~0.8m
Precision	0.2% of the full measuring range(in the air)
Display Resolution	1cm
Current Output	4~20mA
Output Resolution	0.03% of full measuring range
Output Load	0~600Ω
Relay Output	Toplimit and lower limit control
Relay Specification	5A 250VAC/30VDC
Parameter Set	3 sensing buttons
Medium Temp	-45°C~ 95°C
Detecting Period	1 S
Installation	Flange or support
Acousticwave Beam Angle	8°(3db)
Pressure Range	±0.3MP

Note: Products Can be Customized according to the Specific requirements of Users!

Ultrasonic Level Transmitter Product features

Automatic power adjustment, gain control, temperature compensation.
Physical sealed probe, IP68 protection grade, no water, improve service life.
Special echo processing technology, on-site failure can be identified for the cause of failure, convenient maintenance.
with interference echo suppression function to ensure the real measured data, strong anti-interference ability.
Various output forms: programmable relay output, high precision 4-20mA current output, RS-485, RS-232 digital communication output, wireless GPRS output, etc.
Low price, small size, light weight, can be used for food, chemical, semiconductor and other industries of liquid unconnected type level measurement, can be used for remote level monitoring and pump control.
