Automatic High Speed Corrugated Paper & Card Paper Laminating Machine Laminator Machine

FOB Price:	50000.00 - 75000.00 USD/Piece
Supply Ability:	30 Piece(s) per Day

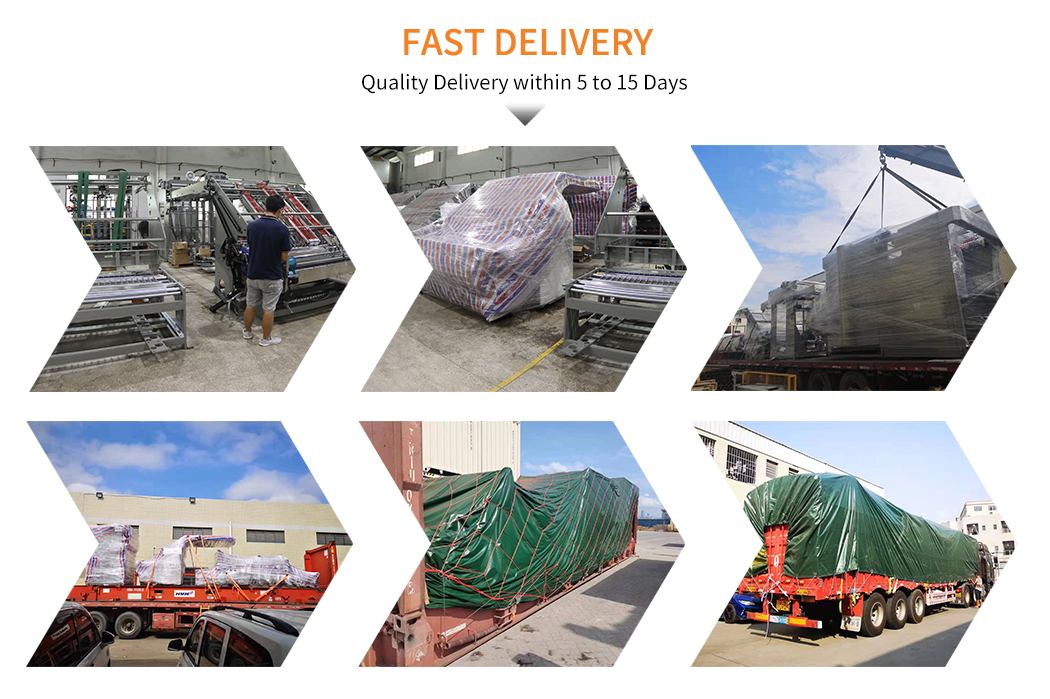

Shipping:	By sea
Payment Terms:	D/P, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Place of Origin:	Guangdong in China
Packaging Details:	140HQ for 1pc GW-1450L, 120FR for 1pc flip flop stacker

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 2 years
Brand Name: Fengchi
Automatic Grade: Automatic
Condition: New
Certification: CE, IS09001, ROHS
Weight: 8000KG
Dimension(L*W*H): 16300MM*2400MM*2550MM
Power(W): 26KW
Voltage: 380AC

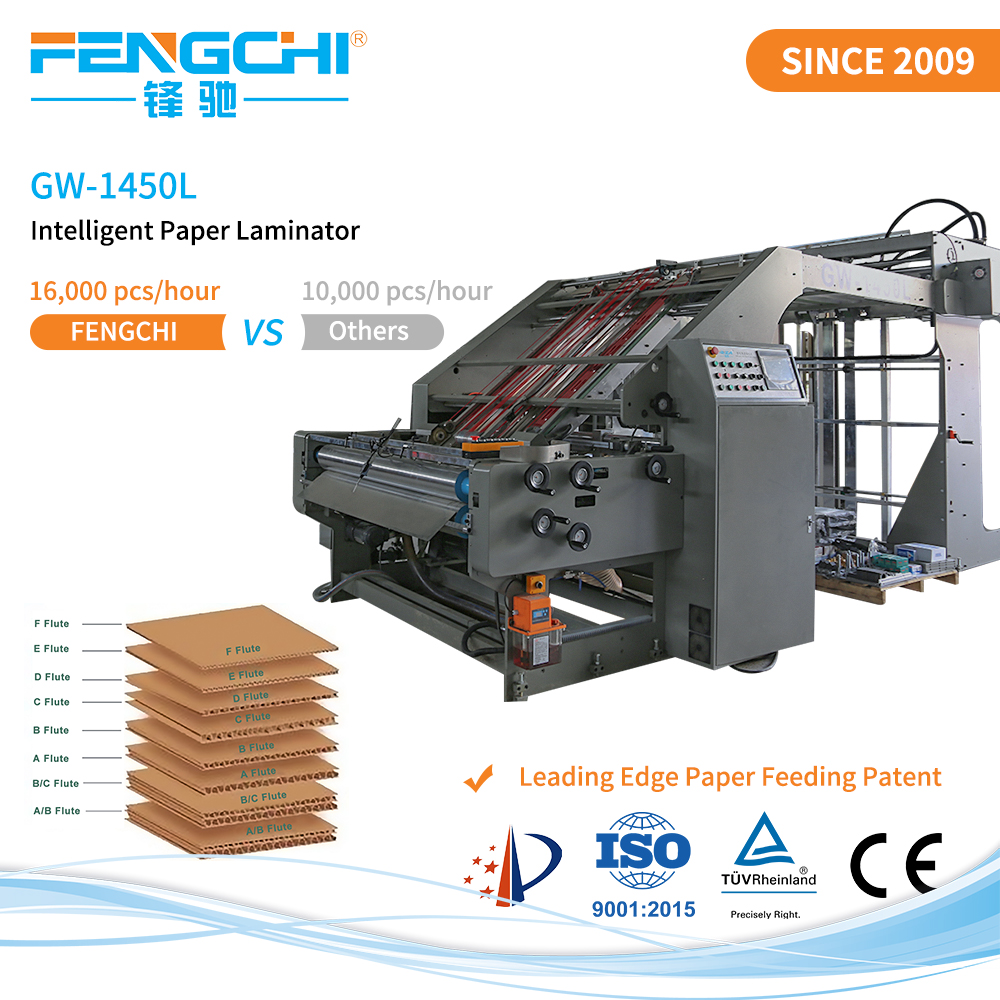

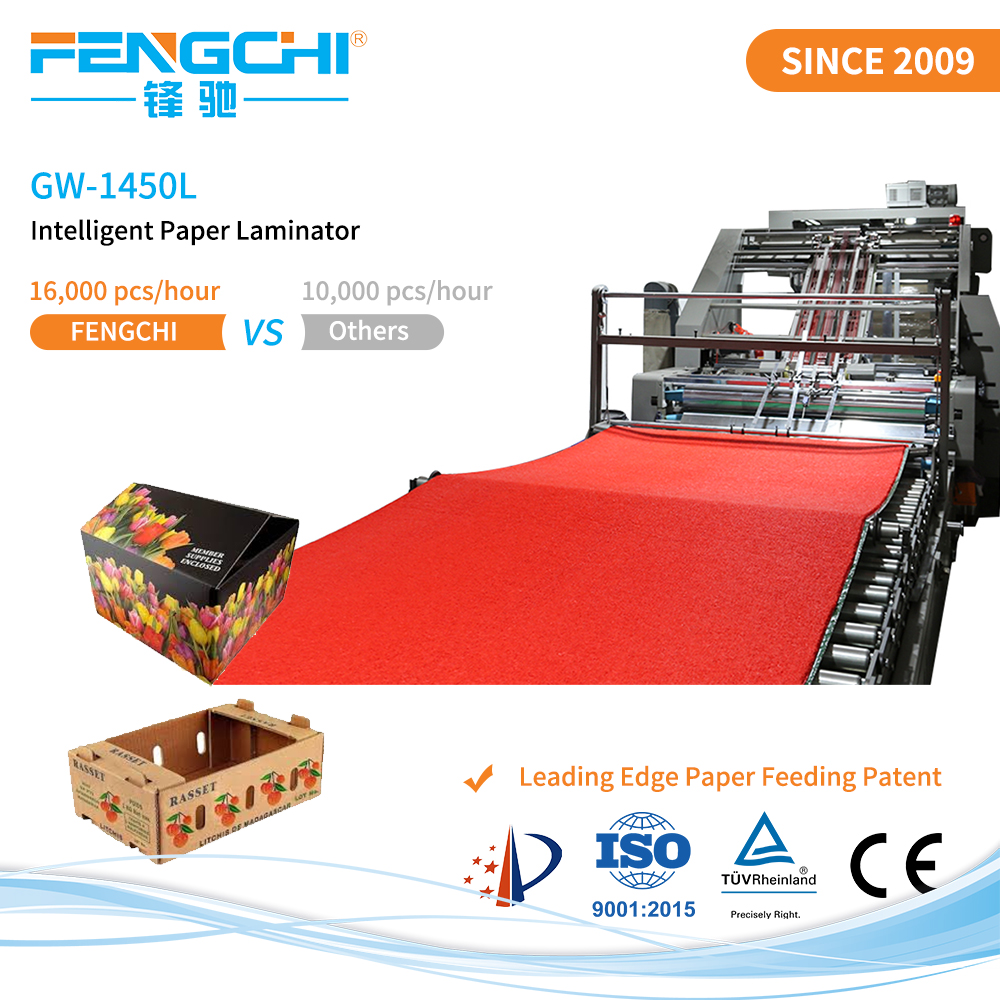

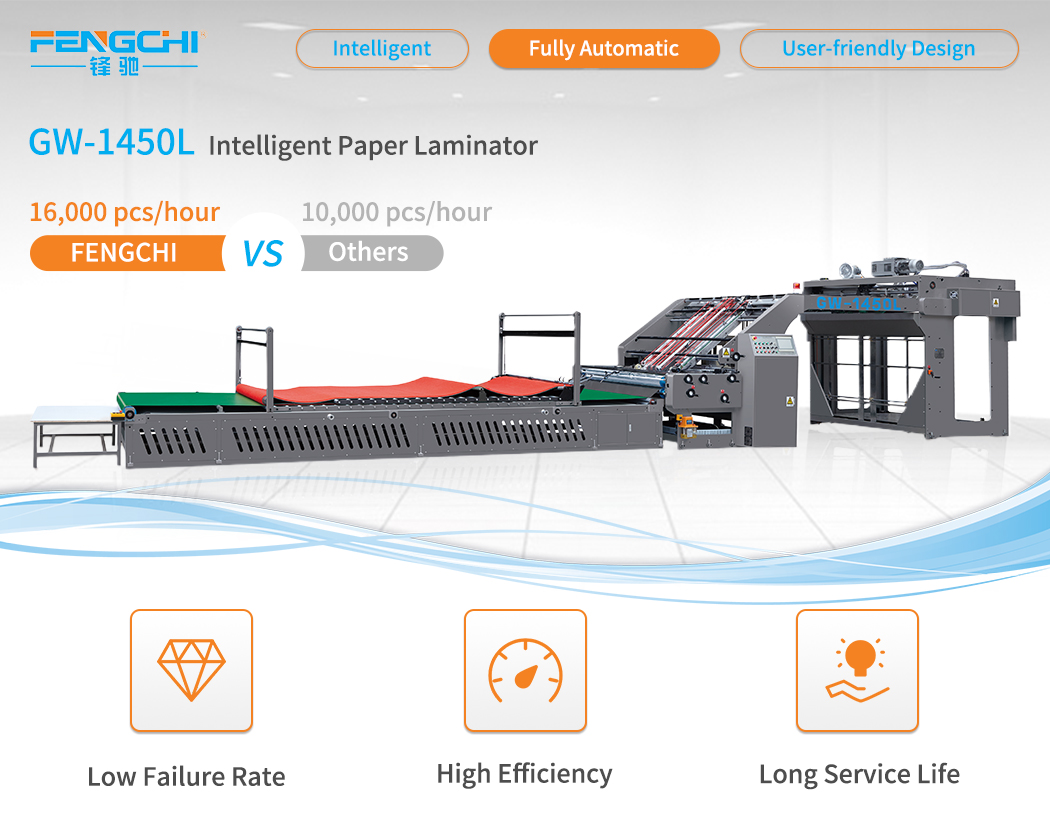

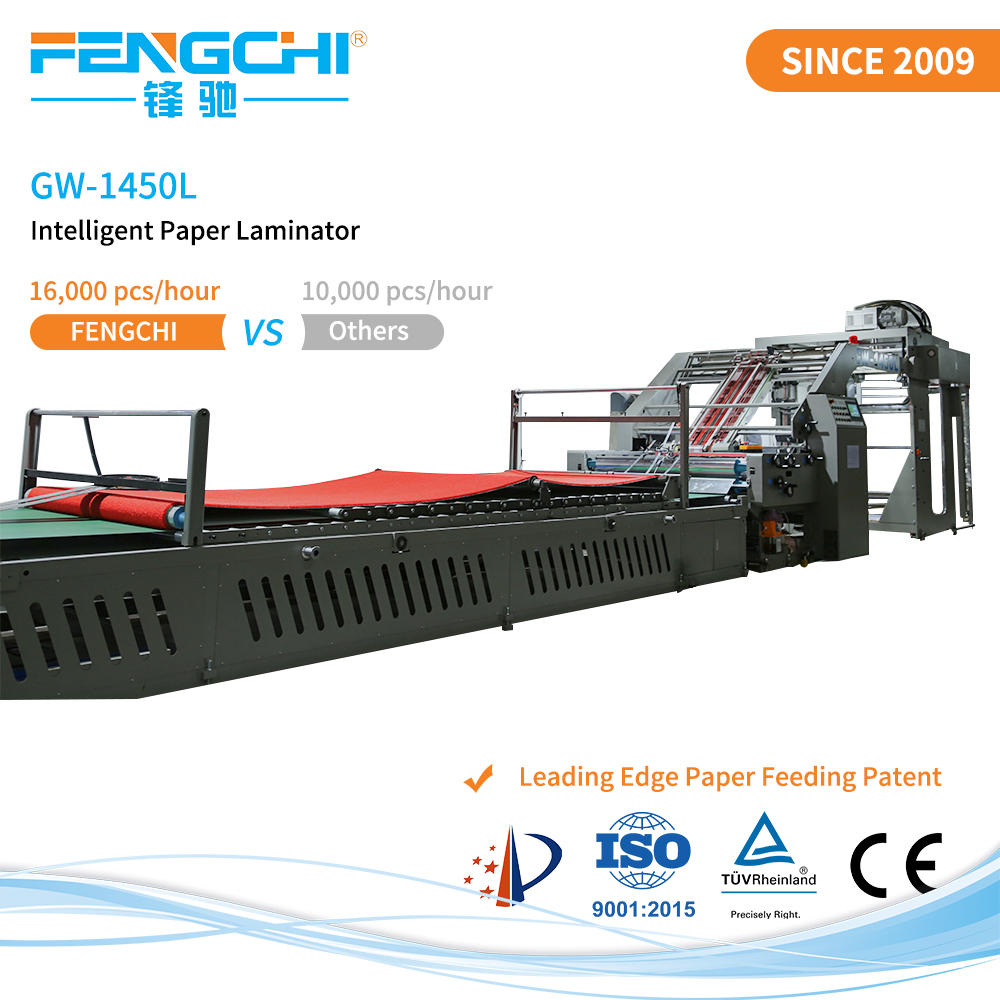

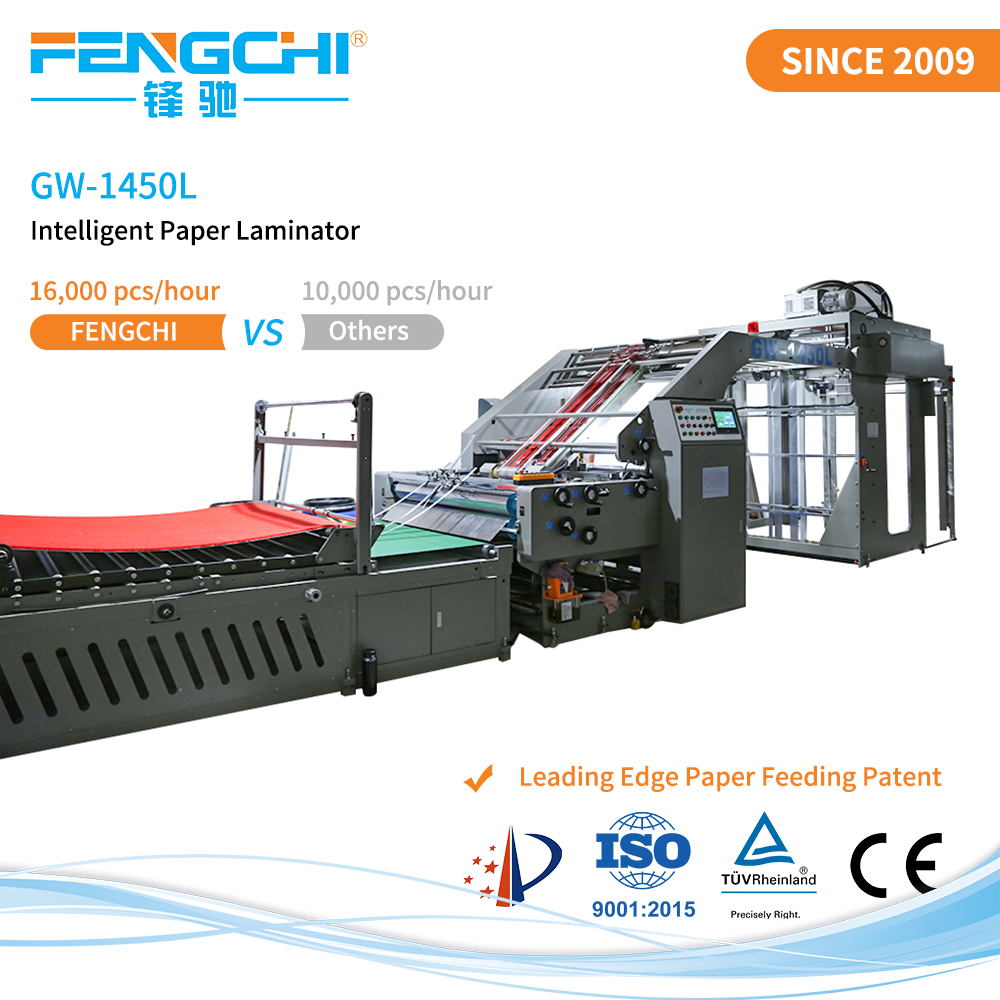

Model Number: GW-1450L

Specifications

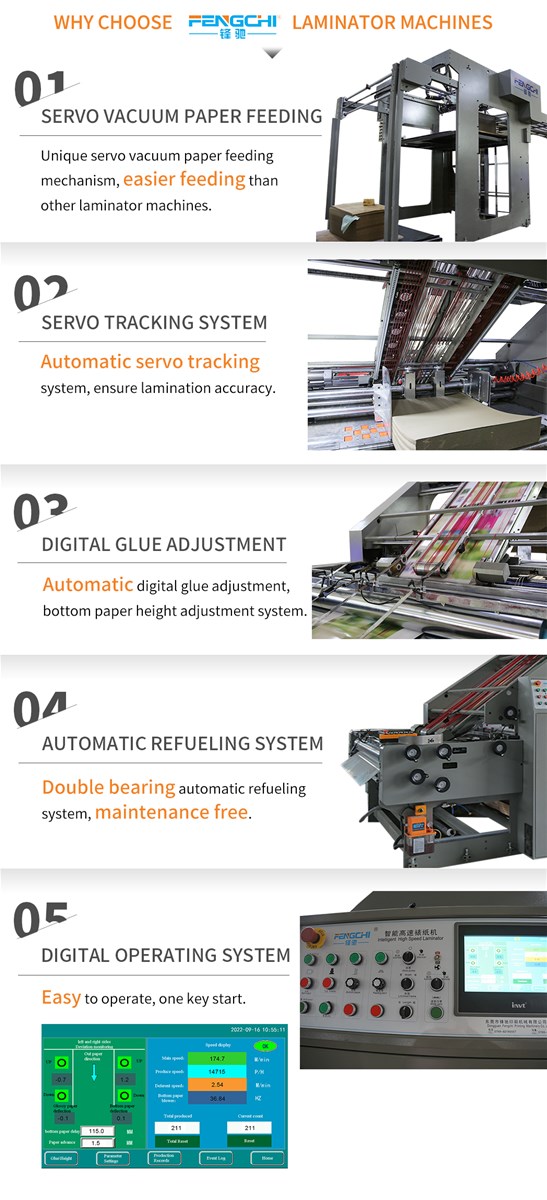

1.MainFeatures:

1. High Accuracy--the fully digital operating system automatically adjusts the machine. the system digitally displays the adjustment of glue amount and height.

2. High Speed--mAximumLaminating speed can reach Maximum at20,000 sheets/Hour, the highest speed in China.

3. Strong Stability--roller with increased diameter of 150mm, double bearing with automatic refueling system, maintenance-free equipment

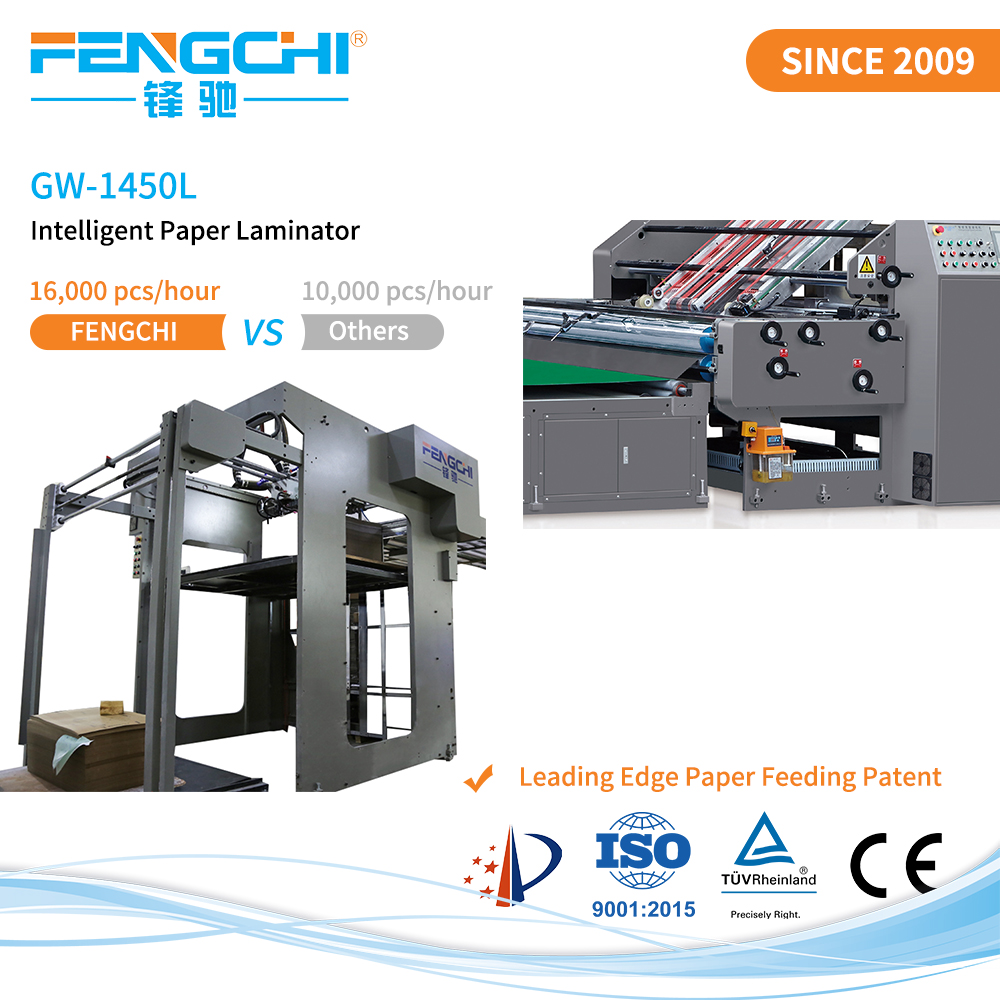

4. Wide applicability-patened servo vacuum paper feeder applies for deformed, warped corrugated paper specially.

2.Specification:

Models		GW1450L	GW-1700L	GW-2200L
Max.Sheet Size (WxL)		1450mm x 1450mm	1700mm x 1650mm	2200mm x 2100mm
Min.Sheet Size (WxL)		420mm x 380mm	420mm x 380mm	420mm x380mm
Sheet Thickness	Upper	150gsm ~ 700gsm	150gsm ~ 700gsm	150gsm ~ 700gsm
	Bottom	Fflute~10mm	FFlute~10mm	F flute ~10mm
Max. Working Speed		16000 sheets/hour (165M/Min)	16000 sheets/hour (165M/Min)	16000 sheets/hour (165M/Min)
Laminating Accuracy		±1.5mm(Standard Sheet Paper)
Applicable Glue		Resin adhesive, starch glue and etc. (PH6~8 will be suitable for laminating glue)
Machine Weight		8000kg	8500kg	9000kg
Dimension (LxWxH)		16.3m x 2.4m x 2.55m	17.3m x 2.65m x 2.55m	1.85m x 3.05m x 2.88m
Power		380VAC/4P
		26kw	30kw	32kw
Applicable Corrugated board		2ply (A,B,E,F,G), 3ply, 5ply, 7ply and other deformed/warped corrugated paper.

Automatic High Speed Corrugated Paper and Card Paper Laminating Machine Laminator Machine
