YGY-QXM Hand-Held All-in-One Meteorological Instrument

Specifications

YGY-QXM hand-held all-in-one meteorological instrument
Measuring elements: wind speed, wind direction, atmospheric temperature and humidity, air pressure, wave height, longitude and altitude
Power Supply:
Standard configuration: 4 1.5V dry batteries
Optional: rechargeable lithium battery or solar power supply system
Communication:
Standard configuration: USB data communication cable
Optional: GPRS wireless communication
Storage: 98000 pieces of data
Weight: product net weight is about 0.5Kg (about 2Kg with suitcase)
Application: this instrument is widely used in meteorology, environmental protection, airports, agriculture and forestry, hydrology, military, warehousing, scientific research and other fields.
Consult immediately

Product introduction

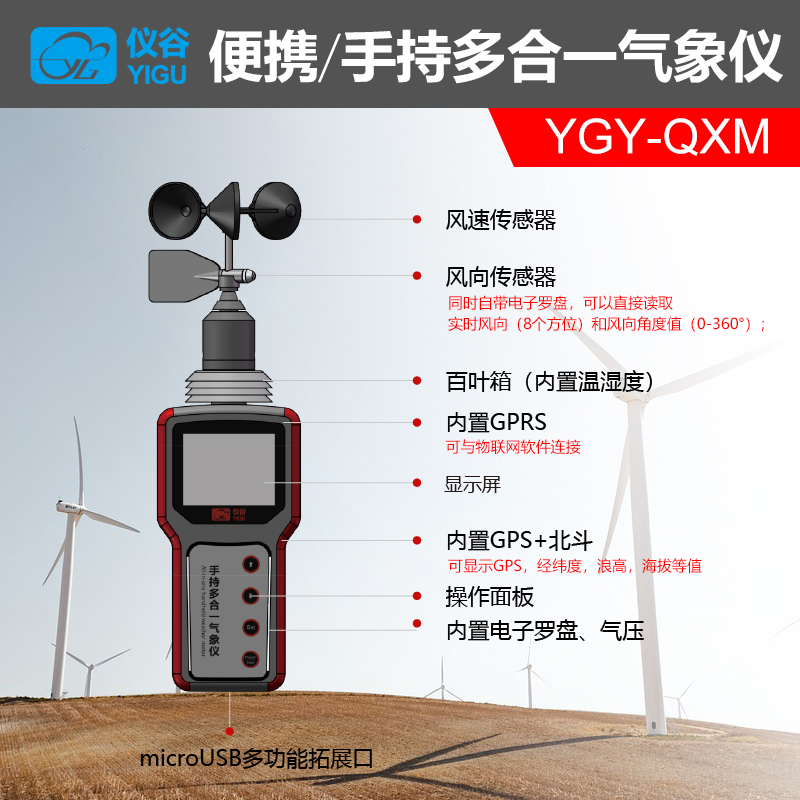

the hand-held all-in-one meteorological instrument is a portable meteorological observation instrument that is easy to carry, easy to operate and integrates multiple meteorological elements. the product uses precision sensors and smart chips to accurately measure, record and store wind speed, wind direction, air pressure, temperature, humidity, wave height, GPS and other environmental factors at the same time. The instrument is equipped with wind direction sensor and electronic compass, which can directly measure and display the wind direction data of 8 directions and 0-360 ° in real time. Real time data measurement can be carried out for each element, and the average data and maximum data of each element can also be read. The instrument also has an audible and visual alarm function, which can monitor the four elements of wind speed, air pressure, temperature and humidity. When the corresponding real-time data exceeds the set upper and lower limits, the instrument will give an audible and visual alarm.
the battery of the hand-held weather station can work for a long time under the condition of energy conservation. Different energy conservation schemes are implemented under different working environments, including turning off the backlight, turning off the screen, and turning off automatically. The battery will turn off automatically when the power is insufficient. In addition, special meteorological support and solar power supply system can be selected to meet long-term unattended observation at fixed outdoor locations. Built in large capacity FLASH memory chip can store meteorological data for at least one year; The universal USB communication interface can download the data to the computer by using the supporting USB cable and the weather station software, which is convenient for users to further process and analyze the weather data. Optional built-in GPRS and GPS modules can be conveniently connected with the Internet of Things software or other software without external GPRS modules, which is highly integrated and reliable.
Application: this instrument can be widely used in meteorology, environmental protection, airport, agriculture and forestry, hydrology, military, warehousing, scientific research and other fields.
Functional features
Industry pioneer: small hand-held gas station can realize electronic display of wind direction and storage of historical data, and it also has its own electronic compass, which can directly read real-time wind direction (8 directions) and wind direction angle (0-360 °) without setting geographical orientation datum;
Two hundred and forty 160 dot matrix LCD display, with backlight, can display up to 9 parameters, including atmospheric temperature, humidity, wind speed, wind direction, air pressure, wave height, GPS longitude and latitude, altitude, etc;
Large capacity data storage, up to 80000 meteorological data can be stored (data recording interval can be set between 1~240 minutes);
Universal USB communication interface, convenient for data download;
GPS+Beidou information can be obtained through satellite positioning, and GPRS communication can be supported to connect with the Internet of Things software;
the system language can be switched between Chinese and English;
Multiple power supply functions, standard configuration of four 7 # 5V dry batteries for power supply; Rechargeable lithium battery is also available for power supply;

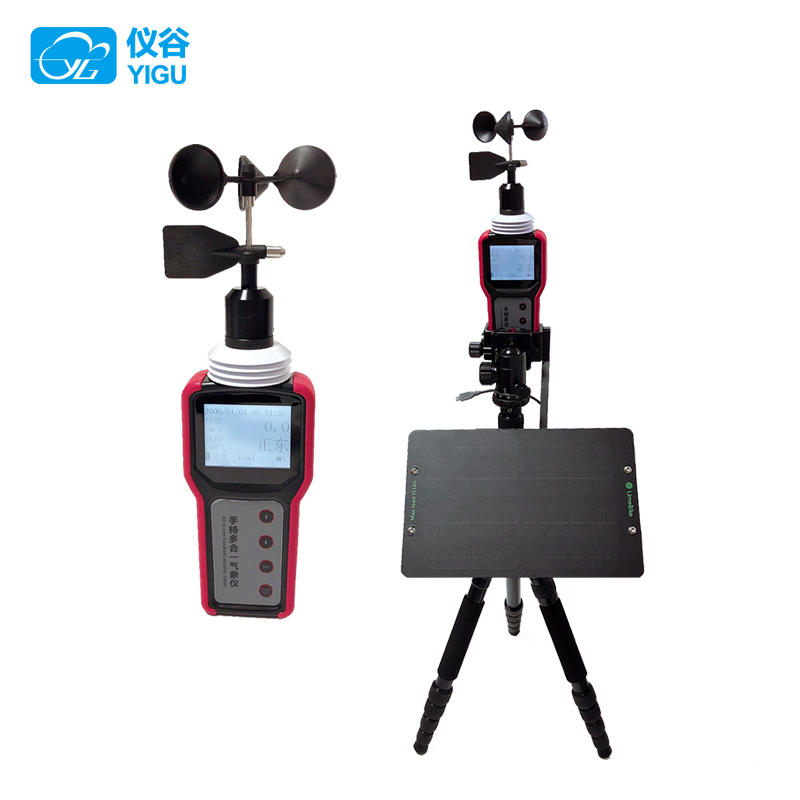

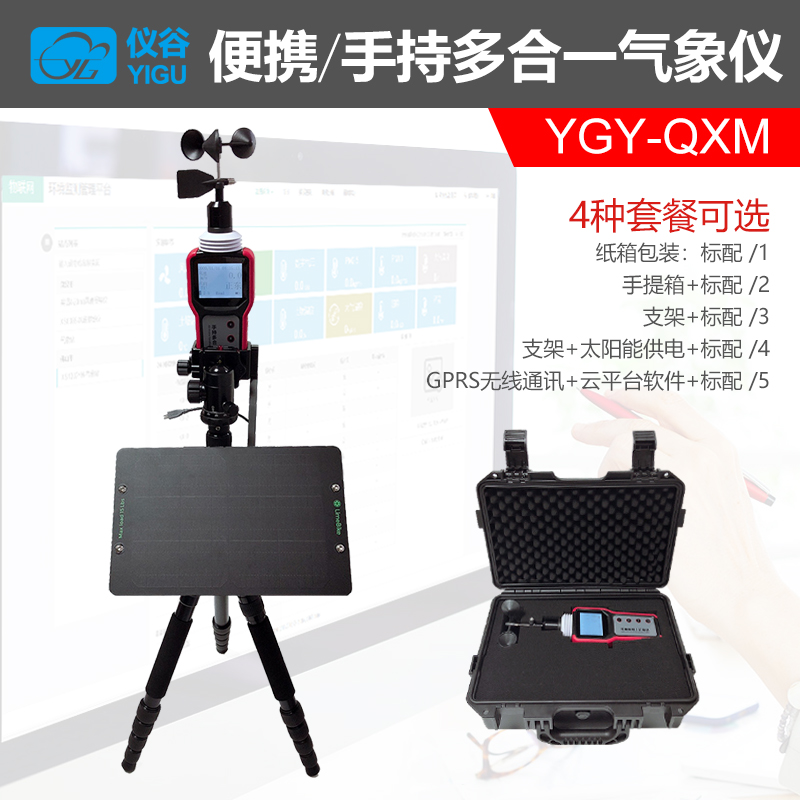

Portable solar power supply system is selected to realize long-term field work;
Special portable weather support, easy to carry and install;
Low power consumption design, long standby time, energy saving through setting backlight, display screen off time and automatic shutdown time, and automatic shutdown when the battery is low;
with the alarm function, you can set the alarm parameters for the four elements of temperature, humidity, air pressure and wind speed. When the four elements exceed the corresponding upper and lower limits, the audible and visual alarm will be given until you press any key. the alarm function of any element can also be switched;

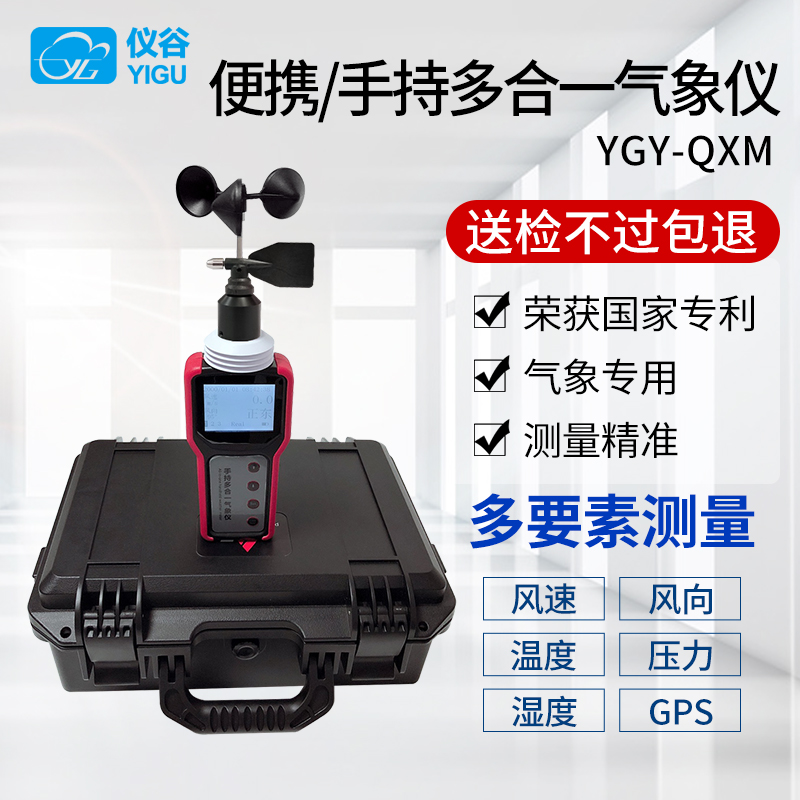

Professional and high-grade waterproof packing box, which can protect the instrument and make it more convenient to carry (optional);
the product has passed the wind tunnel test, temperature, humidity and pressure calibration and high and low temperature environment test of the metrology institute;
