| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Packed with Plywood |
Quick Details
- Type: Filling Machine
- Brand Name: Calmus
- Packaging Material: Plastic
- Packaging Type: Bags
- Application: Beverage,Drinking Water
- Condition: New
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CE
- Weight: 910 kg
- Dimension(L*W*H): 2300*1060*2200mm
- Model Number: BIBF600
- Power: 1.0 kW
- Voltage: Customized
- Driven Type: Pneumatic
- Automatic Grade: Automatic
- Applicable Bags: 2-25L Webbed Spouted Bags
- Filling Capacity: 360-400 Bags/Hour for 10L
Specifications
Fully-automatic BiB Filling Machine | Bag-in-Box Filler
this fully-automatic bag-in-box filler is especially for filling spouted bags with a wide range of liquids like drinking water, fresh milk, edible oil, liquid egg, post-mix syrup and beverage. It features fully-automatic by employing PLC and touch screen control system. the whole process of cutting apart from the fed continuous bags, delivering to heads for decapping, vacuumization (optional), nitrogen injection (optional), filling, capping and transiting to the conveyor can be completed automatically, no human operation required.
this machine can cap various spigots including Vitop and Scholle's. It is designed with CIP (Clean in Place) function and circuit connection.
Features:
1) Fully-automatic, WEB type bags fed.
2) Easy to use. the touch-screen control system makes operation easy.
3) An electromagnetic or turbine flowmeter employed improves filling precision and truly achieves the quantitative filling.
4) An air filter employed brings clean air to the filling space.
5) Grade 304 stainless steel body and 316L stainless fluid-contact parts.
6) Filling a different capacity bag acceptable only by changing the setting.
7) Options of vacuumization and nitrogen injection available for specific products use.
Specifications:

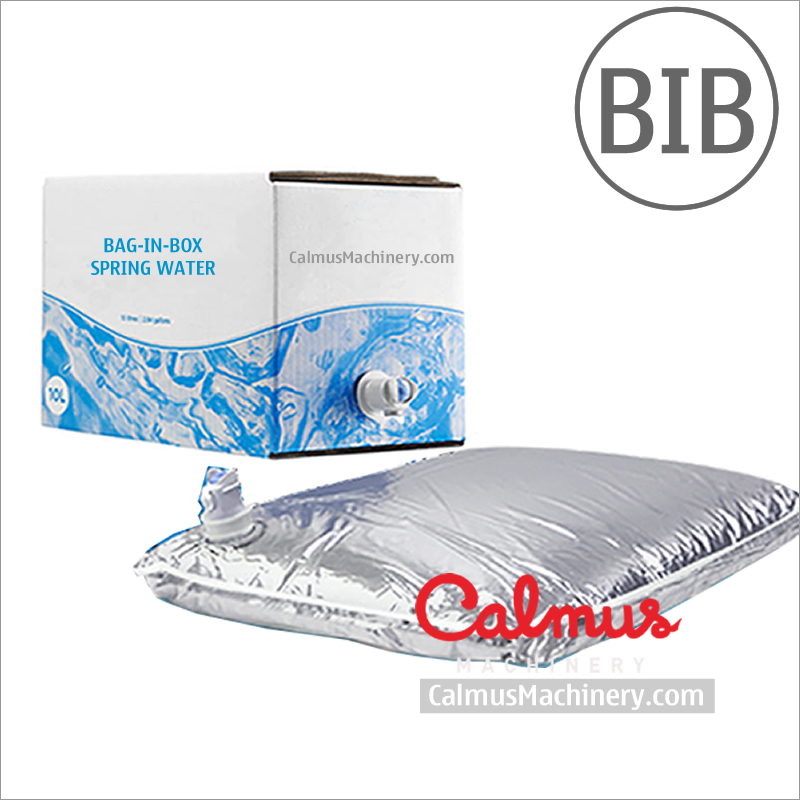

Applicable bags: pre-cut continuous module or WEB type bags, spout-fitted, 2-25 litres. (Spout is called Gland or Flange too.)
Filling capacity:
450-510 bags/hour for 5 litres
360-400 bags/hour for 10 litres
250-270 bags/hour for 20 litres
Power: 1.0 kW
Compressed air: 6-8 bar, 500 NL/min
Procedures:
1. Automatically feed bags.
2. Automatically decap, fill, cap and cut bags apart.
3. Automatically exit filled bags.
Fully-automatic. Grade 304 stainless steel construction and grade 316L stainless steel fluid-contact parts. World famous brands of key components and many are imported.
Absolutely EU quality standard, but less than half of EU price.
We also supply the downstream carton box packaging line.
