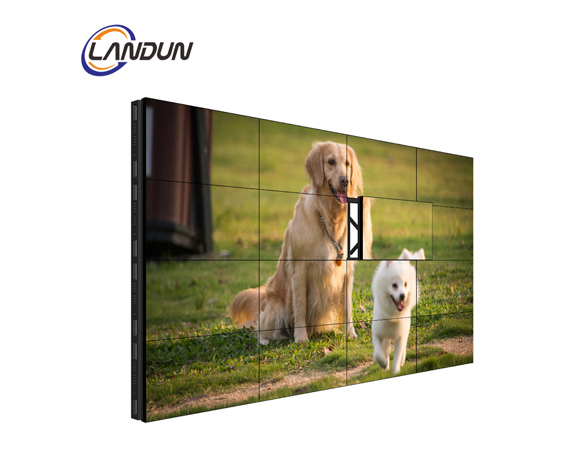

2x2 Wall-Mounted Splicing Screen

Specifications

 mounted LCD splicing screen commonly used splice arrangements, you can choose front maintenance installation or post maintenance installation, which is more convenient to handle. Its input has HDMI, DVI, DP, VGA and is often used in smaller spaces. It also can be used for meetings, presentations, etc. It can suitable for viewing by 5-15 people.

Gallery of 2x2WallMOuntedVideoWAll Splicing Screen

What's the Application for 4KLCD Video Wall?

2x2 Wall-mounted Splicing Screen should be installed on a solid load-bearing wall, which can make sure the security of use.

2x2 arrangement for small space use, like small CCTV control room or conference room, also can use in shop or exhibition. in addition, some special government office or workplace applications can also use this product for various display purposes.

Installation Steps of LCD Video Wall Mounting Bracket (Ultra-Thin) (2 *2 as An Example)

Material: Hanging screen crossbar, support vertical bar, hook, connection angle code, adjustment screw, expansion screw.

Step 1: Fixed vertical bars shall be neatly arranged according to the size required in the drawing.

Step 2: Install the horizontal bar of the hanging screen according to the size required in the drawings.

Step 3: after the bracket is assembled, adjust it to the appropriate height according to the site environment and fix it with shape pressing block. (horizontal installation, smooth wall and firm wall are required).

Step 4: Install the display screen. Each display screen has 4 hooks and 3 adjustment screws for each hook. Use the adjustment screw to adjust the high, low and front and rear positions and fix them.

Installation Steps of LCD Video Wall Hanging Bracket (2 *2 as An Example)

Material: Hanging screen crossbar, support vertical bar, extension bar, hook, connection angle code, adjustment screw, expansion screw.Assemble three shaped frames like with a vertical bar and extending bar.

Fix the hanging screen crossbar on the supporting frame according to the drawing requirements.

after the bracket is assembled, adjust it to the appropriate height according to the site environment and fix it with a "several" shape pressing blocks. (horizontal installation, smooth wall, and firm wall are required)

Install the display screen. Each display screen has 4 hooks and 3 adjustment screws for each hook. Use the adjustment screw to adjust the high, low, and front and rear positions and fix them.

as one of, we can offer kinds of for sale, if you have needs, please contact us.
