>Products Catalog > Rubber Hose Assembly Series (Commonly Used) Detailed Style Price to Contact Customer Service Shall Prevail
Rubber Hose Assembly Series (Commonly Used) Detailed Style Price to Contact Customer Service Shall Prevail
| FOB Price: | 5.00 - 10.00 USD/Piece |
|---|
Related products from verified members
| Place of Origin: | Hubei in China |
|---|
Quick Details
- Connection: Welding
- Brand Name: nanfeng
- Type: Coupling
- Technics: Casting
- Material: Alloy
Specifications
the A-type pinch hose joint is connected with the external thread joint, and the contact plane is sealed with the sealing ring. the hose joint has three types: straight through, 45° elbow and 90° elbow.

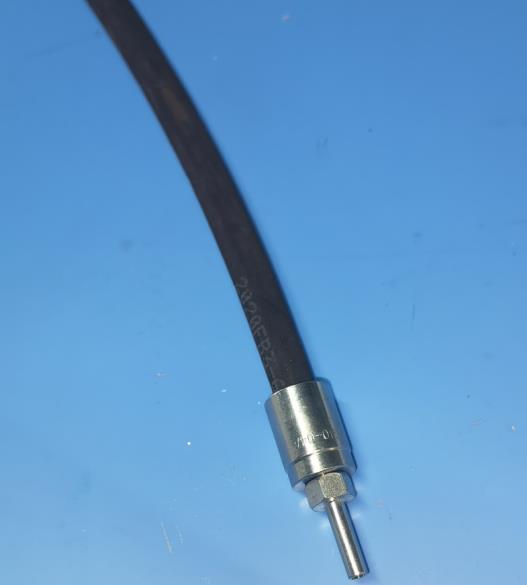

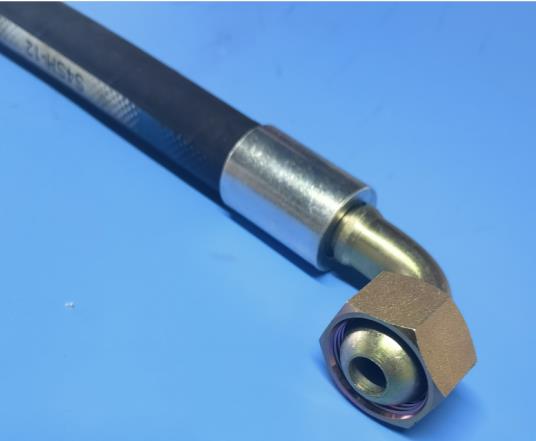

B type compression rubber hose joint is connected with 24° inner cone and outer thread joint by clamping sleeve and nut, conical seal, joint thread connection. There are three types of rubber pipe joints: straight through, 45° elbow and 90° elbow.

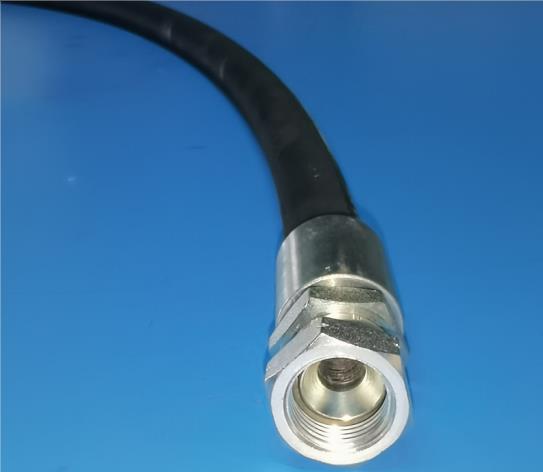

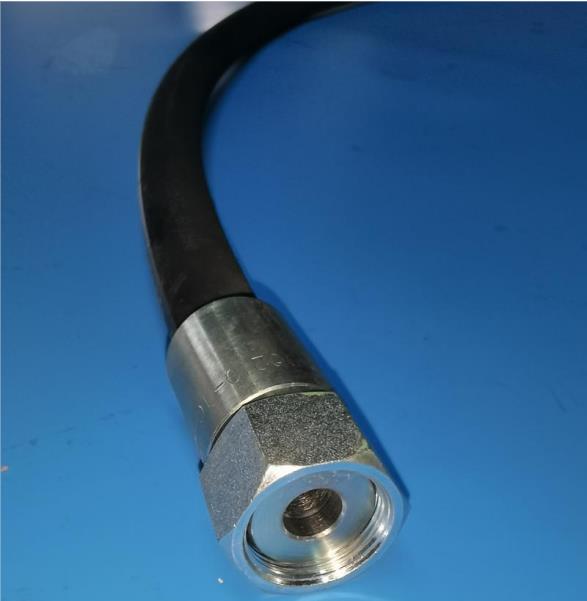

Type C pinch hose joint with spherical joint or conical joint, spherical seal, conical seal, joint thread connection. There are three types of rubber pipe joints: straight through, 45° elbow and 90° elbow. Inner 60° cone - Japanese standard, inner 74° cone - American standard.
D-type pinch hose joints are connected with 74° and 60° joints, wire sealed and threaded. There are three types of rubber pipe joints: straight through, 45° elbow and 90° elbow.

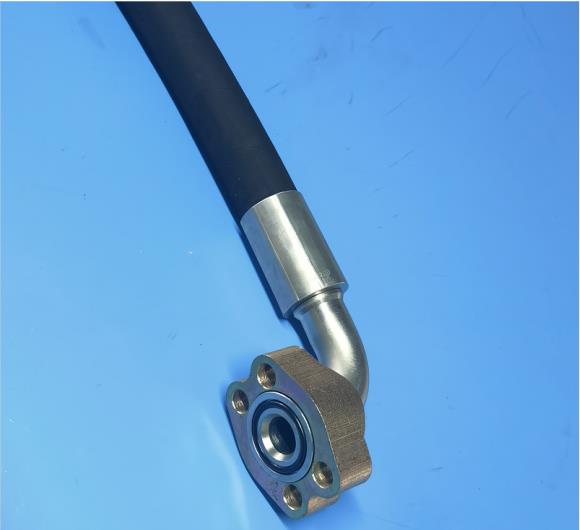

F type pinch hose joint is paired with SAE standard flange, the contact surface is sealed, and the joint sleeve is connected with SAE flange bolts.There are three types of rubber pipe joints: straight through, 45° elbow and 90° elbow.
the H-type pinch hose joint is connected with the 24° inner taper pipe joint, the contact surface is sealed with a sealing ring, and the joint is connected with threads. There are three types of rubber pipe joints: straight through, 45° elbow and 90° elbow.
Type I pinch hose joint is connected with inner threaded pipe joint, and the joint adopts taper thread connection seal and connection.

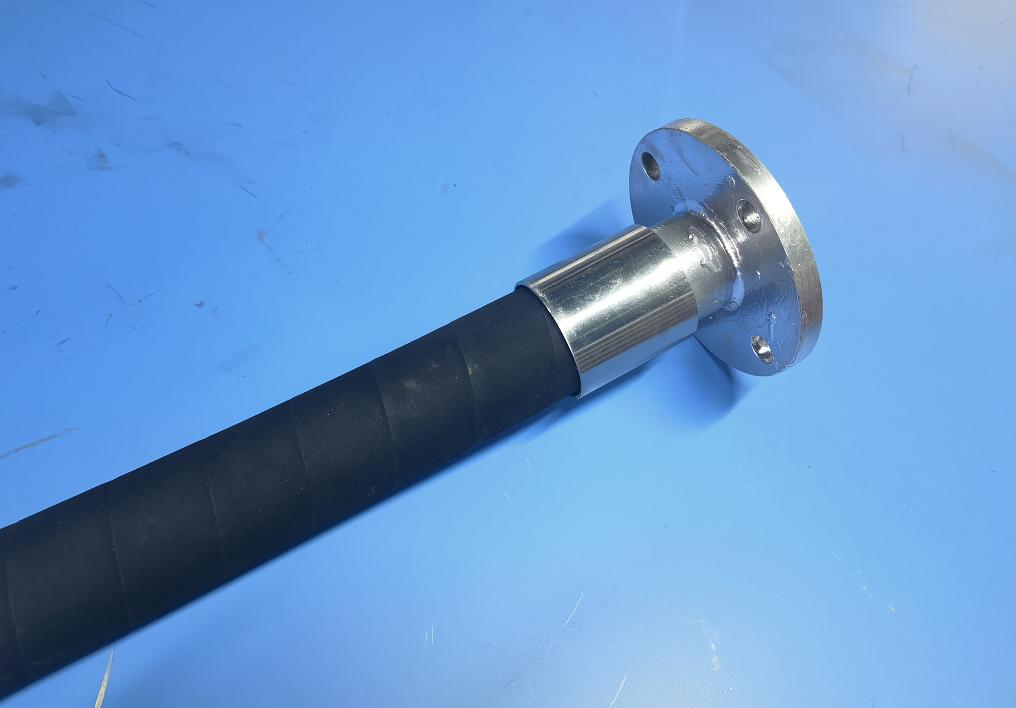

Flange type pinch hose joint and the same size flange butt, contact plane using flat gasket, butt flange using bolt connection.
Methods the blue type pinch hose joint was connected with the same size blue, the contact plane was sealed by sealing ring, and the butt flange was connected by high-strength bolt.
