Fully-Automatic Bag in Box Filling Packaging Line
| FOB Price: | 100000.00 - 160000.00 USD/Set |
|---|---|
| Supply Ability: | 15 Set(s) per Quarter |
| Shipping: | FOB Shenzhen |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Packed with Plywood |
Quick Details
- Type: Packaging Line
- Brand Name: Calmus
- Packaging Material: Bag in Box
- Packaging Type: Bags,Cartons
- Application: Beverage,Drinking Water
- Type: Packaging Line
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CE
- Model Number: BIBFLP600
- Driven Type: Pneumatic
- Automatic Grade: Automatic
- Condition: New
- Applicable Bags: 2-25L Webbed Spouted Bags
- Filling Packaging Capacity: 360-400 Boxes/Hour
- Country of Origin: China
Specifications

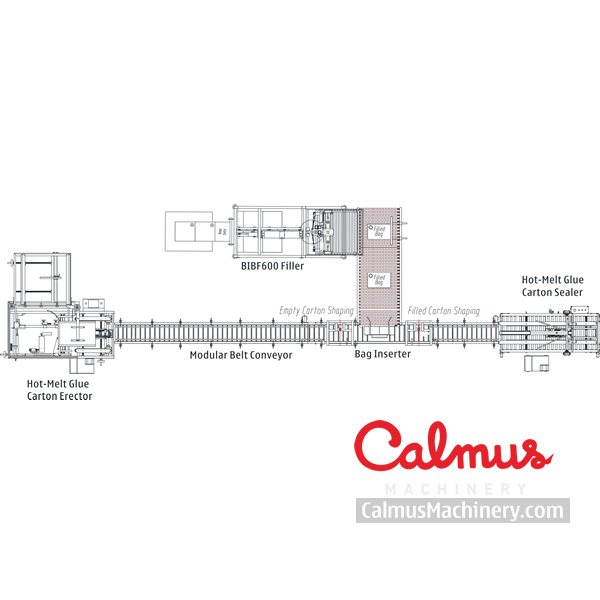

Fully-automatic Bag-in-Box (BiB) Filling and Packaging Line
the filling and packaging line includes:
1. Fully-automatic Bag-in-Box Filling Machine
2. Hot-Melt Glue Carton Erector
3. Bag Inserter
4. Hot-Melt Glue Box Sealer
5. Conveying Systems
the whole line is fully-automatic. Grade 304 stainless steel construction and grade 316L stainless steel fluid-contact parts. World famous brands of key components and many are imported. Made in China, but built at high quality level.
Procedures of the whole line:
1) Automatically feed bags.
2) Automatically pull cap, fill, cap and cut bags apart.
3) Automatically erect cartons and seal bottoms with hot melt glue.
4) Automatically insert filled bags in boxes.
5) Automatically seal the box tops with hot melt glue.
1. Fully-automatic Bag in Box Filling Machine
the Fully-automatic Bag in Box Filling Machine is designed for filling spouted bags with a wide range of liquids like drinking water, post mix syrup coke, edible oil and beverage. It features fully-automatic by employing PLC and touch screen control system. the whole process of continuous bags feed, decapping, vacuumization (optional), nitrogen injection (optional), filling, capping, cutting apart from continuous bags and transiting to the conveyor can be completed automatically, no human operation required.
this filling machine can cap various spigots including Vitop and Scholle's. It is designed with CIP (Clean in Place) function and pipeline connection. Grade 304 stainless steel body and 316L stainless steel fluid-contact parts.
Features:
1) Fully-automatic, WEB type bags fed.
2) Easy to use. the touch-screen control system makes operation easy.
3) An electromagnetic or turbine flowmeter employed improves filling precision and truly achieves the quantitative filling.
4) An air filter employed brings clean air to the filling space.
5) Grade 304 stainless steel body and 316L stainless fluid-contact parts.
6) Filling a different capacity bag acceptable only by changing the setting.
7) Options of vacuumization and nitrogen injection available for specific products use.
Specifications:
Applicable bags: pre-cut continuous module or WEB type bags, spout-fitted, 3-25 litres. (Spout is called Gland or Flange too.)
Filling capacity:
450-510 bags/hour for 5 litres
360-400 bags/hour for 10 litres
250-270 bags/hour for 20 litres
Power: 1.0 kW
Compressed air: 6-8 bar, 500 NL/min
2. Carton Erector (Erecting carton and sealing bottom)
Erecting capacity: 6-7 cartons/min
Coated carbon steel construction
Hot Melt Glue System: Nordson
3. Bag Inserter (Inserting filled bags in cartons)
Inserting capacity: 15 bags/min
Grade 304 stainless steel body
4. Hot Melt Glue Box Sealer (Closing and sealing top)
Sealing capacity: 10 cartons/min
Coated steel construction
Hot Melt Glue System: Nordson
5. Conveying Systems
Grade 304 stainless steel
