EXia II CT6 Radar Level Transmitter 4MPa Two Wire 0.1% Accuracy

FOB Price:	350.00 - 500.00 USD/Piece
Supply Ability:	1,000 Piece(s) per Month
Shipping:	air transport
Payment Terms:	T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	60cm30cm30cm,Export standard packing

Quick Details

External Size: Export standard packing
Type: radar
Protection Level: IP67
Brand Name: NUOYINGJIAYE
Color: blue
Model Number: NYRD803 High Temperature Type

Specifications

NYRD803 Intelligent Radar Level Meter

Radar Level Meter Operating Principle

Radar level meter is suitable for liquid, slurry and granular material level of non-contact continuous measurement, suitable for temperature, pressure change; Where inert gases and volatiles are present.

the measurement method of microwave pulse is adopted, and it can work normally in the range of industrial frequency band. Low beam energy, can be installed in a variety of metal, non-metal containers or pipes, no harm to human body and the environment.

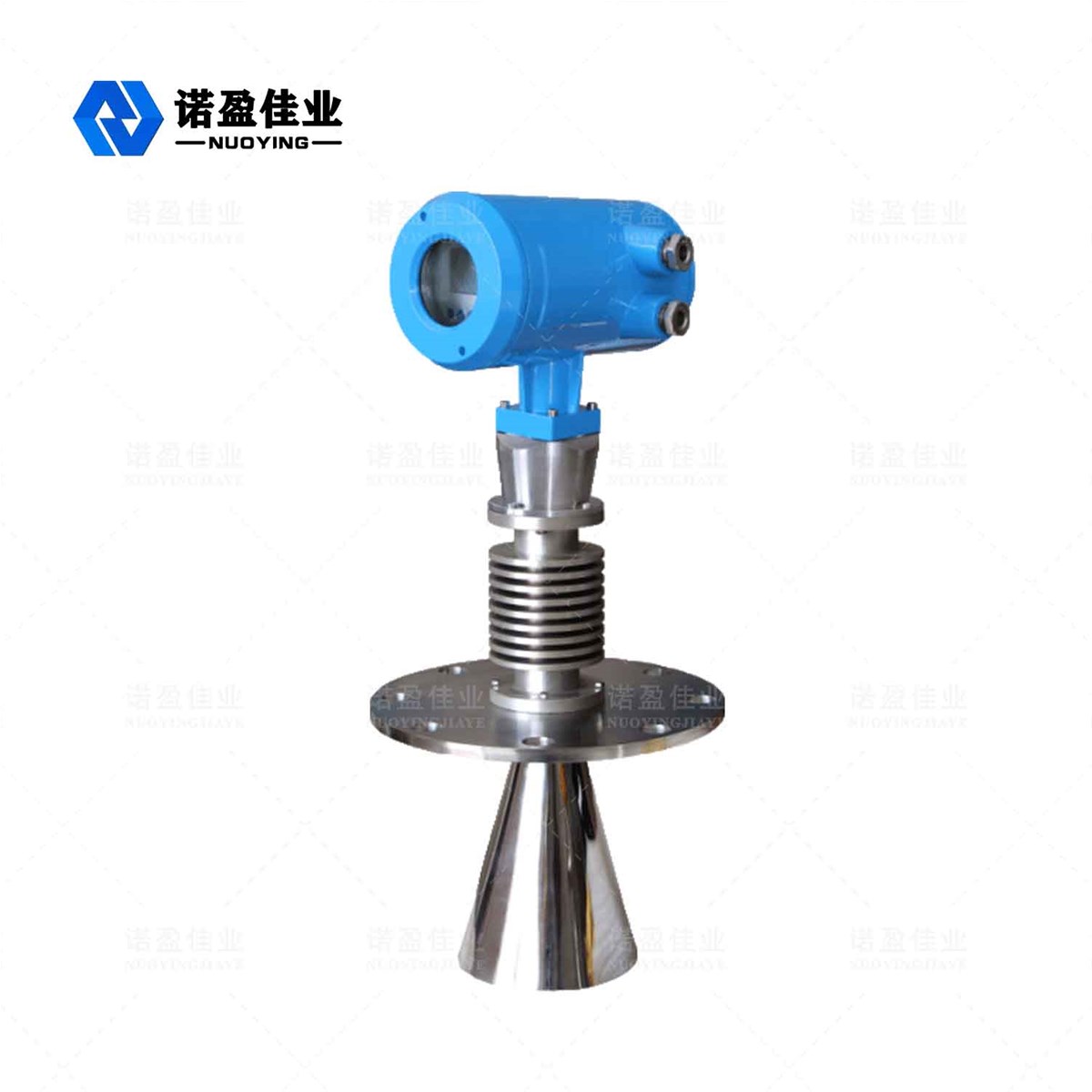

EXia II CT6 Radar Level Transmitter 4MPa Two Wire 01 Accuracy

Radar Level Meter Technical Parameter

Application	Process conditions simple, liquid, slurry, solid Examples:Liquid water storage tank; Soda acid storage tank; Slurry tank; Solid particles; Small tanks
Measuring range	35m
Material	304,316 (optional)
Fitting process	Flange(optional),
Process temperature	-40-250℃
Process presure:	-1~40bar,-0.1~4MPa
Repeatability	± 3mm
Accuracy	< 0.1%
Frequency rate limits	6.8GHz
Explosion-proof	EXiaIICT6
Protection grade	IP67
Signal output	4-20mA, 4-20mA/HART(Two wire/FOUR wire)
Power supply	24VDC

Note: Products Can be Customized according to the Specific requirements of Users!

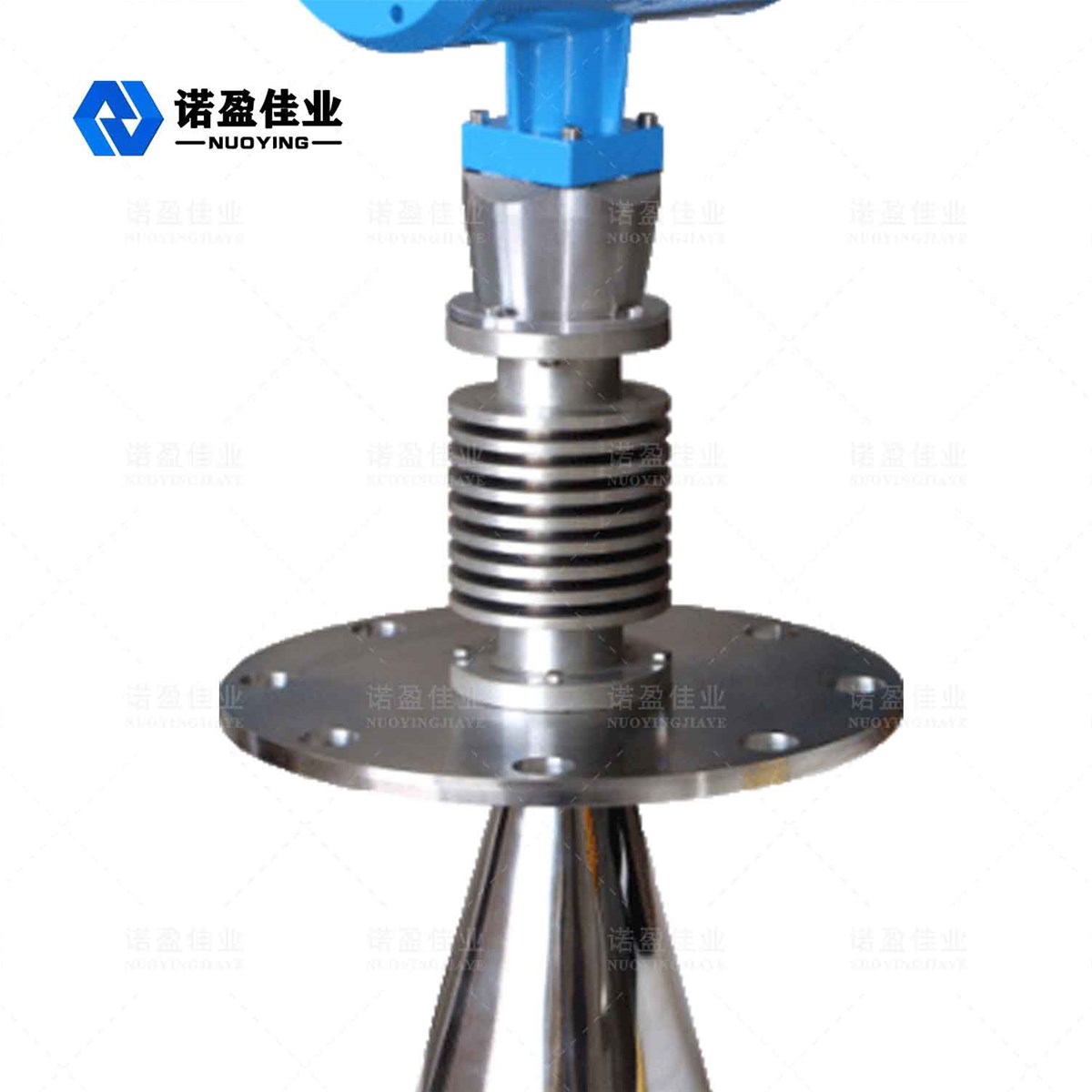

Radar level meter antenna to join structure of radiator, radiator is a kind of to electrical appliances used hot electron component cooling device, made more than 304/316 of material such as stainless steel sheet structure. the heat sink can make the heat from the components more effective conduction, so that the product can be applied to higher temperature occasions.

Radar Level Meter Design Features

NYRD803 of level meter is suitable for continuous non-contact measurements of liquids, Slurry and pellets, pressure variation; the presence of inert gases and volatile situations
Use microwave pulse measurement method, it can be worked normally within the band of frequent industry. for the lower energy beam, can be installed on a variety of metals, non-metallic container or pipe, no harm to humans and the environment.

Radar Level Meter Installation requirements

Installation description

Recommended distance(1)from wall to the outer wall of installed short pipe:

A distance from the tank wall:1/6 of the tank diameter, min. Distance is 200mm
Not allowed to install above the material feeding silo(4)
Not allowed to install in the central position(3),in case it is installed in the center, it will cause ma false wave echo,it interrupts wave echo and cause signal loss.
If the distance between the gauge and wall of the tank cannot be secured, the mediums on tank wall will be adhered causing false wave echo, during the gauge debugging, the false wave echo has not be saved.
