96*96mm Thd Harmonic Monitoring 3p4w RS485 Multi Functional AC Digital Ammeter Voltmeter Basic Energy Meter

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Dimensions: 96*96mm
Accuracy Class: 0.2%/0.5%
Phase: Three Phase
Display Type: Digital Only
Brand Name: Elecnova

Specifications

Basic Info.

Model NO.

LNF58

Power Meter Connection

Terminal

Measured Signal

Pulse Peak

Type

Power Meter

Certification

ISO, CE

Customized

Measuring Energy Range

0~9999

Accuracy Class

0.2%/0.5%

Output Voltage

AC 250V/DC 30V

Frequency

45-65Hz

Rated Current

AC 1A/ 5A

Rated Voltage

AC 100V/380V

Communication

RS-485

Standard

IEC-62053

Specification

96*96mm

Trademark

LINFEE

Origin

China

HS Code

9030809090

Production Capacity

20000PCS/Per Month

Product Description

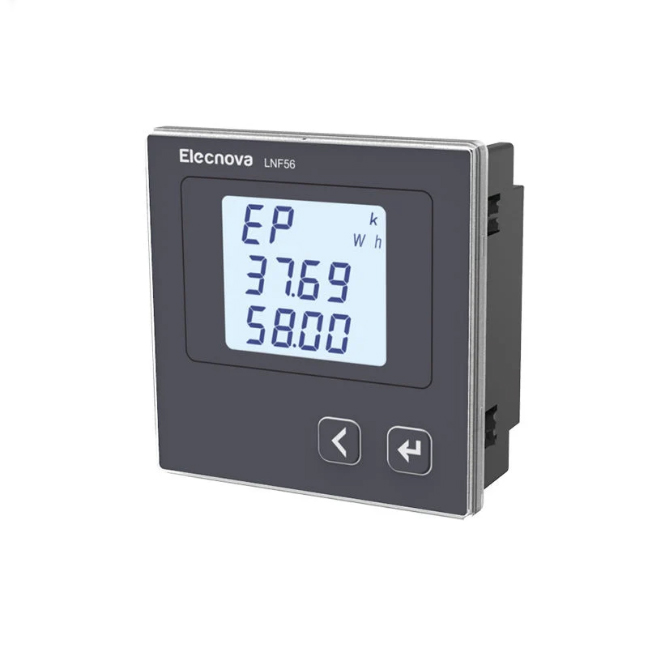

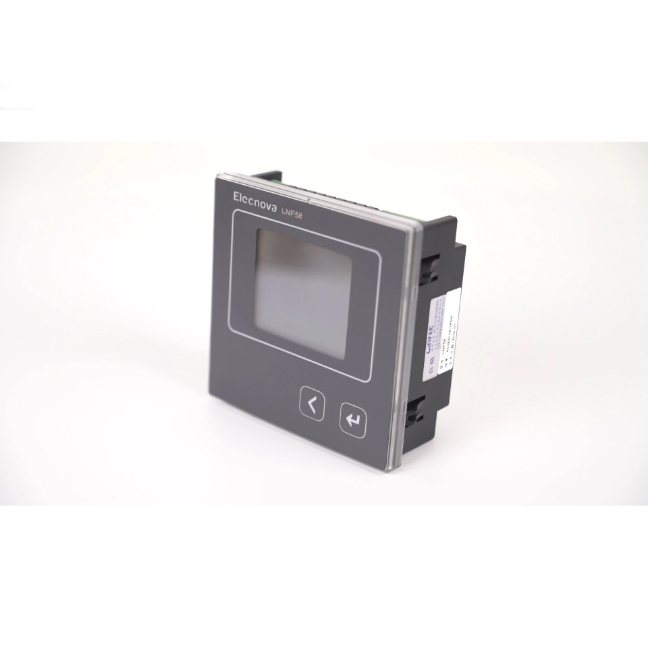

Product Name: 96*96mm THD harmonic monitoring 3P4W RS485 multi functional AC digital ammeter voltmeter basic Energy Meter
this series of multi-function power meters support all-parameter measurement, bi-directional energy metering, four-quadrant reactive metering and harmonic analysis. They can be connected to power monitoring system and energy management system to realize remote data monitoring.
9696mm Thd Harmonic Monitoring 3p4w RS485 Multi Functional AC Digital Ammeter Voltmeter Basic Energy Meter
Technical Specifications

Accuracy		Voltage,current: 0.2%;power: 0.5%,frequency:±0.01HZ;Active energy:0.5s
Data update rate		1s
Signal Input	Rated current	AC 1A,5A
	Rated voltage	AC 100V,380V
	Overload	Continuous:2In,instantaneous:10In/5s Continuous:1.2Un,instantaneous:2Un/1min
	Energy consumption	≤0.1VA
	Fequency	45~65HZ
Communication	RS485 interface	Modbus-RTU protocol, baud rate up to 9600bps
Energy pulse		Optocoupler isolation,pulse width 80ms±20%
Digital Input		Optocoupler isolation,passive dry contact
Relay Output		Contact capacity AC250V 5A or DC 30V 5A
Auxiliary power supply	Working range	AC/DC 80~270V
Auxiliary power supply	Energy consumption	≤5VA
Environment condition	Working temperature	-10~55C
	Storage temperature	-25~70C
	Relative humidity	≤93%RH
	Altitude	≤2500m
Safety	Insulation	Signal power supply output terminal to case resistance ≥100MΩ
Safety	Withstand voltage	Power supply,input and output ≥2kv
Protection level		IP54

Typical Wiring
