DC Kwh Meter DIN Rail Mounted Three Phase Multi-Circuit Multi-Function Watt Hour Meter

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Dimensions: 72*90*63.5mm
Accuracy Class: 0.2%/0.5%
Phase: Three Phase
Display Type: Digital Only
Brand Name: Elecnova

Specifications

Basic Info.

Model NO.

PD195Z-E31

Power Meter Connection

Terminal

Measured Signal

Pulse Peak

Type

Power Meter

Certification

ISO, CE

Customized

Phase

Single Phase

Measuring Energy Range

0-999999

Accuracy Class

0.2%/0.5%

Output Voltage

230V

Communication Interface

RS485

Current Signal Input

Hall Transformer DC-4V

Voltage Signal Input

DC:0~100V,0~300V,0~1000V,(Max. over Voltage 1200V)

Net Weight

about 300g

Specification

72*90*63.5mm

Trademark

ELECNOVA

Origin

China

HS Code

9030809090

Production Capacity

20000PCS/Per Month

Product Description

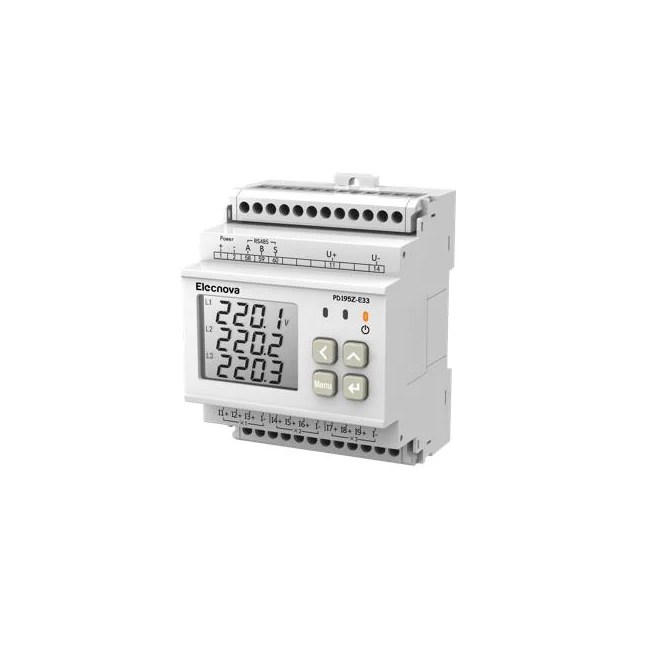

Product Name: DC Kwh Meter DIN Rail Mounted Three Phase Energy Meter multi-circuit multi-function Watt Hour Meter
PD195Z-E31 is used to monitor and control DC system. They also support limit alarm, analog output, digital input, relay output and communication functions. All the measured data and status can be read through RS485 communication interface with Modbus-RTU protocol.
DC Kwh Meter DIN Rail Mounted Three Phase MultiCircuit MultiFunction Watt Hour Meter
Technical Specifications

Display mode		LCD
Accuracy	U/I/P	0.5 Class
Accuracy	Energy	1 Class
Voltage Input	Rated value	DC 40-1000V direct access
	Overload	Continuous:1.2Vn
	Power consumption	≤0.2W
	Impedance	≥6MΩ
Current Input	Rated value	DC 0-4V(external hall sensor)
	Overload	Continuous:1.2In
	Power consumption	≤0.1mW(each channel)
Auxiliary Power Supply	Working Range	AC,DC 80~270V, 50/60Hz
Auxiliary Power Supply	Consumption	≤5VA
Communication		RS485,Modbus-RTU,2-wire,up to 9600bps
Digital input		Optocoupler isolation,dry contact type (optional EK1 module)
Relay output		Contact capacity: AC 250V/5A, DC 30V/5A
Environment Conditions	Operating temperature	-20C~70C
	Storage temperature	-30C~80C
	Relative humidity	≤93%
	Altitude	≤2500m
Insulation		≥2kvac

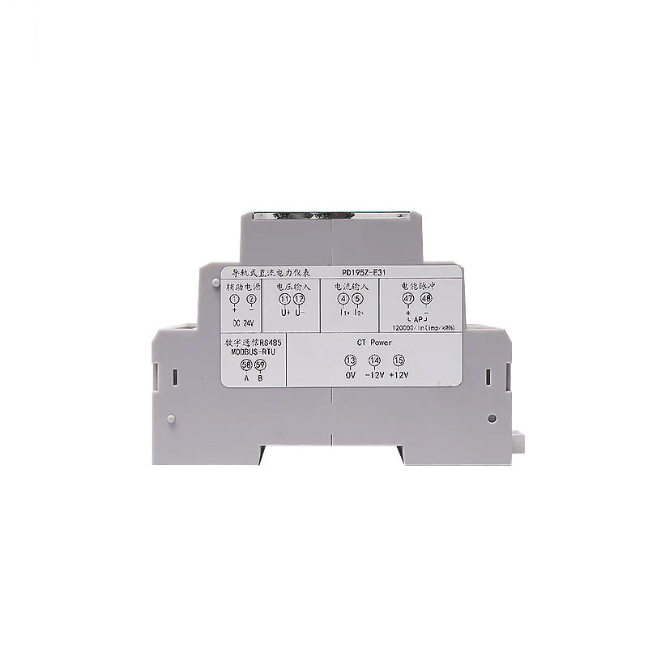

Typical Wiring

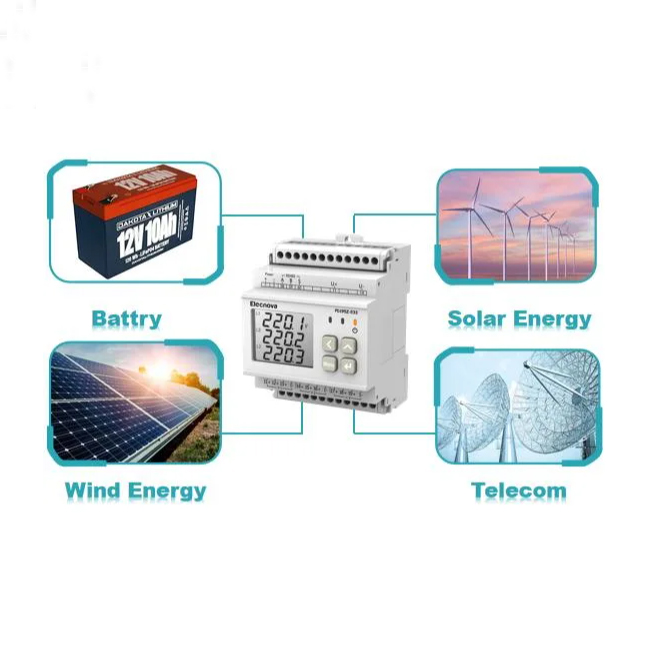

Application
DC Kwh Meter DIN Rail Mounted Three Phase MultiCircuit MultiFunction Watt Hour Meter
