Home >Products Catalog > Multi-functional Power Meter > 48*48mm LED Single Phase Mini Digital Panel High Precision Communication Voltmeter DC Digital Power Meter

48*48mm LED Single Phase Mini Digital Panel High Precision Communication Voltmeter DC Digital Power Meter

FOB Price:	40.00 - 60.00 USD/Piece

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Dimensions: 48*48mm
Accuracy Class: 0.2%/0.5%
Phase: Single Phase
Display Type: Digital Only
Brand Name: Elecnova

Specifications

Basic Info.

Model NO.

PZ195U-DK1

Power Meter Connection

Terminal

Measured Signal

Pulse Peak

Type

Power Meter

Certification

ISO, CE

Customized

Measuring Range

0-1200V

Accuracy Class

0.2%/0.5%

Rated Voltage

DC 75mv,1~5V,110V,220V,1000V etc

Communication

RS485 Modbus-RTU

Display Panel

LED

Phase

Single Phase

Frequency

45-65Hz

Transport Package

400g

Specification

48*48mm

Trademark

ELECNOVA

Origin

China

Production Capacity

30000 Set/Sets Per Month

Product Description

Product Name: 48*48mm Single phase mini digital panel high precision communication voltmeter DC Digital Power Meter
this series of meters can be used for continuous monitoring and control of DC systems. They support switching status monitoring, remote control through relays, analog output, voltage and current off-limit alarm, and can output alarm signal. They also support communication so that all measured data and status can be read through RS485 communication port via Modbus-RTU protocol.

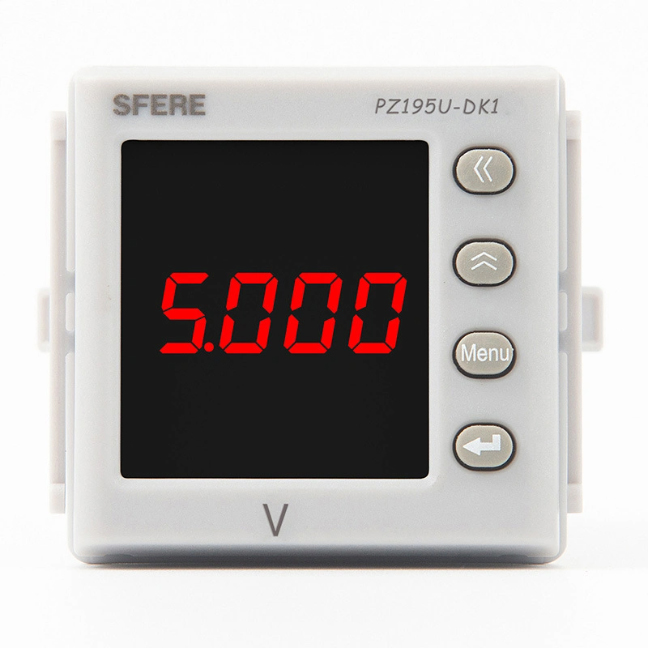

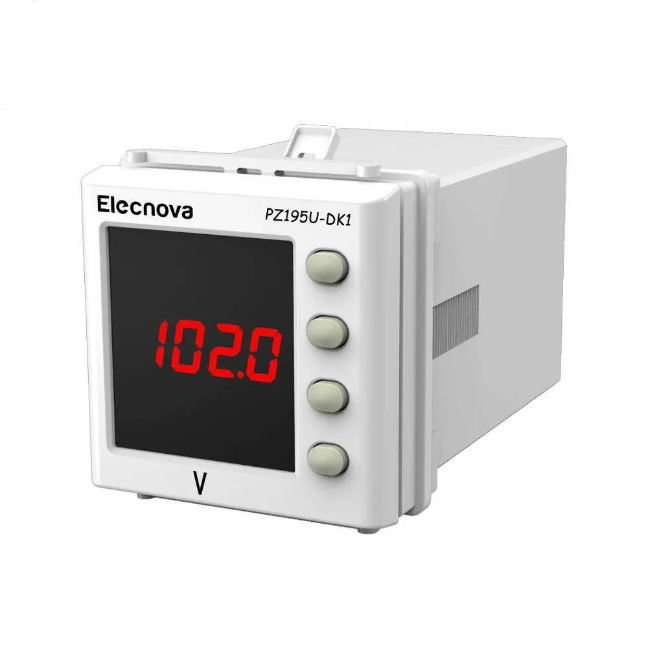

4848mm LED Single Phase Mini Digital Panel High Precision Communication Voltmeter DC Digital Power Meter
Technical Specifications

Product name	48*48mm Single phase mini digital panel high precision communication voltmeter DC Digital Power Meter
Display panel	LED digital display
Wiring	1 phase 2 wire
Accuracy	0.2%, 0.5%(defaulted)
Rated voltage	DC 75mV, 1~5V, 110V, 220V, 1000V etc.
Data refresh rate	1s
Voltage output	DC 0~5V, 1~5V etc.,load ≥20kΩ
Relative humidity	≤93%RH

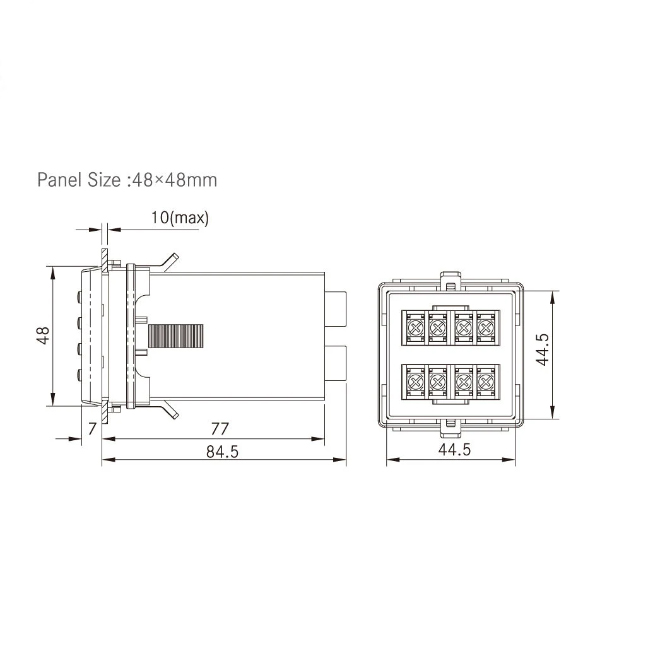

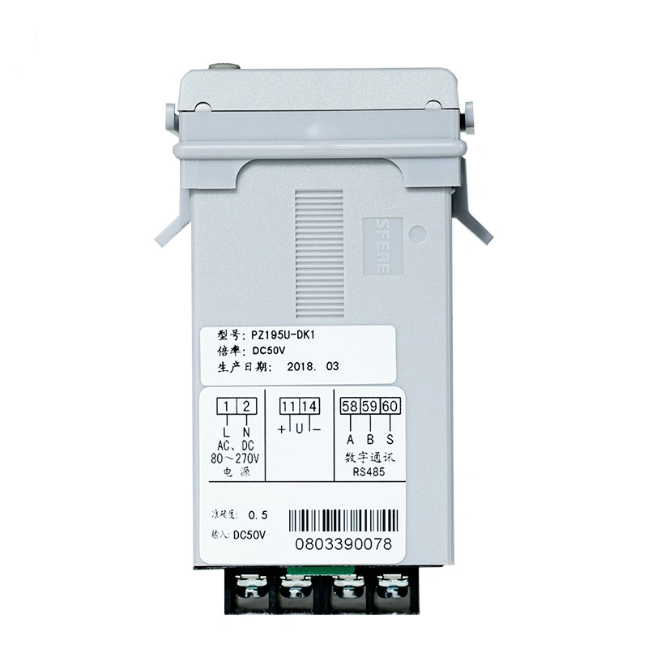

Typical Wiring
4848mm LED Single Phase Mini Digital Panel High Precision Communication Voltmeter DC Digital Power Meter

Application
4848mm LED Single Phase Mini Digital Panel High Precision Communication Voltmeter DC Digital Power Meter
