Sbm Ultrafine Powder Tech
China Manufacturer with main products: Ore Grinding Mill, Stone Powder Making Machine, Ultrafine Grinding Mill, Vertical Mill, Raymond Mill, Stone Crusher |

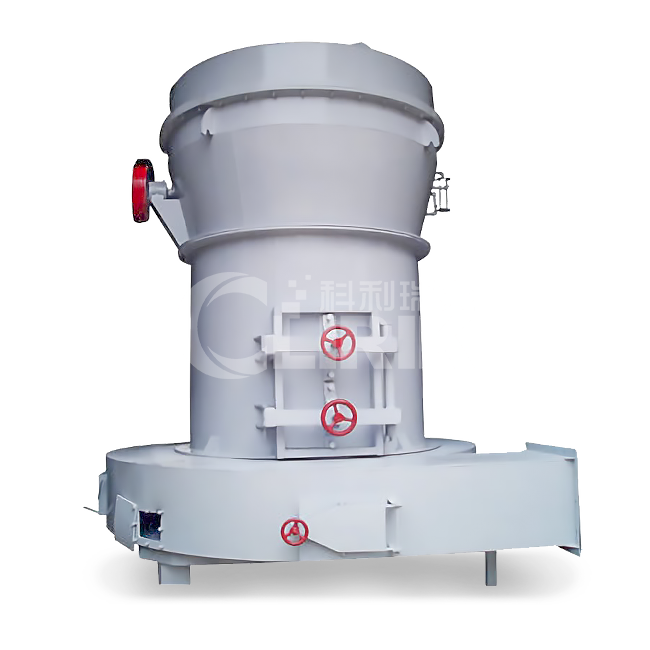

YGM High Pressure Grinding Mill
| FOB Price: | 56000.00 - 200000.00 USD/Set |
|---|---|
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Condition: New
- Brand Name: SBM
- Weight: 20000kg
- color: dark
Specifications

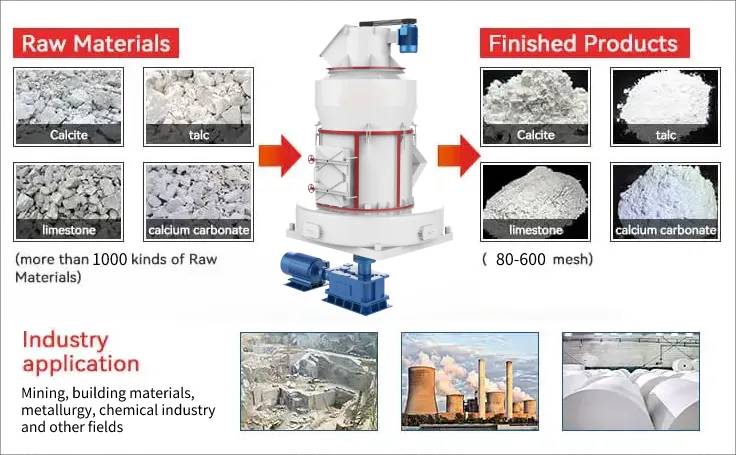

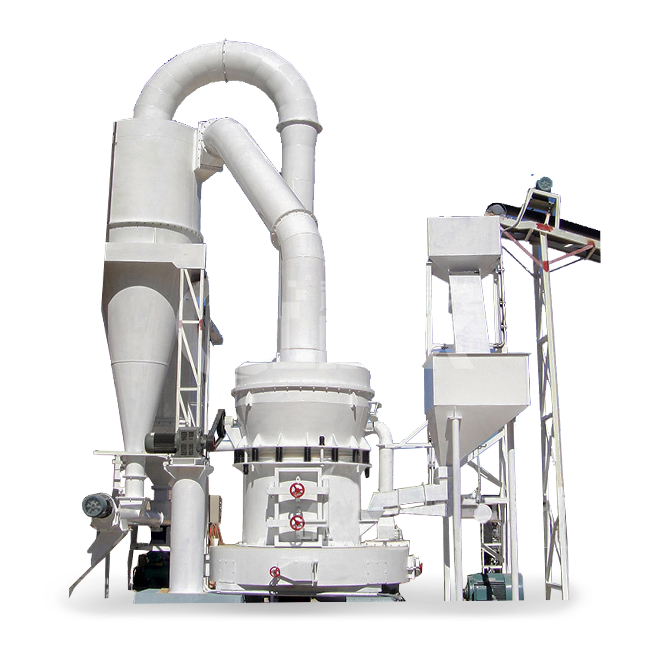

High pressure grinding mill, also known as High pressure roller mill, can grind non-flammable and explosive materials with Mohs hardness not greater than 9.3 and humidity below 6%. Its main components include main engine, reducer, analyzer, pipeline device, blower, dust collector, jaw crusher, bucket elevator, electromagnetic vibrating feeder, electric control system, etc.
the machine adopts a number of national patented technologies such as parallel working surface, flexible connection, and roller linkage pressurization, which completely overcomes the traditional industrial pulverizer in terms of application range, output, fineness, energy consumption, service life, etc. It is the most ideal substitute for traditional Raymond mills, ball mills and other powder grinders.
1. the grinding force is large. the grinding roller assembly of the high-pressure grinding mill adopts a high-pressure spring device to increase the grinding force. the grinding force of each grinding roller assembly can be increased by 500Kg on the original basis, which greatly improves the milling efficiency.
2. the grinding area is large, and the grinding height of the grinding roller and grinding ring is increased from 160mm to 200mm.
3. Large amount of shovel.
4. High classification accuracy.
5. Double cyclone collector.
6. the main engine adopts a buffer device, and the structure of the main casing is optimized to ensure stable operation and low noise.
7. the main engine and analysis machine adopt quick-change pressing device, which is convenient for maintenance.
8. the residual wind is collected by cloth bags, and there is no dust pollution.
9. the blower of the high pressure grinding mill adopts a high-pressure centrifugal fan, and the air volume and air pressure are increased, which greatly improves the pneumatic conveying capacity.
PERFORMANCE CHARACTERISTICS of HIGH PRESSURE PULVERIZER
1. Compared with the jet mill, the high-pressure micro-powder mill has a wider application range.
2. Compared with other similar mills, the grinding force of the grinding roller on the material is increased by 800-1200 Kg under the action of the high-pressure spring.
3. Energy saving. with the same output and fineness, the system energy consumption is only one third of that of jet mill.
4. Small investment and high return. In the case of the same output and fineness, the price of high-pressure micro-powder mill is only one-eighth of that of jet mill.
5. the grinding device adopts overlapping multi-stage sealing, which has good sealing performance, no dust and noise problems during operation, and is more low-carbon and environmentally friendly.
6. the degree of automation is relatively high, the operation is easy, the parts are easy to disassemble, and the maintenance is convenient.
