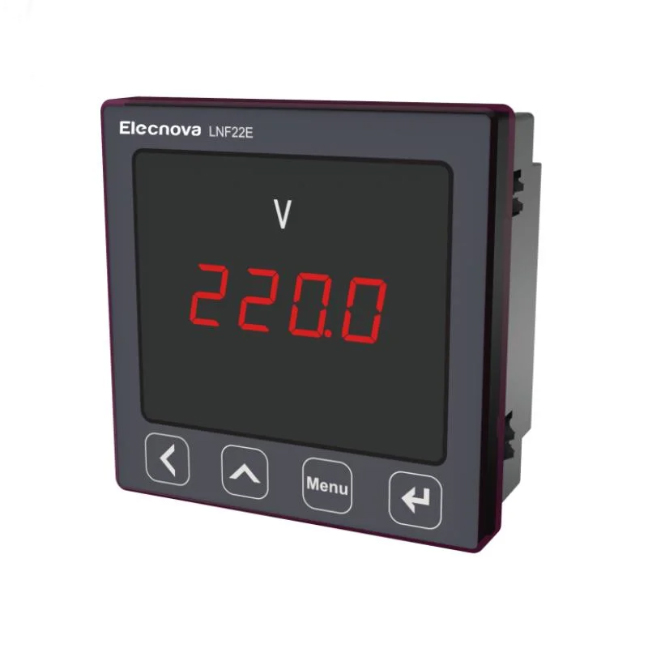

96*96mm Coldproof Lnf22e LED Display Single Phase Panel Mounted Digital Volt Power Meter

Inquiry Now

Product Details

Quick Details

Dimensions: 96*96*34mm
Accuracy Class: 0.5
Phase: Single Phase
Display Type: Digital Only
Brand Name: Elecnova

Specifications

Basic Info.

Model NO.

LNF22E

Power Meter Connection

Terminal

Measured Signal

Pulse Peak

Type

Power Meter

Certification

ISO, CE

Customized

Measuring Range

0-9999

Accuracy Class

0.5

Frequency

45-65Hz

Current Input

AC 5A/1A

Voltage Input

AC 57.7/100/230/400V

Communication

RS-485/Modbus-RTU

Standard

IEC-62053

Specification

96*96*34mm

Trademark

ELECNOVA

Origin

China

HS Code

9030809090

Production Capacity

30000PCS/Per Month

Product Description

Product Name: 96*96mm COLDPROOF LNF22E LED display single phase panel mounted digital volt Power Meter
this series of meters have programmable transformation ratio.They can be expanded with functions of digital input, relay output, analog output and communication supporting Modbus-RTU protocol;They provide various installation dimensions to facilitate the directly replacing of analog pointer voltmeter; They can be widely used in different control systems, power transformation and distribution automation, industrial automation and intelligent buildings.
9696mm Coldproof Lnf22e LED Display Single Phase Panel Mounted Digital Volt Power Meter

Technical Specifications

Accuracy		0.5%
Data update rate		1s
Signal Input	Rated current	AC 1A,5A
	Rated voltage	AC 100V,380V
	Overload	Continuous:2In,instantaneous:10In/5s Continuous:1.2Un,instantaneous:2Un/1min
	Energy consumption	≤0.1VA
	Fequency	45~65HZ
Communication	RS485 interface	Modbus-RTU protocol, baud rate up to 9600bps
Energy pulse		Optocoupler isolation,pulse width 80ms±20%
Digital Input		Optocoupler isolation,passive dry contact
Relay Output		Contact capacity AC250V 5A or DC 30V 5A
Auxiliary power supply	Working range	AC/DC 80~270V
Auxiliary power supply	Energy consumption	≤3VA
Environment condition	Working temperature	-10~55C
	Storage temperature	-25~70C
	Relative humidity	≤93%RH
	Altitude	≤2500m
Safety	Insulation	Signal power supply output terminal to case resistance ≥100MΩ
Safety	Withstand voltage	Power supply,input and output ≥2kv
Protection level		IP54

Typical Wiring
9696mm Coldproof Lnf22e LED Display Single Phase Panel Mounted Digital Volt Power Meter

Application
9696mm Coldproof Lnf22e LED Display Single Phase Panel Mounted Digital Volt Power Meter
