Home >Products Catalog > Multi-functional Power Meter > Good Quality 3p3w LCD Display RS485 Interface Multifunction Energy Meter

Good Quality 3p3w LCD Display RS485 Interface Multifunction Energy Meter

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

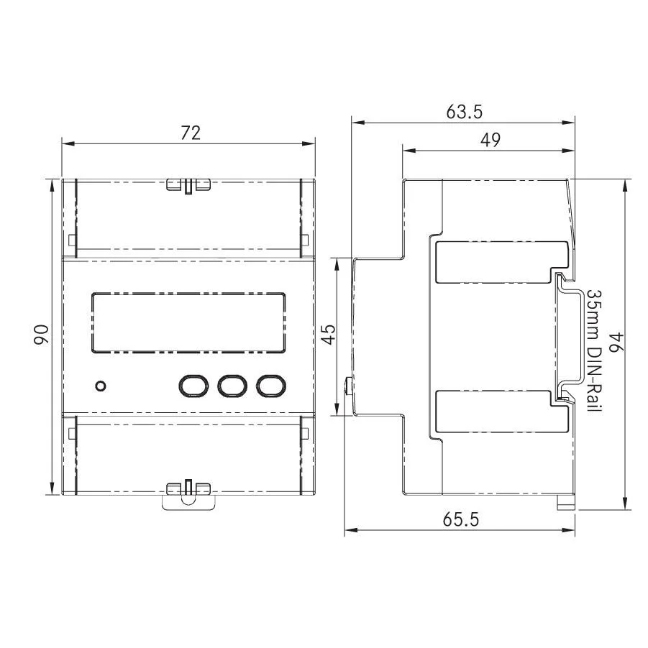

Dimensions: 90*126mm
Accuracy Class: 1%(Optional 0.5s)
Phase: Single Phase and There Phase
Display Type: Digital Only
Brand Name: Elecnova

Specifications

Basic Info.

Model NO.

DSS1946-L

Power Meter Connection

Terminal

Measured Signal

Pulse Peak

Type

Power Meter

Certification

ISO, CE

Customized

Phase

Single Phase

Measuring Energy Range

0-9999

Accuracy Class

1%(Optional 0.5s)

Output Voltage

230V

Operating Temperature

-10~+55C

Frequency

45-65Hz

Rated Current

AC 5(40)a

Communication

RS-485

IP Degree

Front IP51

Storage Temperature

-25C~70C

Standard

IEC-62053

Specification

90*126mm

Trademark

LINFEE

Origin

China

HS Code

9030809090

Production Capacity

20000PCS/Per Month

Product Description

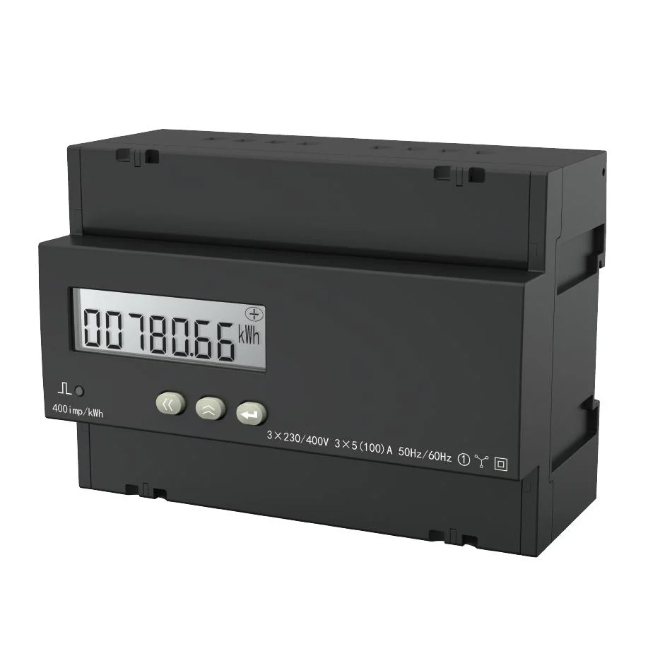

Product Name: Good quality 3P3W LCD display RS485 interface multifunction Energy Meter
the rail-mounted meter uses an modular design, which has the advantages of small size, easy installation, and easy networking.It is easy to achieve terminal lighting energy measurement,and it is convenient to retrofit the lighting system with an electric meter.
Good Quality 3p3w LCD Display RS485 Interface Multifunction Energy Meter

Technical Specifications

		DDS1946-1P DDSF1946-1P	DDS1946-2P DDSF1946-2P	DDS1946 DDSF1946	DSS1946 DSSF1946	DTS1946 DTSF1946
Normal Voltage		230V	230V	230V	3*400V	3*230/400V
Current	Direct input	5(40)A	5(100)A	5(100)A	5(100)A	5(100)A
	Via CT input	-	-	1.5(6)A	1.5(6)A	1.5(6)A
Accuracy		Class 1(Optional:Class 0.5S)
Frequency		45Hz~65Hz
Voltage Range		0.8Un~1.2Un
Start Current	Direct input	0.004Ib
	Via CT input	0.002In
Consumption		<2VA
Energy Pulse		1 output, pulse width (80±20%) ms
RTC Error		≤0.5s/day
Communication		RS485, Modbus-RTU, 2-wire, up to 9600bps
IP Degree		Front: IP51
Operating Temperature		-10C ~ 55C
Storage Temperature		-25C ~ 70C
Relative Humidity		≤93%
Certificate		CE ISO9001

Application
Good Quality 3p3w LCD Display RS485 Interface Multifunction Energy Meter

FAQ

Q: Are you trading company or manufacturer?

A: We are factory located in Jiangyin Jiangsu Province.

Q: Does your company provide customized manufacturing?

A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.

Q: how long is your delivery time?

A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.

Q: Do you provide samples? Is it free or extra?

A: You need to pay for the sample and cover the freight as well.

Q: What is your terms of payment?

A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
