Jut1-2.5 Phoenix UK2.5 DIN Rail Connector Terminal Blocks

FOB Price:	0.14 - 0.16 USD/Piece
Supply Ability:	2,000,000 Piece(s) per Year
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China

Quick Details

Type: Screw
Conductor Size: 21 - 30 AWG
Brand Name: UTL
Wire range: 0.2-2.5
Model Number: JUT1-2.5

Specifications

Jut125 Phoenix UK25 DIN Rail Connector Terminal Blocks

Model NO.

JUT1-2.5

Shape

Square

Interface Type

AC/DC

Certification

UL, TUV CE

Brand

Utl

Product Size

5.2*42.5*47*52mm

Cover

PA66 UL94-Vo

Frame

Cooper

Conductor

Cooper

AWG

24-12

Rigid Cable

0.2-4 Sqmm

Solf Cable

0.2-2.5 Sqmm

Voltage

690V

Current

32A

IEC

60947-7-1

Certificate

CE, UL, TUV

Transport Package

Export Carton

Specification

0.2-2.5MM

Trademark

UTL

Origin

China

HS Code

8536909000

Production Capacity

2000000PCS/Year

Product Description

DIN Rail Terminal Connector

Parameter

Thickness	5.2mm
Width	42.5mm
Height	47mm
Total Height	52mm
Rigid Cable	0.2-4mm2
Soft Cable	0.2-2.5mm2
Curret	32A
Voltage	800V
AWG	24-12
IEC	60947-7-1

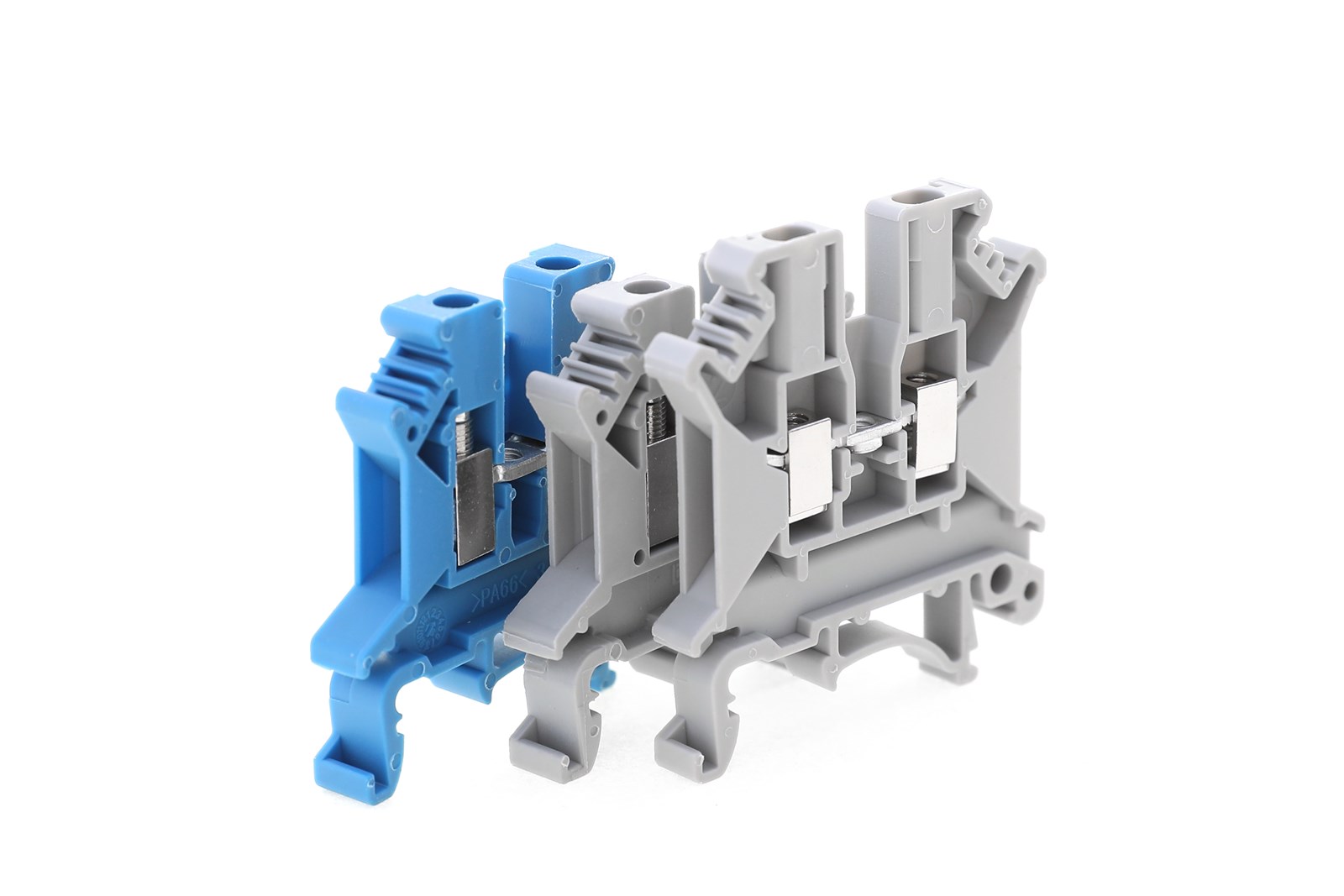

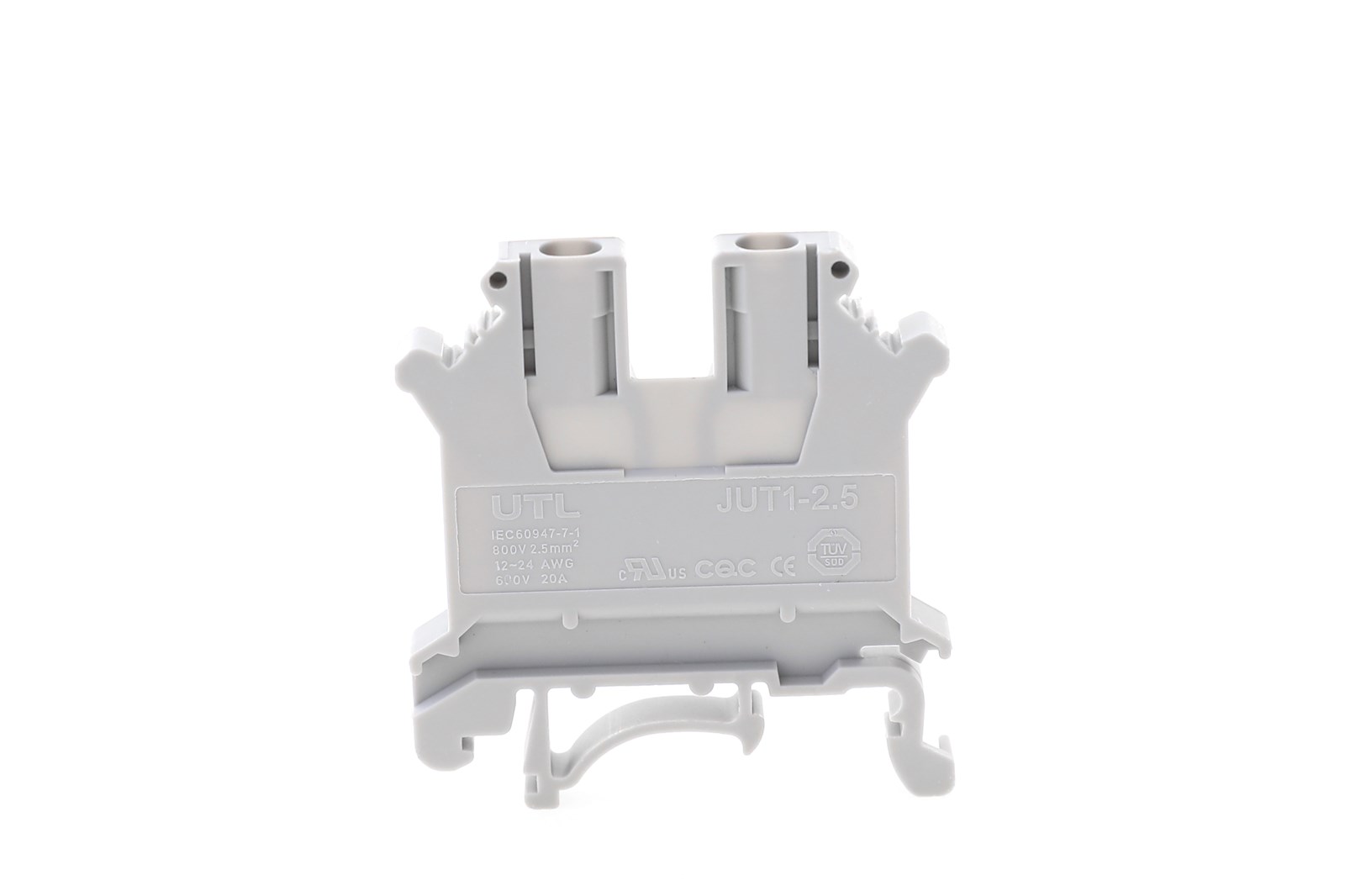

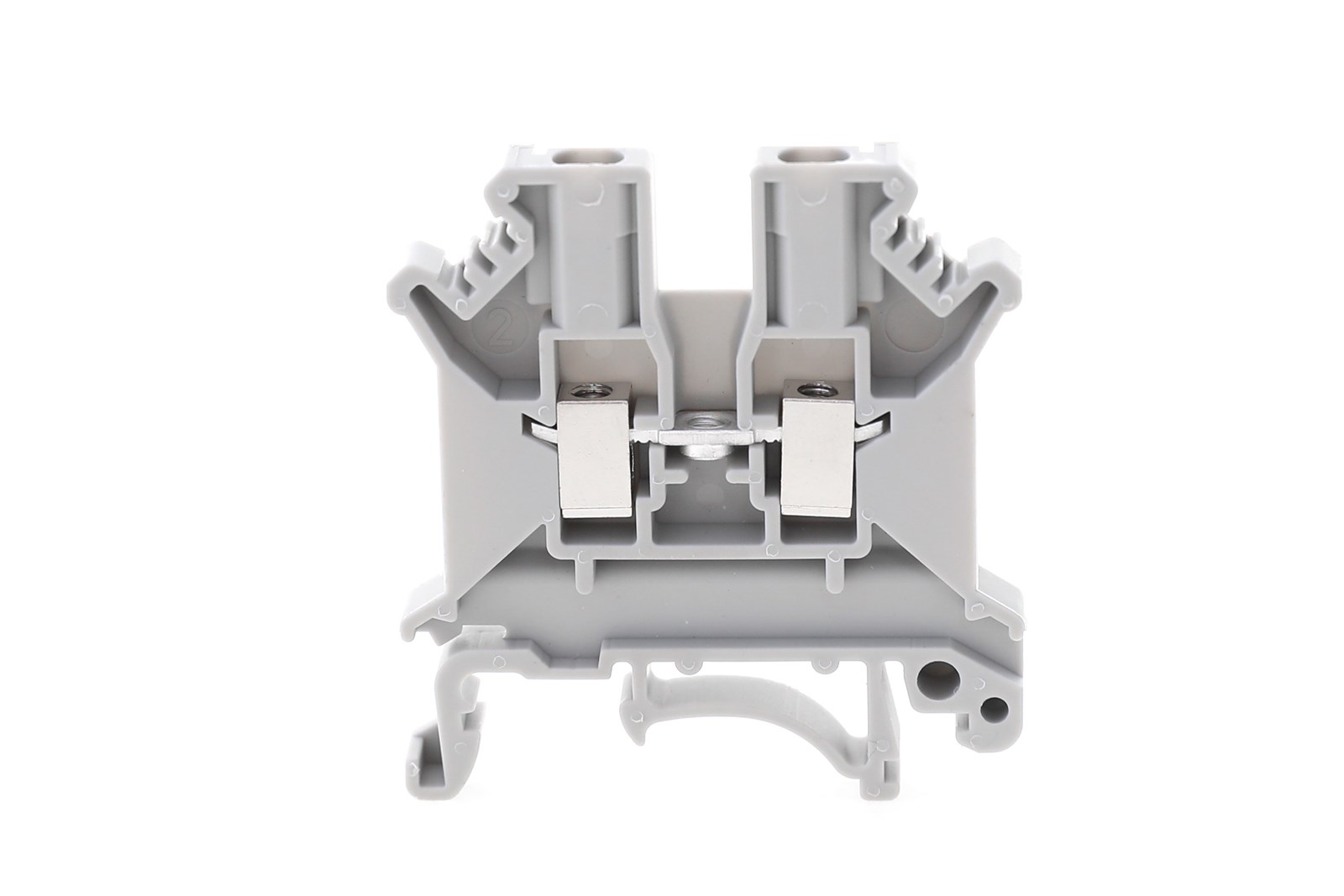

UTL terminal blocks JUT1-2.5 phoenix UK2.5 DIN Rail Terminal Connector with UL
