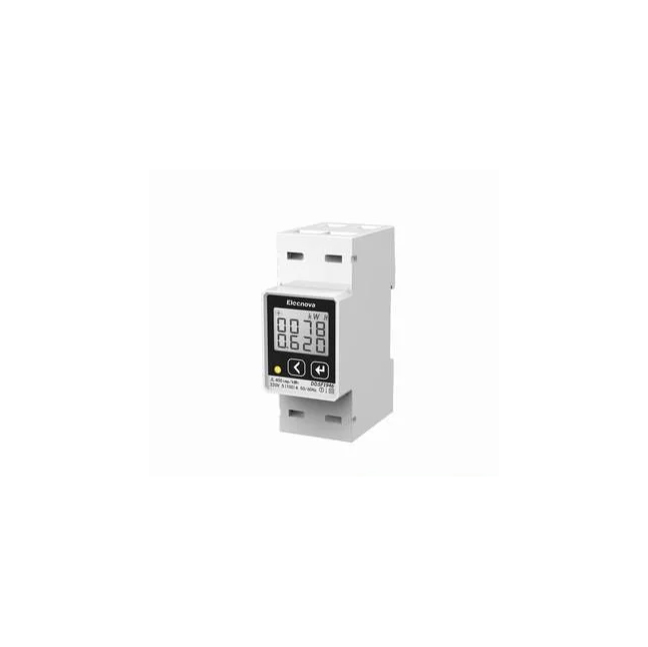

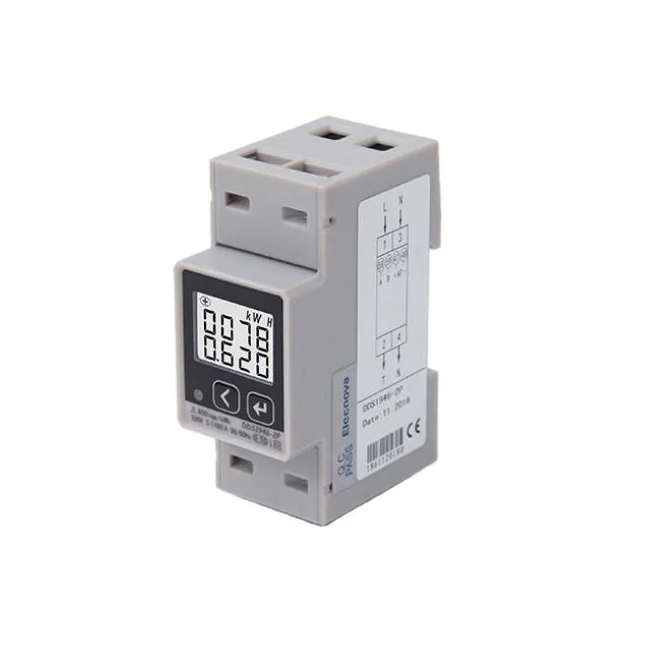

MID Approval LCD Display DIN-Rail Mounted Accuracy 0.5s 1p2w Multi Functional 63A Direct Input EV Energy Meter

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Dimensions: 90*36mm
Accuracy Class: 0.5
Phase: Single Phase
Display Type: Digital Only
Brand Name: Elecnova

Specifications

Basic Info.

Model NO.

DDS1946-2P

Power Meter Connection

Terminal

Measured Signal

Pulse Peak

Type

Energy Meter

Certification

ISO, CE

Customized

Accuracy Class

0.5s

Frequency

45-65Hz

Rated Current

AC 5(100)a

Communication

RS-485

IP Degree

Front IP51

Standard

IEC-62053

Output Voltage

230V

Specification

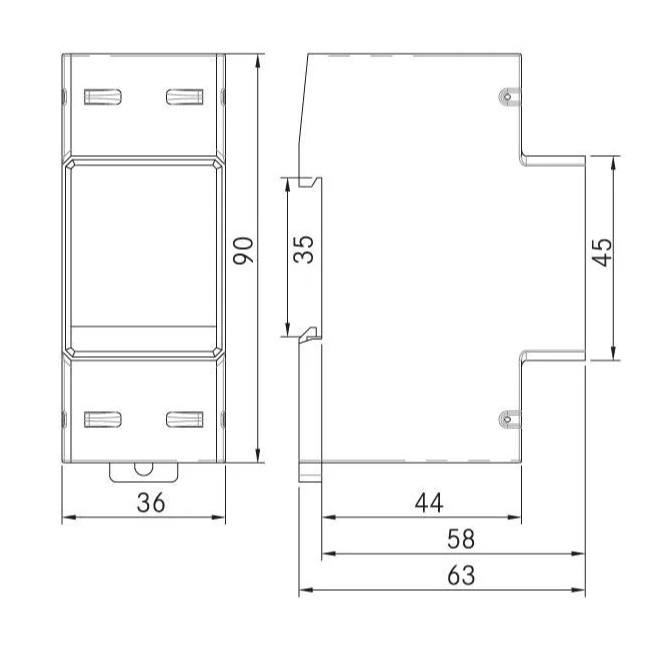

90*36mm

Trademark

ELECNOVA

Origin

China

HS Code

9030899090

Production Capacity

20000PCS/Per Month

Product Description

Product Name: MID approval LCD display DIN-rail mounted plug-in smart Accuracy 0.5S 1P2W multi functional 63A direct input EV home charger Energy Meter

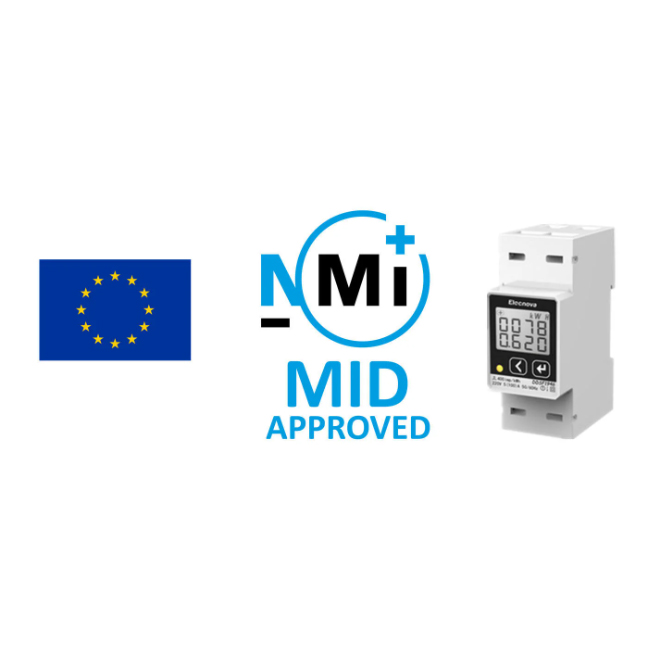

Elecnova DIN rail mounted energy meter DDS1946-2M single phase meter is a digital energy meter complies with the MID certification Class B (2014/32/EU). with the 32mm width (2DIN module) compact design, it's right perfect for the fiscal metering for the home use wall mounted EV charger. the DDS1946-2M is equipped with a LCD display for parameter checking, the DDS1946-2M also has the standard Modbus-RTU communication protocol, the measuring data could be integrated with the display of the EV charger by RS485 interface.
MID Approval LCD Display DINRail Mounted Accuracy 05s 1p2w Multi Functional 63A Direct Input EV Energy Meter

Technical Specifications

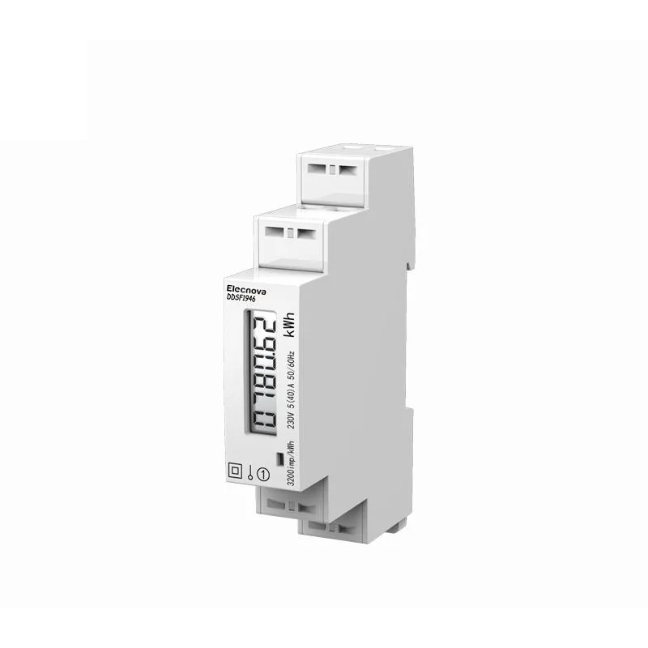

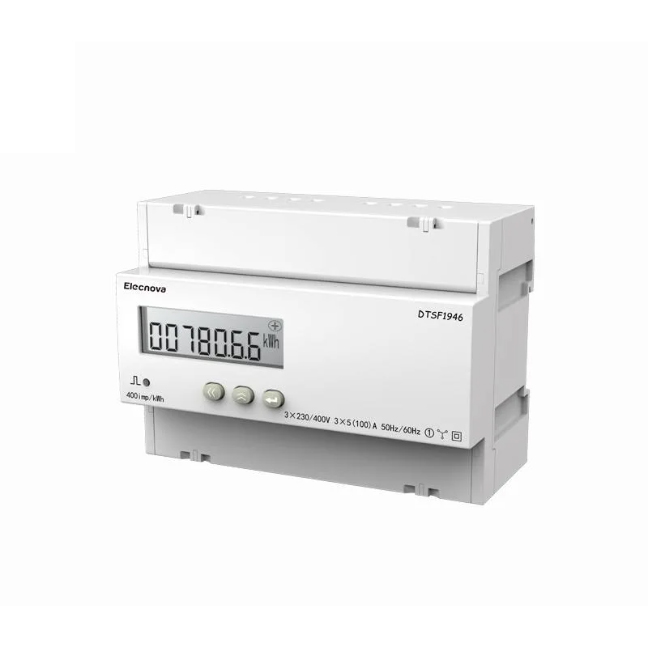

		DDS1946-1P DDSF1946-1P	DDS1946-2P DDSF1946-2P	DDS1946 DDSF1946	DSS1946 DSSF1946	DTS1946 DTSF1946
Normal Voltage		230V	230V	230V	3*400V	3*230/400V
Current	Direct input	5(40)A	5(100)A	5(100)A	5(100)A	5(100)A
	Via CT input	-	-	1.5(6)A	1.5(6)A	1.5(6)A
Accuracy		Class 1(Optional:Class 0.5S)
Frequency		45Hz~65Hz
Voltage Range		0.8Un~1.2Un
Start Current	Direct input	0.004Ib
	Via CT input	0.002In
Consumption		<2VA
Energy Pulse		1 output, pulse width (80±20%) ms
RTC Error		≤0.5s/day
Communication		RS485, Modbus-RTU, 2-wire, up to 9600bps
IP Degree		Front: IP51
Operating Temperature		-10C ~ 55C
Storage Temperature		-25C ~ 70C
Relative Humidity		≤93%
Certificate		CE ISO9001,MID

Typical Wiring
MID Approval LCD Display DINRail Mounted Accuracy 05s 1p2w Multi Functional 63A Direct Input EV Energy Meter

Application
MID Approval LCD Display DINRail Mounted Accuracy 05s 1p2w Multi Functional 63A Direct Input EV Energy Meter
