Nanjing e-Den Lighting Technology Co., Ltd.
China Manufacturer with main products: Infrared Heating Lamp, Quartz Infrared Emitter, Quartz Plate, Quartz Heater Lamp |
Home
>Products Catalog > Quartz IR Heating Emitter Medium Wave Gold Reflector Infrared Lamp Emitter Replacement Heraeus 09756083 400V 5750W

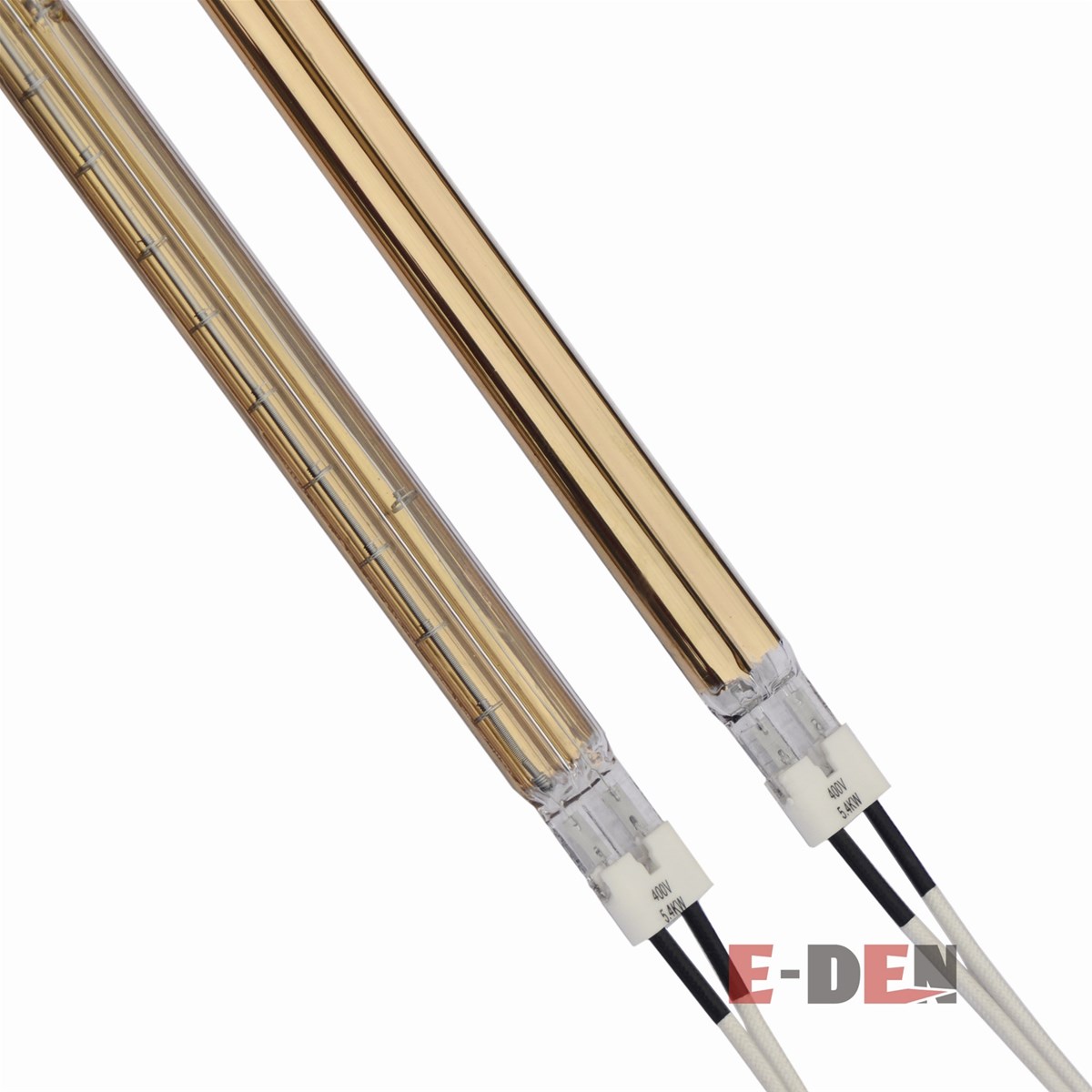

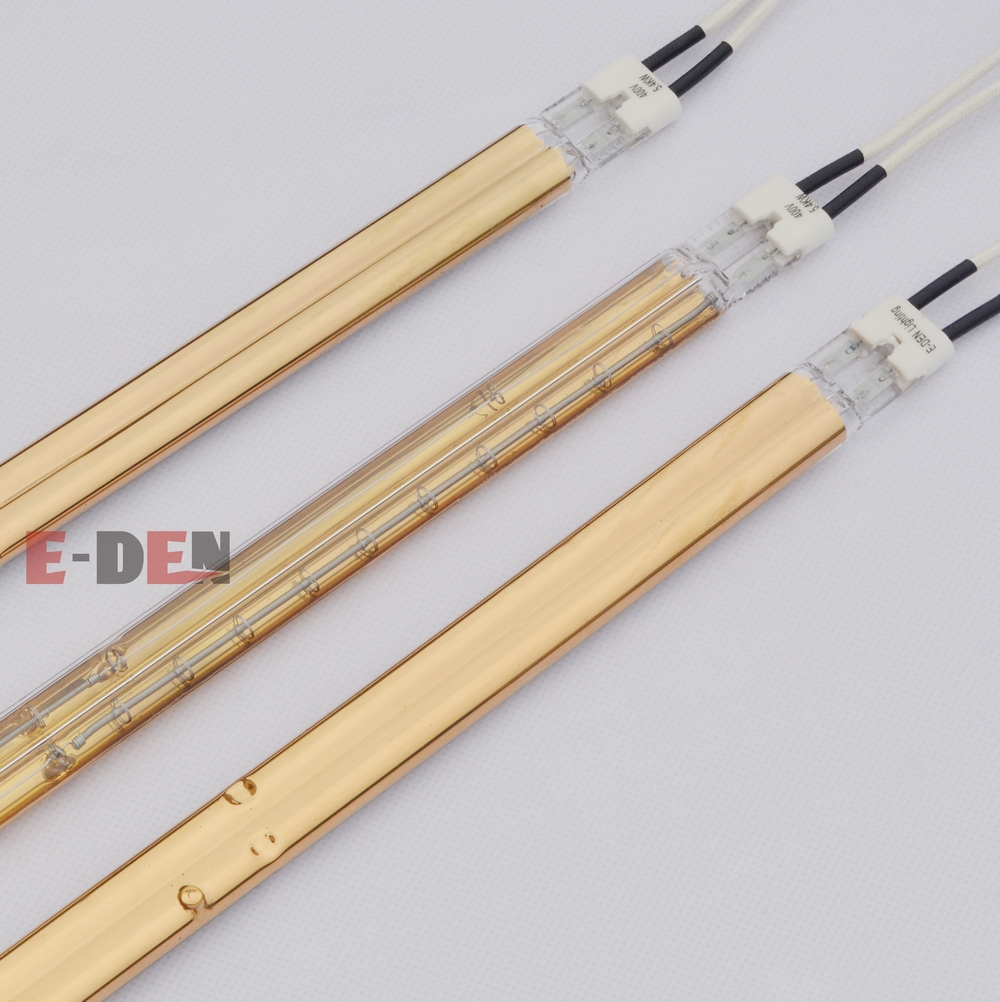

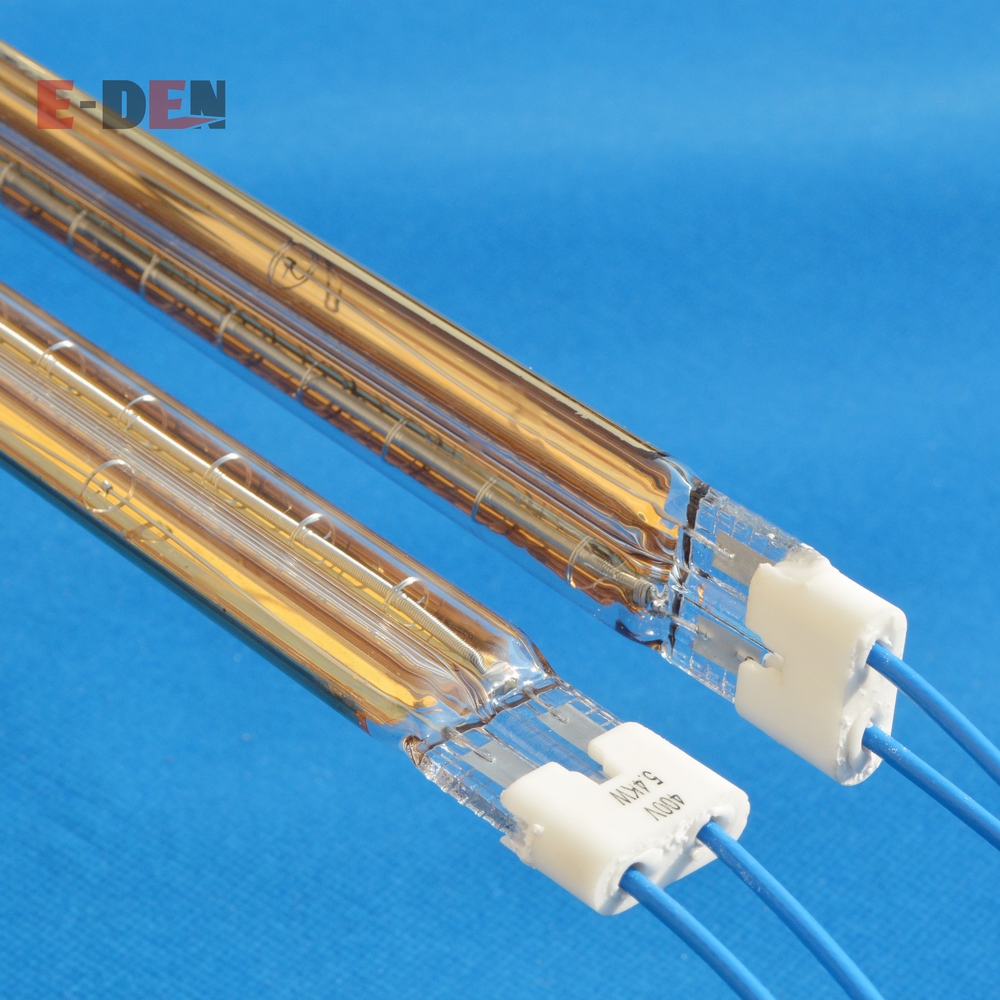

Quartz IR Heating Emitter Medium Wave Gold Reflector Infrared Lamp Emitter Replacement Heraeus 09756083 400V 5750W
| FOB Price: | 1.00 - 50.00 USD/Piece |
|---|---|
| Supply Ability: | 6,000 Piece(s) per Month |
| Shipping: | by air |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Place of Origin: | Jiangsu in China |
|---|---|
| Packaging Details: | wooden box |
Quick Details
- Material: Glass
- Color: Yellow
- Brand Name: E-DEN
- D*M: E-DEN
- Model Number: IR lamp
- Voltage: 400V
- Wattage: 2500W
- Total length: 1100mm
- Heat length: 1020mm
- IR wavelength: Medium wave
- Emitter Construction: Twin tube
- Twin tube cross section: 33*15mm
- Reflector: Gold
- Burning position: Horizontal
Specifications
E-DEN Infrared Heating Emitter/Advantages
Can switch on and off frequently
1~2 seconds fast response time to full power heating
Output power can be adjusted simply by voltage regulator (0V~lamp rated voltage)
Accurate(±1 ℃)heating temperature control with SCR regulator
Small installation space, flexible horizontal or vertical burning position
for all industrial applications, the highest working temperature up to 1000 ℃
Special Gold reflector (90% reflective rate) and Nano-ceramic reflector (70% reflective rate) coated on lamp quartz surface to reflect and increase the infrared radiation on heated objects
Different objects different matched IR radiation wavelength Short wave (1.0~1.4μm), Fast response medium wave (1.4~2.0μm), Carbon medium wave (2.0~2.5μm), Medium wave (2.2~3.2μm).
Higher density power output the highest surface power output of short wave lamp is 200KW/M2, Fast response medium wave lamp is 130KW/M2, Carbon medium wave lamp is 100KW/M2, Medium wave lamp is 60KW/M2.
We guarantee 5000 hours average working life.
