Ponovo PW636i-F Digital Relay Test Kit for IEC61850 Protective Relay Testing
| FOB Price: | 1.00 - 30000.00 USD/Set |
|---|---|
| Shipping: | By air |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Beijing in China |
| Packaging Details: | Carton |
Quick Details
- Usage: Auto Testing Machine
- Power: Electronic
- Brand Name: Ponovo
- Warranty: 12month
- weight: 23kg
- Model Number: PW636i-F
- Color: gray-white
- Power supply: 110~240Vac, 50/60Hz
Specifications
Ponovo PW636iF Digital Relay Test Kit for IEC61850 Protective Relay Testing

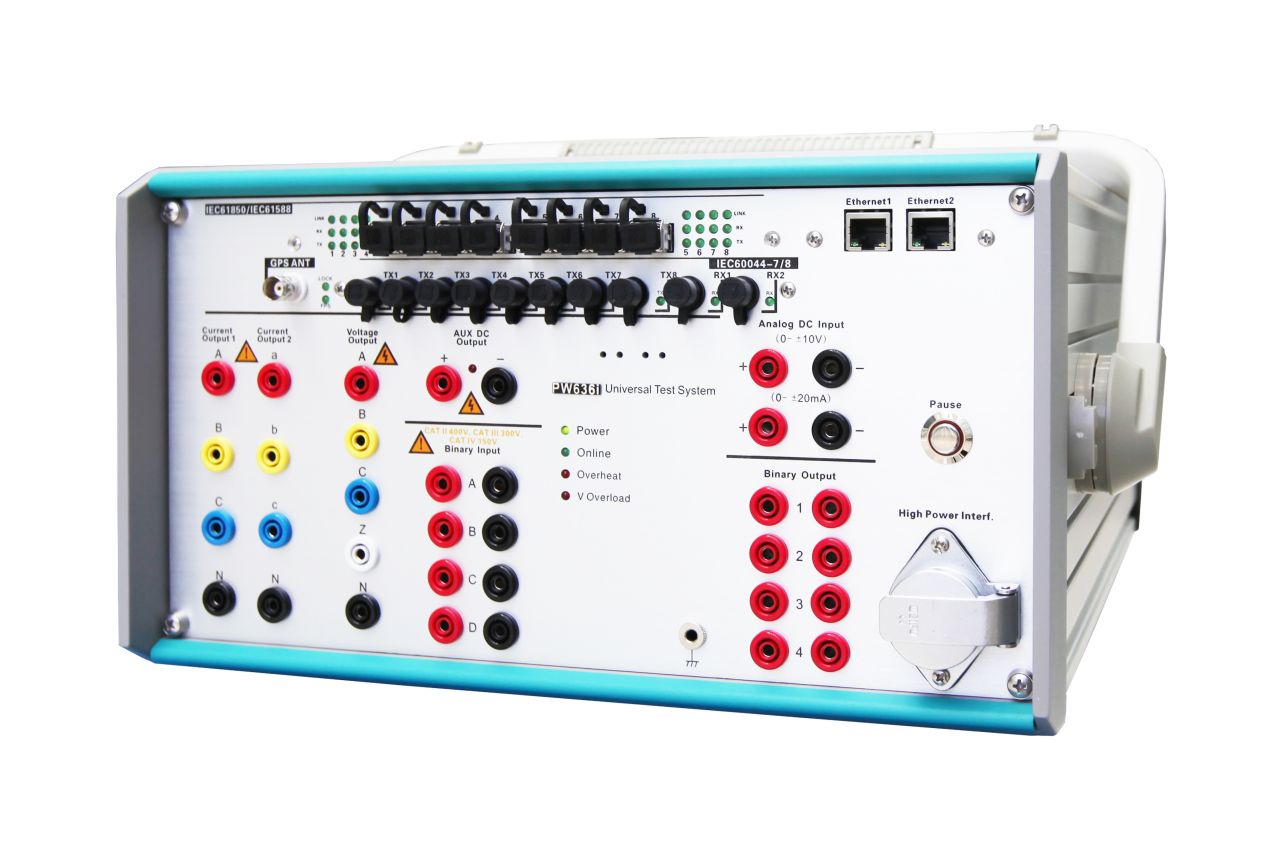

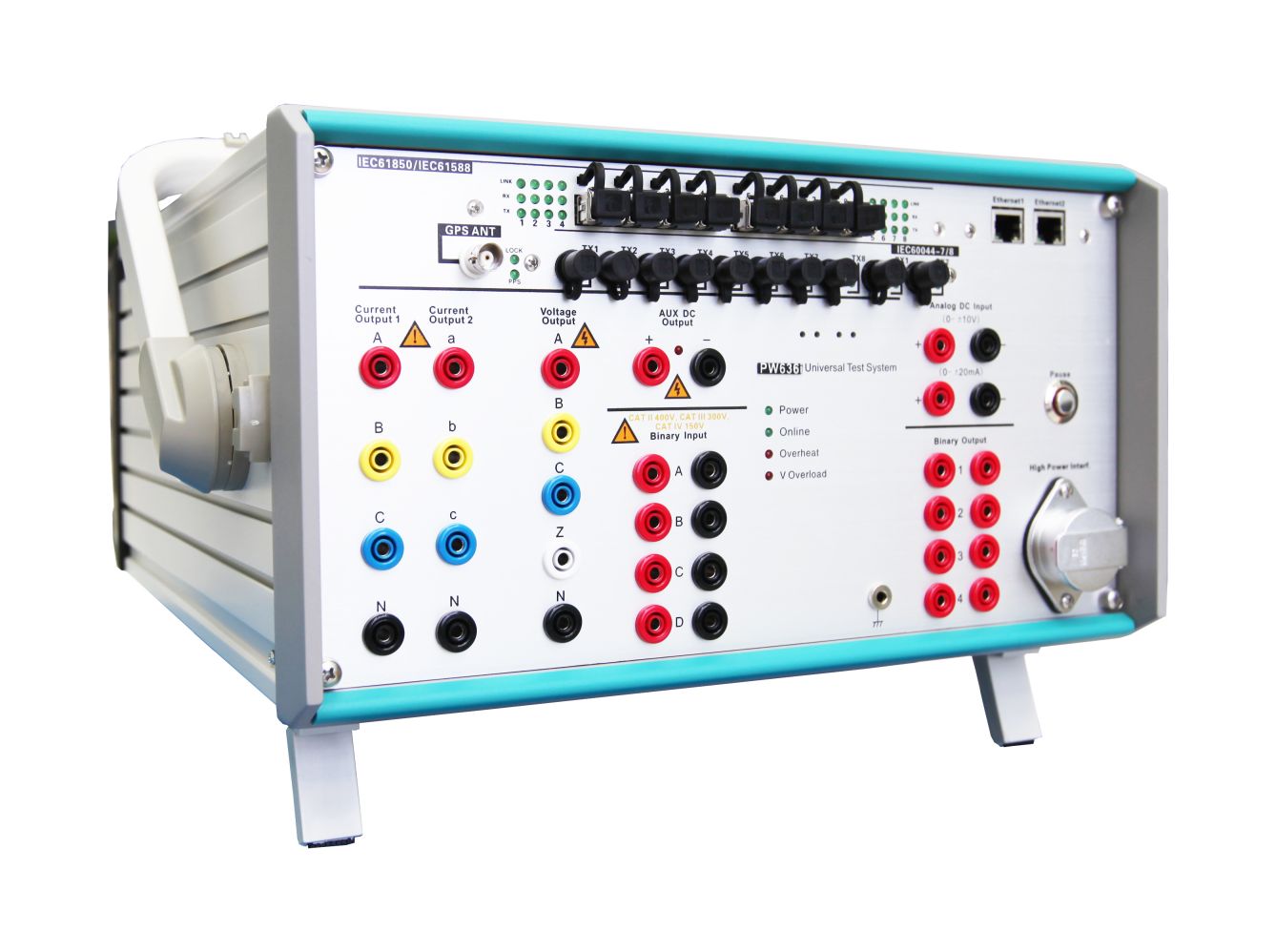

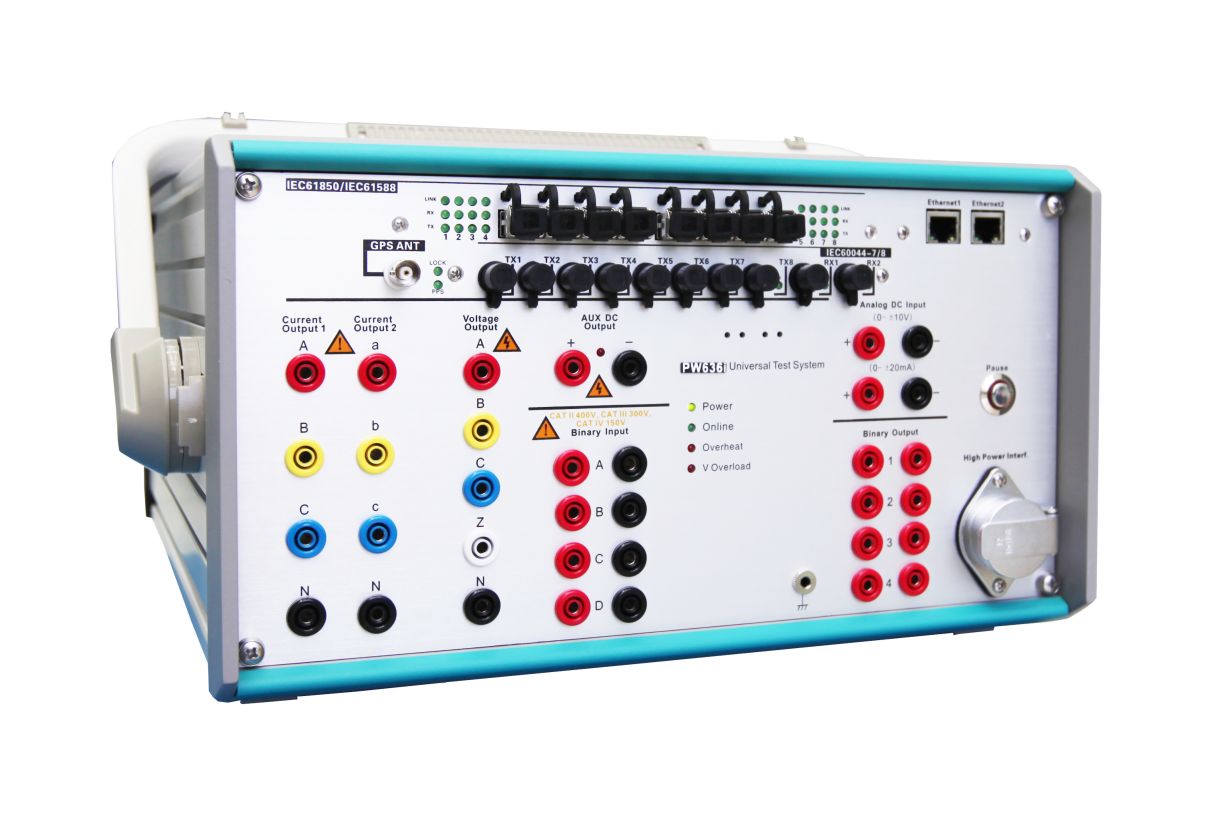

PW636iF (632A, 4300V, 8 fiber optic ports) is the new generation of PW series
relay test set which can be used both as a conventional relay test kit and
IEC61850 testing tools. Other test works, such as transducer, energy meter,
indication meter, etc., can also be done easily. It's the ideal test device for all
power utilities, power plants, relay manufactures, panel manufactures, research
institutes, universities, testing companies, etc.
Features
- 6*32A, 4*300V
- Aux DC (0-300V), DC measuring inputs

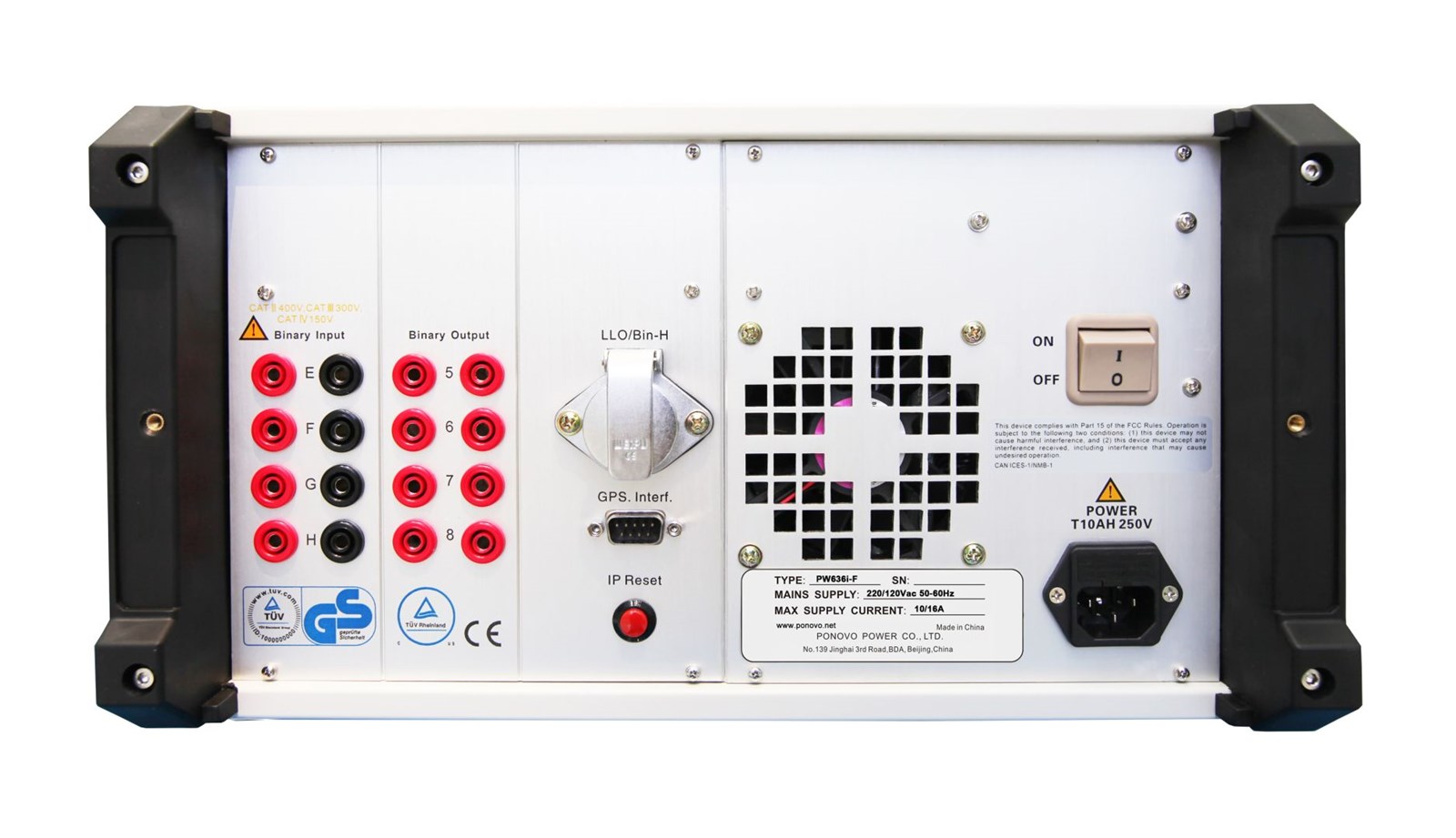

- 8 binary inputs, 8 binary outputs
- Adjustable threshold (0-400V) for binary inputs
- In-built analog monitoring and recording function
- Large output power
- High accuracy
- Support GOOSE/SV based test
- Current booster interface for testing high burden relay
- Support importing setting value of relays via XRIO/RIO/PONOVO's Powertest default set files automatically

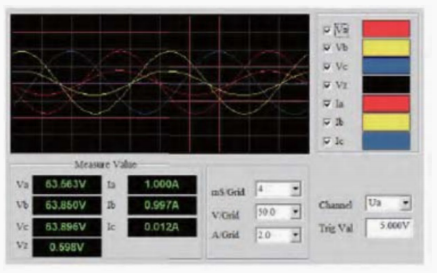

InBuilt Analog Monitoring & Recording Unit
This inbuilt analog monitoring and recording unit
samples the actual current/voltage outputs and real
time output waveform can be displayed in the software.
This makes it easy to check the correctness of wiring
before the test and observe the output during the test
process.
RealTime Outputs Display
Realtime output waveform display helps the fast
troubleshooting of wiring and test circuitry before test
actual started.
User can also use this provision to analyze the external
signals, such as phase angle, power, harmonic, etc.

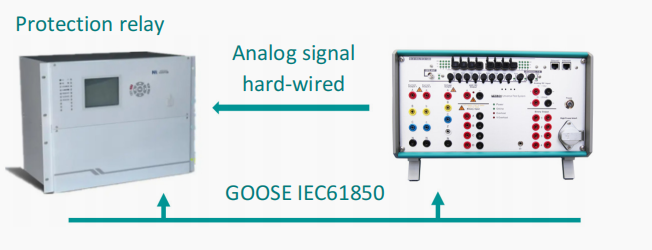

IEC 61850 Function
PW636iF provides SV, GOOSE, analog,
binary input from relay is received and
interpreted by relay test equipment.
