Ponovo PA30Bi-H Panel-Mounted Amplifier (Power System Simulation) for RTDS & HIL Or PHIL Application
| FOB Price: | 1.00 - 60000.00 USD/Set |
|---|---|
| Shipping: | By air |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Beijing in China |
| Packaging Details: | Carton |
Quick Details
- Type: Professional Amplifier
- Brand Name: PA30Bi-H
- Frequency Response: DC-5kHz+-1dB
- Power Supply: 380V AC 50/60 Hz
- Warranty: 12month
- Model Number: PA30Bi-H
- color: gray-white
- Max. output power: >450VA(30A output)
Specifications
Description of Ponovo PA30Bi-H Panel-Mounted Amplifier (Power System Simulation) for RTDS and HIL or PHIL application

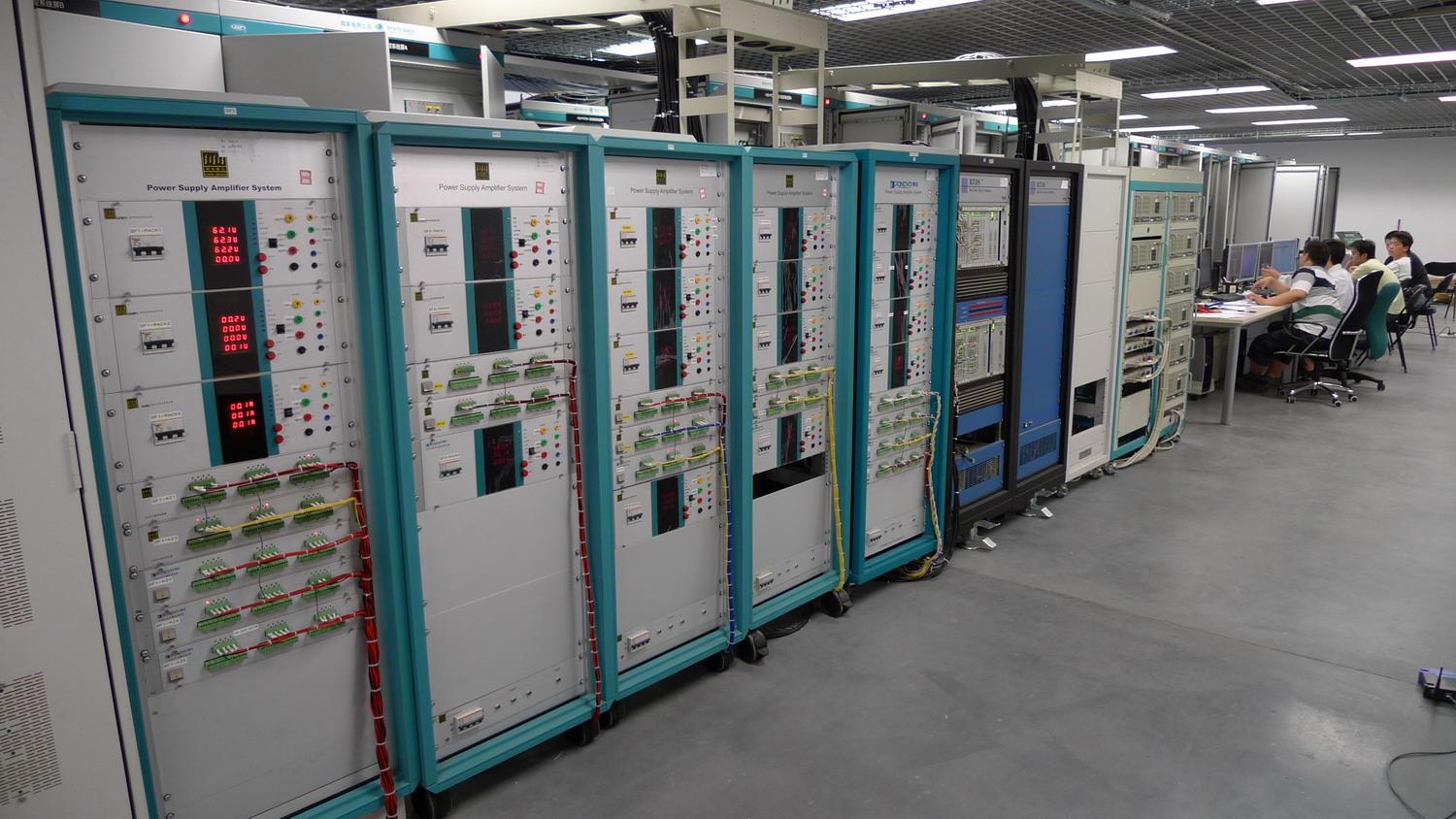

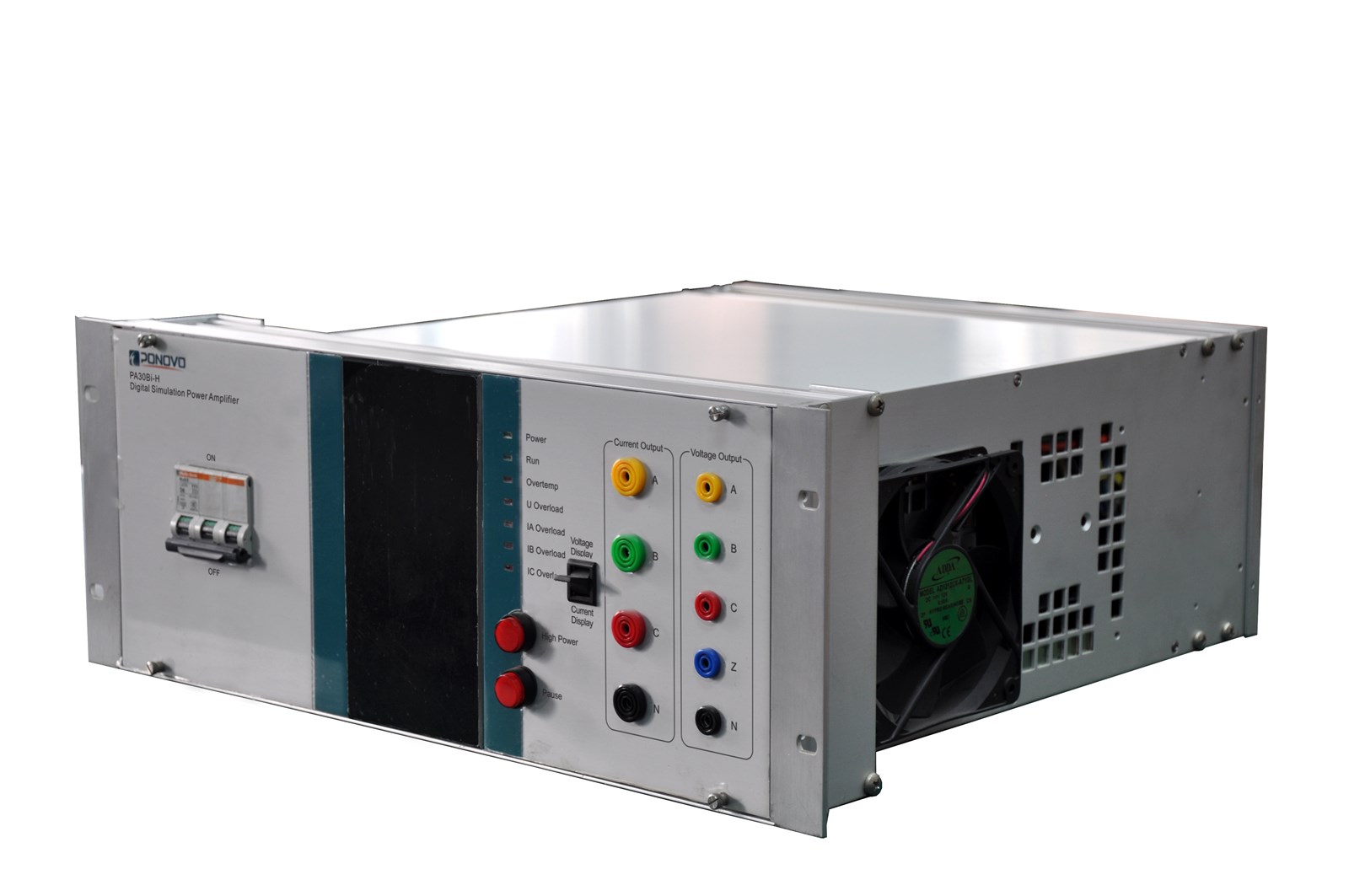

the PA30Bi-H is a panel-mounted type power amplifier model which can produce 3-phase current, with maximum RMS phase current of 30A and maximum output power of 450VA, and 4-phase voltage, with maximum RMS phase voltage of 250V and maximum output power of 75VA. It can be installed in the cabinet together with other amplifier models to consist of complicated simulation system together with RTDS and other equipment for the HIL or PHIL application.
Main Specifications
| 6 Phase Voltage Amplifier | 4 Phase Voltage Amplifier | ||
| Model | PA30Bi | PA30Bi-H | PA60Bi |
| Current Output | 3x0 ~ 30 A RMS | 3x0 ~ 30 A RMS | 3x0 ~ 60 A RMS |
| Max. Output power | > 450VA(30A output) | > 450VA(30A output) | > 800VA(60A output) |
| Input signal - Analog/Digital (Optional) | 0~7 V RMS (±10Vpek)/Optional Digital interface support Aurora Protocol communication |
0~7 V RMS (±10Vpek)/Optional Digital interface support Aurora Protocol communication |
0~7 V RMS (±10Vpek)/Optional Digital interface support Aurora Protocol communication |
| Current Accuracy | 0.2%(0.5A-30A) | 0.2%(0.5A-30A) | 0.2%(0.5A-60A) |
| Current Typical Accuracy | < 0.1% | < 0.1% | < 0.1% |
| Differential input impedance | 20k ohm | 20k ohm | 20k ohm |
| Gain | 4A/V | 4A/V | 8A/V |
| Harmonic Distortion Ratio | ≤0.2% | ≤0.2% | ≤0.2% |
| Linearity | ≤0.2% | ≤0.2% | ≤0.2% |
| Phase accuracy | 0.2° | 0.2° | 0.2° |
| Frequency range | DC-5kHz±1dB | DC-5kHz±1dB | DC-5kHz±1dB |
| Step response | < 20μs | < 20μs | < 20μs |
| Input/output delay | < 20μs | < 20μs | < 20μs |
| Voltage | 40 ~ 120V RMS | 40 ~ 250V RMS | 40 ~ 120V RMS |
| Max. Output power | 60VA(120V output) | 75VA(250V output) | 60VA(120V output) |
| Input signal | 0~7V RMS(± 10Vpek) | 0~7V RMS(± 10Vpek) | 0~7V RMS(± 10Vpek) |
| Voltage Accuracy | 0.1%(5V-120V) | 0.2%(5V-250V) | 0.1%(5V-120V) |
| Voltage Typical Accuracy | < 0.05% | < 0.1% | < 0.05% |
| Differential input impedance | 20k ohm | 20k ohm | 20k ohm |
| Gain | 20V/V | 36V/V | 20V/V |
| Harmonic distortion ratio | ≤0.1% | ≤0.1% | ≤0.1% |
| Linearity | ≤0.1% | ≤0.2% | ≤0.1% |
| Phase accuracy | 0.2° | 0.2° | 0.2° |
| Frequency range | DC-5kHz±1dB | DC-3kHz±1dB | DC-5kHz±1dB |
| Step response | < 20μs | < 80μs | < 20μs |
| Input/output delay | < 20μs | < 80μs | < 20μs |
| Power supply | 3 phase 380V AC 50/60 Hz | 3 phase 380V AC 50/60 Hz | 3 phase 380V AC 50/60 Hz |
| Chassis | 4U 19 inches | 4U 19 inches | 4U 19 inches |
