| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Beijing in China |
| Packaging Details: | Carton |
Quick Details
- Usage: power amplifier
- Power: Electronic
- Brand Name: Ponovo
- Warranty: 12month
- weight: 20kg
- Model Number: PAC60cip
- Color: gray-white
- Power supply: 110V or 220V AC
Specifications

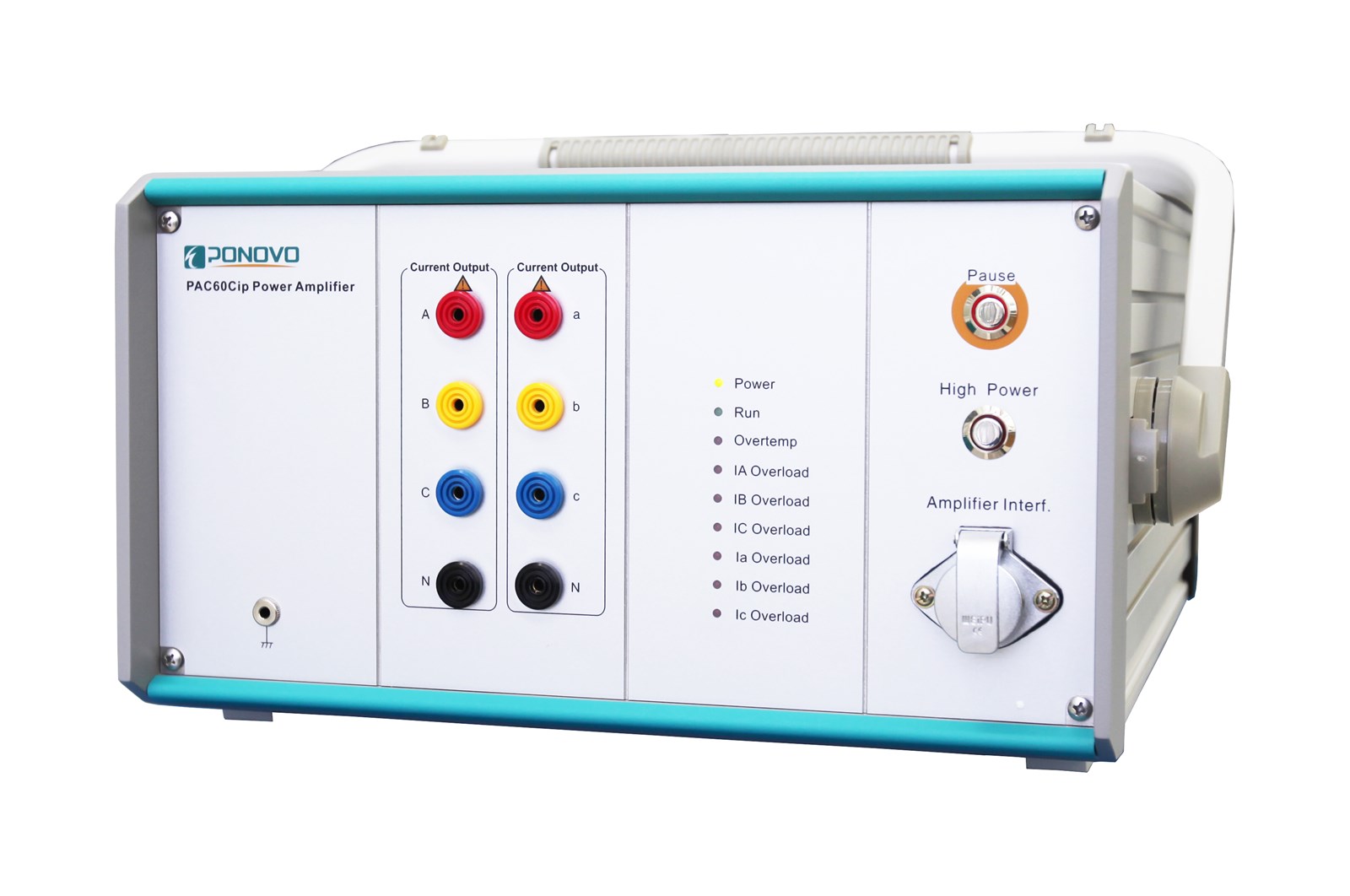

Description of Ponovo PAC60Cip Portable Power Amplifier
PAC60Cip is a portable conventional linear power amplifier model with 6 channels of current output. It is with 6*30A/210VA output, and this current amplifier is similar to PAC60Ci but it has lower output power and less weight.
PAC60Cip is specially designed for R&D of power system simulation. It solves the problems of high power of linear power amplifier and accuracy of high current output. It is adapted to various capacitive and inductive load, which could be used for different kinds of HIL (Hardware-in-loop) simulation applications.

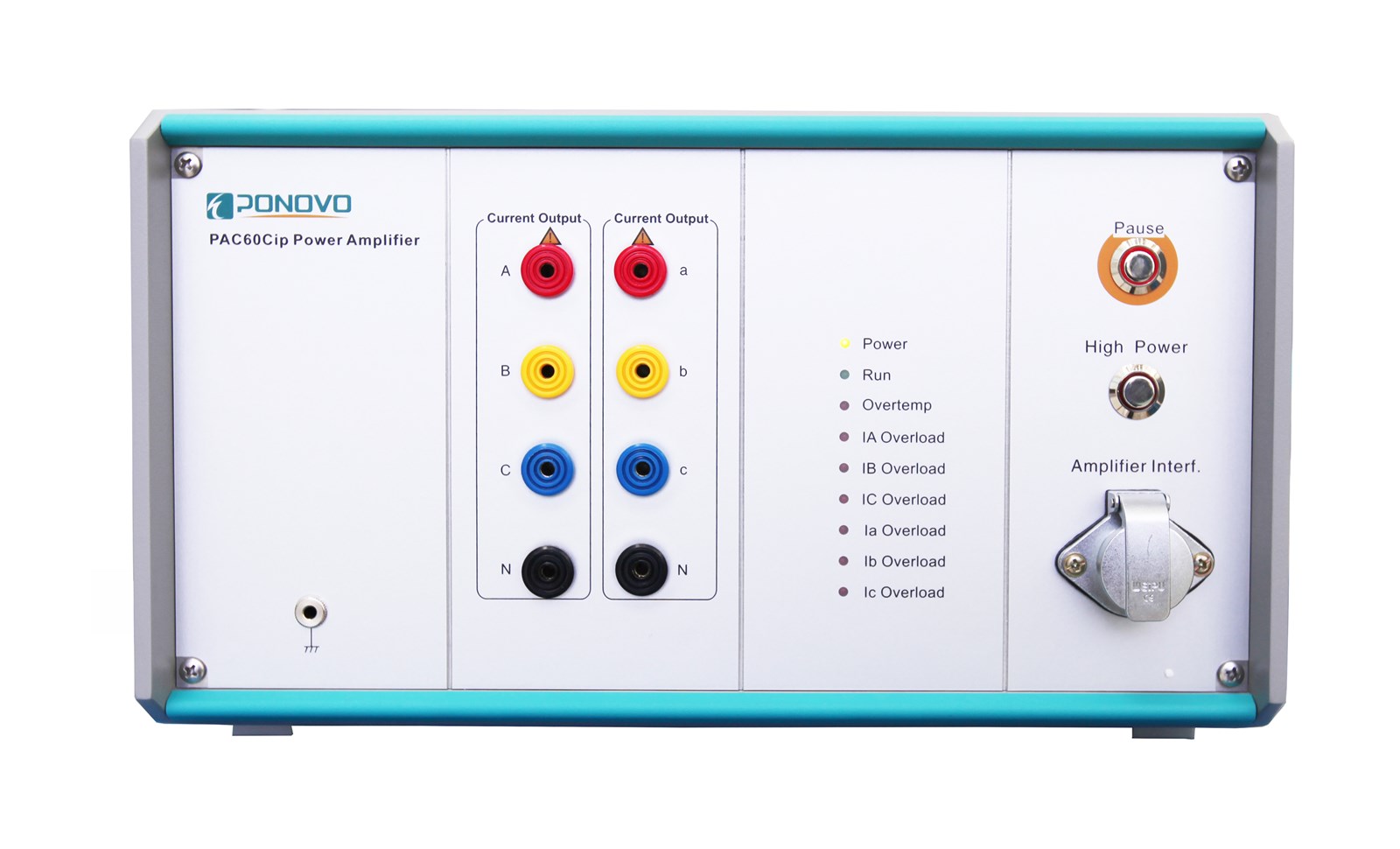

Front Panel

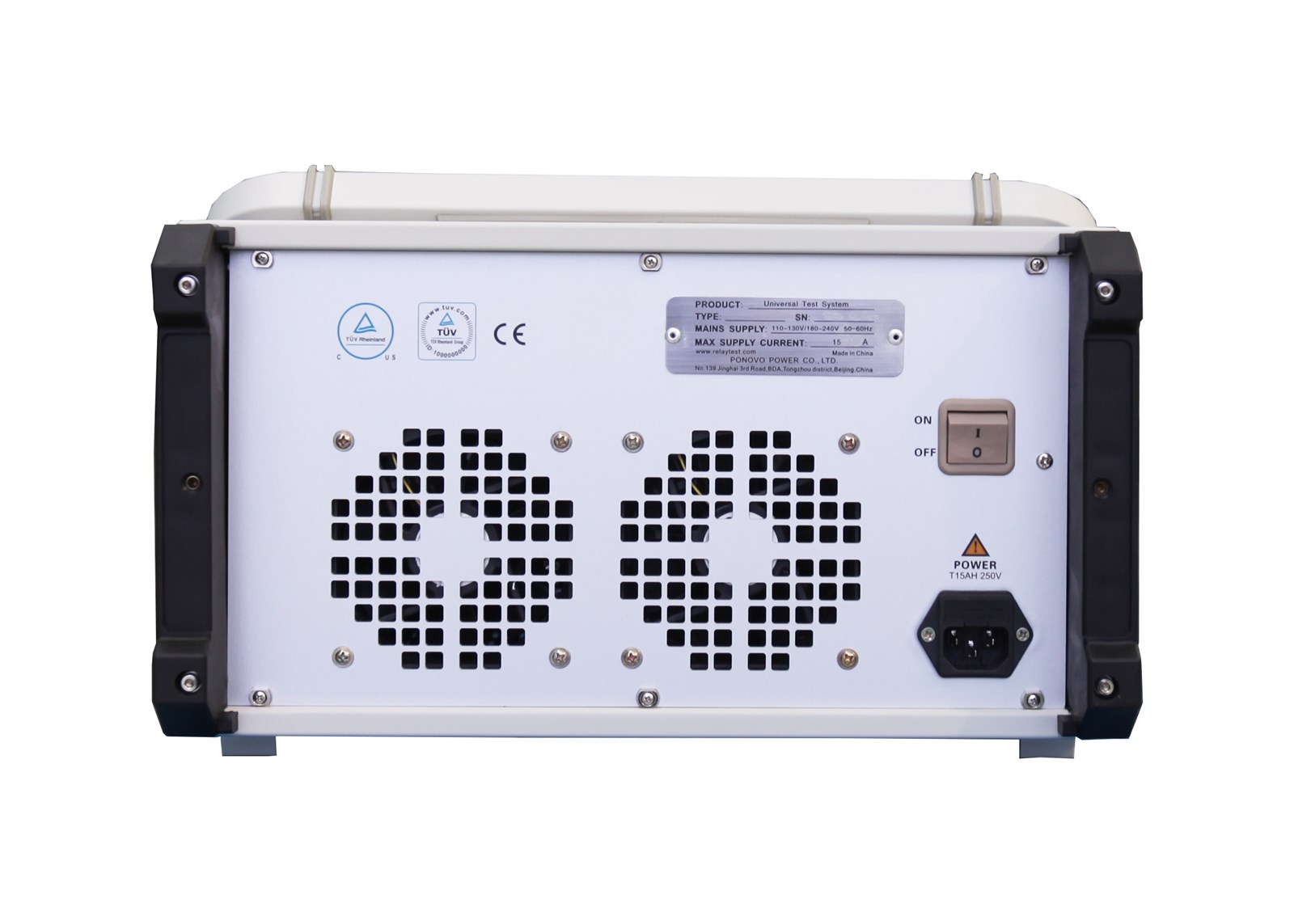

Rear Panel
Main Specifications
| Current | 60 ~ 30 A RMS |
| Max. Output power | >210VA(30A output) |
| Input signal | 0~5V RMS(± 7.07Vpek) |
| Current Accuracy | 0.2%(0.5A-60A) |
| Current Typical Accuracy | < 0.1% |
| Differential input impedance | 20k ohm |
| Gain | 6A/V |
| Harmonic Distortion Ratio | ≤0.2% |
| Linearity | ≤0.2% |
| Phase accuracy | 0.2° |
| Frequency range | DC-5kHz±1dB |
| Step response | < 20us |
| Input/output delay | < 20us |
| Power supply | Single phase 220V AC 50/60 Hz |
| Chassis | 4U 19 inches |
