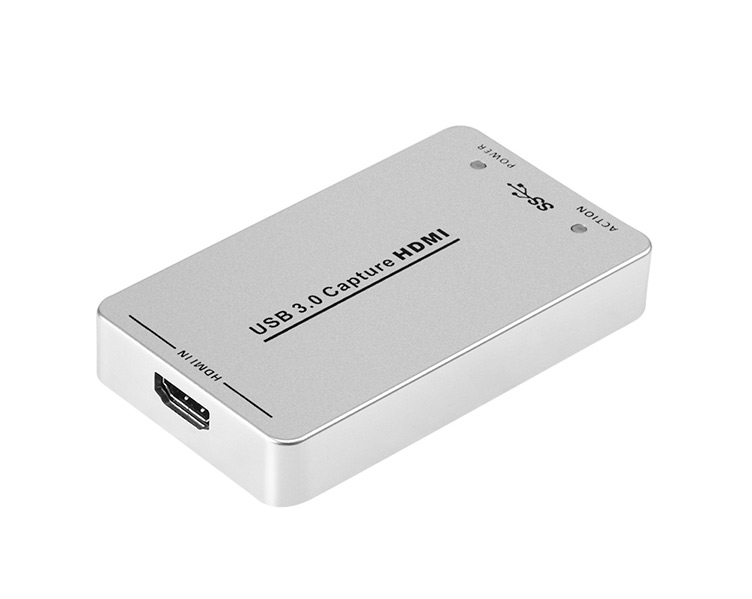

USB3.0 1080@60 HDMI Video Capture Card HDMI Capture Card Usb 3.0

Specifications

Brand: ORIVISION

Model: ZY-UCH201

Input Interface: HDMI

Output Interface: USB3.0

HDMI Input Resolution: up to 1080@60hz

USB Out-put Resolution: up to 1080P@60hz

Support System: Windows, Linux and Mac OS

Software Support: most sofware: VLC,OBS,Amcap,etc.

Warranty: 1 Year

Certificate: CE & FCC & Rohs

HDMI Capture Card USB 3.0
1080P HDMI to USB3.0 video capture card for PC, It has a superior performance, superior compatibility, and it is simple to install. It can capture one HDMI 1080p 60 input and output signal; compatible with Windows, Linux, Mac OS X and USB 3.0 interface,Compatible with many USB 3.0 chipset (Intel,Renesas,ASMedia, Fresco Logic), compatible with PCIe Gen1.1 x1 expansion via USB3.0interface; the HDMI video capture meets UVC and UAC standard, without having to install drivers and settings, the real PnP.

HDMI to USB 3.0 Capture Card
Support Multiple Operating System
Support System: Windows, Linux and Mac OS

Broadly Compatibility
Support most acquisition software,

Such as VLC/OBS/Amcap, etc

Compatible with most Live Platform
Such as youtube/facebook/twitch/stream, etc

Compatible with most Live Platform
UHD HDMI Video Capture Card
HDMI Input ResolHDMI Input Resolution: up to 1080P@60hz

USB Out-put Resolution: up to 1080P@60hz

Drive Free
without external power supply, compact and portable.

USB3.0 Data Transfer
with up to 300~350MB/s transfer speed, to meet your need from capture to display with low latency.

Powerful Application
Apply to game live streaming, live broadcasting, online classes, video conference, etc.

Powerful Application
Parameters of USB3.0 1080@60 HDMI Video Capture Card
Product NameHDMI to USB3.0 Video Capture
ModelUCH201
Input InterfaceHDMI
Out-Put InterfaceUSB3.0
HDMI Input Resolution480i, 480p, 576i, 576p, 720p50, 720p60, 1080i50,
USB Out-Put Resolution640480/720480/720576/768576/800600/1024768/1280720/
1280800/1280960/12801024/1368768/1440900/16001200/16801050/
19201080/19201200/640360/856480/960540/1024576
Video Frame25/29.97/30/50/59.94/60 fps
Software SupportMost sofware: VLC,OBS,Amcap,etc
USB SupportConform to USB Video and UVC standard;
Conform to USB Audio UAC standard;
Support SystemWindows, Linux and Mac OS
PowerWithout external power supply, compact and portable.
Operating Temperature0°C ~ 50°C
Size (L*W*H)98x56x16 (mm)
Weight998g

Diagram of USB3.0 1080@60 HDMI Video Capture Card
Apply to game live streaming, live broadcasting, online classes, video conference, etc.
