Kunshan Jianbo Electromechanical Co., Ltd.
China Manufacturer with main products: Slitting Machine, Cutting Machine, Rewinding Machine, Laminating Machine, Cutting & Rewinding Machine, Mechanical Parts, Industrial Equipment... |
Home
>Products Catalog > Manufacturer Tape Slitting Cutting Rewinding Machine Special-Shaped & Customized Equipment.

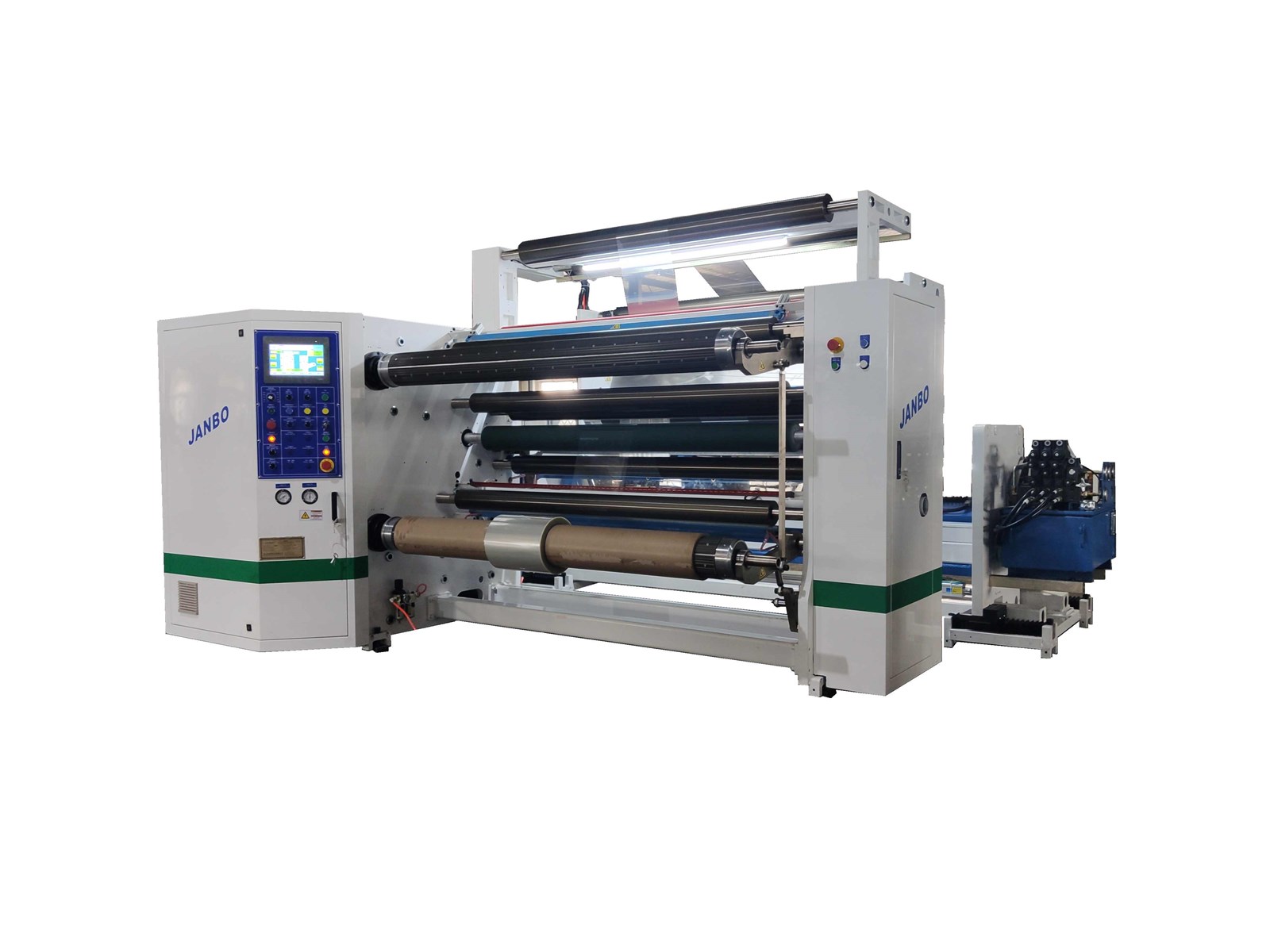

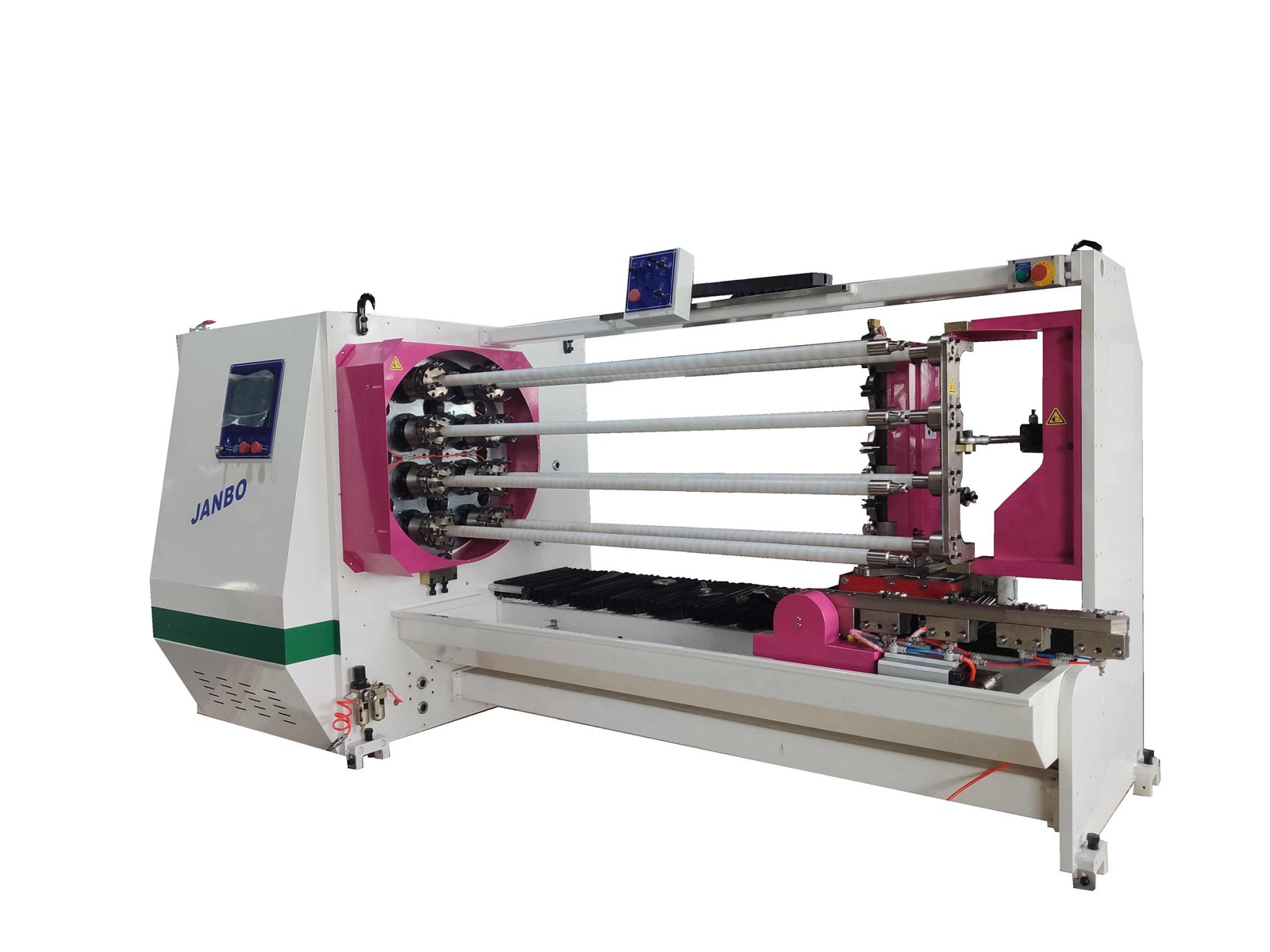

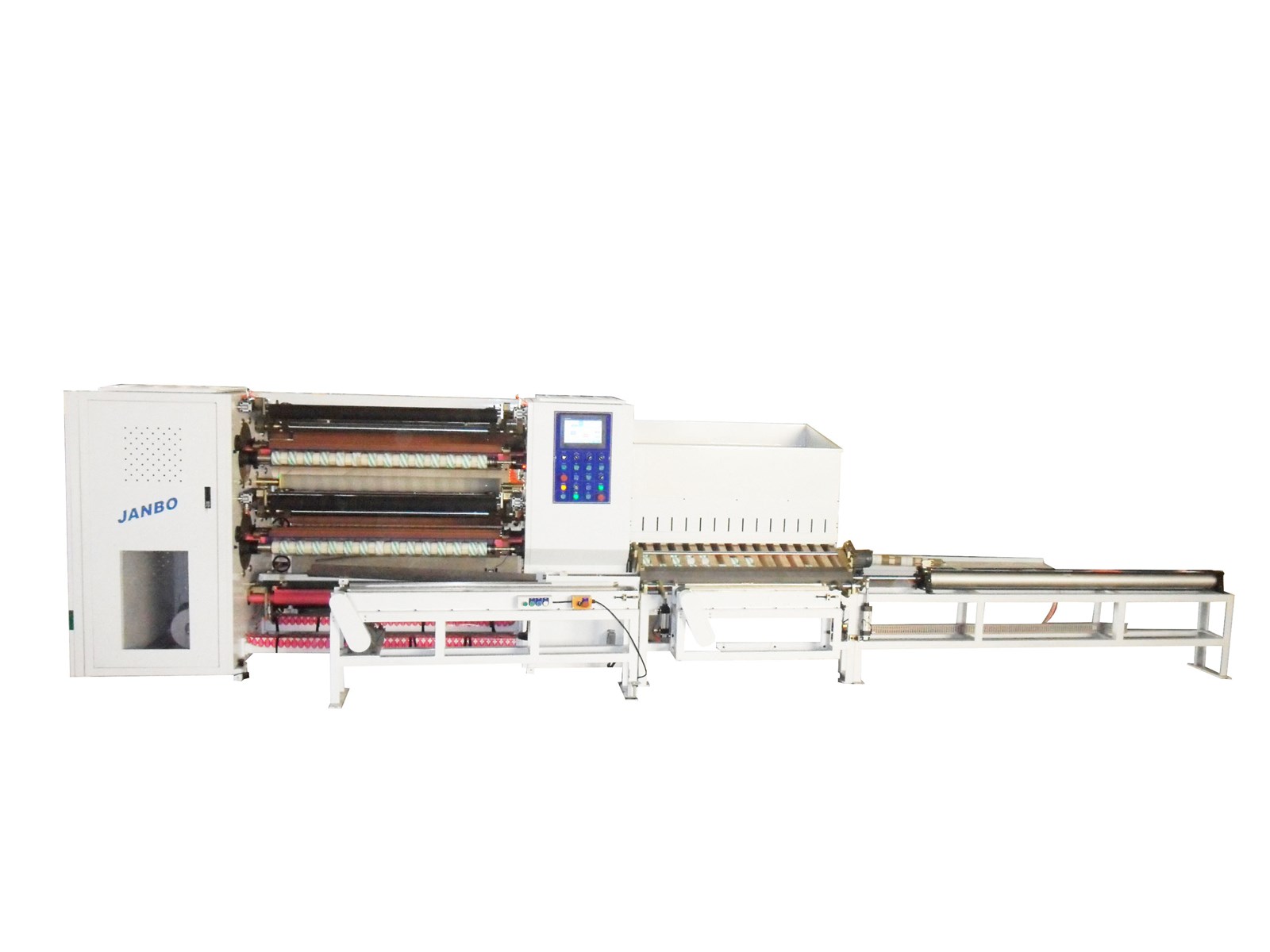

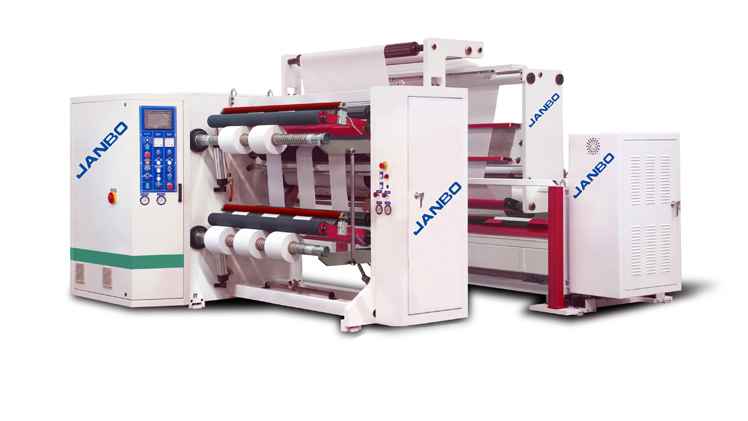

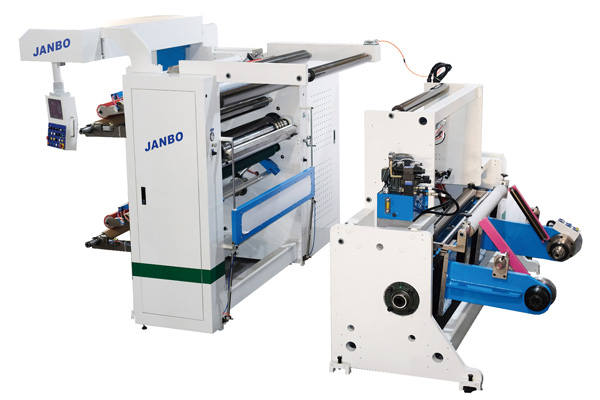

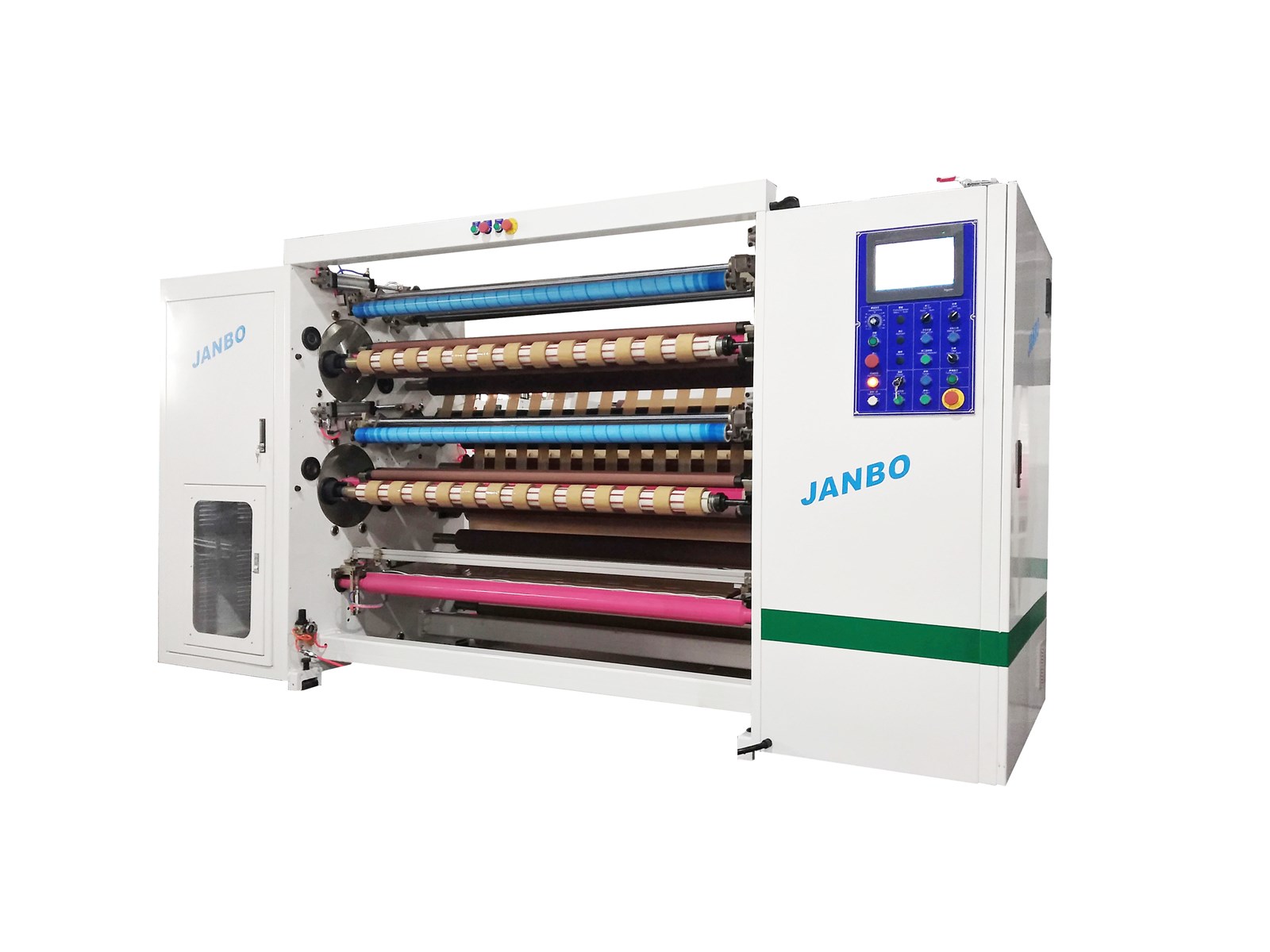

Manufacturer Tape Slitting Cutting Rewinding Machine Special-Shaped & Customized Equipment.
| FOB Price: | 20000.00 - 50000.00 USD/Set |
|---|---|
| Supply Ability: | 50 Set(s) per Year |
| Shipping: | By sea |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | Wooden pallet |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Condition: New
- Brand Name: JANBO
- Weight: 2-3T
- color: white
Specifications
the following example is for you reference.
| ITEM | DESCRIPTION | QYT. |
| >> SPECIFICATIONS | ||
| > WORKING WIDTH | 1620mm | |
| > UNWIND DIAMETER | 800mm | |
| > SLITTING WIDTH | 15mm 1060mm | |
| > REWIND DIAMETER | 450mm | |
| > MACHINE SPEED | 200M/MIN | |
| > POWER SOURCE | 380V 50HZ 3PHASE | |
| > AIR SOURCE | 5 KG (PREPARED by USER) | |
| >> UNWIND SECTION | ||
| > UNWIND BASE | CONNECTED SHAFT TYPE of FIXED UNWIND BASE | 1 SET |
| > UNWIND SHAFT | 3" CORE AIR SHAFT | 1 PCE |
| > UNWIND BRAKE | ELECTROMAGNETIC BRAKE 20 KG | 1 SET |
| > UNWIND TENSION | MATERIAL O.D DETECTING AUTOMATIC CONTROL | 1 SET |
| > UNWIND LAY on ROLLER | SURFACE TYPE ROLLER by AIR CONTROL | 1 SET |
| >> REWIND SECTION | ||
| > MAIN MOTOR | A.C MOTOR 5 HP CONTROL by INVERTER | 1 SET |
| > REWIND MOTOR | A.C MOTOR 5 HP CONTROL by TENTION INVERTER | 2 SETS |
| > REWIND SHAFT | 3" CORE AIR SHAFT | 2 PCES |
| > REWIND LAY on ROLLER | POSITION AUTO ACTIVATING by PLC CONTROL | 1 SET |
| > TRIM REMOVABLE UNIT | TRAVERSE TYPE WINDING at both EDGES | 1 SET |
| > TRIM REMOVABLE UNIT | STRONG BLOWER with MOTOR AC 2HP | 1 SETS |
| > MAINTENANCE KIT | TOOLS & OPERATION MANUAL | 1 SET |
| >> ELECTRICIAL SECTION | ||
| > CONTROL SYSTEM | PLC PROGRAMMABLE UNIT | 1 SET |
| > CONTROL PANEL | TOUCH SCREEN (for SETTING: TENSION, LENGTHETC.) | 1 SET |
| > CONTROL PANEL BOX | SEPARATED CONTROL FRAME with | 1 SET |
| >> SLITTING KNIFE SECTION | ||
| > SHEAR CUTTER | MALE KNIFE STAND ROLL KNIFE SETS | 1 SET |
| FEMALE KNIFE STAND ROLL KNIFE SET | 1 SET | |
| > SHEAR CUTTER | TOP KNIFE OD 105mm x ID 60mm x T 20mm (MOVABLE) | 10 SETS |
| BOTTOM KNIFE 105mm x 80mm x 5mm (CORE TYPE) | 10 SETS | |
| KNIFE SPACER 1/5/10/20/50mm WIDE EACH | 18 PCES | |
| SUBTOTAL: F.O.B. SHANGHAI | ||
| >>OPTIONAL PARTS | (EXTRA COST on REUQEST) | |
| > SLITTING DEVICE | HARD ROLLER & KNIFE BASE | 1 SET |
| AIR SCORE KNIFE 9mm WIDE | 1 SET | |
| > DIFFERENTIAL REWIND SYSTEM | 3" CORE DIFFERENTIAL SHAFT | 2 SETS |
| DIFFERENTIAL CONTROL SYSTEM | 1 SET | |
| FRICTION SLEEVES,WIDTH 25mm(COULD BE MODIFY by CUSTOMER REQUIRE) | 84 PCES | |
| > UNWIND PICK-up LIFT | HYDRAULIC A.C MOTOR 1 HP | 1 SET |
| > REWIND LAY on ROLLER | SURFACE CONTACT TYPE by AIR CONTROL | 1 SET |
| > NOISE REDUCTION HOOD | CONNECTED UNWIND COVER | 1 SET |
1.Brief Introduction:
2.Techincal parameters:
3.Performance features:
