Toyota 5A Engine with Flip Frame

FOB Price:	2000.00 - 3000.00 USD/Set
Supply Ability:	2,000 Set(s) per Month
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	wooden packing

Quick Details

Brand Name: Zhongcai
Dimensions: 1.56cbm
Certificates: ISO
Category: engine with flip frame
Dimension: Flip frame can carry 600 kg weight

Specifications

Function and use.
for engine maintenance, disassembly and assembly. Let students understand the internal structure of the engine, the principle, and the basic disassembly process through disassembly.

Technical parameters.
1. Engine flip frame can be selected according to customer demand: any model of engine series.
2. Equipped with removable engine turning frame, can be manually rotated, the surface is painted with metal paint, adapt to a variety of environments for teaching and training.
3. the whole body steel structure, sturdy.
4. with a grasping disk, the size can be adjusted to facilitate a variety of models.
5. Engine with flip frame, controlled by the reducer, easy, convenient and safe to flip; 360 degrees can be parked at will, convenient for engine disassembly and assembly training.
6 can check the engine body accessories, cylinder block and cylinder head without collision, cracks.
7. Can engine by cleaning treatment, inside and outside clean up the accumulated dirt, engine surface to do clean treatment.
8. the bottom with 4 universal wheels, easy to move, universal wheel has a lock function, lock can not move, convenient for the engine to operate.
9. Flip frame can carry 600 kg weight.
10. Applicable to various engine assemblies.
11. Engine assembly and tilting stand are connected by bolts, firm and reliable.
12. the table is equipped with universal wheels, easy to move, reliable performance, and has a reasonable design, beautiful, practical and other characteristics.
13. Disassembling and assembling the engine can do any movement in the axial direction to flip and stand still.
14. Large area oil basin can do tools, parts, oil does not fall to the ground.

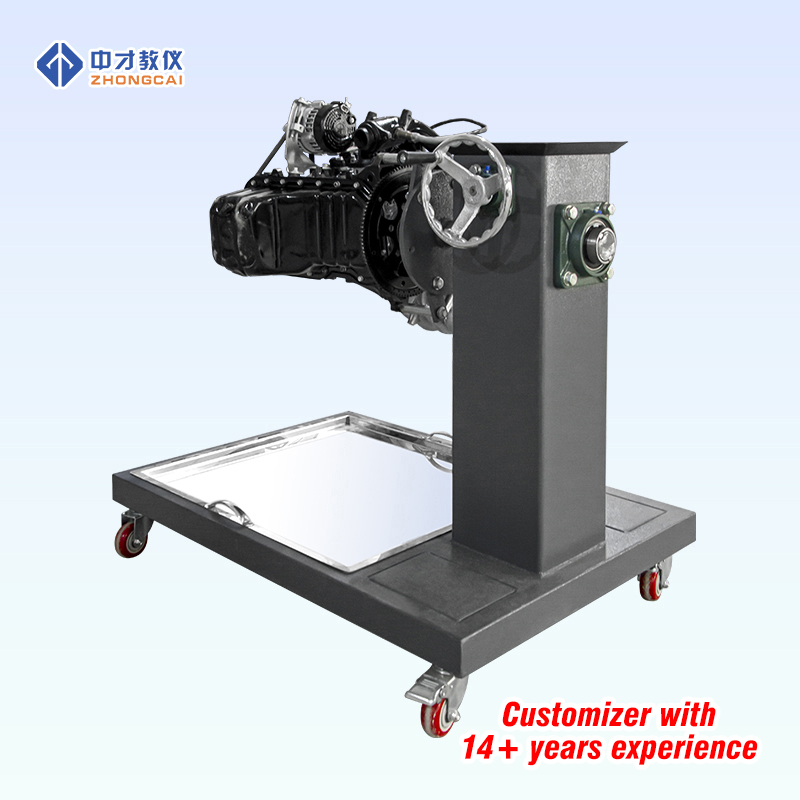

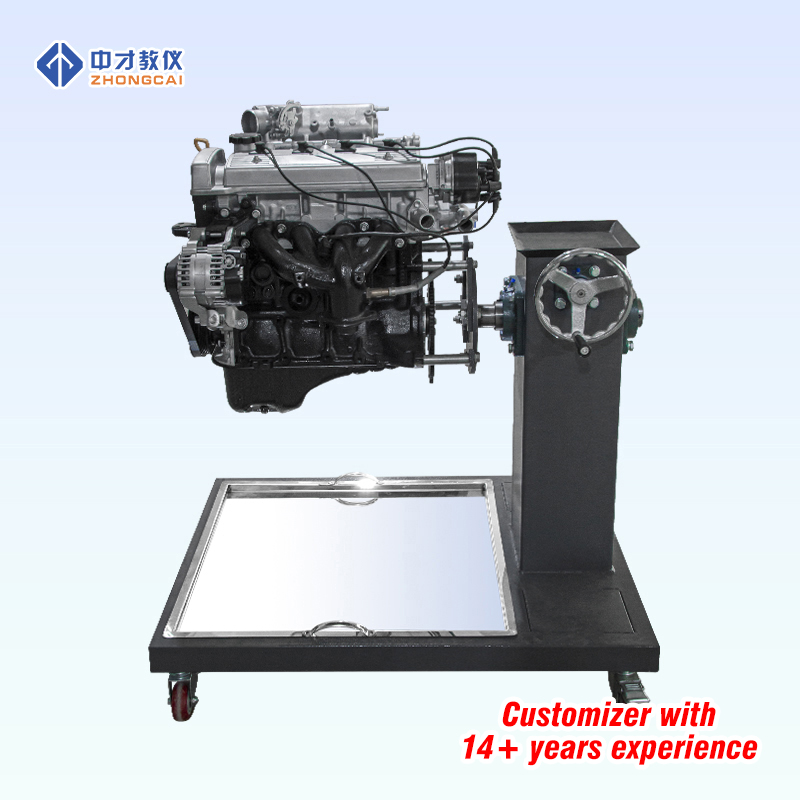

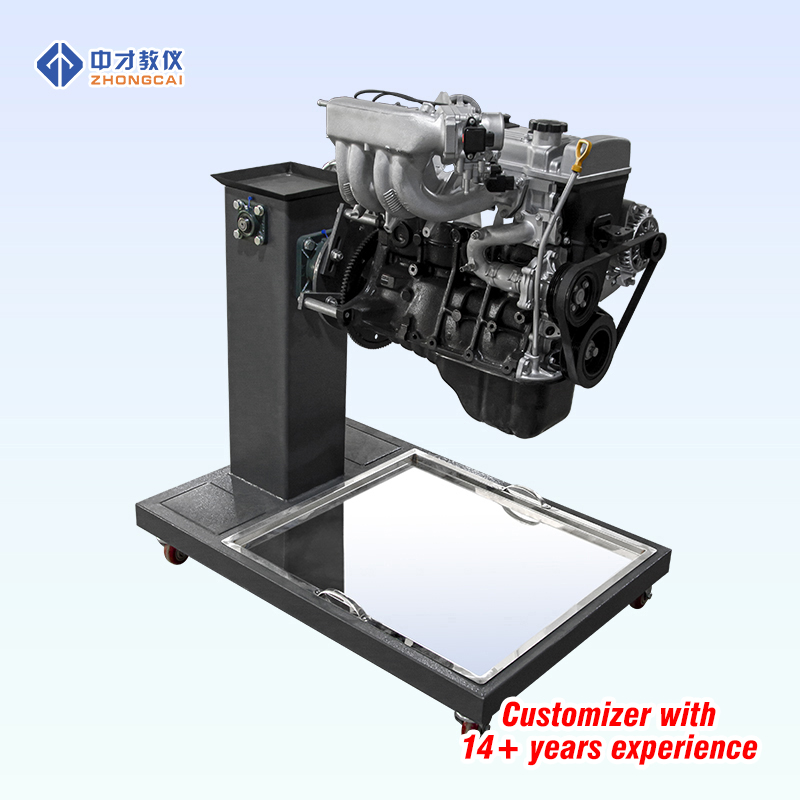

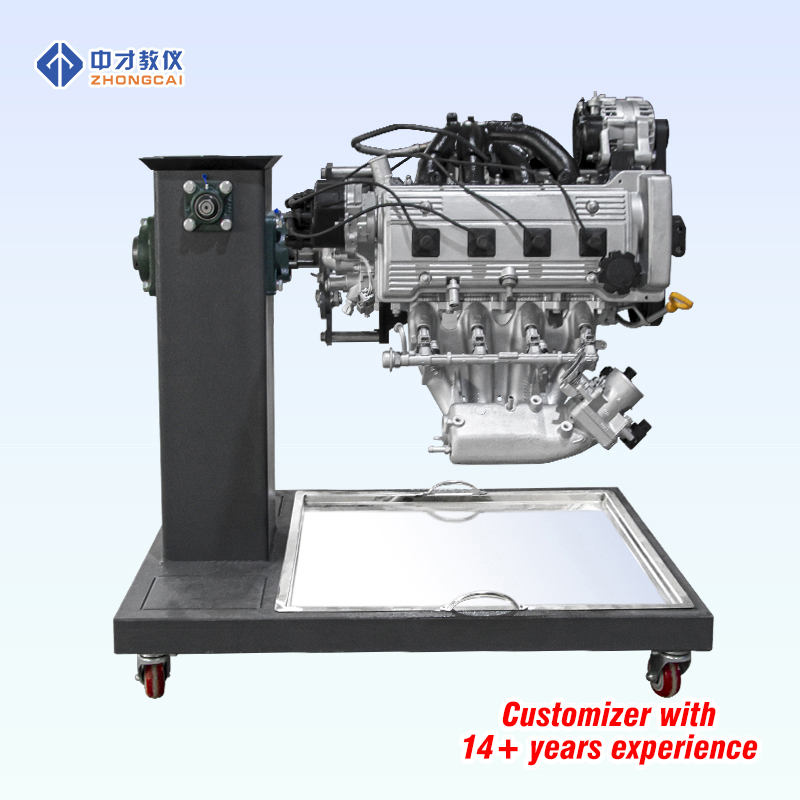

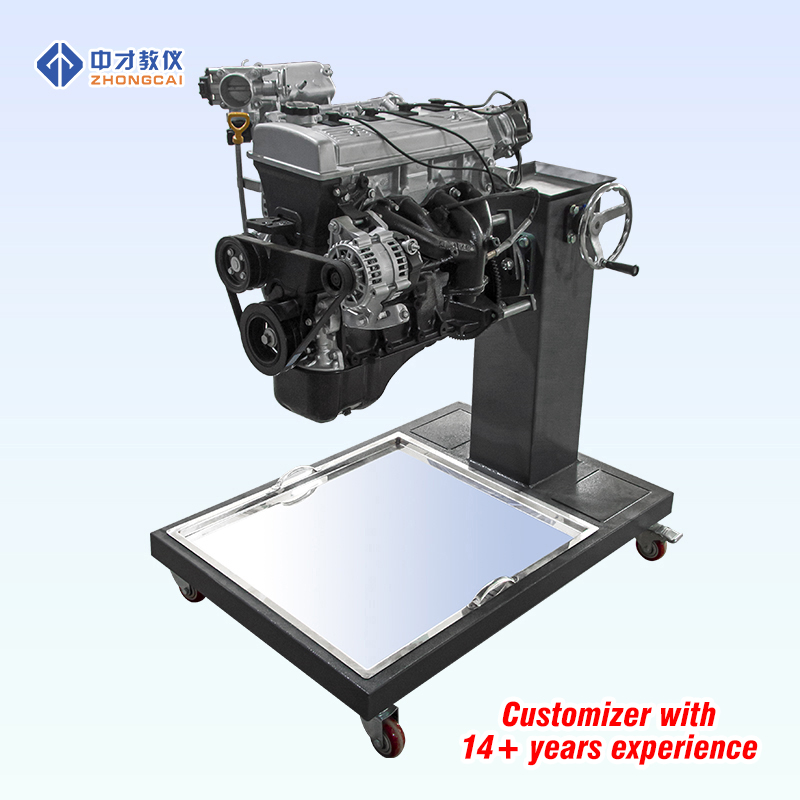

Toyota 5A engine with flip frame

Production process.
1. Bracket: steel structure made by spray baking paint process.
2. 2 of the mobile casters are fixed wheels and 2 are universal wheels (with locking device), easy to move and securely fixed.
3. Industrial shape, reasonable structure, beautiful and solid.
4. Product size: 1100mm 800mm 1000mm (length width height)
5. Column chassis are made of high-quality thickened square steel, casters with brakes.

Standard configuration
Speed reducer (50# reducer, speed reduction ratio of 1:60), turning table frame, oil catching tray, moving casters, etc.
