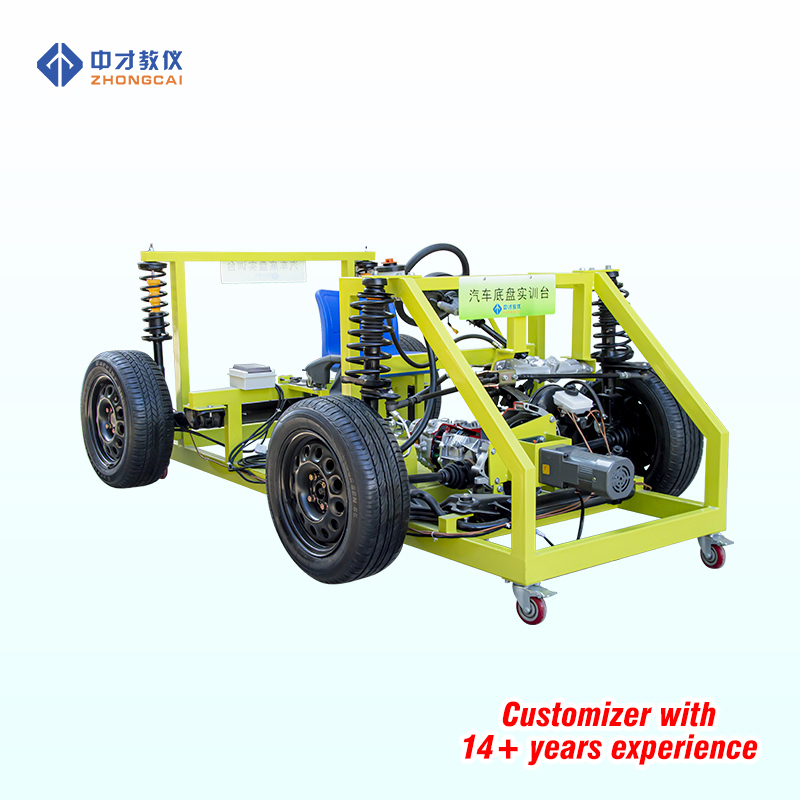

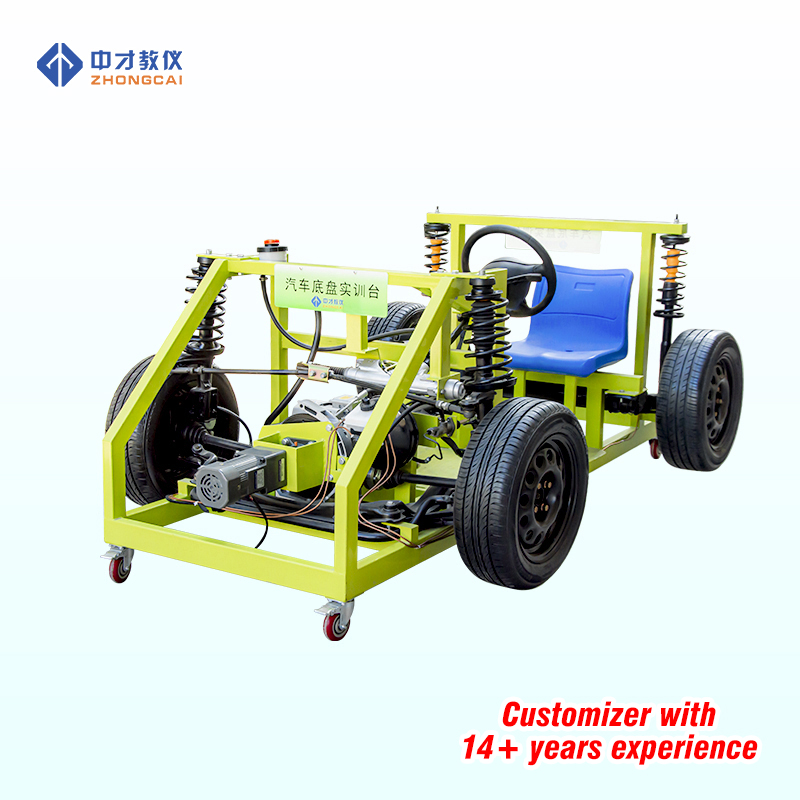

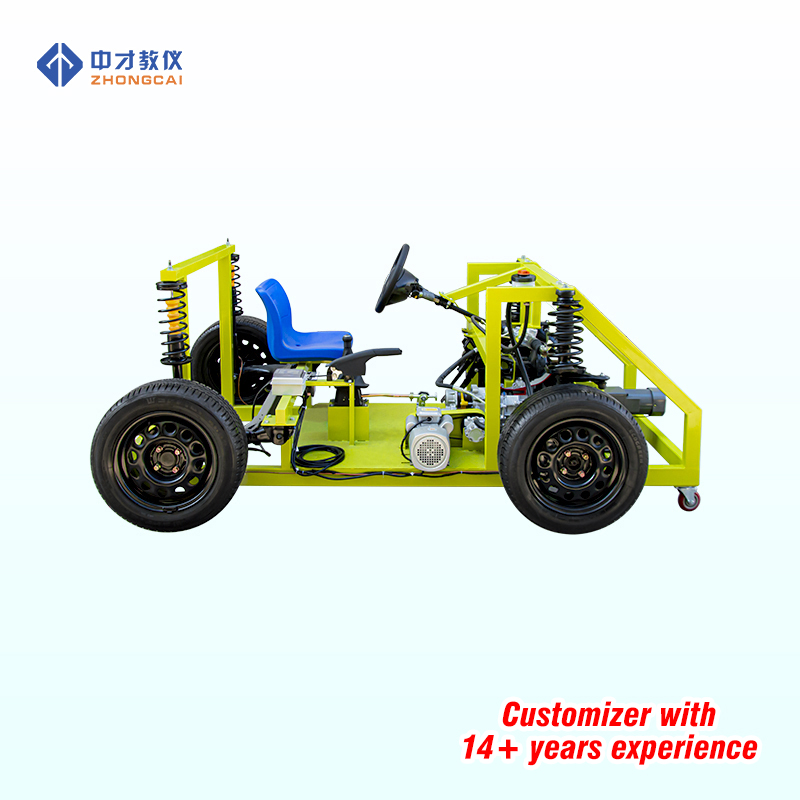

Automotive Rear Drive Chassis Comprehensive Training Bench

FOB Price:	2000.00 - 5000.00 USD/Set
Supply Ability:	2,000 Set(s) per Month
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	wooden packing

Quick Details

Brand Name: Zhongcai
Dimensions: 500KG
Certificates: ISO
Category: rear drive chassis
Dimension: 220V/250W

Specifications

I. Product introduction

the equipment adopts the rear-drive automobile chassis systems as the basis, fully demonstrating the composition structure of the chassis systems.

Including front and rear suspension system, steering system, transmission system, manual transmission and gear mechanism, braking system and other systems, the installation of casters removable table and other components.

Applicable to the teaching needs of the school for the theory and maintenance of the chassis systems practical training.

Ⅱ.the functional characteristics

1. Install the real chassis systems (including front and rear suspension, steering, transmission, manual transmission and gear mechanism, braking system), fully demonstrate the composition of the structure of the chassis systems.

2. Can be true to the car chassis systems show and disassembly training.

3. Dissected manual transmission can be dynamic demonstration and testing, reducer motor input power, the transmission can be shifted and dynamic testing, four wheel contact with the ground can be slow driving demonstration.

4. Motor-driven directional power pump, real demonstration of power steering work process.

5. the base of the training table is welded with steel structure, the surface is treated with spraying technology, with self-locking casters, flexible movement, safe, reliable, durable.

III. Technical specifications

Power supply: 220V

Working temperature: -40℃+50℃

Host: the original device

Electric motor: 220V/250W 15rpm

Leakage protection switch: DZ47LE-32

Steel pipe: 60*40*3mm

Mobile casters: 100*50mm

Weight: 500KG

Size: 3500mm * 2000 * 1200

Fourth, the basic configuration (each unit)

No.	name	Unit	Quantity
1	Transmission system	Set	1
2	Steering system	Set	1
3	Braking system	Set	1
4	Driving system	Set	1
5	Clutch	Set	1
6	Transmission	Set	1
7	Front and rear axle/suspension	Set	1
8	Gearshift mechanism	Set	1
9	Deceleration motor	pcs	1
10	Single-phase AC motor	pcs	1
11	Earth leakage protection switch and accessories	Set	1
12	Driver's seat	Set	1
13	Steel table	set	1
