>Products Catalog > Welding generators > Belon Power DG190AC Diesel Welding Generator DG230AC Diesel Welder Generator

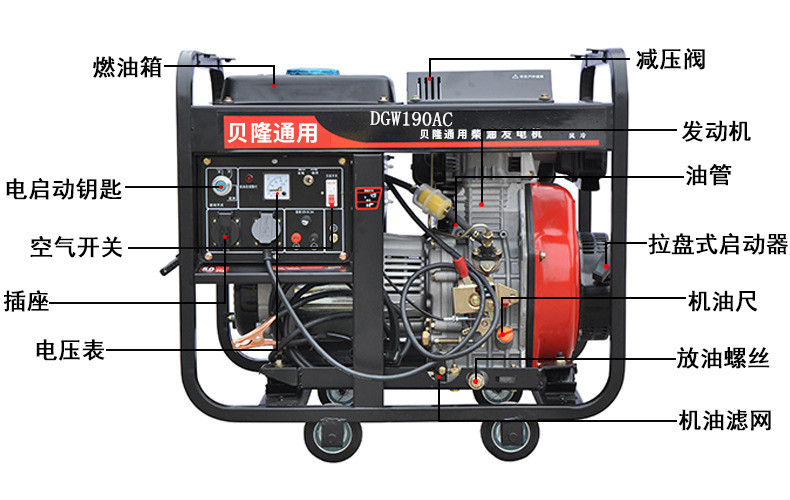

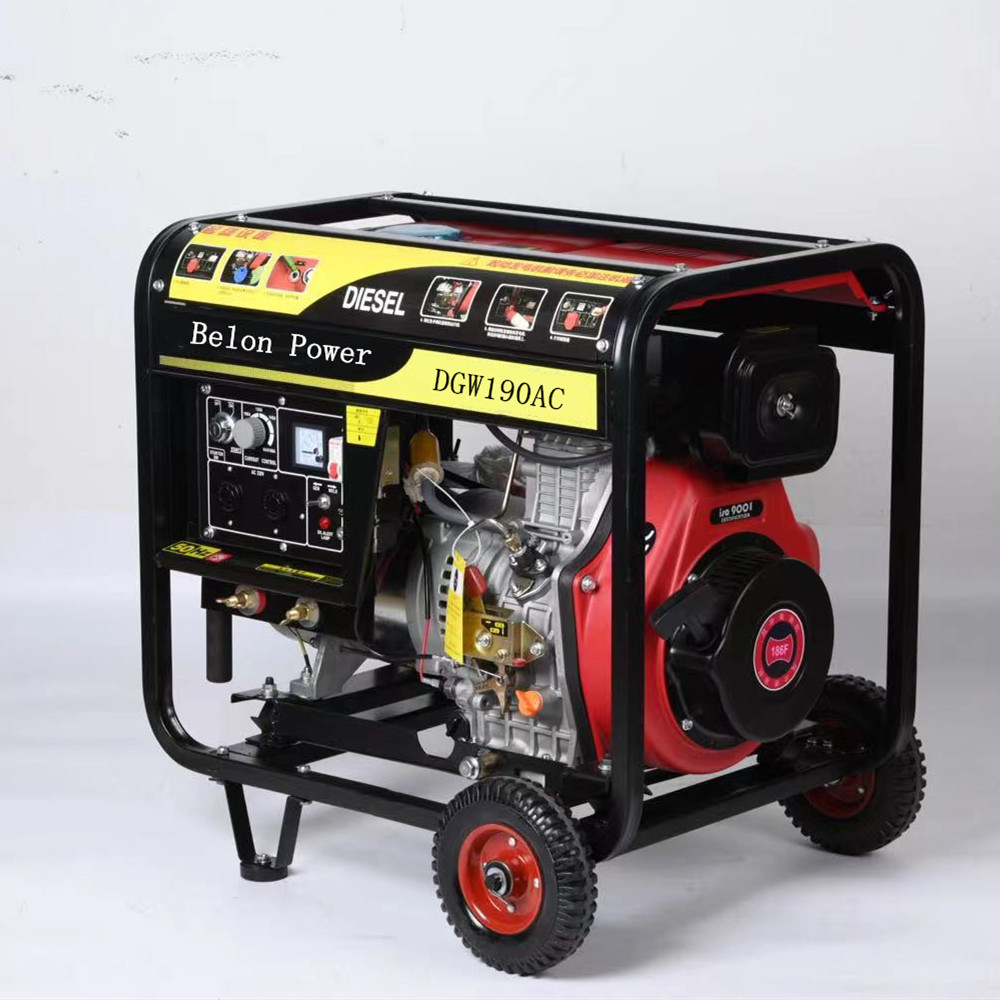

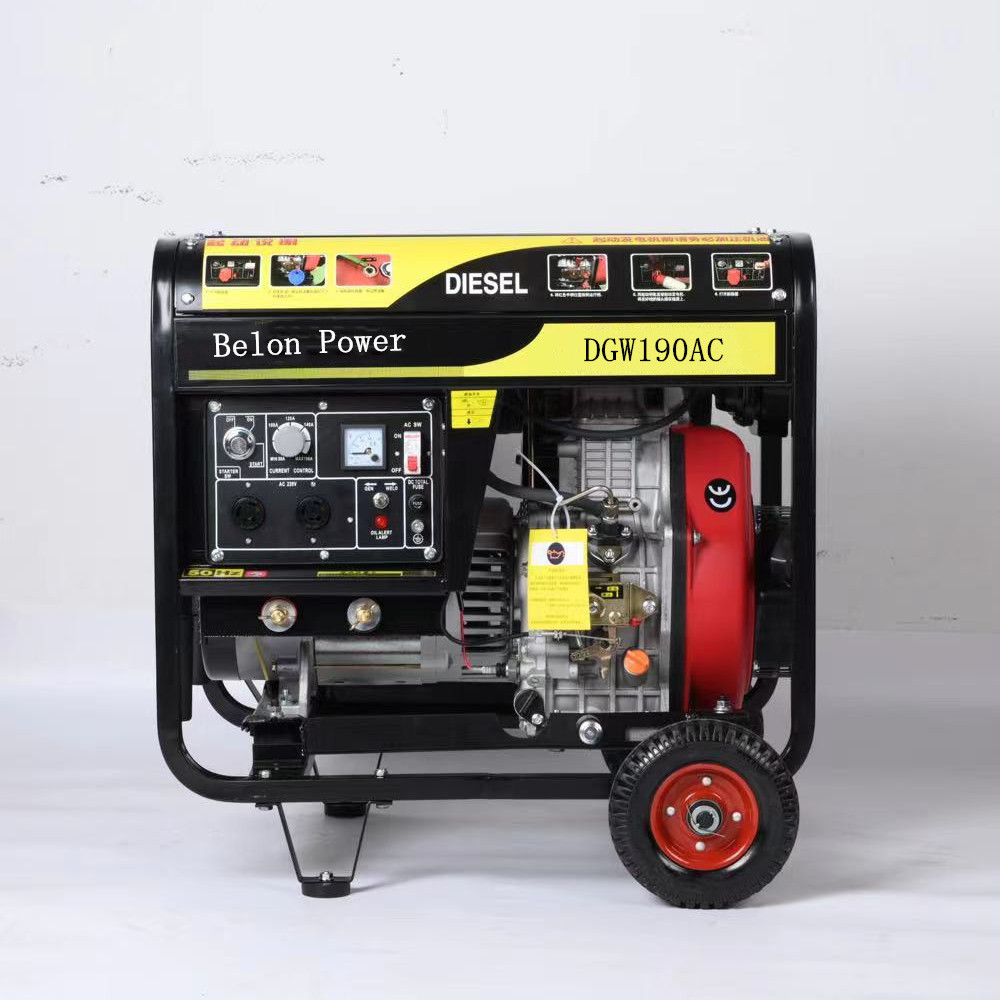

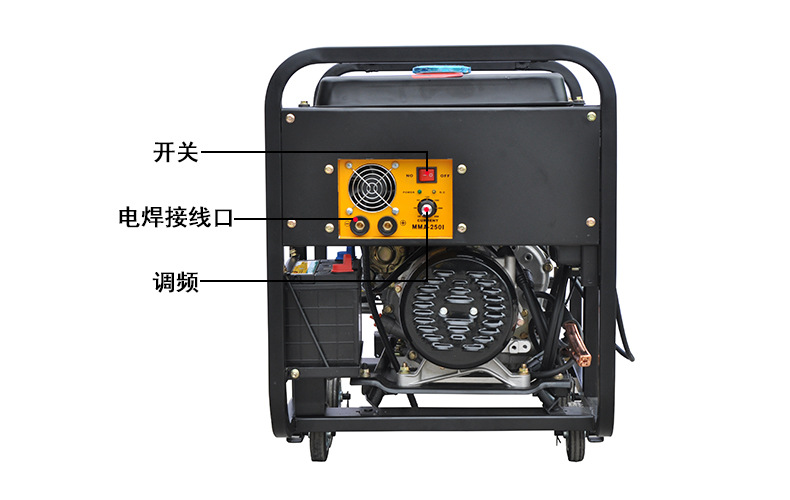

Belon Power DG190AC Diesel Welding Generator DG230AC Diesel Welder Generator
| FOB Price: | 710.00 - 750.00 USD/Unit |
|---|---|
| Supply Ability: | 10,000 Unit(s) per Month |
| Shipping: | By Sea |
| Payment Terms: | T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Chongqing in China |
| Packaging Details: | 1 unit/carton |
Quick Details
- Rated Power: 2kw
- Frequency: 50HZ/60HZ
- Speed: 3000/3600RPM
- Output Type: AC Single Phase
- Brand Name: Belon Power
- Rated Current: 50-180A;70-220A
- Rated Voltage: 220V
- Model Number: DG190AC;DG230AC
Specifications
Belon Power DG190AC diesel welding generator DG230AC diesel welder generator
| Model | DG190AC | DG230AC |
| Frequency[Hz] | 50 60 | 50 60 |
| Voltage[V] | 220,230,240,110/220,115/230,120/240 | 220,230,240,110/220,115/230,120/240 |
| Output power[Kva] | 2.0 2.2 | 2.0 2.2 |
| No-load Welding Voltage[V] | 50~65 | 50~65 |
| Welding Current[A] | 160 | 200 |
| Working Welding Voltage[V] | 25~30 | 25~30 |
| Current Adjustment Range[A] | 50 ~ 180 | 70 ~ 220 |
| Continuous Welding Load Rate | 60% | 60% |
| Phase | Single phase | Single phase |
| Excitation Method | Brush self-excitation | Brush self-excitation |
| Power Factor Φ | 1 | 1 |
| Insulation Class | F | F |
| Fuel Tank Capacity[L] | 12.5 | 12.5 |
| Engine Model | 186FA | 192FA |
| Start Method | Electric start | Electric start |
| Engine Type | Single cylinder, 4 stroke, air-cooled, vertical | Single cylinder, 4 stroke, air-cooled, vertical |
| Bore*Stroke[mm] | 86* 72 | 92 * 75 |
| Displacement[L] | 0.418 | 0.499 |
| Compression Ratio | 19.5:1 | 19.5: 1 |
| Speed | 3000 3600 | 3000 3600 |
| Power[Kw] | 5.8 6.6 | 7.5 8.2 |
| Drive Way | Crankshaft | Crankshaft |
| Oil Capacity[L] | 1.65 | 1.65 |
| Fuel No. | Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter. | Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter. |
| Oil No. | SAE10W30 (CD grade or above) Uses CD or above grade 15W-40 oil (or SAE equivalent grade oil) | SAE10W30 (CD grade or above) Uses CD or above grade 15W-40 oil (or SAE equivalent grade oil) |
| Size [mm] (L*W*H) | 700*485*600 | 700*485*600 |
| Packing Size[mm] (L*W*H) | 710*500*620 | 710*500*620 |
| Net Weight/Gross Weight[Kg] | 113/116 | 123/126 |
