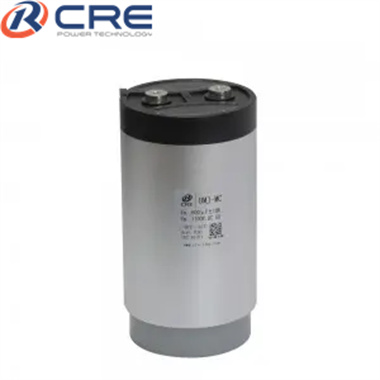

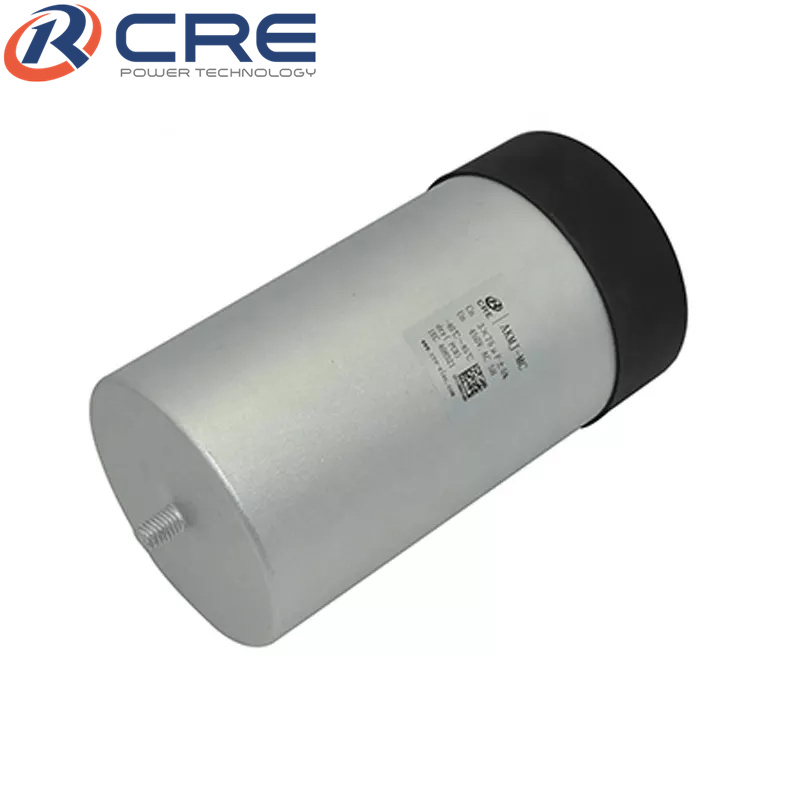

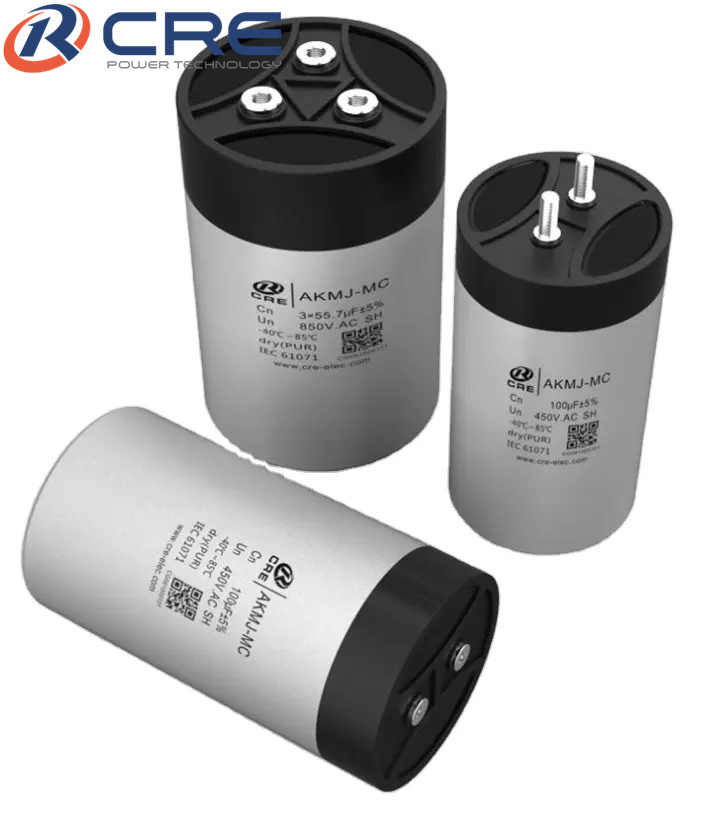

Customized DC-Link 1100VDC Film Capacitors with Cylindrical Metal Shell

FOB Price:	1.00 - 10.00 USD/Set
Supply Ability:	1,000 Box(es) per Week
Shipping:	FOB EXW CIF

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Quick Details

Rated Voltage: 450-1100VDC
Capacitance: 4000 micro farad
Application: Hight Voltage
Type: Polyester Film Capacitor
Brand Name: CRE

Specifications

Product performance description


- Aluminum round housing package- Sealed with resin
- Large capacity, small size
- Esistance to high voltage, with self-healing
- Copper nut/screw leads, insulated plastic cover positioning, esay installation
- Widely used in DC-Link circuit for filtering energy storage

Application

- PV inverter
- wind power converter
- EV HEV cars
- SVG, SVC devices

Operating temperature range	+85℃ to -40℃
Available Capacitance range	50μF4000μF
Rated voltage	450V.DC4000V.DC
Capacitance tolerance	±5%(J);±10%(K)
Withstand voltage	Vt-t	1.5Un DC/60S
	Vt-c	1000+2Un/√2 () 60S(min3000 )
over Voltage	1.1Un(30% of on-load-dur.)
	1.15Un(30min/day)
	1.2Un(5min/day)
	1.3Un(1min/day)
	1.5Un(100ms every time,1000times during the lifetime)
Dissipation factor	Tgδ≤0.003 f=100Hz
	Tgδ0≤0.0002
Insulation resistance	Rs*C≥10000S (at20℃ 100V.DC 60s)
Flame retardation	UL94V-0
Maximum aititude	3500m
	When the altitude is above 3500m to within 5500m, it is necessary to contact us for a specific design solution
Life expectancy	100000h(Un; hotspot≤70 °C)
Reference standard	ISO9001;IEC61071;GB/T17702;
