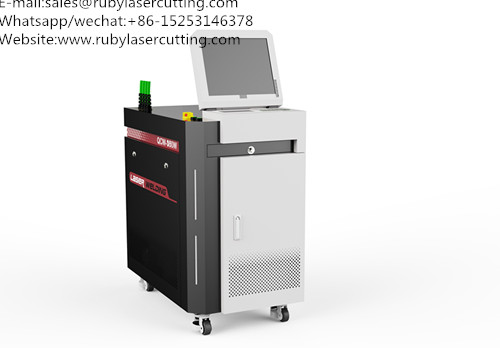

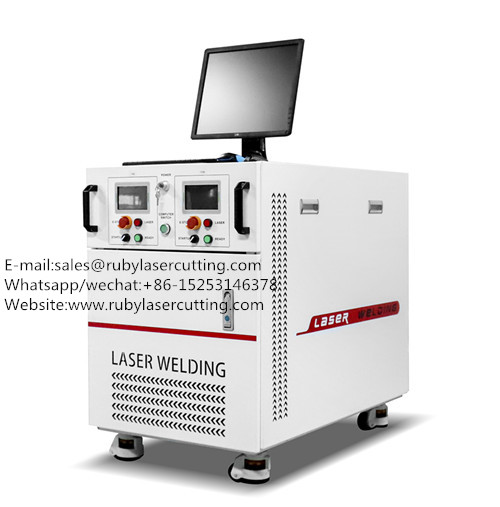

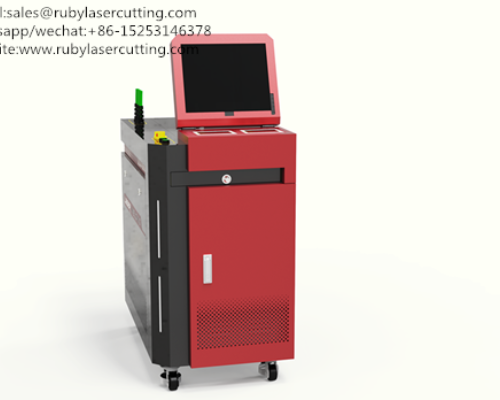

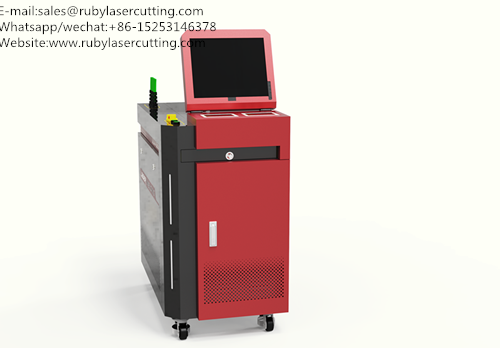

Water Cooling Two Exnon Lamp YAG 600W Laser Welding Equipment
| FOB Price: | 2.00 - 4.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set(s) per Month |
| Shipping: | sea or air |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | wooden box |
Quick Details
- After-sales Service Provided: No overseas service provided
- Certification: CE
- Usage: Welding of electronic products
- Brand Name: Rubylasertech
- Voltage: AC380V
- Warranty: 1 YEAR
- Power(W): 10000W
- Dimensions: 1460x660x1080mm
- Max. Output Power: 600W
- Focal Spot Diameter: 0.2mm
- Wavelength: 1064nm
- Pulse Width: 20MS
- Single Pulse Energy: 100j
- Model Number: RW-YA-600W
- Condition: New
- delivery time: 6 workng days after payment received
- color: white,red and blue
- package: wooden box
Specifications
1064nm Energey Feedback 600 Watt nd Yag Laser Welding Euipment
Features
1. the 1064nm laser welding equipment's' peak power can reach up to 10KW, with good penetration;
2. the energy feedback fiber laser welding equipment uses optical fiber transmission structure, flexible and simple with good automation equipment;
3. Modular structure design makes maintenance whichh Is simple and easy;
4. the 600 Watt ind YAG laser welding equipment has negative energy feedback function to ensure that the electric power of xenon lamp is stable and consistent each time, and the output energy fluctuation is small;
5. the energey feedback laser welding equipment supports any waveform setting, so that each material gets the most suitable waveform parameters;
6. the 1064nm laser welding equipment supports multiple language switching, such as Simplified Chinese, Traditional Chinese, English, Korean, Vietnamese, etc.
7. the 600 Watt nd YAG laser welding machine's' single point energy can reach up to 100J, which can be used to weld copper, aluminum, gold, silver and other highly reactive materials;
Specification
1. Max output laser power:600W
2.Model No:RW-AG-600W
3. MaX wavelength:1064nm
4. MaX pulse energy:100J
5. Repeat pulse frequency:1-200HZ
6. MaX peak power:10KW
7. Pulse width1-20ms
8. Weld penetration:3.0mm stainless steel
9. Welding penetration:3.0mm carbon steel plate
10.Closed-loop feedback control mode: real-time control of energy negative feedback of arbitrary waveform
11. Energy volatility:Less than 3%
12. Optical fiber coupling system: it can be selected if equipped with water cooling; if equipped with optical fiber, it has in-place alarm function (optional)
13.Welding penetration:2.0mm aluminium sheet
14. Welding penetration:2.0mm brass
15. Laser beam splitting mode: precise energy splitting or high-speed time splitting
16.Fiber cable model No:SI200/300/400/600,GI400/600 Germany LEONI, double cladding, imported inner core.
17. Number of optical fiber paths: Less 6PCS standard optics fiber paths
18. Cooling method:External circulating water chiller with external circulating water flow
18. Cooling method:External circulating water chiller with external circulating water flow
19. Air switch: Japan Fuji air switch 63A, the main circuit has the power failure protection function of under-voltage and voltage cut-off.
20. iming and positioning mode: diode red light positioning, CCD camera is optional
21. Machine power consumption: 22KW
22. Electrical power demand: AC380V, 50/60Hz
23. Internal circulation system: it has epoxy resin filtration (standard water pump, 50Hz. 60HZ is optional).
24. Machine size: 1460x660x1080mm.
25. Internal circulation performance: it has water temperature, water level, water flow, water and electricity conductivity function alarm.
