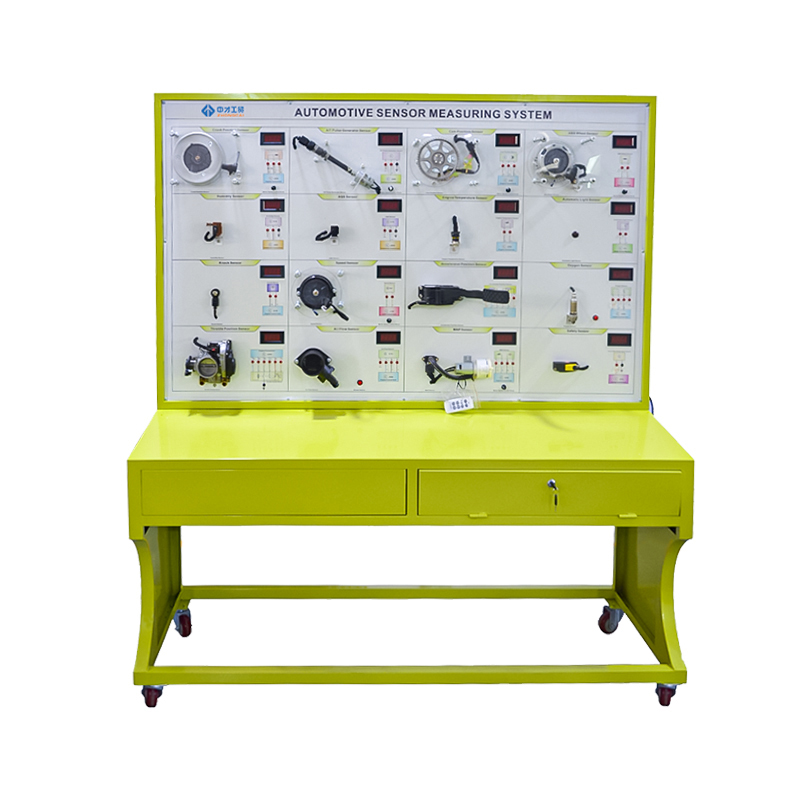

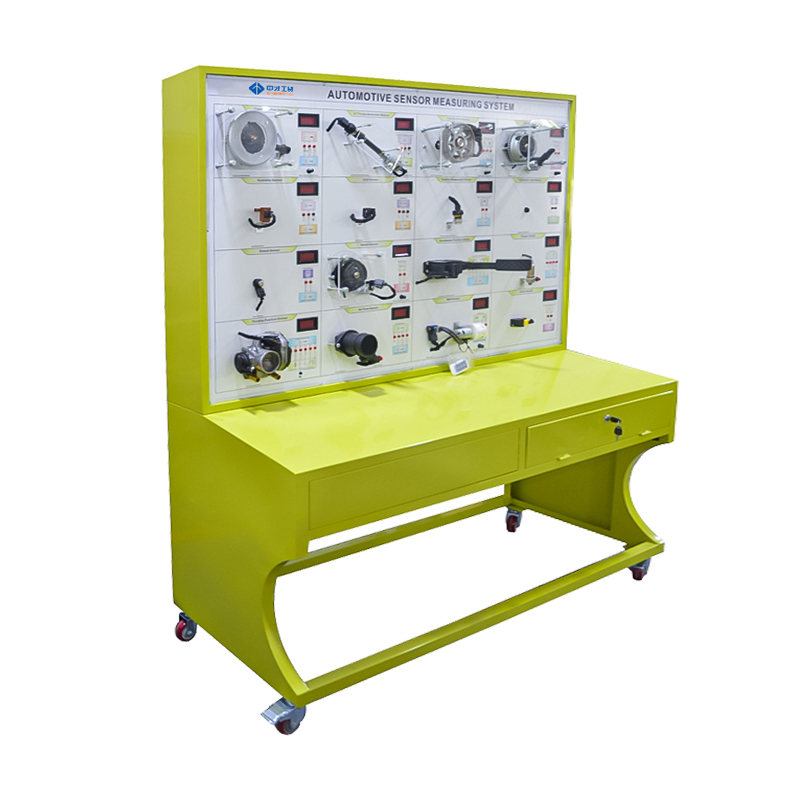

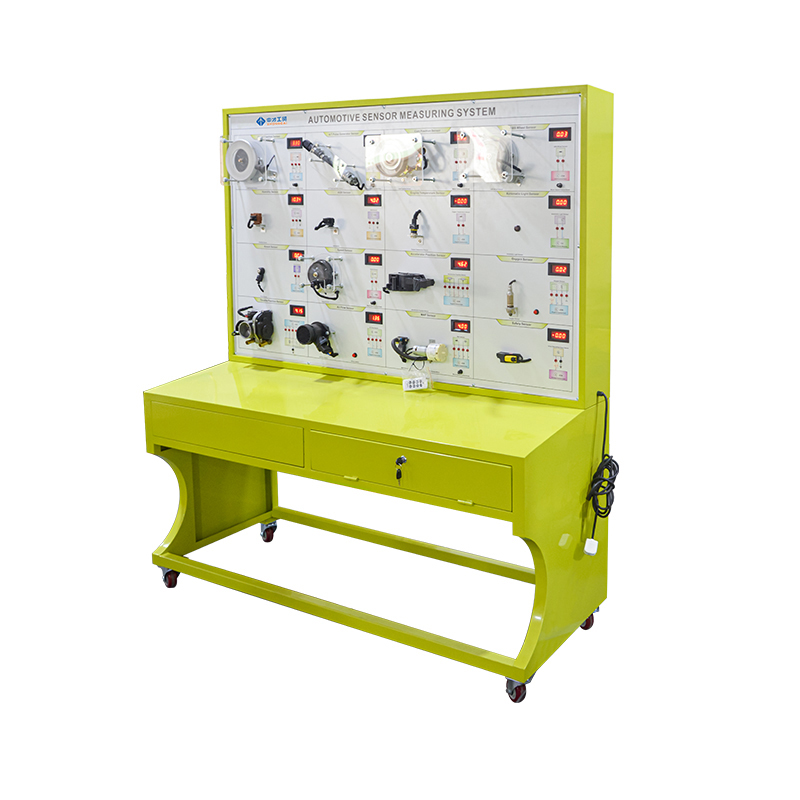

Automotive Sensor Measurement System Teaching Board

Specifications

I. Product introduction.
the practical training system is based on real automotive sensors and actuators, integrating all relevant control switches and actuators into a demonstration board, which systematically shows the working principle of automotive sensors and actuators. It can carry out demonstration experiments, fault diagnosis, data measurement and other practical training operations of automotive sensors and actuators.

II. Functional features.
1. Real runnable automotive sensors and executive equipment, fully demonstrate the composition structure and working process of the car.
2. the training table measurement panel is painted with colorful spray-painted circuit diagrams, installed with detection terminals, can be directly on the panel to detect the electrical signals of sensors and control units such as executive equipment pins, such as resistance, voltage, current, frequency signals, etc.
3. Composition: crankshaft angle sensor, A/T pulse generator sensor, cam position sensor, ABS wheel sensor, humidity sensor, AQS sensor, engine temperature sensor, auto light sensor, blast sensor, speed sensor, gas pedal position sensor, oxygen sensor, throttle position sensor, air flower sensor, map sensor, safety sensor

III. Materials and processes.
1. Training table measurement panel using 8mm thickness of high-strength acrylic sheet spray-painted, with a large temperature difference, wear-resistant, moisture-proof, anti-corrosion, not easy to deformation, long service life, bright colors, not easy to fade and other characteristics.
2. Training table made of high-grade steel, with high strength, corrosion resistance, long life, etc., without the need to go through the spraying process, more environmentally friendly, the appearance of more beautiful and high-grade, the table with self-locking casters device, mobile and flexible, safe, reliable, durable.
3. Training table with practical and beautiful drawers for placing daily teaching supplies.



IV. Teaching content.
1. Cognition of the configuration of automotive sensors and actuators
2. Understand the control principle of automotive sensors and actuators
3. Master the basics of automotive sensors and actuators
4. Master the working principle of sensors and actuators
5. Be able to independently enumerate and explain the components of sensors and actuators
6. Master the operating conditions of the actuators of sensors and actuation equipment
7. Independently troubleshoot, maintain and repair automotive sensors and actuating equipment

V. Technical parameters.
1. External dimensions: 1600 700 1800mm (L W H)
2. Input power supply: AC 220V±10% 50Hz
3. Working power supply: DC12V
