Elecnova SFB1-63 6ka 1/2/3/4p Pole Mini Circuit Breaker Intelligent MCB

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Poles Number: 1p/2p/3p/4p
Type: Magnetic
Brand Name: Elecnova
Rated voltage: 500V
Certificate: CCC
Model Number: SFB1-63

Specifications

Basic Info.

Model NO.

SFB1-63

Bcd Curve

Rated Frequency

50/60Hz

Number of Poles

1p/2p/3p/4p

Rated Current, I N (a)

6A/10A/16A/20A/25A/ 32A/40A/50A/63A

Tripping Form

Thermal Magnetic Trip

Rated Insulation Voltage, Ui (V)

500V

Pollution Class

Class2

Protection Level

IP20

Operating Ambient Temperature

-35C~+70C

Maximum Wiring Capacity

25mm2

Trademark

ELECNOVA

Origin

China

HS Code

9030809090

Production Capacity

30000PCS/Per Month

Product Description

Product Name: 6kA 1/2/3/4P pole Mini Circuit Breaker Intelligent MCB
SFB1-63-series circuit breakers are applicable for places with AC 50Hz or 60Hz, rated voltage of 400V and below, and rated current of 6A-63A. It is mainly used for overload and short-circuit protection of lighting, power distribution lines and equipment in office buildings, residences and similar buildings. It can also be used for infrequent line transfer under normal conditions.

- Functions: Overload, short-circuit protection
- Uses: Lighting for power distribution, and motor protection
- Number of Poles: 1P/2P/3P/4P
- Breaking Capacity: 4500/6000A
- Current: 6A/10/16/20/25/32/40/50/63A

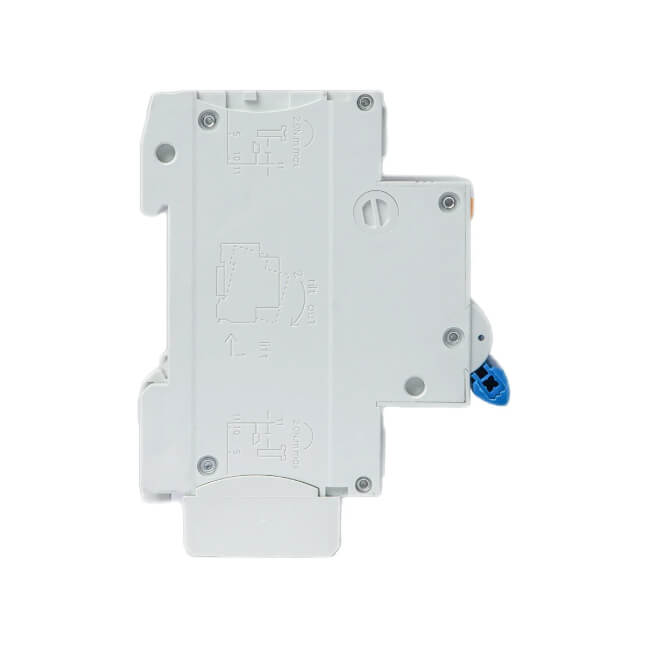

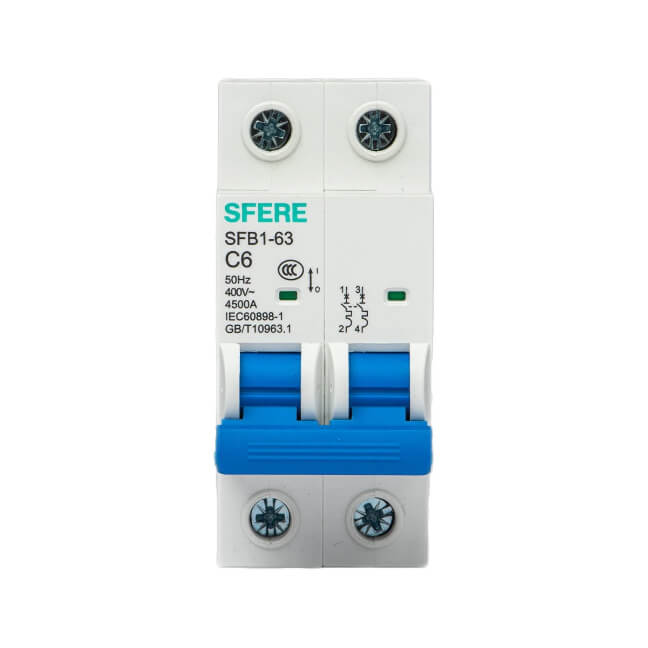

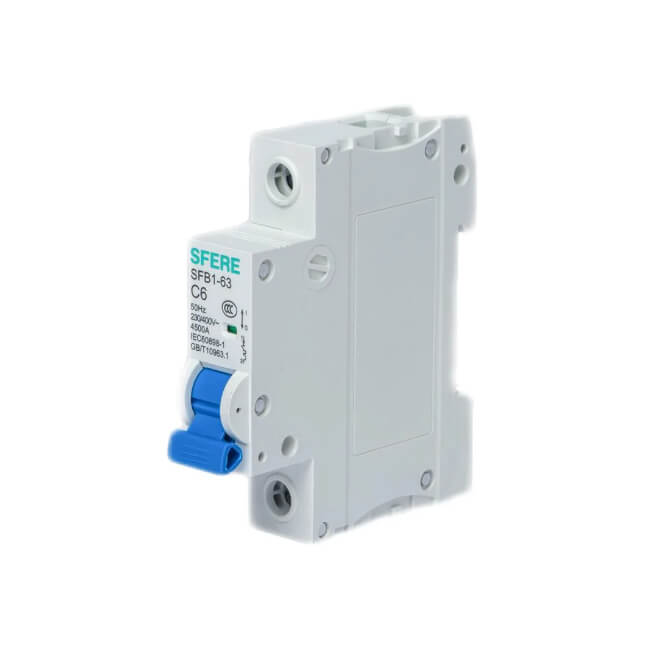

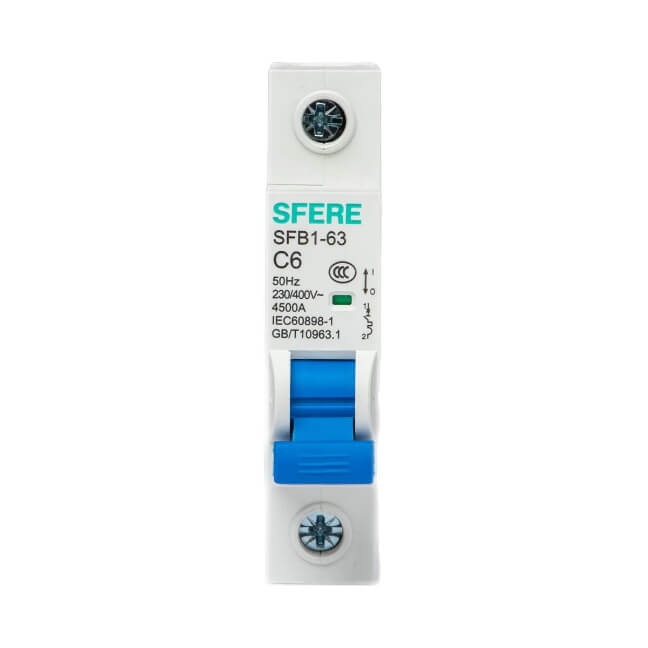

Elecnova SFB163 6ka 1234p Pole Mini Circuit Breaker Intelligent MCB

Technical Specifications

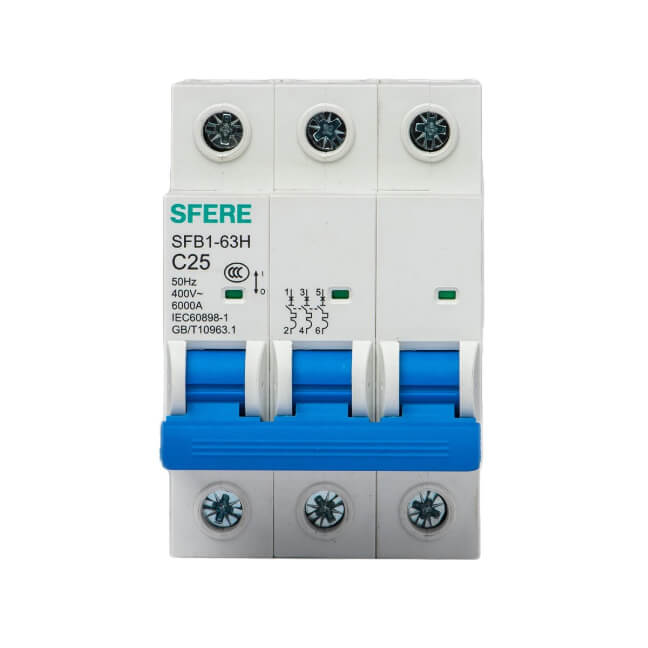

Electrical characteristics	SFB1-63	SFB1-63H
Applicable standard	IEC60898-1
Product certification	CCC
Number of poles	1P,2P,3P,4P	1P,2P,3P,4P
Rated frequency (Hz)	50/60	50/60
Housing current, I nm (A)	63	63
Rated current, I n (A)	6A/10A/16A/20A/25A/32A/40A/50A/63A	6A/10A/16A/20A/25A/32A/40A/50A/63A
Rated voltage, Ue (V)	AC230, AC400(1P)/ AC400(2P/3P/4P)	AC230, AC400(1P)/AC400(2P/3P/4P)
Rated insulation voltage, Ui (V)	500V	500V
Rated impulse withstand voltage, Uimp (kV)	4kV	4kV
Rated operating short-circuit	4.5kA	6kA
Breaking capacity, Ics (kA)	4.5kA	6kA
Instantaneous tripping	C(5In-10In)	C(5In-10In)
Characteristics	D(10In-20In)	D(10In-20In)
Tripping form	Thermal magnetic trip	Thermal magnetic trip
Pollution class	Class 2	Class 2
Electrical life	10000	10000
Mechanical life	20000	20000
Protection level	IP20	IP20
Operating ambient temperature	-35C~+70C	-35C~+70C
Installation altitude	up to 2000m	up to 2000m
Wiring terminal	Screw crimping	Screw crimping
Maximum wiring capacity	25mm2	25mm2
Maximum limit torque	2.5Nm	2.5Nm
Installation category	Category and Category	Category and Category
Installation mode	TH35-7.5(1.0) standard rail	TH35-7.5(1.0) standard rail
Incoming mode	Incoming either from up or down	Incoming either from up or down
