11KW 15KW 16Bar 500L Tank Screw Type Compressor with Dryer for Laser Cutting Machine
| FOB Price: | 2350.00 - 2950.00 USD/Unit |
|---|---|
| Supply Ability: | 1,000 Unit(s) per Month |
| Shipping: | by sea |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Africa, Mid East, Eastern Asia |
|---|---|
| Packaging Details: | Wooden Crate,Full Closed Woode Case.1pcs/each |
Quick Details
- Brand Name: Airhorse
- Lubrication Style: Lubricated
- Configuration: Stationary
- Type: Screw
- Condition: New
- After-sales Service Provided: Overseas third-party support available
- Warranty: 1 year
- Certification: ISO,CE,ASME,UL
- Weight: 425
- Dimension(L*W*H): 1860*800*1790
- Voltage: 380V
- Model Number: AHB-20A
- Mute: Yes
- Power Source: AC Power
- Motor power: 15kw,20hp
- Cooling model: Air cooling
- Starting method: Star-delta starting
- Air flow: 1.9-2.5m3/min
- Working pressure: 7-16bar
Specifications
Features of Screw Air Compressor with tank and dryer
Features of Belt Driven Screw Air Compressor
1. Air end with high-efficiency
2. Double Screw with low noise, Super Silenced Enclosure
3. Elegant compact design. Fully open access door to inner parts for easy service.
4. 100% Continuous duty operation. Load/No Load operation
5. High quality CE Certificate industrial electric motors. ISO,CE,UL Certificate
6. Easy to use and read LCD control panel
7. High temperature, high pressure and anti-rotation shutdown
8. Energy efficient operation
9. 5 micron, water-resistant air filtration material
10. 1year full machine warranty,3years air end warranty.
11. Supply the machine with different working voltage according to customer's request,
Such as: 380Volt,3phase,50hz
420Volt,3phase,50hz
380Volt,3phase,60hz
220Volt,3phase and 60hz, etc.
| Tank and Dryer Mounted Screw Air Compressor (3-in-1 type) | |||||||||
| Model | Motor power | Free air deliver | Free air deliver | Discharge pressure | Tank volume | Electricity | Weight | Size | |
| (KW) | (HP) | (m3/min) | (CFM) | (MPa) | (L) | (V/ph/Hz) | (KG) | (mm) | |
| AHB-7A | 5.5 | 7.5 | 0.75 | 27 | 0.8 | 300 | 380/3/50 | 376 | 1750x800x1570 |
| AHB-10A | 7.5 | 10 | 1.1 | 39 | 0.8 | 300 | 380/3/50 | 400 | 1750x800x1570 |
| AHB-15A | 11 | 15 | 1.5 | 53 | 0.8 | 300 | 380/3/50 | 475 | 1750x800x1690 |
| AHB-20A | 15 | 20 | 2.3 | 81 | 0.8 | 500 | 380/3/50 | 540 | 1750x800x1690 |

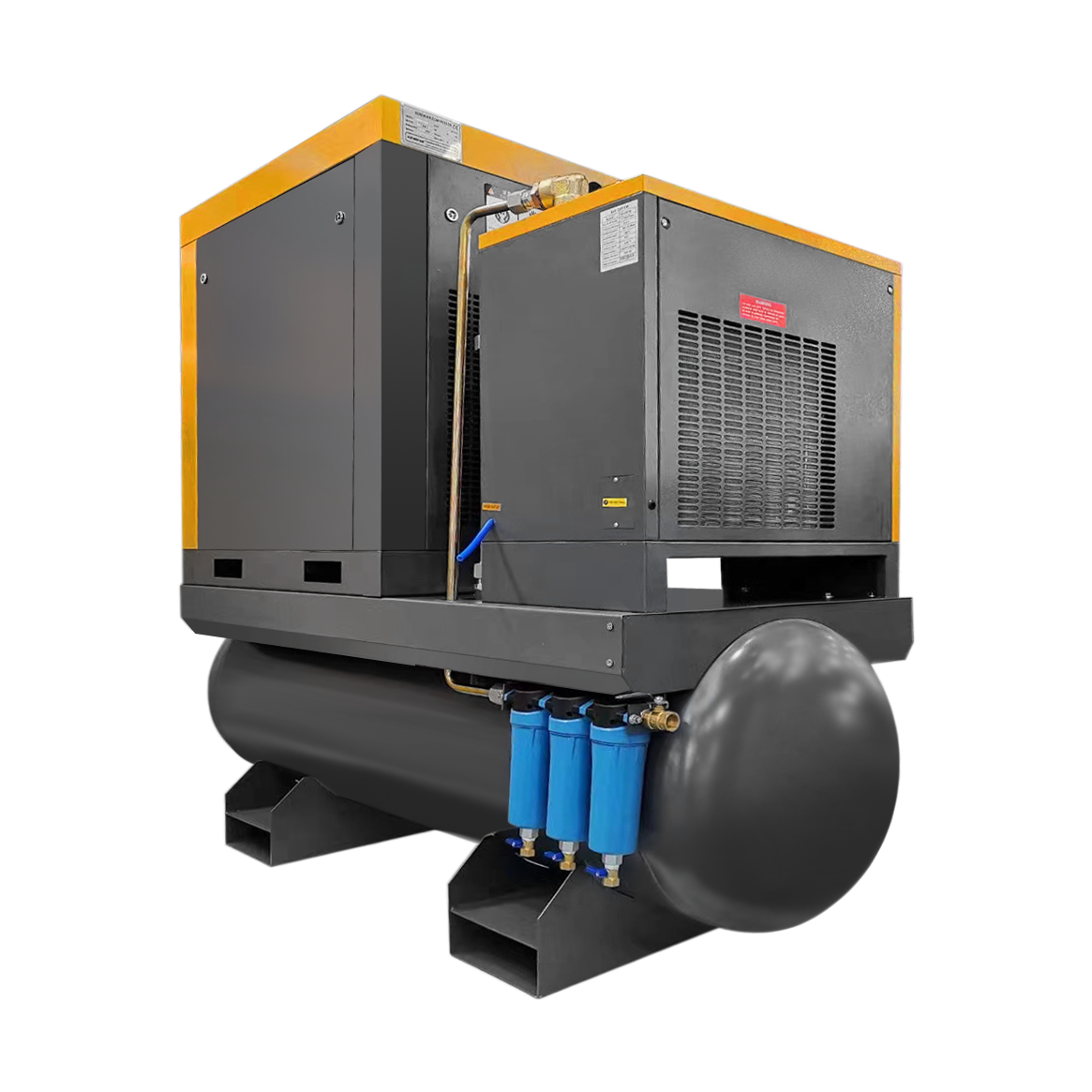

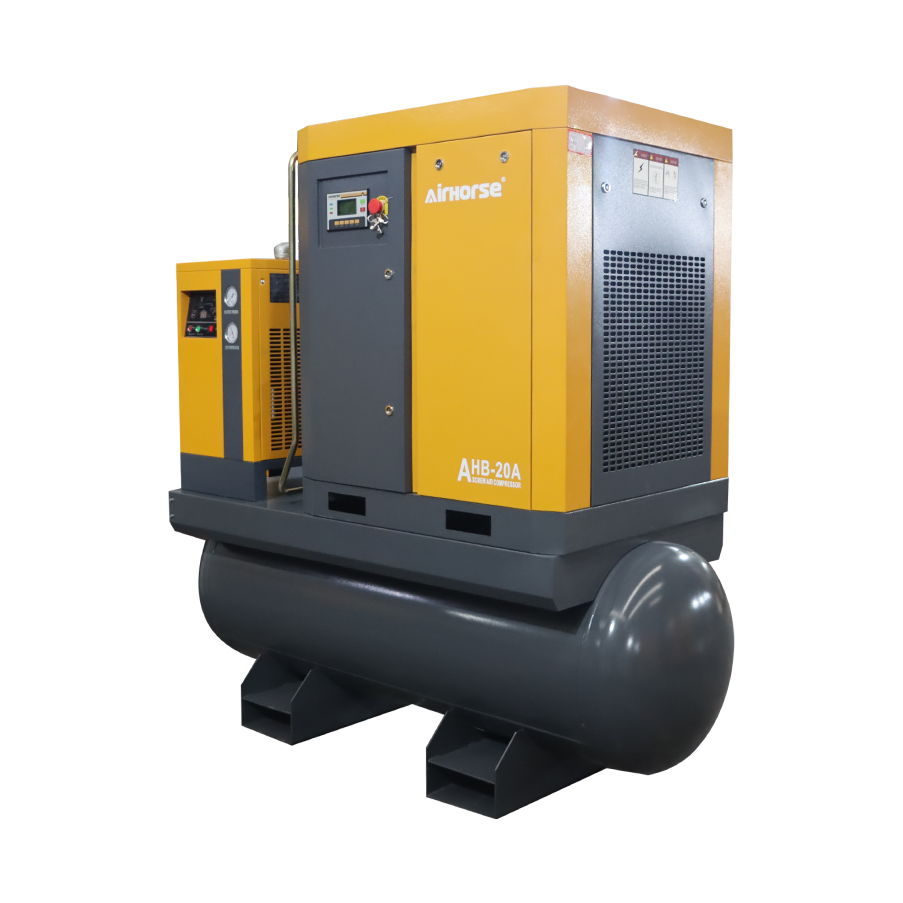

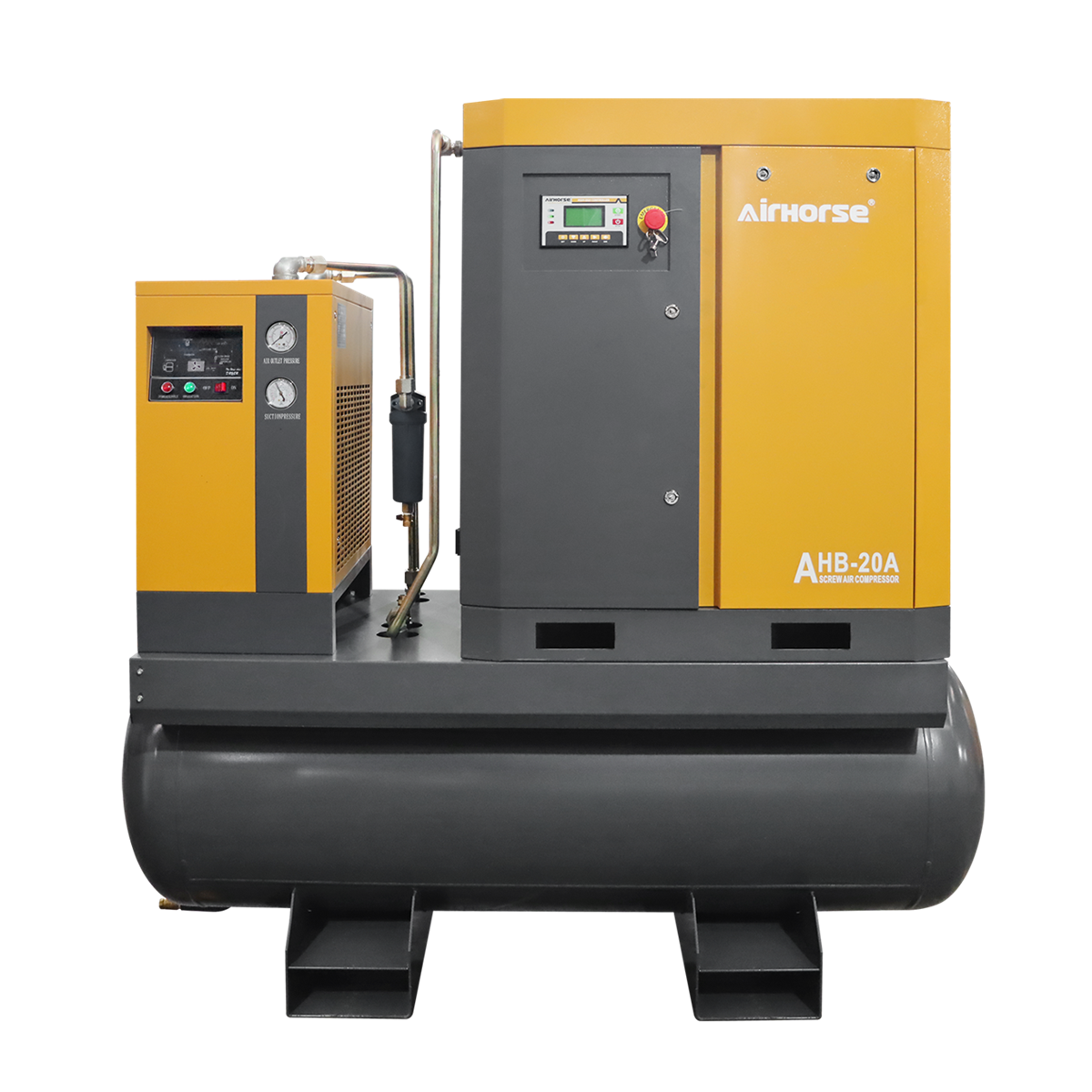

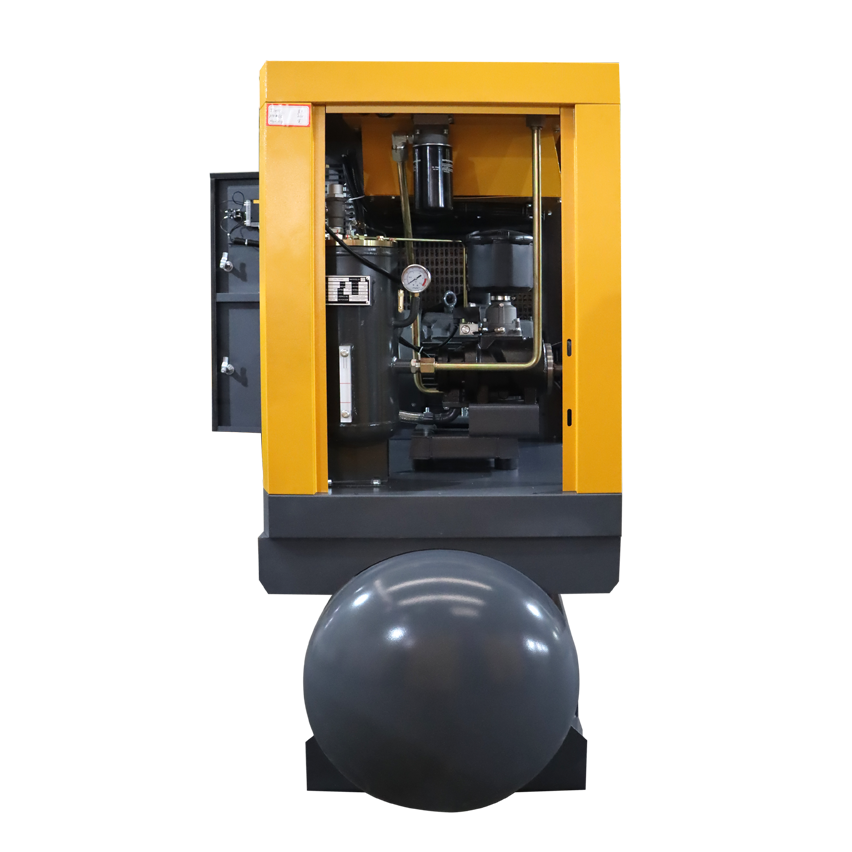

Product display
Our Service
after-sale Service
Any questions or requests before, during or after sales, we would like to help you any time and will find you the best solution in 24 hours.
Warranty: One year for the whole machine Genuine spare parts will be provided with best price.
over board engineer service is available.
Special Customized Service
1) Full OEM
Quantity: at least 5 pcs
in this plan, we will do all the changes (Color, name plate and logo) as your need, and will not charge extra fee.
2) Half OEM
Quantity: no limit
under this program, we can make the necessary alteration (name plate and logo) but we will charge some extra fee for the name plate, as the name plate factory has the MOQ.
3) Logo OEM
Quantity: no limit
Only the logo will be changed to yours, and no extra fee will be charged.
Overseas Engineer Service
We are available to send our engineer for aboard service. Only need you to arrange the accommodation, transportation and translator. Extra cost for each will be discussed based on local price level.
