Light Gauge Steel Villa Frame Roll Forming Machine

Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China

Quick Details

After-sales Service Provided: Overseas service center available
Warranty: 12months
Certification: CE
Brand Name: HENER
Condition: New

Specifications

Light gauge steel villa frame roll forming machine LGS machine light gauge steel framing machine villa roll forming machine

Product Description

Lgs Machine Villa Light Keel Gauge Steel Frame Construction Roll Forming Machine

China Customized C89 C140 LGS Machine Villa House frame Light Gauge Steel Framing Roll Forming Machine

Light gauge steel frame machine
Light gauge steel framing manufacturers
Lgs machine

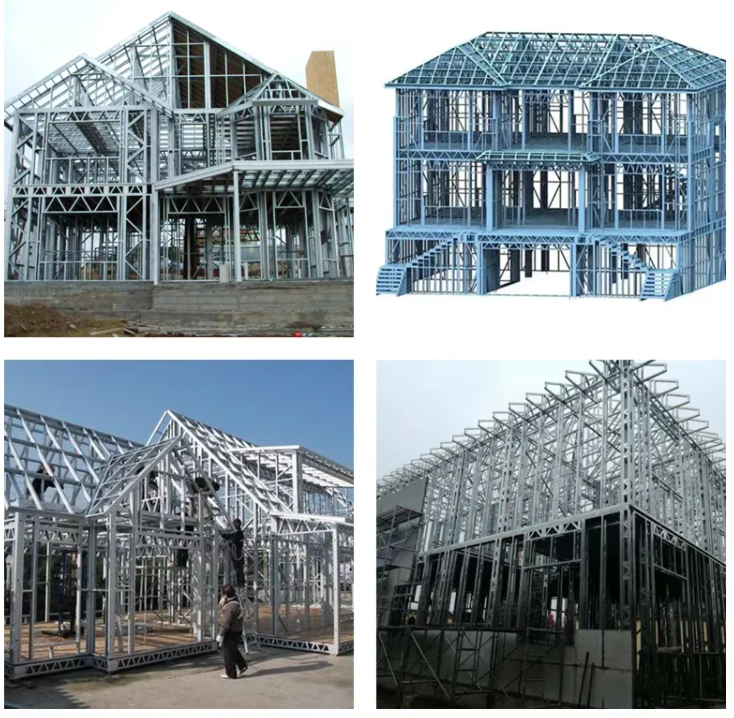

the China C89 C140 LGS Machine Light Gauge house Steel Framing Making Machine with Vertex BD can meet the manufacturing needs of all frame keels of low-rise single family or conjoined building frames (including walls, floor Beams and roof trusses) with one click.
the frame keel system manufactured by it can be compatible with the existing brick-concrete structure, wood structure and heavy steel structure. Intelligent keel equipment cannot only be produced in the factory, but also can be placed in a container and transported to a remote construction site for onsite production. the cloud control intelligent system matched with this equipment is the intermediate link between design and production, the control center of the whole system, and the technical guarantee for realizing one-key full-digital production.
Light gauge steel villa frame roll forming machine RAMECAD Machine Light Gauge Steel Frame Roll Forming Machine Lgs Machine with Vertex Bd

Product Parameters

1.Main Paraments of China C89 C140 LGS Machine Light Gauge House Steel Framing Making Machine with Vertex BD

1. Weight: 3 tons; specifications (length * width * height): 4 x 0.8x1.8 meters; total energy consumption: 7.5+5.5 KW;

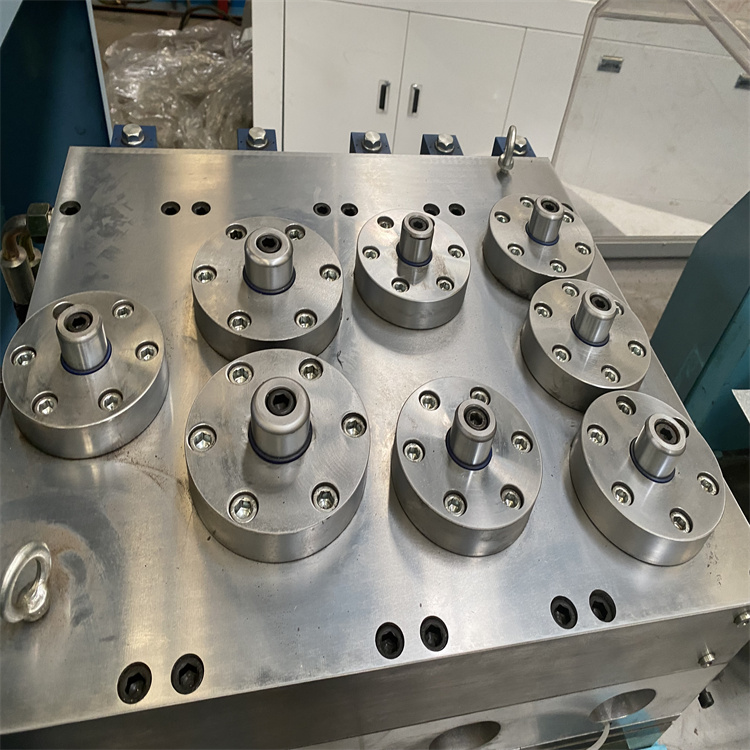

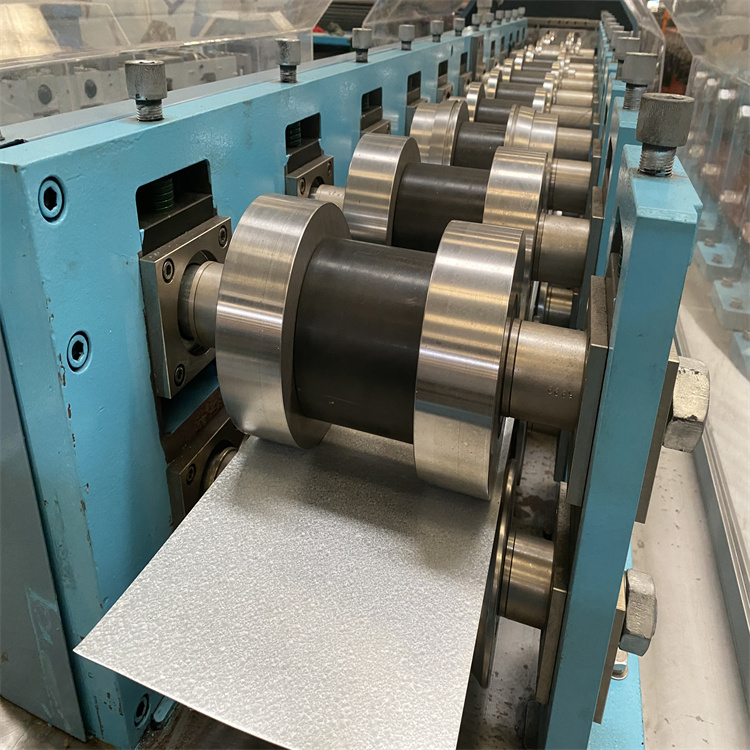

2. Number of forming roller sets: 9 sets of spindle roll forming, 4 sets of finishing roll forming.
3. Transmission mode: gear + chain; Power: 7.5KW;Servo motor drive.
4. Roller material/brand: Imported material DC53,; Spindle material/brand: 40Cr, Cutting tool material/brand: DC53
5. Conventional molding speed: 50 meters m/min;
6.Production capacity: According to the profile length and punching, the comprehensive output is 0.5-0.6 tons/hour;
7. Hole pitch tolerance: plus or minus 0.3 mm; length tolerance: 0.5 mm; straightness tolerance: 0.3 mm;
8. Inkjet printer: equipped with dual nozzles, which can identify the front and back;

2.Software of China C89 C140 LGS Machine Light Gauge House Steel Framing Making Machine with Vertex BD

1.Mechanics calculation module
2.Vertex BD Detailing Master
3.Production file output module (CSV format)

3.Control system China C89 C140 LGS Machine Light Gauge House Steel Framing Making Machine with Vertex BD

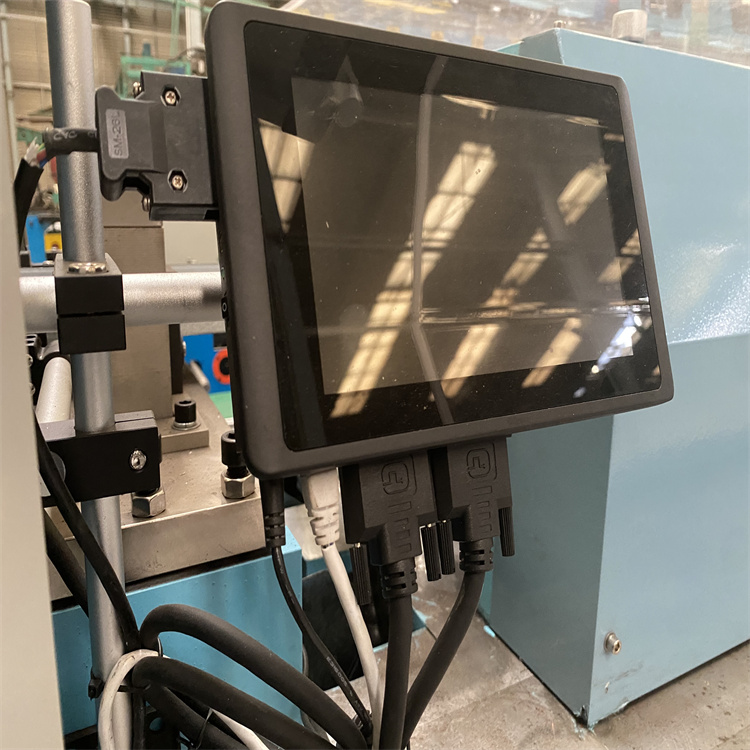

1.19 inch touch computer.
2.Available in multiple languages, easy to operate and debug.
3.Directly read the output data of the design software without manual intervention.
4.the data output by the design software can be copied through USB, and can also be transmitted remotely when connected to the Internet.
5.Provide graphic display and 3d view of production situation, monitor the production process intuitively in real time, and can clearly display the production process.
6.Real-time display and monitoring of equipment operation, automatic alarm and shutdown of faults to ensure equipment and personal safety.

4.Hydraulic system of China C89 C140 LGS Machine Light Gauge House Steel Framing Making Machine with Vertex BD

1. Power: 5.5 KWH; fuel tank capacity: 80 L; with energy storage Yes
2. Pump/valve brand: Huade, law control Huaqing.

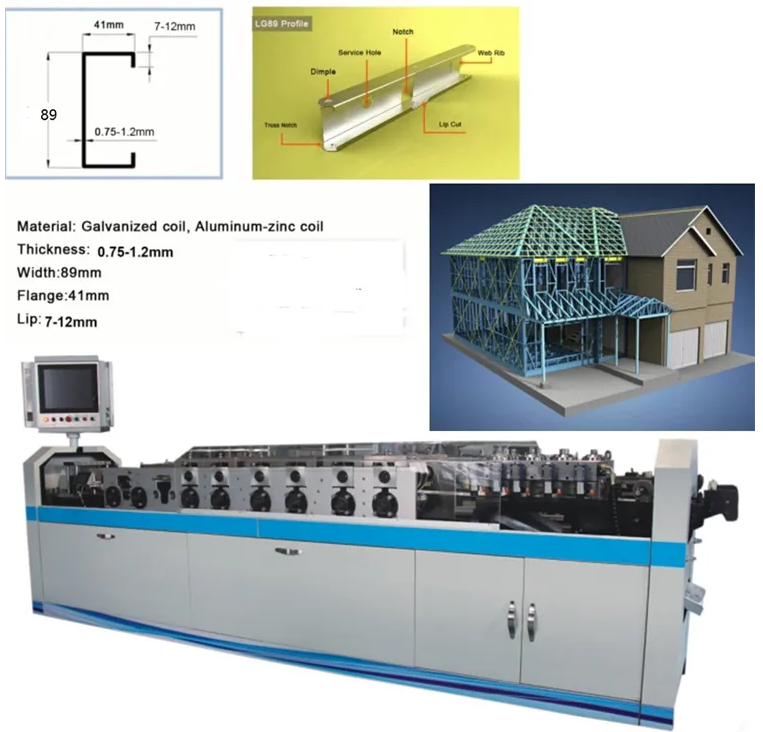

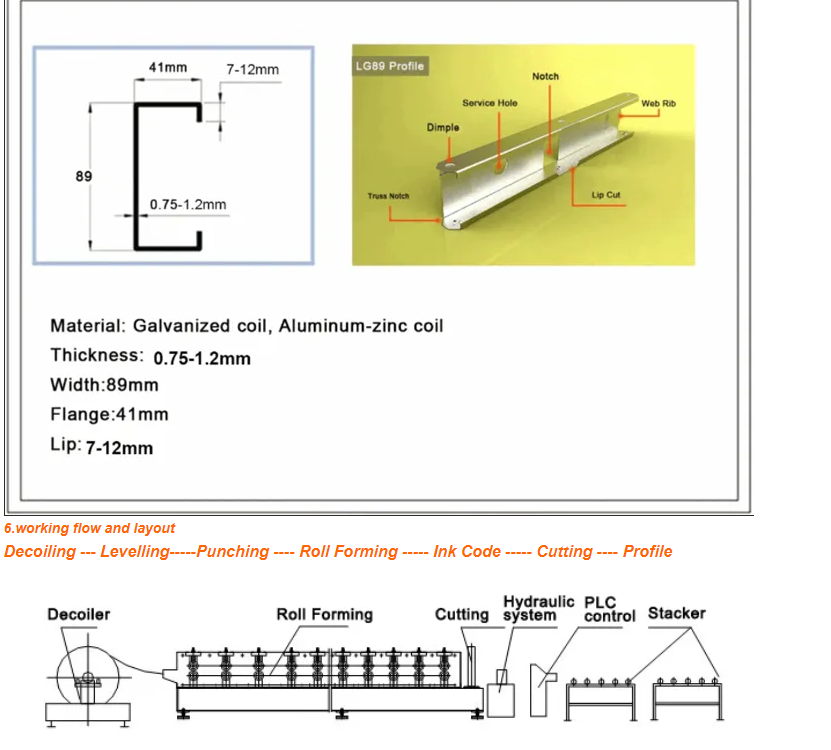

5.Profile drawing of China C89 C140 LGS Machine Light Gauge House Steel Framing Making Machine with Vertex BD

Decoiling --- Levelling-----Punching ---- Roll Forming ----- Ink Code ----- Cutting ---- Profile6.Working flow and layout

Light gauge steel villa frame roll forming machine

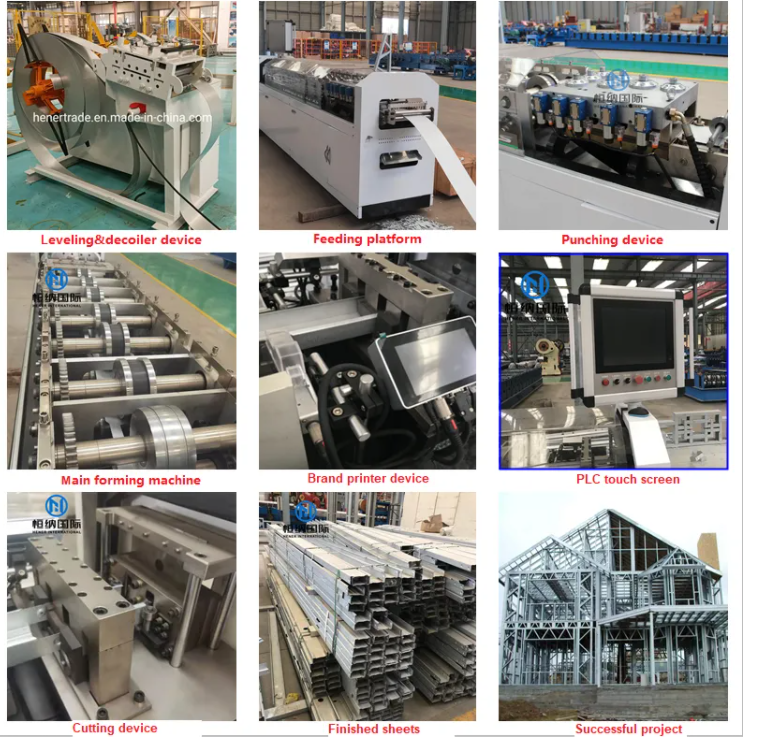

Detailed Photos

the machine is installed and commissioned before leaving the factory. after receiving the machine, the customer can start production as long as the wiring and tubes connected. instructions send to tell how to operate. of course, we also have corresponding videos for reference. Our technicians are available to guidance and training in your factory or online if necessary.

Light gauge steel villa frame roll forming machine

Successful projsect Steel Structure Steel Framing Roll Forming Machines CZ Purline Roll Forming Machine

Light gauge steel villa frame roll forming machine

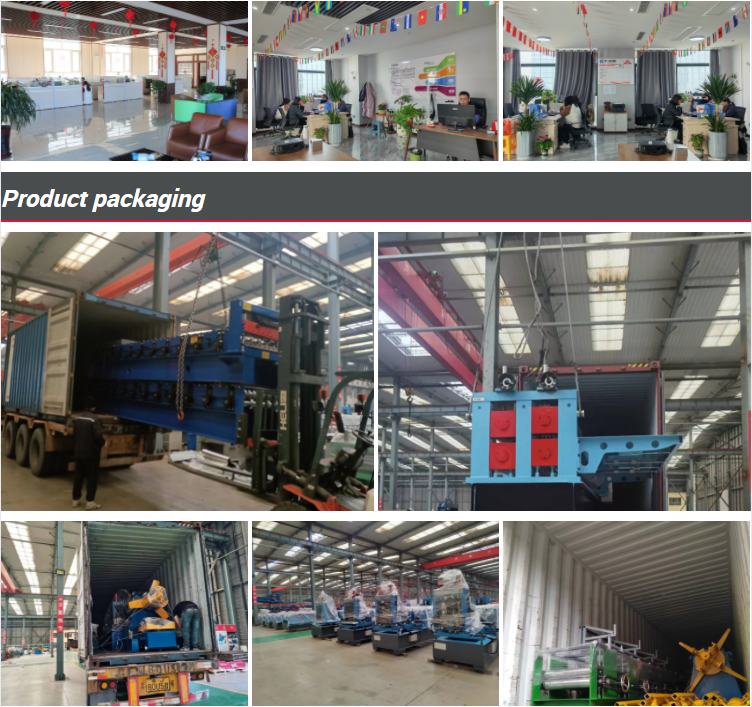

Packaging & Shipping

Main body is covered with plastic film and fixed well by wire rope in container;
Rollers are painted by rust oil;
Spare parts are packed by carton box;
We have professional technicians for loading, guaranteed the goods load into container without any damage;
Transportation: One Set FRAMECAD Machine Light Gauge Steel Frame Roll Forming Machine Lgs Machine with Vertex Bd Need one 40 feet container to hold.

Our Service
1	Two-years quality assurance for all the machine
2	Technical staff available to service machine overseas
3	Permanent free for technical support
4	Design and produce according to your sample or drawing
