Hot Sale Industrial Pipes& Fittings PTFE-Lined Straight Pipe/Spool for Toxic Medium
| Payment Terms: | L/C, D/A, D/P, T/T |
|---|
Related products from verified members
Quick Details
- Connection: Flange
- Brand Name: pioneer
- Type: pipe
- Technics: Casting
- Material: Stainless Steel
- Shape: Reducing
Specifications
Detail images:

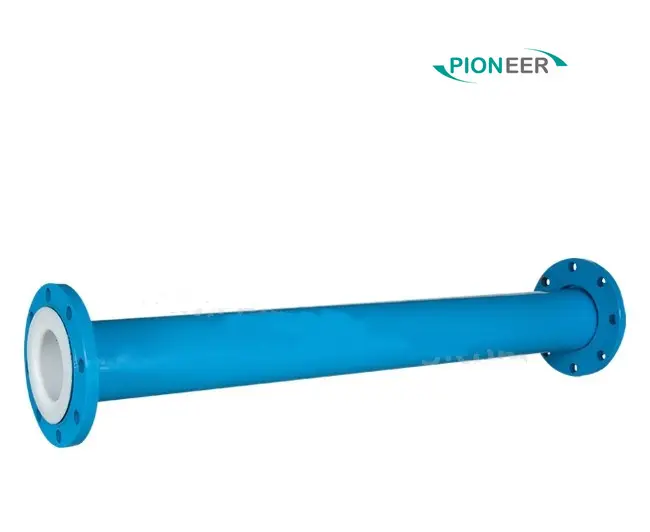

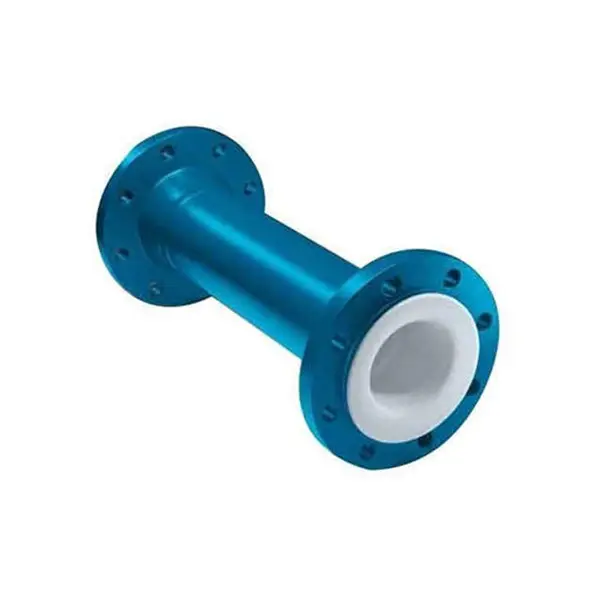

PTFE lined pipe/spool
Overview:
PTFE powder with high performance is used to push (squeeze) into the pipe, the surface is chemically treated, and then it
Is lined into seamless steel tube (the outer diameter of the liner is slightly larger than the inner diameter of the steel tube
1.5-2mm) to form a seamless liner.to relieve the stress, it is placed in a furnace and heated to 180 degrees for constant
Temperature treatment, so that it is suitable for use in temperatures below 180 degrees.At the same time, the axial tensile
Strength of push (squeeze) pressure pipe is obviously better than that of winding pipe, which can be used in micro-negative pressure pipeline.
Industries:
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment
Feature & Benefits:
1.the piping and fittings were tested hydraulically at 1.5 times the design pressure.
2.Where PTFE lining is involved, 100% integrity test is conducted after hydrostatic test, and the leakage point test method is electric spark test.
3.Lining material: PTFE,PFA,FEP,PVDF,PO,PP,PE
Acid Transfers, Caustic & Chlor- Alkali, Chemicals, Pharmaceuticals, Water Treatment
Feature & Benefits:
1.the piping and fittings were tested hydraulically at 1.5 times the design pressure.
2.Where PTFE lining is involved, 100% integrity test is conducted after hydrostatic test, and the leakage point test method is electric spark test.
3.Lining material: PTFE,PFA,FEP,PVDF,PO,PP,PE
Design standard:
Nominal diameter: DN25~DN300
Length: ≤4000mm
Medium: strong acid, strong alkali, organic solvent, strong oxidant, toxic, volatile, flammable chemical medium
Connection: flanged
Lining Specifications:
Lining Material
We offer lining materials like PTFE,PFA,FEP,PVDF,PO,PP,PE
Nominal diameter: DN25~DN300
Length: ≤4000mm
Medium: strong acid, strong alkali, organic solvent, strong oxidant, toxic, volatile, flammable chemical medium
Connection: flanged
Lining Specifications:
Lining Material
We offer lining materials like PTFE,PFA,FEP,PVDF,PO,PP,PE
Temperature:
PTFE Max: 260°C,
FEP Max: 204°C,
PFA Max: 260°C,
PVDF Max: 140°C,
PO Max: 80°C
PE Max: 70°C,
PP Max: 120°C
Lining Thickness
Min. 3.0mm
Spark Test
Body liners & all wet parts are tested for spark at 15,000 Volts
PTFE Max: 260°C,
FEP Max: 204°C,
PFA Max: 260°C,
PVDF Max: 140°C,
PO Max: 80°C
PE Max: 70°C,
PP Max: 120°C
Lining Thickness
Min. 3.0mm
Spark Test
Body liners & all wet parts are tested for spark at 15,000 Volts
