Home >Products Catalog > Dew Point Meter > RD2630 High-Accuracy Dew Point Meter with Real-Time Graph Display

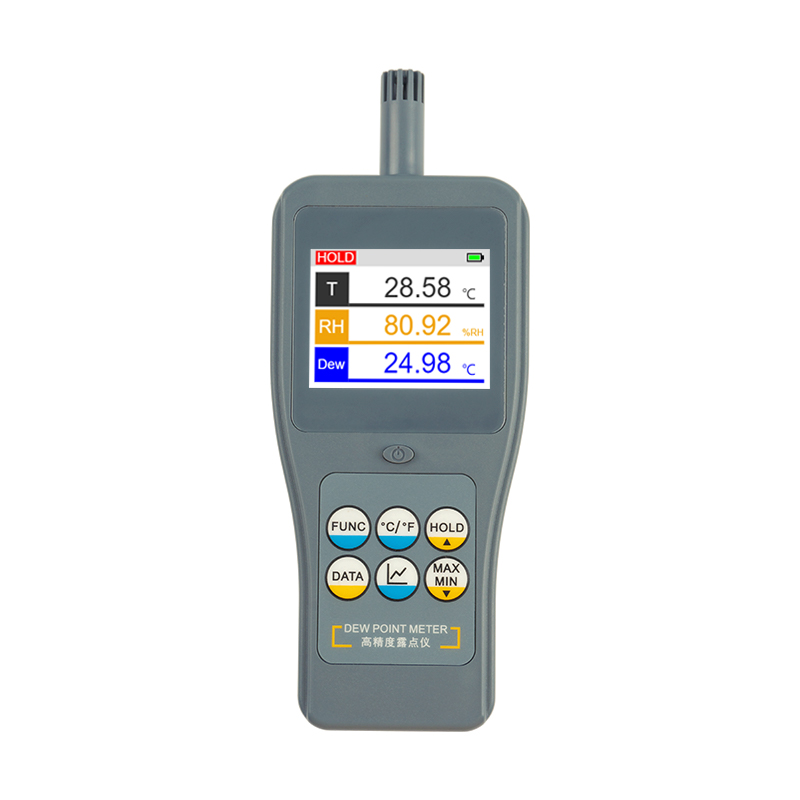

RD2630 High-Accuracy Dew Point Meter with Real-Time Graph Display

Supply Ability:	1,000 Piece(s) per Week
Shipping:	qingdao
Payment Terms:	T/T

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	carton box

Quick Details

Brand Name: realltech
color: grey
Theory: Temperature and Humidity
Resolution: 0.01
Size: 205*80*31mm
Model Number: RD2630
Test Parameters: Ambient Temperature, Dew Point Temperature, Wet Bulb Temperature, Relative Humidity, Absolute Humidity, PPMv
Dew Point Temperature Range: -30~60 Celsius degree (-22~140 Fahrenheit degree)
Power Supply: 4*1.5V AAA(UM-4) Battery
Weight: 162g (Not Including Batteries)
Data Storage: 99 Groups (A Total of 594 Data)
Graph Display: Dew Point Temperature

Specifications

RD2630 HighAccuracy Dew Point Meter with RealTime Graph Display RD2630 High-accuracy Dew Point Meter

Introduction

It is a High-accuracy professional dew point meter. It is able to measure Ambient Temperature, Dew Point Temperature, Wet Bulb Temperature, Relative Humidity, Absolute Humidity, PPMv. It can quickly respond to temperature and humidity Measurements in the industrial range. Widely used in laboratories, precision manufacturing, Modern agriculture, meteorological measurement, chemical and pharmaceutical, Power industry and other temperature and humidity monitoring occasions.

Features

Large Color LCD with display. It can display multiple values at the same time.

Ambient Temperature measurement.

Dew Point Temperature measurement.

Wet Bulb Temperature measurement.

Relative Humidity measurement.

Absolute Humidity measurement.

PPMv Measurement.

Temperature unit (°F/°C).

0.01 High resolution.

High Accuracy.

with Real-time graph display function.

with Data storage and view functions.

with Maximum and minimum values function.

with the displayed values hold function.

with Battery indication function.

with Automatic power off function.

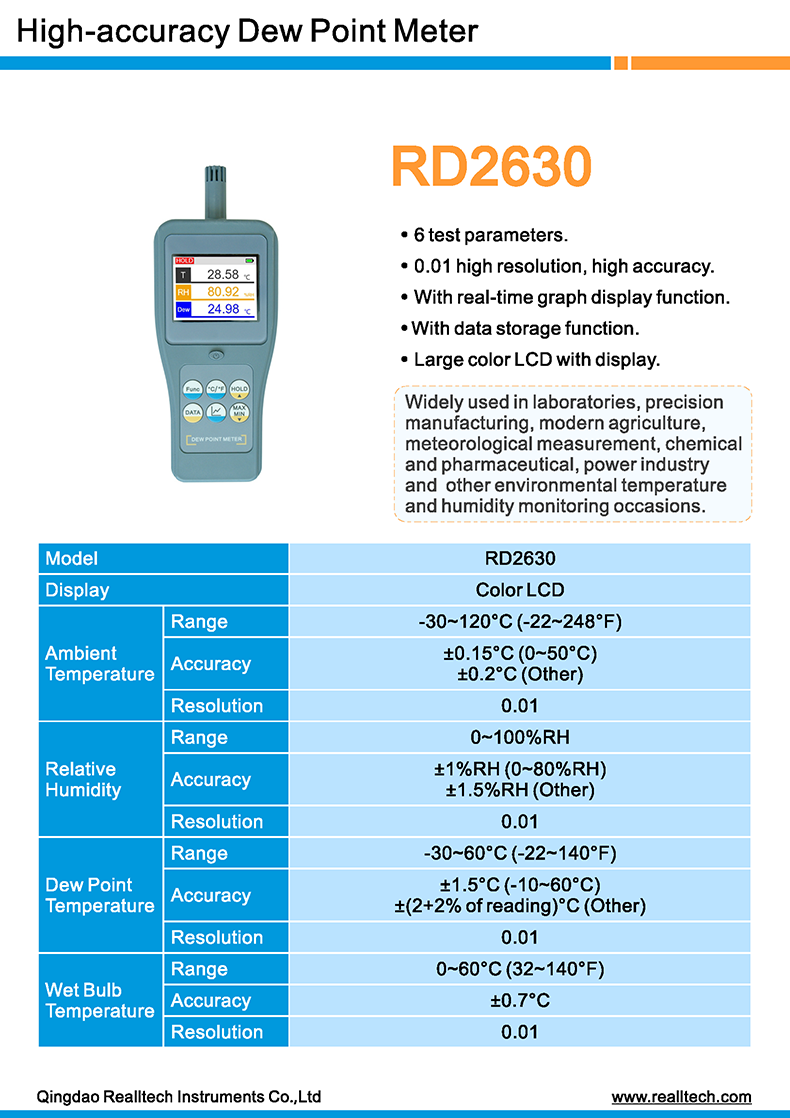

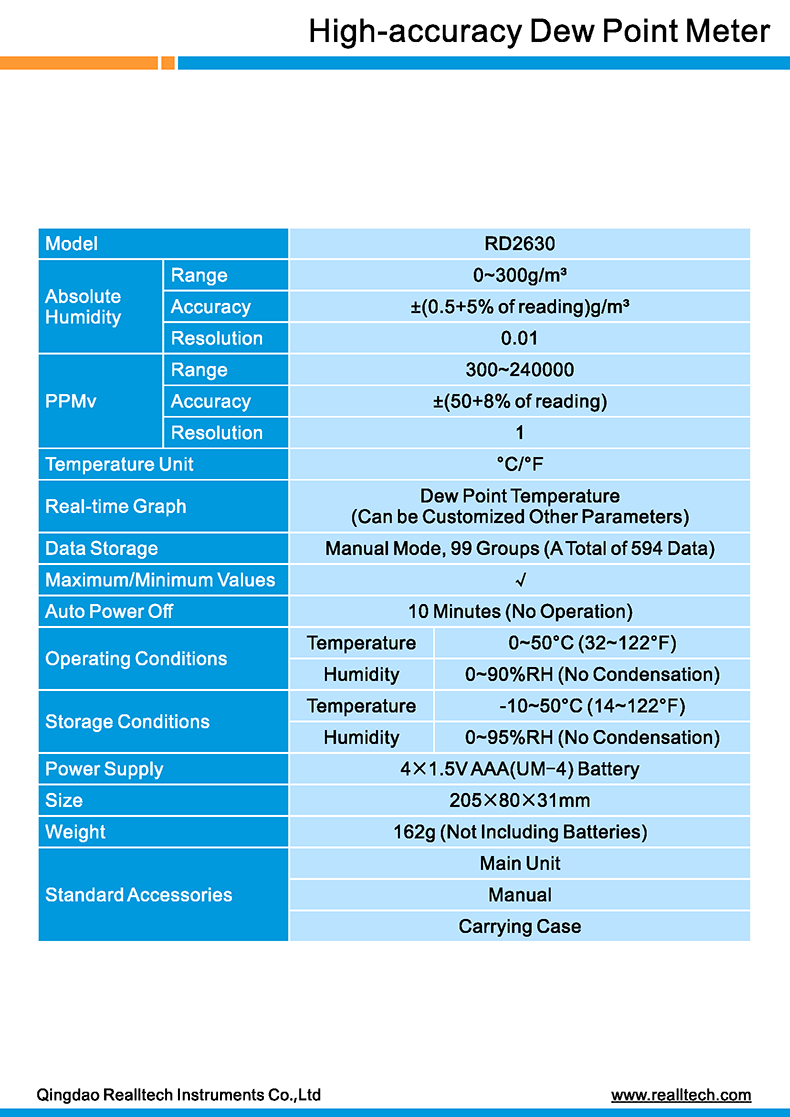

Specifications

Display	Color LCD
Test Parameters	Ambient Temperature, Dew Point Temperature, Wet Bulb Temperature, Relative Humidity, Absolute Humidity, PPMv
Ambient Temperature	Range	-30~120°C (-22~248°F)
	Accuracy	±0.15°C (0~50°C) ±0.2°C (Other)
	Resolution	0.01
Relative Humidity	Range	0~100%RH
	Accuracy	±1%RH (0~70%RH) ±1.5%RH (Other)
	Resolution	0.01
Dew Point Temperature	Range	-30~60°C (-22~140°F)
	Accuracy	±1.5°C (-10~60°C) ±(2+2%Num)°C (Other)
	Resolution	0.01
Wet Bulb Temperature	Range	0~60°C (32~140°F)
	Accuracy	±0.7°C
	Resolution	0.01
Absolute Humidity	Range	0-300g/m3
	Accuracy	±(0.5+5%Num)g/m3
	Resolution	0.01
PPM	Range	300~240000
	Accuracy	±(50+8%Num)
	Resolution	1
Temp. Unit	°C/°F
Data Storage	99 Groups (A Total of 594 Data)
Graph Display	Dew Point Temperature (Can be Customized Other Parameters)
Auto Power off	10 Minutes (No Operation)
Operating Conditions	Temperature	0~50°C (32~122°F)
Operating Conditions	Humidity	0~90%RH (No Condensation)
Storage Conditions	Temperature	-10~50°C (14~122°F)
Storage Conditions	Humidity	0~95%RH (No condensation)
Power Supply	41.5V AAA(UM-4) Battery
Size	2058031mm
Weight	162g (Not Including Batteries)

Standard Accessories

Main Unit	1
Manual	1
Carrying Case	1

the warranty period is 12 months
