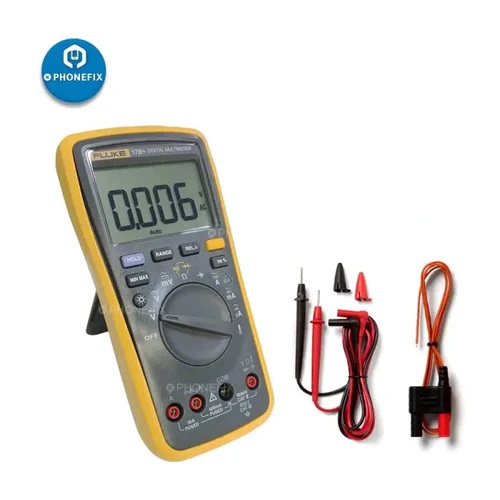

FLUKE 15B+/17B+ High Precision Temperature Frequency Auto Dgital Multimeter PCB Testing Tool

FOB Price:	76.00 - 76.99 USD/Piece
Supply Ability:	100,000 Inch(es) per Month
Shipping:	Shenzhen
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	carton

Quick Details

Brand Name: FLUKE
Color: yellow
Material: High quality
Size: 15x15x15cm
OEM: FLUKE
Model Number: VC712

Specifications

FLUKE 17B+ digital multimeter. FLUKE 15B+ digital multimeter. FLUKE 15B+/17B+ high precision temperature frequency auto multifunction digital multimeter for Mobile Phone repair.

Product Features:

Faster response
Greater capacitance range: 0.01nF ~ 1000μF
the more bright: Add white LED backlight
Larger screen: Larger than the original 1.5 times

Product Specification:

Maximum Voltage between any Terminal and Earth Ground: 1000 V
Display(LCD): 4000 counts,updates 3/sec
Battery Type: 2 AA,NEDA 15A, IEC LR6
Battery life: 500 hours minimum(50 hours in LED Test mode without load. the hours with load depends on the type - of LED under test)
Operating Temperature: 0 deg to 40 deg
Storage Temperature: -30 deg to 60 deg
Operating Humidity: Non-condensing≤90%at 10deg to 30deg;≤75% at 30deg to 40deg
Operating Humidity,40MC Range: ≤80% at 10deg to 30deg;≤70% at 30deg to 40deg
Operating Altitude: 2000m
Storage Altitude: 12.000m
Temperature Coefficient: 0.1(specified accuracy)/deg(<18deg or > 28deg)
Fuse protection for current inputs: 440 mA,1000 V Fast Fuse, Fluck specified part only.
11A,1000v Fast Fuse, Fluke specified part only.
Size(HWL): 1839149.5(mm)
IP Rating:.IP 40
Safety:.IEC 61010-1, IEC61010-2-030 600V CAT,1000V CATPollution Degree 2
Electromagnetic Environment: IEC 61326-1:Portable
Class A Equipment(Industrial Broadcasting and Communication Equipment)

Function Range Accuracy:

AC Volts: 400mV / 4V / 40V / 400V / 1000V, +/-3.0+3, 0.1Mv to 1,000V
DC Volts: 400mV / 4V / 40V / 400V / 1000V, +/-1.0+10, 0.1Mv to 1,000V
AC Current: 400uA / 4000uA / 40mA / 400mA / 4A / 10A, +/-1.5%+3,0.1UA to 10A
DC Current: 400uA / 4000uA / 40mA / 400mA / 4A / 10A, +/-1.5%+3,0.1UA to 10A
Capacitance: 50nF/ 200Nf / 2Uf / 20Uf / 200Uf / 20Mf,+/-2%+5, 0.01nF to 100uF
Resistance: 400 / 4K / 40K / 400K / 4M / 40M Ohm, +/-0.5%+3, 0.1 ohm to 40Mohm

RANGE VOLTS AC 0.1Mv to 1,000V
RANGE VOLTS DC 0.1Mv to 1,000V
RANGE AC CURRENT 0.1UA to 10A
RANGE DC CURRENT 0.1UA to 10A
RANGE RESISTANCE 0.1 ohm to 40Mohm
RANGE CAPACITANCE 0.01nF to 100uF

VOLTAGE AC 400mV / 4V / 40V / 400V / 1000V, +/-3.0+3
VOLTAGE DC 400mV / 4V / 40V / 400V / 1000V, +/-1.0+10
RESISTANCE 400 / 4K / 40K / 400K / 4M / 40M Ohm, +/-0.5%+3
CAPACITY 50nF/ 200Nf / 2Uf / 20Uf / 200Uf / 20Mf,+/-2%+5
CURRENT AC 400uA / 4000uA / 40mA / 400mA / 4A / 10A, +/-1.5%+3
CURRENT DC 400uA / 4000uA / 40mA / 400mA / 4A / 10A, +/-1.5%+3

Package List:

1pcs x Original Fluke 15B+ / 17B+ digital multimeter
2pcs x Test lead lines
1pcs x User Manual
