Grade-PC Automatic Transfer Switch SFP Ga Series

FOB Price:	30.00 - 60.00 USD/Piece

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Output Voltage: /
Input Voltage: 220V
Output Type: Triple
Output Power: /
Brand Name: Sfere

Specifications

Basic Info.

Model NO.

SFP1-100GA

Warranty

2 Years

Brand

Sfere

Operation

Electric

Certification

CCC, CE

Type

Integrated automatic transfer switch

Poles

Output type

Dual

Rated Working Current (a)

80,100,125

Rated Control Power Supply Current (a)

Rated Short-Time Withstand Current (Ka)

Rated Impulse Withstand Voltage (Kv)

Service Category

AC-33A

Weight (Kg)

6.5

Operating Period (S/Time)

Service Life(Mechanical)

20000

Specification

31.1*18.4mm

Trademark

SFERE

Origin

China

Production Capacity

30000PCS/Per Month

Product Description

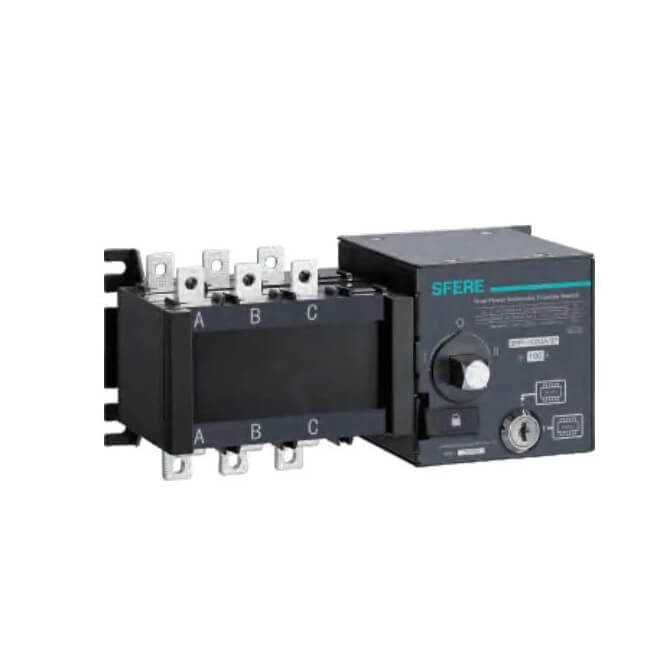

Product Name: Grade-PC Automatic Transfer Switch SFP GA Series
SFP1-series automatic transfer switching equipment (ATSE) consists of two parts - switch body and transfer controller. the switch is driven with the solenoid coil to ensure high transfer rate; the transfer controller is equipped with normal power supply and the working voltage of standby power supply is AC220V.
Model NA is of a special dedicated ATSE, which is of compact structure with the intelligent controller installed in the switch body. It is convenient for the user to connect the wires since it only needs to turn on the main circuit before switching in.
Model N adopts split-type external control, where the controller is connected to the switch body through a special cable for the convenience of installation and wiring. both the split-type and integrated products have the ability to detect the faults of two circuits of three-phase power supply such as overvoltage, undervoltage and phase loss etc.; they also may be optionally equipped with start/stop signal output functions of generator unit (the signal will be sent with about 3s delay when the main power supply fails, and will be disabled with about 3s delay when the main power supply is recovered).

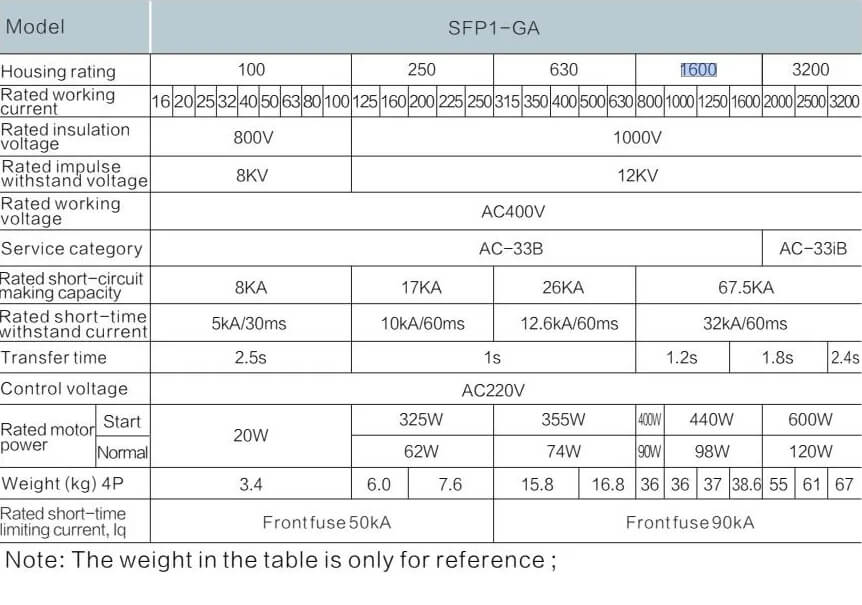

Technical Specifications
GradePC Automatic Transfer Switch SFP Ga Series

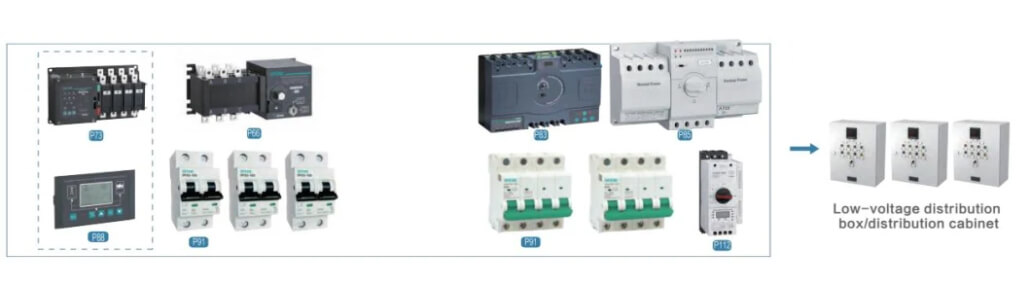

Application
GradePC Automatic Transfer Switch SFP Ga Series
