High Coverage Condition Monitoring Value Display Ec2 Lora 2400-19200 BPS Wireless Communication Module

FOB Price:	50.00 - 75.00 USD/Piece

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Brand Name: Elecnova
Frequency: 100MW
Frequency Range: /
Polarization: /
Weight: /
Model Number: EC2

Specifications

Basic Info.

Model NO.

EC2

Usage

Wireless Transmission, Industrial

Type

Wireless

Support Network

GPRS

Information content

Data

Certification

CE, CCC

Condition

New

Chipset

890

Application

Wireless Transmission, Industrial

Wireless Interface

Lora

Protocol

Modbus-RTU

Communication Mode

N81/E81/O81/N82

Frequency Band

470-510m/863-870m/902-928m

Working Temperature

-25°c -- 70°c

Protection Class

IP20

Transport Package

Wooden Box

Trademark

ELECNOVA

Origin

China

HS Code

9030899090

Production Capacity

20000PCS/Per Month

Product Description

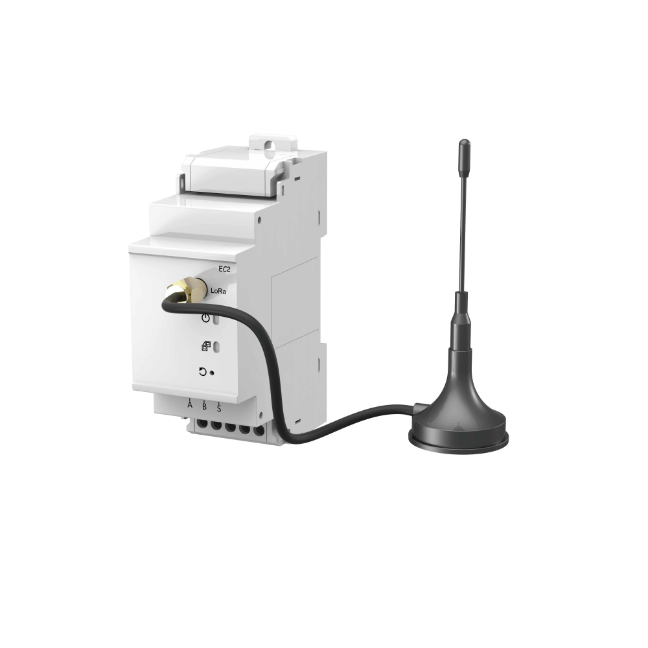

Product Name: High coverage condition monitoring value display EC2 LoRa 2400-19200 bps wireless communication module

EC2 as PD1946-E series of supporting modules, mainly to achieve lora and slot channel transmission function, through the external RS485 can set the parameters of the lora and slot serial port, IAP program upgrade, state monitoring. Can configure the frequency band and channel through the upper computer, and can also configure the parameters such as lora frequency, spread spectrum factor, bandwidth and coding rate manually.
High Coverage Condition Monitoring Value Display Ec2 Lora 240019200 BPS Wireless Communication Module

Technical Specifications

Working environment conditions
Working temperature	-25°C -- 70°C
Storage temperature	-40°C -- 85°C
Relative humidity	≤95%RH,without condensation
Working altitude	≤2500m
Antifouling level	No corrosive gas
Protection class	IP20
Insulation	Signal, power, output terminal to case resistance> 100MΩ
Pressure resistance	Input and power ≥2kV, input and output ≥2kV, power and output ≥2kV
Communication interface
Physical interface	RS-485
Communication rate	Max communication rate 115200bps (default 9600bps)
Communication protocols	Modbus-RTU
Isolation voltage
Isolation voltage

Typical Wiring
High Coverage Condition Monitoring Value Display Ec2 Lora 240019200 BPS Wireless Communication Module
