Multi-Circuit Electricity Monitor System DIN-Rail Mounted Multi Channel Rtm Energy Accuracy 0.5s Power Monitor Meter

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Brand Name: Elecnova
color: /
Theory: /
Resolution: /
Size: /
Model Number: PD194Z-E14

Specifications

Basic Info.

Model NO.

PD194Z-E14

Task

Adjust

Structure

Combination

Mathematical Model

Linear

Signal

Continuous

Function

Monitoring, Measurement

Certification

ISO: 9001, CE

Condition

New

Customized

Material

Stainless Steel

Accuracy Class

0.5s

Output Voltage

AC 250V/DC 30V

Measuring Energy Range

0-99999

Rated Voltage

AC 100V, AC 380V

Rated Current

Optional External CT

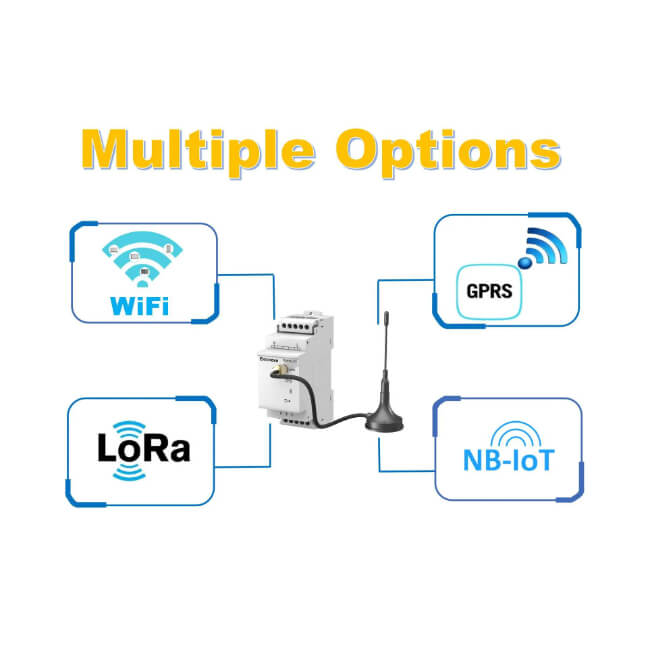

Communication

RS485, Lora

Display

LCD

Mounted Type

DIN Rail Mounted

Application

Multi Channel Power Meter

Frequency

50-60Hz

OEM

Avaliable

Specification

90*72*63.5mm

Trademark

ELECNOVA

Origin

China

Production Capacity

20000PCS/Per Month

Product Description

Product Name: Sfere700 series 3 phase remote power monitoring system multi circuit Power Meter

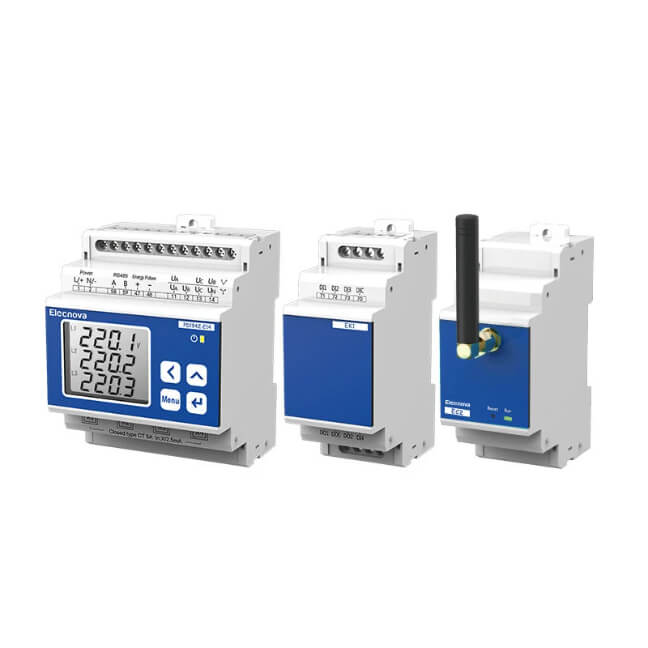

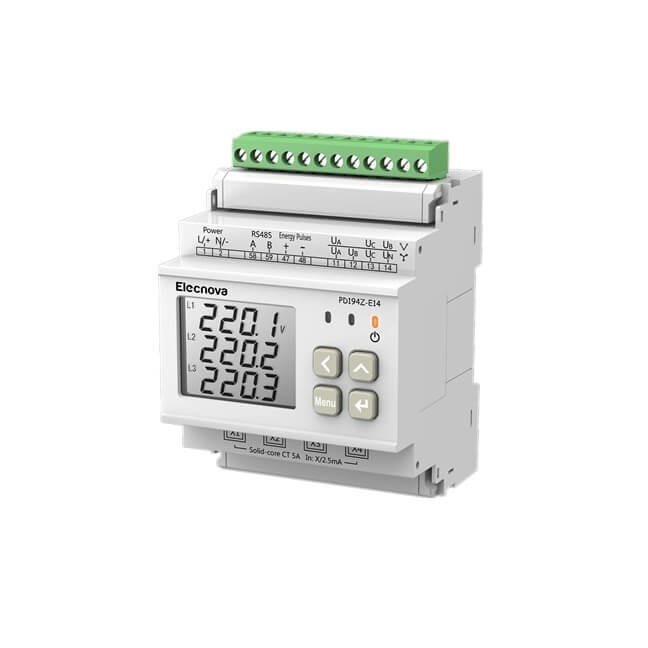

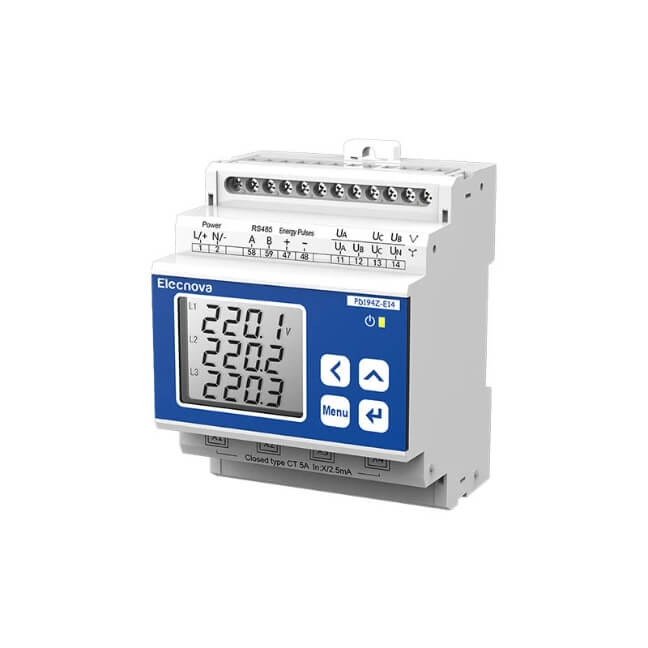

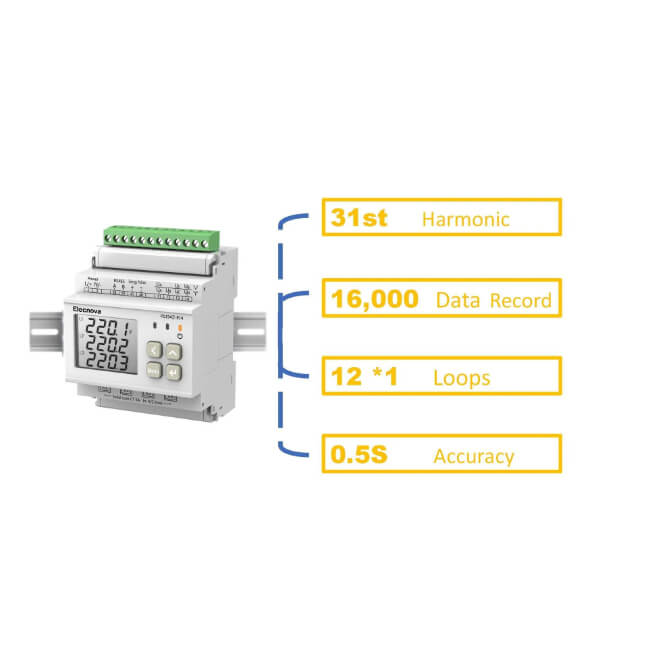

PD194Z-E14 can measure parameters of multiple three phase or single phase power grid such as voltage, current, power, frequency, energy, demand, extreme value, total harmonic distortion, 2nd31st harmonics, voltage and current unbalance and multirate electric energy measurement. the maximum measurement circuits of PD194ZE14 is four threephase circuits or twelve one singlephase circuits. the meter adopts access mode of external current transformer and modular design which is convenient for user to choose different functions to meet different requirements at field.
MultiCircuit Electricity Monitor System DINRail Mounted Multi Channel Rtm Energy Accuracy 05s Power Monitor Meter

Technical Specifications

Accuracy	V/A	0.2%
	P/Q/S/PF	0.5%
	F	±0.01 Hz
	kWh	Class O.5S
	±kvarh	Class 2
Voltage Input	Rated value	3x220V/380V
	Overload	Continuous: 1.2Vn Instantaneous: 2Vn/10s
	Burden	0.1 VA (per phase)
	Impedance	21.7MQ
	Frequency	45Hz65Hz
Current Input	Rated value	External CT
	Overload	Continuous: 1.2ln Instantaneous: 2ln/5s
	Burden	<0.2VA (per phase)
	Impedance	<20mC
Residual Current Input		AC 1mA
Auxiliary Power Supply	Working range	AC/DC 80270V
Auxiliary Power Supply	Consumption	<5VA
Communication Port	Default	RS485, Modbus-RTU, up to 9600bps

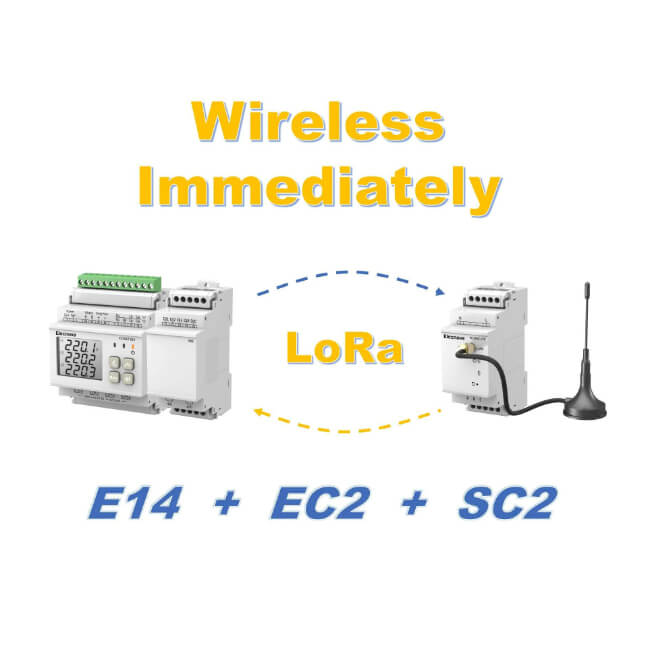

	LoRa, EC2 module	470MHz
	GPRS.EC4 module	850/900/1800/1900MHZ
	N^oT, EC6 module	Band3/5/8
Energy Pulse Output		1 photocoupler output, pulse width (80±20%) ms
Optional Module (EK1)	Digital inputs	Dry digital inputs, Isolation: 22kVAC
Optional Module (EK1)	Relay outputs	Contact rated at AC 250V/5A or DC 30V/5A
Environment Conditions	Operating temperature	-25C 70 C
	Storage temperature	-30C~80C
	Relative humidity	M93%
	Altitude	<2500m
