Multi Cell Automatic Partition Assembling Corrugated Box Inserting Equipment

FOB Price:	15000.00 - 30000.00 USD/Set
Supply Ability:	50 Set(s) per Year
Shipping:	FOB CIF

In Stock

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Type: Multi-Function Packaging Machine
Brand Name: welldoing
Packaging Material: Plastic
Packaging Type: Case
Application: Machinery & Hardware
Function: Wrapping
Driven Type: Electric
Automatic Grade: Automatic
Condition: New

Specifications

Multi cell Corrugated box inserting equipment

Product presentation:

1. suitable for the auto insertion of all kinds of carton clapboard.

2. Vertical direct using vacuum adsorption feeding, landscape orientation using servo feeding, quick and accurate.

3. Longitudinal and transverse to cross the two pieces of paper at the same time.
4. Longitudinal feeding shaft adopts electric lifting
5. Landscape orientation feeding worktable lifting adopts electric adjustment.

6. Electric adjust the clapboard height in landscape orientation.
7. Output in double work positions, high efficiency and energy saving.
8. partition assembler is touch screen control, electric adjust the clapboard parameters.

9. Comprehensive using of pneumatic and electric control, to ensure the advancement of machine control.

10. the partition assembler machine using compressed air strorage tanks for gas centralized supply, gas supply pressure stability, enough gas source. the gas device get the gas from the primary tracheal, independent control, no influence between each other.
11. the partition assembler equipped with fault detection device, auto stop the machine when paper blocking.

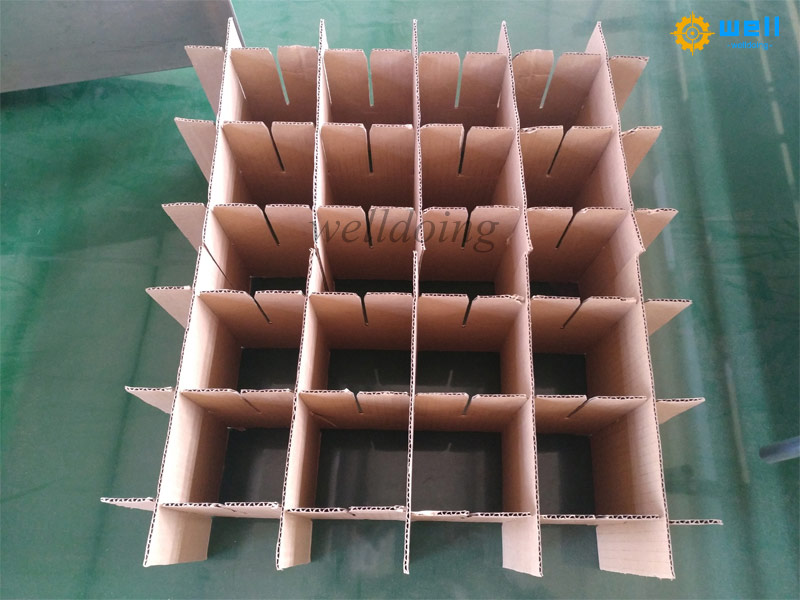

Finished picture:

Technical parameter:

Name	Unit	Date
Horizontal inserting width: A	mm	120~900
Lengthways sheets length: B	mm	mm210~450
Clapboard Height: H	mm	80~300
Lengthways clapboard distance: D	mm	20~400
Horizontal clapboard distance: C	mm	45-850
Lengthways sheets No.	unit	1-6
Horizontal clapboard No.	unit	1-21
Carton inserting mouth width: F	mm	board thickness
Carton thickness:K	mm	1.5~8mm

Our Services

1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. to solve problems by pictures/videos.
4. Engineers are available service abroad.

FAQ
1. Are you a factory or trading company?
We are both a factory and a trading company in this field.

2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit,
Pay the 70% balance before delivery, but we can also accept the L/C.

3. how does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.
