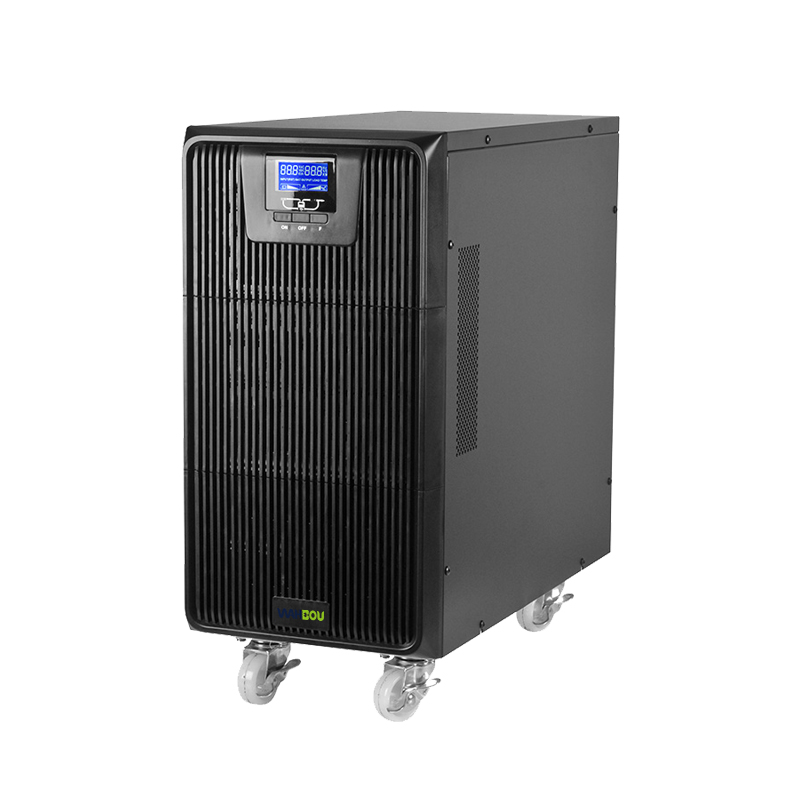

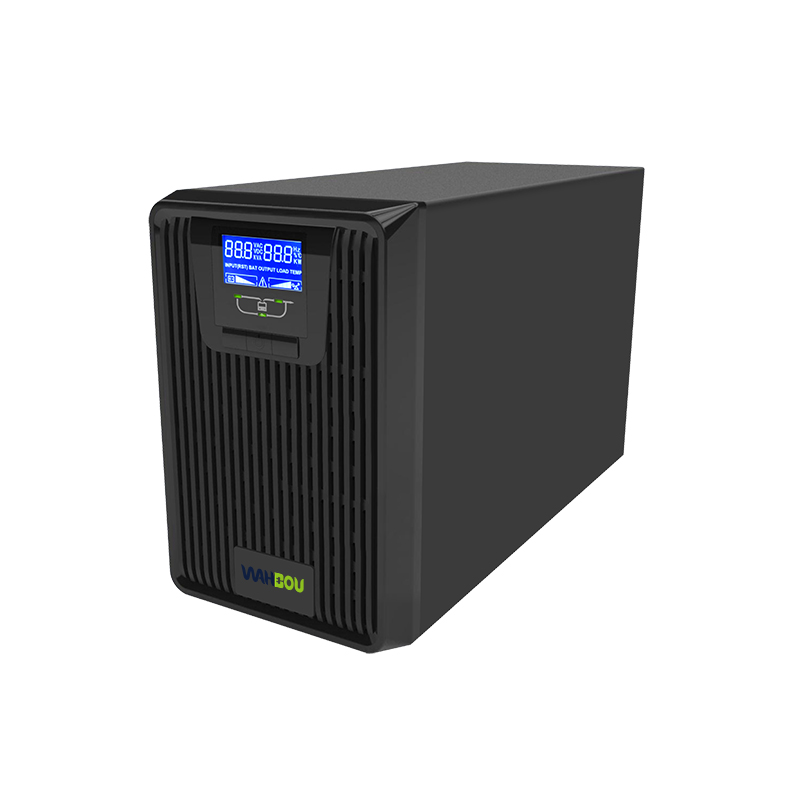

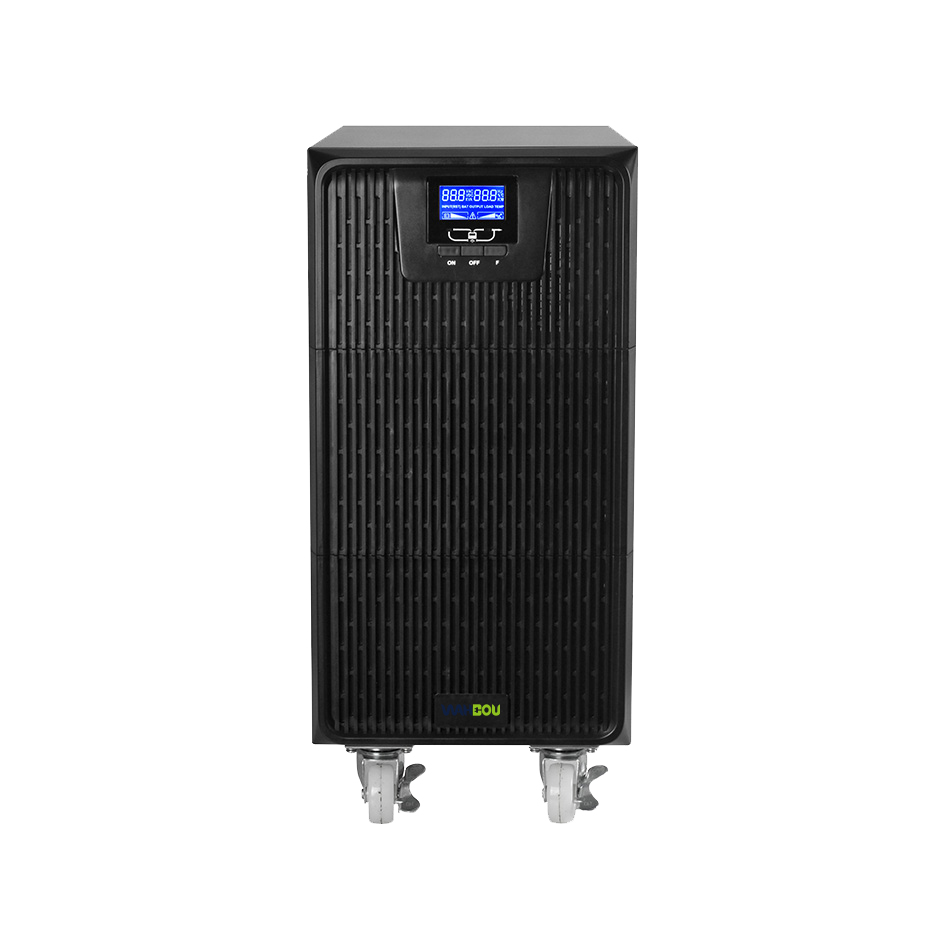

Single Phase 1KVA Online High Frequency UPS

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	high protection packing box

Quick Details

Application: Computer
Type: On-line
Protection: Overvoltage
Phase: Single Phase
Brand Name: Wahbou
Output Voltage: 220Vac 1P2W+G
Weight: 9.5kg
Model Number: XT 1KVA
Rated Power: 1kVA/0.9kW
Input Voltage Range: 90-285Vac 1P2W+G
input Working Frequency Range: 40-70Hz (settable)
Input Power Factor: 0.99
Output Frequency: 46-54Hz synchronize with mains power; 50Hz (Mains power between 40-46Hz and 54-60Hz ); 50Hz(Battery)
Output Power Factor: 0.9
Conversion time between Mains Power and Battery: 0ms
Battery Rated Voltage: 24Vdc
Battery Quantity: 2
Dimension (LxWxH) mm: 350x144x230mm

PARAMETER XT 1-3KVA

Single phase 1KVA Online High Frequency UPS

Model		XT 1KVA	XT 1KS	XT 2KVA	XT 2KS	XT 3KVA	XT 3KS
Rated Power		1kVA/0.9kW		2kVA/1.8kW		3kVA/2.7kW
Input	Voltage Range	90-285Vac 1P2W+G
	Working Frequency Range	40-70Hz (settable)
	Input Power Factor	≥0.99
Output	Rated Voltage and Accuracy	220Vac(1±2%) 1P2W+G
	Output Frequency	46-54Hz synchronize with mains power; 50Hz (Mains power between 40-46Hz and 54-60Hz ); 50Hz(Battery)
	Rated Current	4.5A		9.1A		13.6A
	Output Power Factor	0.9
	Output Harmonic Wave	≤4%
	Crest Factor			3:	1
	Output Overload	105%±5%Load≤125%±5%: Convert to bypass output and alarm after 50s; 125%±5%Load≤150%±5%: Convert to bypass output and alarm after 25s; Load150%±5%: Convert to bypass output and alarm after 300ms.
Conversion time between Mains Power and Battery		0ms
Efficiency		≥85%
Battery	Rated Voltage	24Vdc	36Vdc	48Vdc	72Vdc	72Vdc	96Vdc
	Quantity	2	3	4	6	6	8
	Charging Current	1A	6.5A	1A	5.5A	1A	5.5A
Dimension (LxWxH) mm		350x144x230		425x190x328
Weight		9.5kg	6kg	18.5kg	10kg	23.5kg	11kg
Working Temperature		0℃-40℃
Working Humidity		20%-95%
Noise		≤50dB
